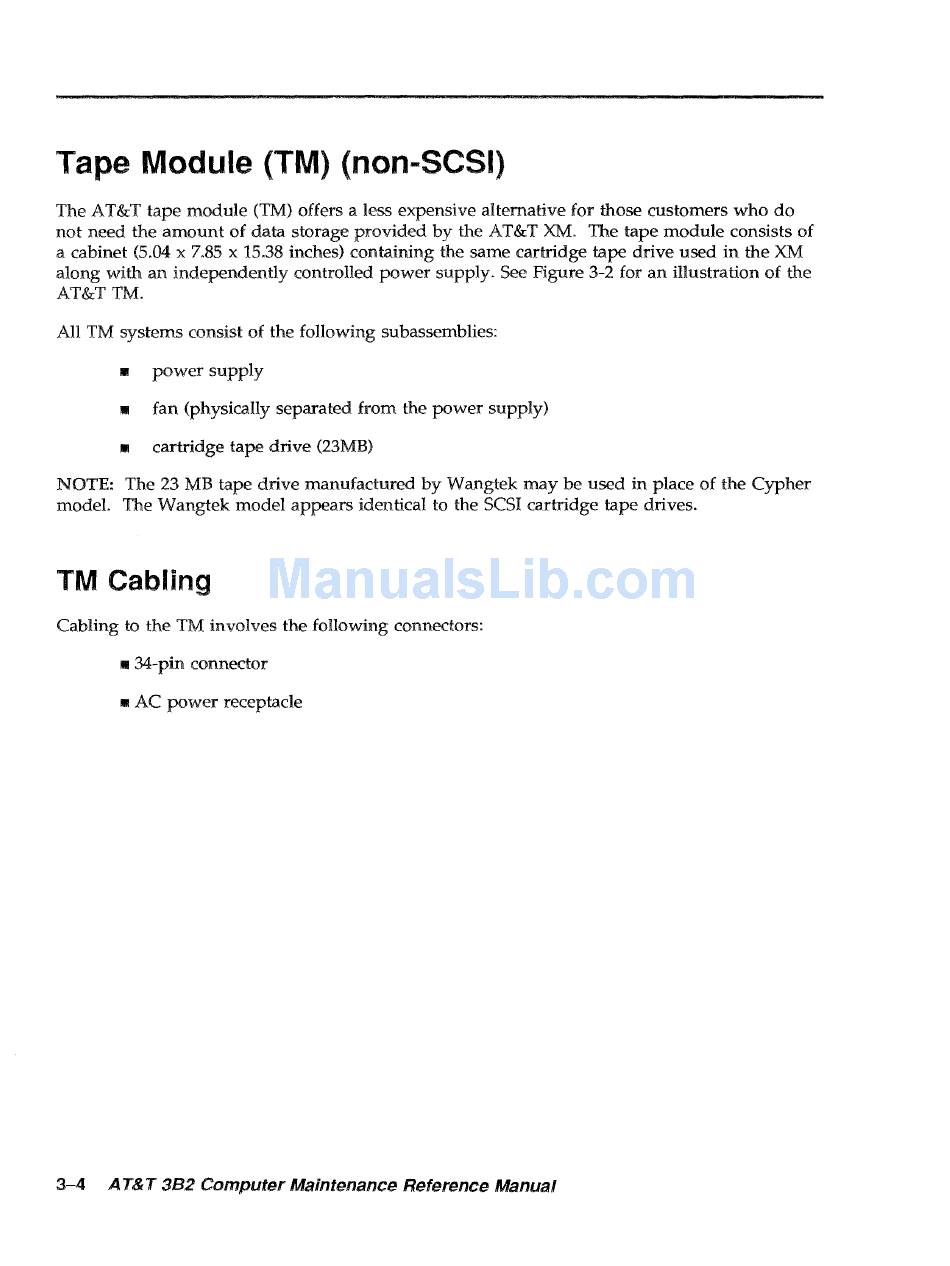

Tape Module {TM) (non-SCSI)
The AT&T tape module (TM) offers a less expensive alternative for those customers who do
not need the amount of data storage provided by the AT&T XM. The tape module consists of
a cabinet (5.04 x 7.85 x 15.38 inches) containing the same cartridge
tape
drive used in the XM
along with an independently controlled power supply. See Figure 3-2 for an illustration of the
AT&T TM.
All TM systems consist of the following subassemblies:
11
power supply
• fan (physically separated from the power supply)
• cartridge tape drive (23MB)
NOTE: The 23 MB tape drive manufactured by W angtek may be used in place of the Cypher
model. The Wangtek model appears identical to the SCSI cartridge tape drives.
TM Cabling
Cabling to the TM involves the following connectors:
11
34-pin connector
11
AC power receptacle
