Version 2 Hardware
BATIERY CONNECTOR
HARD DISK CONNECTOR
(DAISY-CHAINED)
CONSOLE/CONTTY
CONNECTOR
MEMORY CARD SLOT 0
MEMORY CARD SLOT 1
XM SOFT POWER CONNECTOR

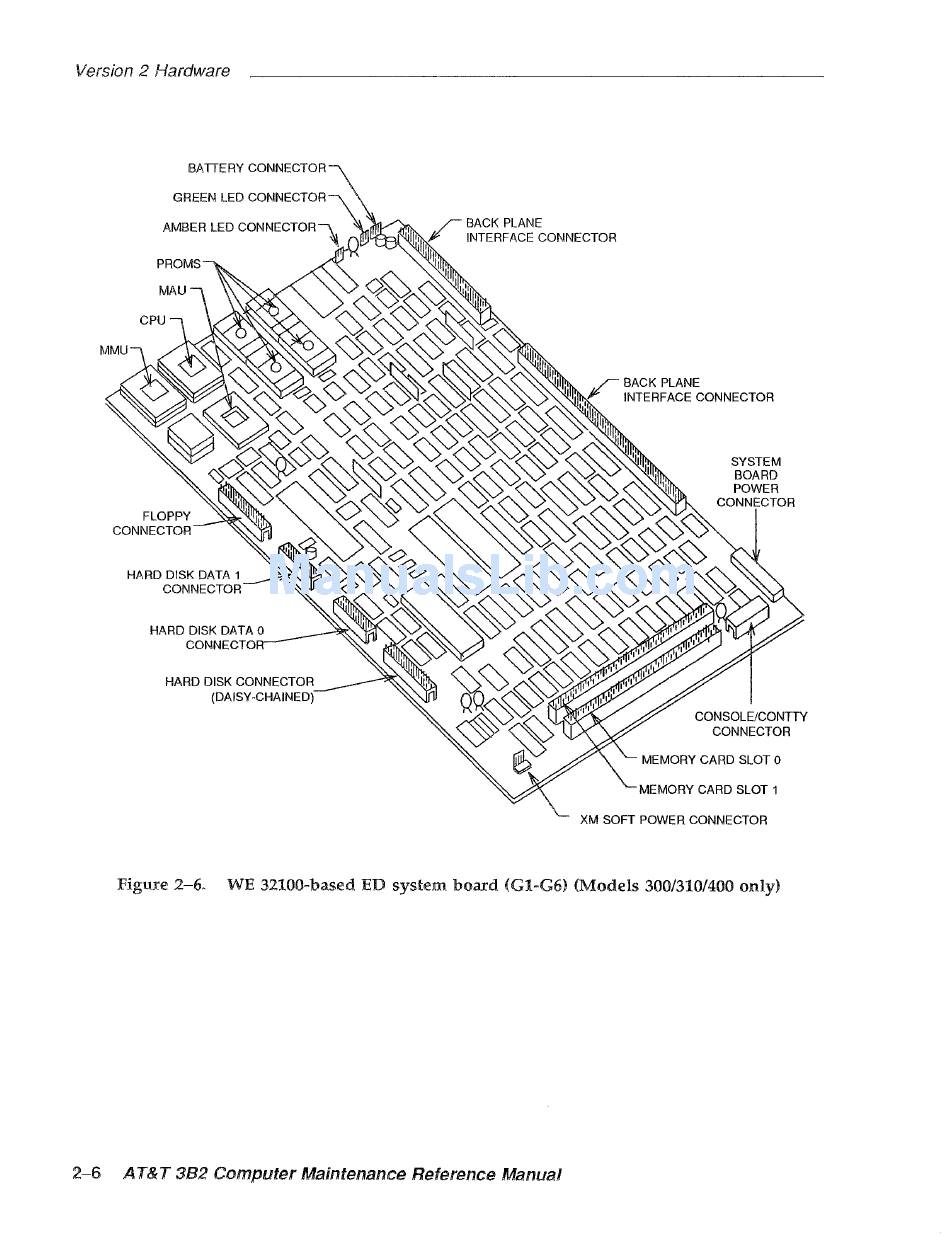

Figu:re
2-6,
WE
32100-based ED system board
(G1-G6)
(Models 300/310/400 only)
2-6
AT&T 382 Computer Maintenance Reference Manual
