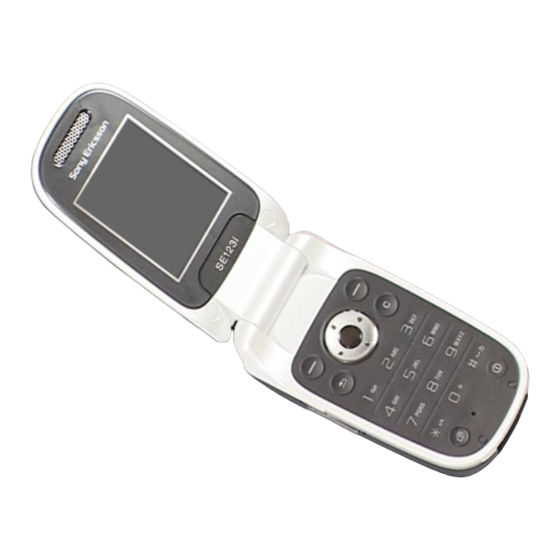

Sony Ericsson z310 Working Instruction, Mechanical

Hide thumbs Also See for z310:

Advertisement

Quick Links

Working Instruction, Mechanical
Applicable for Z310
CONTENTS
1 Introduction .............................................................................. 3
1.1 Equipment.................................................................................4
1.2 General cautions ......................................................................5
2 Disassembly ............................................................................. 6
2.1 Lower unit .................................................................................7
2.2 Upper unit ...............................................................................15
3 Replacements......................................................................... 23
3.1 Battery Cover..........................................................................24
3.2 Lower Frame ...........................................................................24
3.3 Water Protective Tape............................................................24
3.4 Lower Front.............................................................................24
3.5 U-Cover ...................................................................................24
3.6 Screw Covers..........................................................................24
3.7 Upper Frame ...........................................................................24
3.8 LCM, Main + Sub-LCD ............................................................25
3.9 Hinge Plug...............................................................................25
3.10 FPC
3.11 Upper Front.............................................................................25
3.12 Volume Key.............................................................................26
3.13 IrDA Window ...........................................................................27
3.14 Bluetooth Antenna .................................................................28
3.15 Loudspeaker Box ...................................................................29
3.16 Speaker Gasket ......................................................................30
3.17 Dust Gasket, System Connector...........................................31
3.18 System Connector..................................................................32
3.19 Microphone .............................................................................33
3/000 21-1/FEA 209 544/125 B
©
Company Internal
Sony Ericsson Mobile Communications AB
2.1.1
Battery Cover & Battery......................................................... 8
2.1.2
Lower Frame ......................................................................... 9
2.1.3
PBA ..................................................................................... 11
2.1.4
Water Protective Tape......................................................... 12
2.1.5
Lower Front ......................................................................... 13
2.2.1
U-Cover............................................................................... 16
2.2.2
Screw Covers ...................................................................... 17
2.2.3
Upper Frame ....................................................................... 18
2.2.4
LCM, Main/Sub LCD ........................................................... 20
2.2.5
Hinge Plug........................................................................... 21
2.2.6
FPC ..................................................................................... 22
......................................................................................25
Working Instruction, Mechanical

Advertisement

Table of Contents
loading

Summary of Contents for Sony Ericsson z310

  • Page 1 3.13 IrDA Window ................27 3.14 Bluetooth Antenna ..............28 3.15 Loudspeaker Box ..............29 3.16 Speaker Gasket ..............30 3.17 Dust Gasket, System Connector...........31 3.18 System Connector..............32 3.19 Microphone ................33 3/000 21-1/FEA 209 544/125 B © Company Internal Sony Ericsson Mobile Communications AB...
  • Page 2 Lower Front ................. 63 4.2.2 Water Protective Tape............66 4.2.3 PBA ..................67 4.2.4 Lower Frame ............... 68 4.2.5 Battery & Battery Cover............70 5 Revision history ..............71 3/000 21-1/FEA 209 544/125 B 2(71) © Company Internal Sony Ericsson Mobile Communications AB...
  • Page 3: Introduction

    Working Instruction, Mechanical 1 Introduction 3/000 21-1/FEA 209 544/125 B 3(71) © Company Internal Sony Ericsson Mobile Communications AB...
  • Page 4: Equipment

    • Hot air flow solder station • Zebra printer connected to computer OTHER EQUIPMENT • ESD-wristband • ESD-gloves • Isopropyl alcohol • Air blower 3/000 21-1/FEA 209 544/125 B 4(71) © Company Internal Sony Ericsson Mobile Communications AB...
  • Page 5: General Cautions

    REMEMBER TO REMOVE THE PROTECTION FOILS ON NEW PARTS SUCH AS THE LCD • NEVER TOUCH THE DISPLAY GLASS • USE AIR BLOW EQUIPMENT TO KEEP THE FRONT WINDOW AND DISPLAY MODULE DUST FREE 3/000 21-1/FEA 209 544/125 B 5(71) © Company Internal Sony Ericsson Mobile Communications AB...
  • Page 6: Disassembly

    Replacements for the actual replacement. REPLACEMENTS Contents Start page REASSEMBLY DISASSEMBLY Done 3/000 21-1/FEA 209 544/125 B 6(71) © Company Internal Sony Ericsson Mobile Communications AB...
  • Page 7: Lower Unit

    The disassembly is done in the following order: 1. Battery Cover (a) & Battery (b) 2. Lower Frame 3. PBA 4. Water Protection Tape 5. Lower Front 3/000 21-1/FEA 209 544/125 B 7(71) © Company Internal Sony Ericsson Mobile Communications AB...
  • Page 8: Battery Cover & Battery

    Working Instruction, Mechanical 2.1.1 Battery Cover & Battery Release the Battery Cover. Remove the Battery Cover. Grab the Battery and pull it up. Remove the Battery. 3/000 21-1/FEA 209 544/125 B 8(71) © Company Internal Sony Ericsson Mobile Communications AB...
  • Page 9: Lower Frame

    Use a guitar pick and slide upwards and downwards to release the Lower Frame from the Lower Front. HIS NEEDS TO BE DONE ON THE OPPOSITE SIDE ALSO 3/000 21-1/FEA 209 544/125 B 9(71) © Company Internal Sony Ericsson Mobile Communications AB...
  • Page 10 HIS NEEDS TO BE DONE ON THE OPPOSITE SIDE ALSO Use your fingers and wiggle the Lower Frame upwards to release it from the Lower Front. Remove the Lower Frame. 3/000 21-1/FEA 209 544/125 B 10(71) © Company Internal Sony Ericsson Mobile Communications AB...
  • Page 11 Use a front opening tool and pull it upwards to disconnect the 60 pin BtB Connetor. Use your fingers to remove the PBA, according to the arrows in the picture. 3/000 21-1/FEA 209 544/125 B 11(71) © Company Internal Sony Ericsson Mobile Communications AB...
  • Page 12: Water Protective Tape

    Working Instruction, Mechanical 2.1.4 Water Protective Tape Use tweezers to remove the Water Protective Tape. 3/000 21-1/FEA 209 544/125 B 12(71) © Company Internal Sony Ericsson Mobile Communications AB...
  • Page 13: Lower Front

    Lower Front downwards to release it. The Lower Front is now released from the Hinge mechanism. FPC A OWER RONT IS STILL ATTACHED TO THE 3/000 21-1/FEA 209 544/125 B 13(71) © Company Internal Sony Ericsson Mobile Communications AB...
  • Page 14 Working Instruction, Mechanical Lower Front continued Use your fingers to push the FPC Assy through the hole. Remove the Lower Front. 3/000 21-1/FEA 209 544/125 B 14(71) © Company Internal Sony Ericsson Mobile Communications AB...
  • Page 15: Upper Unit

    The disassembly is done in the following order: 1. U-Cover 2. Screw Covers 3. Upper Frame 4. LCM, Main + Sub-LCD 5. Hinge Plug 6. FPC 3/000 21-1/FEA 209 544/125 B 15(71) © Company Internal Sony Ericsson Mobile Communications AB...
  • Page 16: U-Cover

    Use a guitar pick and slide upwards and downwards to release the U-Cover. Use a guitar pick and slide upwards and downwards to release the U-Cover. Remove the U-Cover. 3/000 21-1/FEA 209 544/125 B 16(71) © Company Internal Sony Ericsson Mobile Communications AB...
  • Page 17: Screw Covers

    Working Instruction, Mechanical 2.2.2 Screw Covers Use a dentist hook to remove the Screw Cover. Use a dentist hook to remove the Screw Cover. 3/000 21-1/FEA 209 544/125 B 17(71) © Company Internal Sony Ericsson Mobile Communications AB...
  • Page 18: Upper Frame

    Use a guitar pick and slide upwards and downwards to release the Upper Frame. Use a guitar pick and slide upwards and downwards to release the Upper Frame. 3/000 21-1/FEA 209 544/125 B 18(71) © Company Internal Sony Ericsson Mobile Communications AB...
  • Page 19 Working Instruction, Mechanical Upper Frame continued Remove the Upper Frame. 3/000 21-1/FEA 209 544/125 B 19(71) © Company Internal Sony Ericsson Mobile Communications AB...
  • Page 20: Lcm, Main/Sub Lcd

    Use a front opening and pull the BtB Connector upwards to disconnect it. Use a front opening tool to release the LCM, Main and Sub LCD from its cavity. Remove the LCM, Main and Sub LCD. 3/000 21-1/FEA 209 544/125 B 20(71) © Company Internal Sony Ericsson Mobile Communications AB...
  • Page 21: Hinge Plug

    Working Instruction, Mechanical 2.2.5 Hinge Plug The Hinge Plug is positioned according to the picture. Use tweezers to remove the Hinge Plug. 3/000 21-1/FEA 209 544/125 B 21(71) © Company Internal Sony Ericsson Mobile Communications AB...
  • Page 22 Working Instruction, Mechanical 2.2.6 FPC Use a flex film assembly tool to release the FPC Assy. Use your fingers to push the FPC Assy through the hole. 3/000 21-1/FEA 209 544/125 B 22(71) © Company Internal Sony Ericsson Mobile Communications AB...
  • Page 23: Replacements

    The instruction usually ends by directing you to the Reassembly section with a specification of the instructions you have to carry out in order to reassemble the phone. REPLACEMENTS Contents Start page DISASSEMBLY REASSEMBLY Done 3/000 21-1/FEA 209 544/125 B 23(71) © Company Internal Sony Ericsson Mobile Communications AB...
  • Page 24: Battery Cover

    Follow the 4.1.5 Reassembly instructions! 3.7 Upper Frame Follow the 2.2.1 – 2.2.3 Disassembly instructions! Prepare the new upper frame. Follow the 4.1.4 – 4.1.6 Reassembly instructions! 3/000 21-1/FEA 209 544/125 B 24(71) © Company Internal Sony Ericsson Mobile Communications AB...
  • Page 25: Lcm, Main + Sub-Lcd

    Follow the 4.1.1 –4.2.5 Reassembly instructions! 3.11 Upper Front Follow the 2.1.1 –2.2.6 Disassembly instructions! Prepare the new upper inner cover. Follow the 4.1.1 –4.2.5 Reassembly instructions! 3/000 21-1/FEA 209 544/125 B 25(71) © Company Internal Sony Ericsson Mobile Communications AB...
  • Page 26: Volume Key

    The Lower Frame has a gap which fits the gap of the Volume Key. Use tweezers to position the Volume Key. Visually inspect that the Volume is correctly positioned. Follow the 4.2.4 – 4.2.5 Reassembly instructions! 3/000 21-1/FEA 209 544/125 B 26(71) © Company Internal Sony Ericsson Mobile Communications AB...
  • Page 27: Irda Window

    Use tweezers to remove the IrDA Window. INSTALLATION Use tweezers to position the IrDA Window. Visually inspect that the IrDA Window is correctly positioned. Follow the 4.2.4 – 4.2.5 Reassembly instructions! 3/000 21-1/FEA 209 544/125 B 27(71) © Company Internal Sony Ericsson Mobile Communications AB...
  • Page 28: Bluetooth Antenna

    LUETOOTH NTENNA SPRINGS Use tweezers to position the Bluetooth Antenna. Visually inspect that the Bluetooth Antenna is correctly positioned. Follow the 4.2.4 – 4.2.5 Reassembly instructions! 3/000 21-1/FEA 209 544/125 B 28(71) © Company Internal Sony Ericsson Mobile Communications AB...
  • Page 29: Loudspeaker Box

    Use tweezers to remove the Loudspeaker Box. INSTALLATION Position the Loudspeaker Box. Use you thumb and press the Loudspeaker Box into the cavity. Follow the 4.2.4 – 4.2.5 Reassembly instructions! 3/000 21-1/FEA 209 544/125 B 29(71) © Company Internal Sony Ericsson Mobile Communications AB...
  • Page 30: Speaker Gasket

    Use tweezers to position the Speaker Gasket. Visually inspect that the Speaker Gasket is correctly positioned. Follow the 3.15 Installation instructions! Follow the 4.2.4 – 4.2.5 Reassembly instructions! 3/000 21-1/FEA 209 544/125 B 30(71) © Company Internal Sony Ericsson Mobile Communications AB...
  • Page 31: Dust Gasket, System Connector

    Use tweezers to position the Dust Gasket, System Connector. INSTALLATION SE A NEW ASKET YSTEM ONNECTOR Use tweezers to position the Dust Gasket, System Connector. Follow the 4.2.4 – 4.2.5 Reassembly instructions! 3/000 21-1/FEA 209 544/125 B 31(71) © Company Internal Sony Ericsson Mobile Communications AB...
  • Page 32: System Connector

    Use you fingers to position the System Connector. Visually inspect that the System Connector is correctly positioned. Follow the 3.17 Installation instructions! Follow the 4.2.3 – 4.2.5 Reassembly instructions! 3/000 21-1/FEA 209 544/125 B 32(71) © Company Internal Sony Ericsson Mobile Communications AB...
  • Page 33: Microphone

    Use tweezers to remove the Microphone. INSTALLATION The Microphone connectors shall go through the via holes. Use tweezers to position the Microphone. Follow the 4.2.3 – 4.2.5 Reassembly instructions! 3/000 21-1/FEA 209 544/125 B 33(71) © Company Internal Sony Ericsson Mobile Communications AB...
  • Page 34: Dome Foil

    Clean all pads on the PBA with Isopropyl alcohol. INSTALLATION HAS GUIDING HOLES WHICH SHALL FIT THE Position the Dome Foil. Follow the 3.19 Installation instructions! Follow the 4.2.3 – 4.2.5 Reassembly instructions! 3/000 21-1/FEA 209 544/125 B 34(71) © Company Internal Sony Ericsson Mobile Communications AB...
  • Page 35: Poron Cushion, Lower Front

    SE A NEW ORON USHION Use tweezers to position the Poron Cushion. Visually inspect that the Poron Cushion is correctly positioned. Follow the 4.2.3 – 4.2.5 Reassembly instructions! 3/000 21-1/FEA 209 544/125 B 35(71) © Company Internal Sony Ericsson Mobile Communications AB...
  • Page 36: Navigation Key

    Use tweezers to position the Navigation Key. Use tweezers to press the Navigation Key into the four guiding pins. Follow the 4.2.3 – 4.2.5 Reassembly instructions! 3/000 21-1/FEA 209 544/125 B 36(71) © Company Internal Sony Ericsson Mobile Communications AB...
  • Page 37: Keyboard

    Use you fingers and remove the Keypad. INSTALLATION Use your fingers and position the Keypad. Use you fingers to press the Keypad into the Lower Front. 3/000 21-1/FEA 209 544/125 B 37(71) © Company Internal Sony Ericsson Mobile Communications AB...
  • Page 38 Press and slide your fingers around the Keyboard to attach it to the Lower Frame. Follow the 3.22 Installation instructions! Follow the 4.2.3 – 4.2.5 Reassembly instructions! 3/000 21-1/FEA 209 544/125 B 38(71) © Company Internal Sony Ericsson Mobile Communications AB...
  • Page 39: Dummy Hinge

    Use your fingers and press the Dummy Hinge into its position. Visually inspect that the Dummy Hinge is correctly positioned. Follow the 4.2.1 – 4.2.5 Reassembly instructions! 3/000 21-1/FEA 209 544/125 B 39(71) © Company Internal Sony Ericsson Mobile Communications AB...
  • Page 40: Sub Window

    INSTALLATION Position the Sub Window. Use your fingers and press the Sub Window into its position. Follow the 4.1.4 – 4.1.6 Reassembly instructions! 3/000 21-1/FEA 209 544/125 B 40(71) © Company Internal Sony Ericsson Mobile Communications AB...
  • Page 41: Magical Front Icons

    Use your fingers and press the Magical Front Icons so it attaches to the Upper Frame. Follow the 3.25 Installation instructions! Follow the 4.1.4 – 4.1.6 Reassembly instructions! 3/000 21-1/FEA 209 544/125 B 41(71) © Company Internal Sony Ericsson Mobile Communications AB...
  • Page 42: Camera Ring

    Use tweezers to position the Camera Ring. Visually inspect that the Camera Ring is correctly positioned. Follow the 3.26 – 3.25 Installation instructions! Follow the 4.1.4 – 4.1.6 Reassembly instructions! 3/000 21-1/FEA 209 544/125 B 42(71) © Company Internal Sony Ericsson Mobile Communications AB...
  • Page 43: Vibrator

    Use tweezers to position the Vibrator. O NOT TOUCH THE IBRATOR SPRINGS Use tweezers and press the Vibrator into its cavity. Follow the 4.1.4 – 4.1.6 Reassembly instructions! 3/000 21-1/FEA 209 544/125 B 43(71) © Company Internal Sony Ericsson Mobile Communications AB...
  • Page 44: Dust Gasket, Sub Lcd

    Clean the Sub LCD with Isopropyl alcohol. INSTALLATION LCD! E CAREFUL NOT TO DAMAGE THE Use tweezers to position the Dust Gasket. Follow the 4.1.4 – 4.1.6 Reassembly instructions! 3/000 21-1/FEA 209 544/125 B 44(71) © Company Internal Sony Ericsson Mobile Communications AB...
  • Page 45: Dust Gasket, Main Lcd

    Clean the Main LCD Window with Isopropyl alcohol. INSTALLATION LCD W E CAREFUL NOT TO DAMAGE THE INDOW Use tweezers to position the Dust Gasket. Follow the 4.1.3 – 4.1.6 Reassembly instructions! 3/000 21-1/FEA 209 544/125 B 45(71) © Company Internal Sony Ericsson Mobile Communications AB...
  • Page 46: Ear Speaker

    E CAREFUL NOT TO DAMAGE THE EAR PEAKER SPRINGS Use tweezers to position the Ear Speaker. Visually inspect that the Ear Speaker is correctly positioned. Follow the 4.1.3 – 4.1.6 Reassembly instructions! 3/000 21-1/FEA 209 544/125 B 46(71) © Company Internal Sony Ericsson Mobile Communications AB...
  • Page 47: Hinge Mechanism

    Use your fingers to position the Hinge Mechanism. Use tweezers to press the Hinge Mechanism into the hinge hole. Follow the 4.1.1 – 4.2.5 Reassembly instructions! 3/000 21-1/FEA 209 544/125 B 47(71) © Company Internal Sony Ericsson Mobile Communications AB...
  • Page 48: Operator Key

    INSTALLATION SE A NEW PERATOR Use tweezers to position the Operator Key. Follow the 3.22 – 3.23 Installation instructions! Follow the 4.2.3 – 4.2.5 Reassembly instructions! 3/000 21-1/FEA 209 544/125 B 48(71) © Company Internal Sony Ericsson Mobile Communications AB...
  • Page 49: Support Pad For Camera

    Use tweezers to remove the Support Pad. INSTALLATION SE A NEW UPPORT Position the Support Pad. Use tweezers to press the Support Pad into place. Follow the 4.1.1 – 4.2.5 Reassembly instructions! 3/000 21-1/FEA 209 544/125 B 49(71) © Company Internal Sony Ericsson Mobile Communications AB...
  • Page 50: Co-Brand Label

    INSTALLATION SE A NEW RAND ABEL Use you fingers to attaché the Co-Brand Label into its cavity. Visually inspect that the Co-Brand Label is correctly positioned. 3/000 21-1/FEA 209 544/125 B 50(71) © Company Internal Sony Ericsson Mobile Communications AB...
  • Page 51: Liquid Intrusion Indicator

    INSTALLATION Attach the new liquid intrusion indicator with the tweezers and the dentist hook. Follow the 4.1.4 – 4.1.6 & 4.2.4 – 4.2.5 Reassembly instructions! 3/000 21-1/FEA 209 544/125 B 51(71) © Company Internal Sony Ericsson Mobile Communications AB...
  • Page 52: Label

    • Take the new label and place it onto the frame as in the adjacent picture NE LABEL ONLY IS ALLOWED Follow the 4.2.5 Reassembly instructions! 3/000 21-1/FEA 209 544/125 B 52(71) © Company Internal Sony Ericsson Mobile Communications AB...
  • Page 53: Reassembly

    Reassembly section with a specification of the instructions you have to carry out in order to reassemble the phone. REPLACEMENTS Contents Start page DISASSEMBLY REASSEMBLY Done 3/000 21-1/FEA 209 544/125 B 53(71) © Company Internal Sony Ericsson Mobile Communications AB...
  • Page 54: Upper Unit

    The reassembly is done in the following order: 1. FPC 2. Hinge Plug 3. LCM, Main + Sub-LCD 4. Upper Frame 5. Screw Covers 6. U-Cover 3/000 21-1/FEA 209 544/125 B 54(71) © Company Internal Sony Ericsson Mobile Communications AB...
  • Page 55 Working Instruction, Mechanical 4.1.1 FPC Use a flex film assembly tool to slide the FPC Assy through hole. Position the FPC Assy according to the picture. 3/000 21-1/FEA 209 544/125 B 55(71) © Company Internal Sony Ericsson Mobile Communications AB...
  • Page 56: Hinge Plug

    4.1.2 Hinge Plug Use tweezers to position the Hinge Plug. Use a flex film assembly tool to press the FPC Assy flex film into its place. 3/000 21-1/FEA 209 544/125 B 56(71) © Company Internal Sony Ericsson Mobile Communications AB...
  • Page 57: Lcm, Main/Sub Lcd

    Use your fingers to press the LCM, Main and Sub LCD into its place. Use your fingers and press on the BtB Connector to connect it to the LCM, Main and Sub LCD. 3/000 21-1/FEA 209 544/125 B 57(71) © Company Internal Sony Ericsson Mobile Communications AB...
  • Page 58: Upper Frame

    Upper Frame. Use your fingers to press the Upper Frame into the Upper Front. Use your fingers to press the Upper Frame into the Upper Front. 3/000 21-1/FEA 209 544/125 B 58(71) © Company Internal Sony Ericsson Mobile Communications AB...
  • Page 59 Use Torx bits no 5 to tighten the two screws using the torque 17 ± 2 Ncm. SE NEW SCREWS Use Torx bits no 5 to tighten the two screws using the torque 17 ± 2 Ncm. 3/000 21-1/FEA 209 544/125 B 59(71) © Company Internal Sony Ericsson Mobile Communications AB...
  • Page 60: Screw Covers

    Use tweezers to position the Screw Covers into the screw holes. Use tweezers and press the Screw Cover into the screw hole. Use tweezers and press the Screw Cover into the screw hole. 3/000 21-1/FEA 209 544/125 B 60(71) © Company Internal Sony Ericsson Mobile Communications AB...
  • Page 61: U-Cover

    Position the U-Cover on the Upper Front. Use your fingers and press on the U-Cover so it snap fits onto the Upper Front. Visually inspect that the U-Cover is correctly positioned. 3/000 21-1/FEA 209 544/125 B 61(71) © Company Internal Sony Ericsson Mobile Communications AB...
  • Page 62: Lower Unit

    The reassembly is done in the following order: 1. Lower Front 2. Water Protection Tape 3. PBA 4. Lower Frame 5. Battery (a) & Battery Cover (b) 3/000 21-1/FEA 209 544/125 B 62(71) © Company Internal Sony Ericsson Mobile Communications AB...
  • Page 63: Lower Front

    E CAREFUL NOT TO DAMAGE THE ONNECTOR Use a flex film assembly tool and slide the FPC Assy through the hole. Slide the FPC Assy into the Dummy Hinge. 3/000 21-1/FEA 209 544/125 B 63(71) © Company Internal Sony Ericsson Mobile Communications AB...
  • Page 64 Use tweezers to press the Hinge Mechanism into the hinge hole. While pressing the Hinge Mechanism into the hinge hole, press the Lower Front onto the Hinge. 3/000 21-1/FEA 209 544/125 B 64(71) © Company Internal Sony Ericsson Mobile Communications AB...
  • Page 65 Visually inspect that the Lower Front is correctly positioned. Open the phone so that the Hinge Mechanism snap fits the Lower Front onto the Upper Half. 3/000 21-1/FEA 209 544/125 B 65(71) © Company Internal Sony Ericsson Mobile Communications AB...
  • Page 66: Water Protective Tape

    4.2.2 Water Protective Tape SE A NEW ATER ROTECTIVE Use tweezers to position the Water Protective Tape. Visually inspect that the Water Protective Tape is correctly positioned. 3/000 21-1/FEA 209 544/125 B 66(71) © Company Internal Sony Ericsson Mobile Communications AB...
  • Page 67 Use your fingers to position the PBA. Visually inspect that the PBA is correctly positioned. Use your fingers to connect the 60 pin BtB Connector to the PBA. 3/000 21-1/FEA 209 544/125 B 67(71) © Company Internal Sony Ericsson Mobile Communications AB...
  • Page 68: Lower Frame

    Use your fingers and press the Lower Frame onto the Lower Front. Use your fingers and press the Lower Frame onto the Lower Front. AKE SURE THAT THE OLUME EY HAS CLICK FEELING 3/000 21-1/FEA 209 544/125 B 68(71) © Company Internal Sony Ericsson Mobile Communications AB...
  • Page 69 Working Instruction, Mechanical Lower Frame continued SE NEW SCREWS Use Torx bits no 5 to tighten the four screws using the torque 17 ± 2 Ncm. 3/000 21-1/FEA 209 544/125 B 69(71) © Company Internal Sony Ericsson Mobile Communications AB...
  • Page 70: Battery & Battery Cover

    Use your fingers do slide the Battery Cover onto the Lower Frame. Use your fingers do slide the Battery Cover onto the Lower Frame. Visually inspect that the PBA is correctly positioned. 3/000 21-1/FEA 209 544/125 B 70(71) © Company Internal Sony Ericsson Mobile Communications AB...
  • Page 71: Revision History

    Working Instruction, Mechanical 5 Revision history Rev. Date Changes / Comments 2007-02-14 First release 2007-03-28 Equipment chapter updated 3/000 21-1/FEA 209 544/125 B 71(71) © Company Internal Sony Ericsson Mobile Communications AB...
