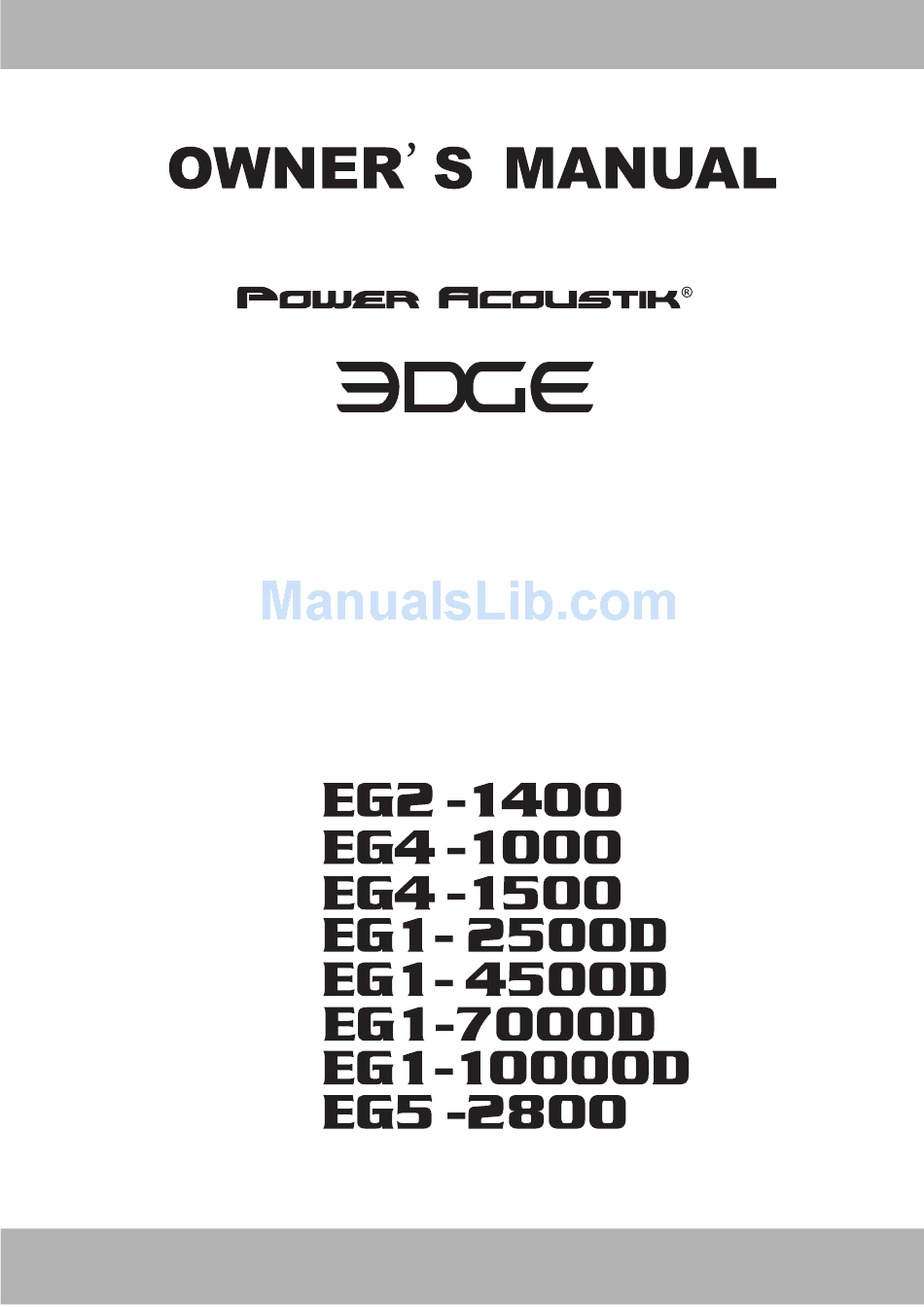

Summary of Contents for Power Acoustik EG2-1400
- Page 3 The integrated amplifier fuses protect the units from short circuit and overload. The fuse rating is for 4 Ohm loads (impedance) of the speakers, for 2/1 Ohm loads the fuses may have to get increased Ьу up to 50%/100% in case of higher power consumption. EG2-1400/EG4-1 000/EG4-1500 EG1-10000D EG1-2500D/4500DП000D/EG5-2800...
- Page 11 !ipeaker & Rl:A l:onnec�ions EG1-2500D/4500D RCA & Speaker wiring: • Connect the LINE INPUT of the amplifier to the head unit line output with appropriate good quality RCA саЫеs. As optional feature the Balanced lnputs сап Ье used. But therefor ап signal transmitter with specific wires is required. Ask уоuг specialist dealer fог...
- Page 22 Troubleshoo�ing System does not turn on 1. Check all fuses. 2. Check all connections. 3. Measure the +12 volt and remote turn оп voltages at the amplifier terminals. lf these аге поп existent ог low, take voltage measurements at fuse holders, distribution Ьlocks, the head unit's +12 volt and remote leads to localize the ргоЫеm. Noise proЫems 1.Check the speaker wiring 2.Speakers are damaged...
- Page 23 !i�ecifica�ion& EG2-1400 EG4-1000 EG4-1500 EG1-2500D EG1-4500D EG1-70000D EG1-10000D EG5-2800D Channels 1 х 400W 1 х 1 600W Watts lnto 4 Ohm 4x95W 1 х 750W 1 х 1100W 4 х 80W+1 х 380W 2 х 175W 4x 65W 1 хЗЗООW 4х...
