65-C0488-MA

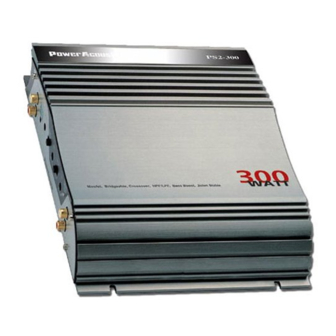

Model No.:PS2-150/PS4-300
OWNER S MANUAL
PS2-150/PS4-300
INTRODUCTION
Amplifiers provide high-performance sound reinforcement for your mobile audio equipment.
It s versatility enables compatibility with optional Equalizers,Frequency Dividing Network
Crossovers,and other audio processors in a customized system.The Multi-Mode bridging
Capabilities allow flexibility in hosting several different speaker configurations.
To achieve optimum performance,it is highly recommended that you read this Owner s
Manual before beginning installation.
FEATURES
2 OHM STABLE OPERATION FOR MAXIMUM EFFICIENCY
STATE-OF-THE-ART HEAT SINK FOR SUFFICIENT POWER DISSIPATION
CHROME PLATED LOW LEVEL INPUTS AND SCREW TERMINAL
CONNECTIONS FOR POWER,GROUND AND SENSING
FLOATING GROUND INPUTS
INPUT SENSITIVITY CONTROL FOR PERFECT MATCH WITH CAR STEREO
REMOTE TURN-ON WITH LED INDICATOR
VARIABLE UNE LEVEL INPUT ADJUSTMENT
SOFT TURN-ON CIRCUIT
CIRCUIT OVERLOAD PROTECTION
WARNING
High powered audio systems in a vehicle are capable of generating Live Concert high
levels of sound pressure,Continual exposure to excessively high volume sound levels may
cause hearing loss or damage.Also,operation of a motor vehicle while listening to audio
equipments at high volume levels may impair your ability to hear external sounds such as;
horns,warning signals,or emergency vehicles,thus constituting to a potential traffic hazard.
In the interest of safety,Consumer Electronics recommends listening at lower volume levels
While driving.
2
A : 0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PS2-150 and is the answer not in the manual?

Questions and answers

Summary of Contents for Power Acoustik PS2-150

  • Page 1 A : 0 65-C0488-MA Model No.:PS2-150/PS4-300 INTRODUCTION Amplifiers provide high-performance sound reinforcement for your mobile audio equipment. It s versatility enables compatibility with optional Equalizers,Frequency Dividing Network Crossovers,and other audio processors in a customized system.The Multi-Mode bridging Capabilities allow flexibility in hosting several different speaker configurations.
  • Page 2: Planning Your System

    Amp. MOUNTING YOUR AMPLIFIER PS2-150:10A/PS4-300:15A The mounting position of your Amplifier will have a great effect on its ability to dissipate the heat generated during normal operation.It has an ample heat sink for heat dissipation,and it is...
  • Page 3 PS2-150 B.LOW LEVEL INPUT Use a pair of shielded stereo audio cables with RCA type jacks.Most trunk-mount FUSE amplifier installations require 20-foot RCA cables.Most under-seat and pickup truck installations use 12-foot cables. Connect the left channel RCA output from your receiver or CD player to the RCA input on the amplifier labeled L.
  • Page 4: Power Indicator Led

    INPUT SENSITIVITY(LEVEL) CONTROL(Fig.3) E.CONNECTING LOW LEVEL INPUTS (RCA Jacks) In order to achieve maximum signal-to-noise performance,this control adjusts the signal NOTE: level from your Car Stereo/Source,to match the Amplifier s sensitivity.It is NOT a volume DO NOT USE IN CONJUNCTION WITH HIGH LEVEL INPUT WIRES. control.
  • Page 5: Troubleshooting Guide

    TROUBLE SHOOTING GUIDE WARNING SYMPTOMS CHECK POINTS CURE Check fuses in amplifier. In the power Be sure Turn-on lead is connected LED illuminated? Check signal leads.Check gain control. Check Tuner/Deck volume level. NO SOUND Clean contacts on fuse holders. Check for speaker short or Is the Diagnosis amplifier overheating.
  • Page 6: Specifications

    SPECIFICATIONS MODEL NO PS2-150 PS4-300 MAX Power@2 Ohm 2CH 150W 4CH 300W 40WX2CH(80W) 40WX4CH(160W) @4 Ohm @2 Ohm 50WX2CH(100W) 50WX4CH(200W) <0.05% <0.05% Signal/Nosie Ratio >95dB >95dB >60dB >60dB Channel Separation Frequency Response 1.0dB 10Hz-30KHz 10Hz-30KHz 100mV-1V 100mV-1V Adjustable Sensitivity Range...
