6.4.1 J6 – CAN Signals To Transceiver Enable CAN_EN
Enables TXD and RXD signals to the CAN transceiver. By default, the
jumpers are installed.
6.5

Virtual Serial Port

The TRK-MPC5604P board has a built-in virtual serial port which may be
connected to the MPC5504P processor's SCI. This allows certain PC
applications to be able to connect in a serial fashion to the microcontroller
without the actual use of serial port hardware. It can be enabled or disabled
by installing or removing the jumpers J7 and J8.
6.5.1 J7 - RS232 TXD Signal
6.5.2 J8 - RS232 RXD Signal
6.6 LIN Channels/Connectors
The TRK-MPC5604P board provides two jumper selectable LIN channels to
two jumper selectable LIN connectors.
16

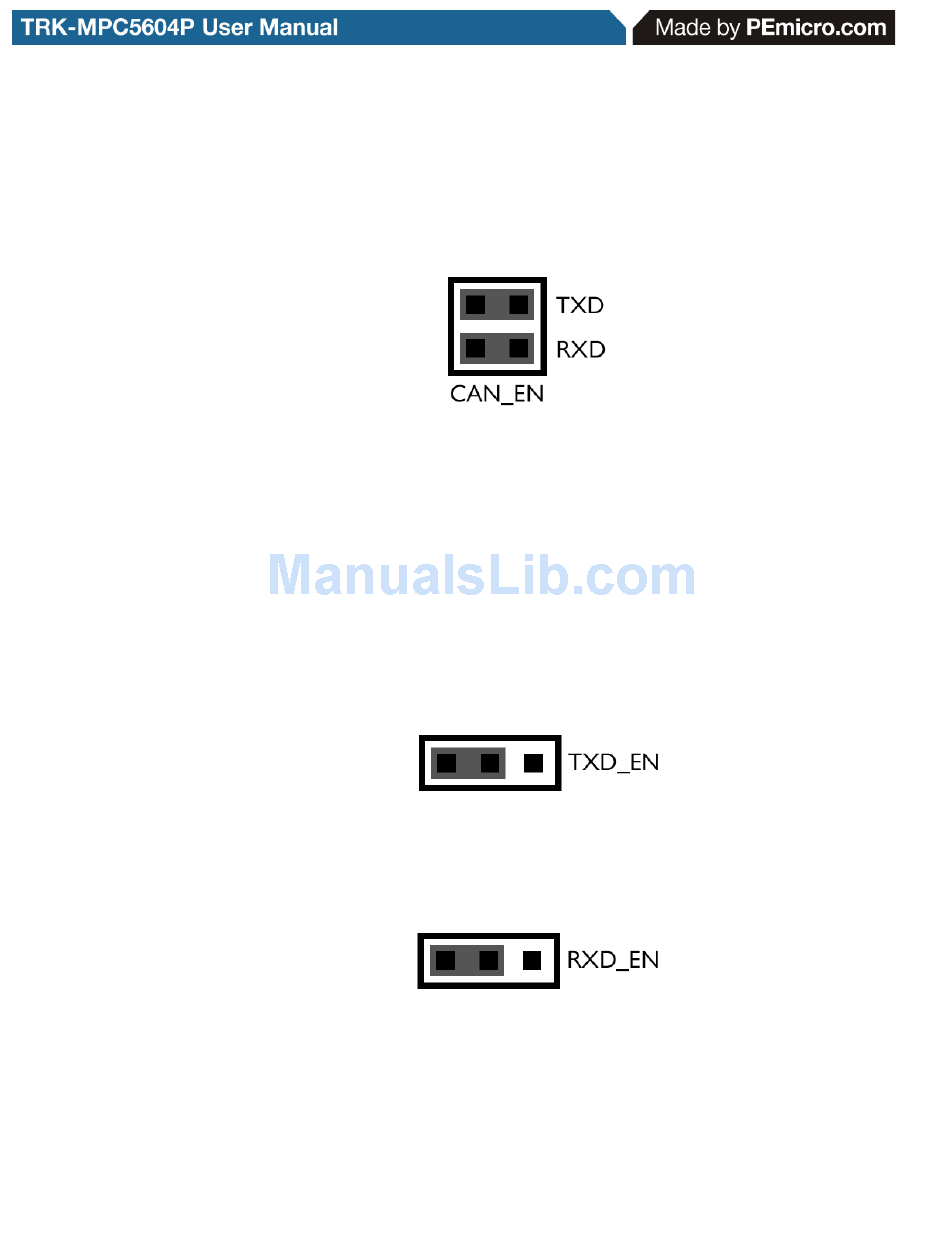

Figure 6-7: CAN_EN (J6)
Figure 6-8: TXD_EN (J7)
Figure 6-9: RXD_EN (J8)
