Page 1 L8542108 Rev. 02/06/02 CENTRALE DI COMANDO CONTROL UNIT STEUEREINHEIT CENTRALE DE COMMANDE CENTRAL DE MANDO CENTRALKA STEROWANIA Libro istruzioni Operating instructions Betriebsanleitung UNIONE NAZIONALE COSTRUTTORI Livret d’instructions AUTOMATISMI PER CANCELLI, PORTE, Manual de instrucciones SERRANDE ED AFFINI Książeczka z instrukcjami...
Page 2 SWO1 SWC1 SWO2 SWC2 PHOT PHOTC STOP OPEN CLOSE SHIELD P.P. R A D I O...
Page 3 � �� Collegamento scheda CB.24V (opzionale) Connection to the CB.24V Card (optional) Anschluss Karte CB.24V (Option)

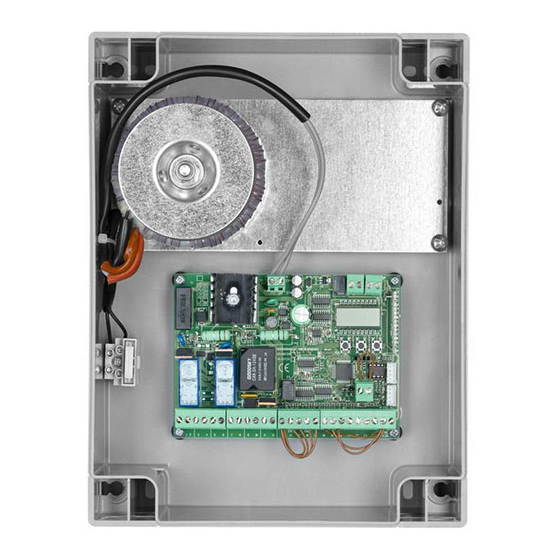

Page 4 BRAIN 24 control unit The BRAIN 24 electronic control unit may be used for the control of 1 or 2 motors 24Vdc with power not higher than 80W+80W. GENERAL WARNINGS a) The electrical installation and the operating logic must comply with the regulations in force.
Page 5 The logic menu allows you to activate or deactivate a function, in the same way as setting a dip-switch. Other special functions follow the parameters and logic menus and may vary depending on the type of control unit or the software release.
Page 6 only by the triggering of the limit switch or by the amperometric sensor. The speed of the motor during braking is determined by the SLDS parameter value. Settable values MENU FUNCTION MEMO ON-OFF-(Default) Enables or disables automatic closing On: automatic closing enabled (ON) Off: automatic closing disabled Enables or disables condominium function.
Page 7 Settable values MENU FUNCTION MEMO ON-OFF-(Default) The code programmable transmitters is enabled or disabled. On: Radio receiver enabled only for rolling-code transmitters. Cvar Off: Receiver enabled for rolling-code and programmable code transmitters (self-learning and Dip Switch). The operation mode of the amperometric sensor is selected ei- ther the limit switches are provided or not.
Page 8 Step Press Display Notes First menu First function of the first menu Value currently set for the function selected Set the desired value with the <+> and <-> keys The value is programmed When programming has been made, the display goes to the function just set Press <+>...
Page 9 � � � � � � �� ...
