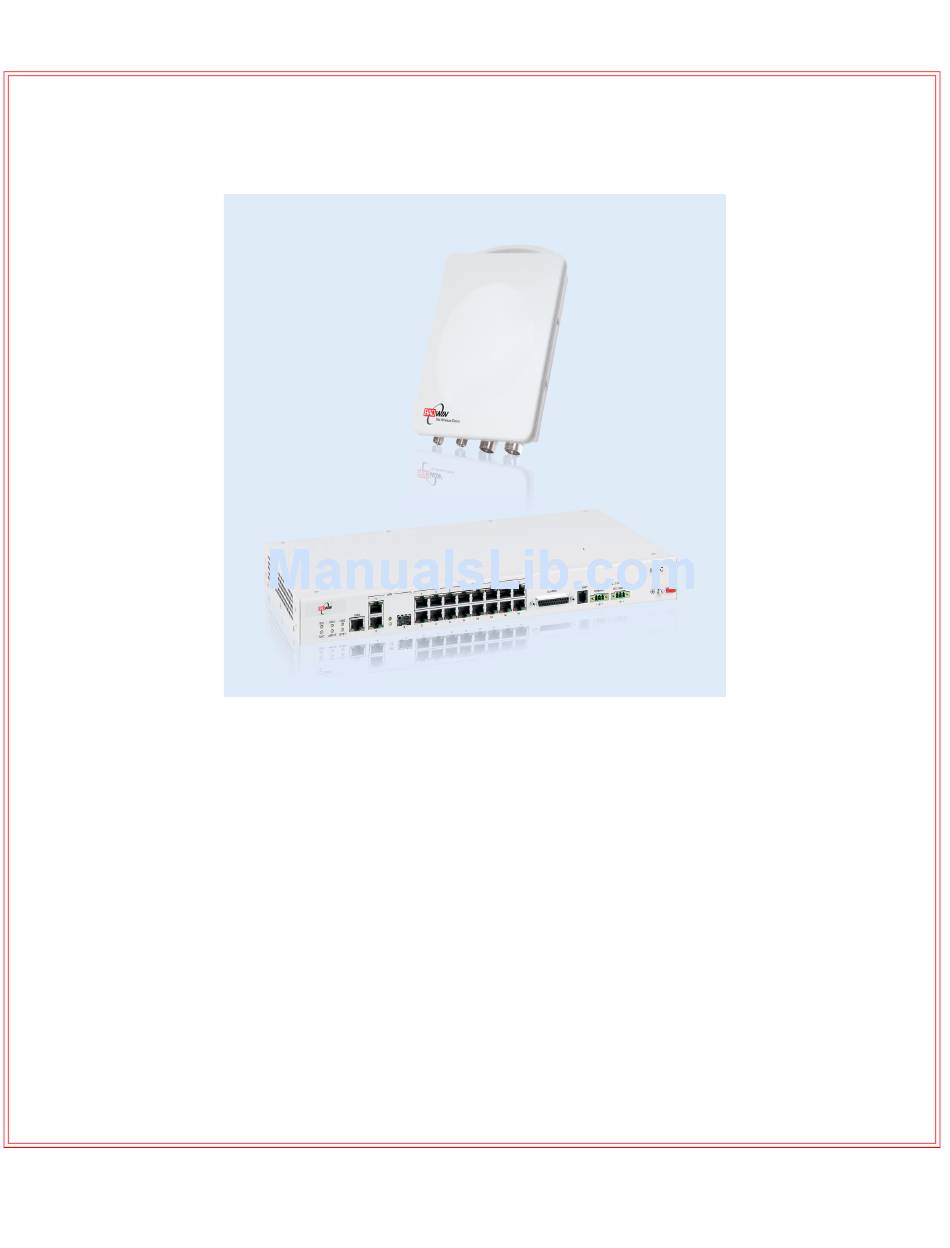

- Page 1 RADWIN 1000/2000 Broadband Wireless Transmission System User Manual Version 2.2e UM 2000-09/08.08...
- Page 2 RADWIN protected under international copyright law and shall be and remain solely with RADWIN. The RADWIN name is a registered trademark of RADWIN Ltd. No right, license, or interest to such trademark is granted hereunder, and you agree that no such right, license, or interest shall be asserted by you with respect to such trademark.
- Page 3 Asian Games Village Huiyuan Gongyu J1312 Beijing 100101 China Tel: +86 010 8498 0629 For technical support contact: support@radwin.com For technical support in India only, contact: support-india@radwnin.com For sales support contact: sales@radwin.com Website: www.radwin.com RADWIN 1000/2000 User Manual Version 2.2e...
- Page 4 Changes or modifications to this equipment not expressly approved by the party responsible for compliance (RADWIN Ltd.) could void the user's authority to operate the equipment. It is the responsibility of the installer to ensure that when using the outdoor antenna kits in the United States (or where FCC rules apply), only those antennas certified with the product are used.
- Page 5 2. For protection of ODU against direct lightning strikes, appropriate requirements of NFPA 780 should be considered in addition to NEC. 3. For Canada, appropriate requirements of Section 60 of the CEC 22.1should be considered as applicable. RADWIN 1000/2000 User Manual Version 2.2e...
- Page 6 Key Applications ..................... 1-2 WiMAX and IP Backhaul ..................1-2 Broadband Access ....................1-2 Private Networks ....................1-3 Key Features of RADWIN 1000/2000 ............... 1-3 RADWIN 1000/2000 Link ..................1-5 The Radio Outdoor Unit (ODU) ................1-5 The Indoor Unit (IDU)..................1-7 Power Over Ethernet (PoE) Devices ..............1-8 Antennas ......................1-8...
- Page 7 Installing the Link: Step 6, Installation Summary and Exit ........4-26 Chapter 5 Configuring the Link Link Configuration: Getting Started ................5-1 The Main Window of the RADWIN Manager ............5-1 The RADWIN Manager Toolbar ................5-2 The RADWIN Manager Main Menu ...............5-3 Elements of the RADWIN Manager Main Window ..........5-6...
- Page 8 Setting the Maximum Information Rate ..............6-12 Displaying the Inventory ..................6-12 Security Features ....................6-13 Changing the Link Password ................6-14 RADWIN Manager Community Strings ..............6-14 Editing Community Strings ..................6-15 Forgotten Community string..................6-16 Muting the alignment tone ..................6-17 Setting External Alarm Inputs................
- Page 9 Appendix C Pole and Wall Installation ODU Mounting Kit Contents..................C-1 Mounting RADWIN 1000/2000 on a pole ..............C-2 Mounting RADWIN 1000/2000 on a Wall ..............C-3 Mounting an External Antenna ................C-3 Appendix D Link Budget Calculator Overview ......................D-1 User Input ......................
- Page 10 Contenu du kit de montage ODU ................. I-4 Montage sur un pylône ..................I-5 Montage sur un mur ................... I-6 Montage d'une antenne externe................I-7 Contenu du kit de montage d'une antenne externe ..........I-7 Index RADWIN 1000/2000 User Manual Version 2.2e...
- Page 11 IGURE RANSMISSION OWER AND NTENNA ARAMETERS 5-11 A ......5-19 IGURE NTENNA CONFIGURATION DIALOG WITH OPENED TYPE SELECTION 5-12 S ................. 5-20 IGURE ERVICES AND ATES DIALOG 5-13 C ............5-21 IGURE ONFIGURATION IZARD UMMARY RADWIN 1000/2000 User Manual Version 2.2e...
- Page 12 UPPRESSOR AND GROUNDING AT BUILDING ENTRY POINT F-1 T MIB............F-3 IGURE EVEL ECTIONS OF THE PRIVATE I-4 M ................. I-5 IGURE ONTAGE SUR UN PYLÔNE I-5 M ..................I-6 IGURE ONTAGE SUR UN MUR RADWIN 1000/2000 User Manual Version 2.2e...
- Page 13 ABLE ANAGER MAIN MENU FUNCTIONALITY 4-6 RADWIN M ................4-12 ABLE ANAGER OOLBAR 4-7 L ................4-13 ABLE NSTALLATION IZARD 4-8 RADWIN 1000/2000 T ............4-22 ABLE RANSMISSION RATES 5-1 RADWIN M ................5-3 ABLE ANAGER OOLBAR 5-2 RADWIN M .............5-4 ABLE ANAGER MAIN MENU FUNCTIONALITY 5-3 L ....................5-6...
- Page 14 Simple installation and management • High Tx power The RADWIN 1000/2000 radio series supports the 2.4, 4.9, 5.3, 5.4 and 5.8 GHz spectrum bands, and complies with international standards and regula- tions (FCC, IC Canada). The model RADWIN 1000 RW-1020-0150 / RADWIN 2000 RW-2020-0150 supports the 2.4GHz band and complies with FCC and IC standards...
- Page 15 The RADWIN 1000/2000 radio series offers WiMAX operators and ISPs a unique, highly scalable and cost-effective backhaul solution. Designed to suit a wide range of topologies, RADWIN 1000/2000 is easy to install and maintain, enabling operators to quickly and efficiently expand their net- works and introduce new services to a growing subscriber base.
- Page 16 Private Networks Chapter 1 Private Networks RADWIN 1000/2000 is the ultimate solution for private networks such as enterprises, education, government and utility organizations that wish to own and manage their own networks and eliminate the costly recurring charges from service providers.
- Page 17 RADWIN 1000/2000 systems are extremely simple to install and maintain. They are typically up and running in less than an hour. The RADWIN Manager application has full local and remote manage- ment capabilities. The user-friendly SNMP based management tool provides full end-to-end configuration, event logging, and perfor- mance monitoring capabilities.
- Page 18 Figure 1-4: Example of Link Architecture - System Components The Radio Outdoor Unit (ODU) The ODU is the radio transceiver of the RADWIN 1000/2000 system. It sup- ports two radios for MIMO operation. It is available with an integrated Integrated Antenna ODU...
- Page 19 23dBi. The ODU contains both the radio and the antenna as a single unit housed in a weatherproof case. • Connectorized ODU This ODU has 2x N-type connectors for connecting an external antenna. RADWIN 1000/2000 User Manual Version 2.2e...
- Page 20 The IDU-C is designed to be rack mounted. One IDU-C product is available in release 2.2e: Table 1-2: Release 2.1 IDU-C Products Ethernet Form Part Number Power ports factor Dual DC feed 7200-2000 19" 1U -20 to -60VDC RADWIN 1000/2000 User Manual Version 2.2e...
- Page 21 The antenna gain and transmitting power may be limited by country regula- tions. The RADWIN 1000/2000 may be operated with an integrated antenna that is part of the ODU unit, or with external antennas connected to the ODU via N-type connectors. All cables and connections must be connected correctly to reduce RF losses.
- Page 22 23dBi. The radio and the antenna are housed in a weatherproof case as a single unit. Figure 1-8: ODU with integrated Flat Panel antenna External antennas are available for the RADWIN 1000/2000 radios, varying in operating frequencies, form factor, size and gain, dual or single polariza- tion.
- Page 23 16.2 dBi at 2.3 – 2.4 GHz 17.5 dBi at 2.4 – 2.7 GHz Size 1.2 x 1.2 ft / 371x371 mm H, V: 9° (Ext) Beam Width H, V: 8° (Int) Figure 1-9: Flat Panel Antenna RADWIN 1000/2000 User Manual Version 2.2e 1-10...
- Page 24 IP address. It can also manage each side of the link separately. The RADWIN Manager application facilitates installation and configuration of the link between the ODU units. The intuitive, easy-to-use RADWIN Man- ager has a graphical Microsoft Windows interface, and can be run locally and remotely.
- Page 25 Accessories Chapter 1 Figure 1-11: RADWIN Manager screen Accessories RADWIN provides a variety of accessories to support the RADWIN 1000/ 2000 system: • PoE devices • AC Power Adaptor • External Lightning Protection Unit • Cables to connect the various system elements...
- Page 26 How to Use this Manual Chapter 1 How to Use this Manual This User Manual is divided into functionally distinct chapters reflecting the activities required to set up a RADWIN 1000/2000. The division is shown in the following table: Chapter/ Subject...
- Page 27 A. (The precise requirements for the managing computer are set out in chapter 3, Hardware Installation). RADWIN 1000/2000 supports three connection methods for the managing computer: Local • - a direct peer to peer connection between the Ethernet ports on the managing computer and the IDU or PoE device.
- Page 28 You will have noticed this usage in the Terminology section above. Software The RADWIN Manager is a Microsoft Windows application following the user interface conventions of familiar Microsoft Windows programs. We would describe the chain of menu commands indicated in the following...
- Page 29 If you click Site A or Site B in the tool bar, you will be offered another win- dow, which in turn displays on of several panels depending on which func- tion you choose. RADWIN 1000/2000 User Manual Version 2.2e 1-16...
- Page 30 Windows Terminology Chapter 1 Figure 1-12: Site Configuration window with open Management panel RADWIN 1000/2000 User Manual Version 2.2e 1-17...
