Page 2
FCC AND DOC/MDC STATEMENTS FEDERAL COMMUNICATIONS COMMISSION CANADIAN DEPARTMENT OF COMMUNICATIONS RADIO FREQUENCY INTERFERENCE STATEMENTS This equipment generates, uses, and can radiate radio frequency energy and if not installed and used properly, that is, in strict accordance with the manufacturer’s instructions, may cause interference to radio communication.
Page 3
HIGH SPEED COS-4 AND HIGH SPEED COS-8 NORMAS OFICIALES MEXICANAS (NOM) ELECTRICAL SAFETY STATEMENT INSTRUCCIONES DE SEGURIDAD 1. Todas las instrucciones de seguridad y operación deberán ser leídas antes de que el aparato eléctrico sea operado. 2. Las instrucciones de seguridad y operación deberán ser guardadas para referencia futura.
Page 4
NOM STATEMENT 12. Precaución debe ser tomada de tal manera que la tierra fisica y la polarización del equipo no sea eliminada. 13. Los cables de la fuente de poder deben ser guiados de tal manera que no sean pisados ni pellizcados por objetos colocados sobre o contra ellos, poniendo particular atención a los contactos y receptáculos donde salen del aparato.
Page 5
HIGH SPEED COS-4 AND HIGH SPEED COS-8 Contents Chapter Page 1. Specifications ..................7 2. Introduction ..................9 3. Configuration ..................10 3.1 Selecting the Operating Mode ........... 10 3.2 Setting Communication Parameters ........... 10 3.3 Choosing an Arming Code ............11 3.4 Setting Ports as DTE or DCE ............
CHAPTER 1: Specifications 1. Specifications FCC Class A, DOC Class/MDC classe A Compliance — EIA RS-232 serial; each port either DTE or DCE Interface — (user-selectable) Asynchronous Protocol — Either 7 data bits with odd or even parity or 8 data Data Format —...

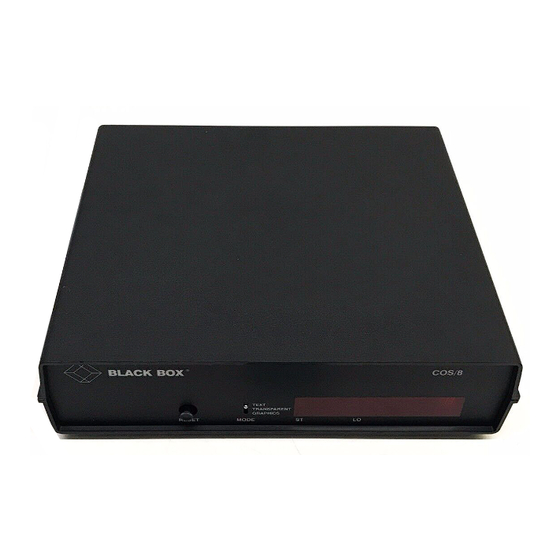

CHAPTER 2: Introduction 2. Introduction With the High Speed COS-4 or High Speed COS-8, you can send a code sequence from an asynchronous RS-232 device and switch between four or eight other such devices. By using this electronic method to switch, you avoid the problems that can occur (especially with laser printers) when you switch manually.
HIGH SPEED COS-4 AND HIGH SPEED COS-8 3. Configuration Before you install the High Speed COS-4 or High Speed COS-8, you should configure it for your application. describes setting the Section 3.1 front-panel Mode switch to select your desired operating mode.
CHAPTER 3: Configuration 3.3 Choosing the Arming Code Use the DIP switch labeled SW12 inside the High-Speed COS-4 or COS-8 to set the COS’s “arming code” (the character that alerts the COS to an impending switch). As shown in Table 3-2 on pages 13 through 19, each possible setting of the eight DIP switch positions corresponds to a one-byte character value from 00 to FF hex (0 to 255 decimal).
Page 11
HIGH SPEED COS-4 AND HIGH SPEED COS-8 Table 3-1. Possible Settings of the Communications DIP Switch* FUNCTION DIP SWITCH POSITIONS Data Rate (bps) 115,200 OFF OFF OFF 57,600 OFF OFF 38,400 19,200† 9600 OFF OFF 2400 1200 Data Format 8 data bits, no parity†...
HIGH SPEED COS-4 AND HIGH SPEED COS-8 4. Installation 4.1 Placement Place the High Speed COS-4 or High-Speed COS-8 in a cool, dry place close to an electrical outlet. It should be within 50 ft. (15.2 m) of the devices you want to connect to it.
Page 20
*Our EVNBMC cable is pinned this way. It also carries the other pins supported by the AT serial interface, but the High Speed COS-4 and COS-8 don’t support any of the other pins except Pin 1, PGND, which is not required.
Page 21
ERIAL RINTER For each serial printer you want to connect to the High Speed COS-4 or COS-8, you’ll need a cable containing at least 5 wires with DB25 male connectors on each end. Assuming you’ve set the COS port(s) as DCE (see ), the cable(s) should be wired as shown in Table 4-2 on the Section 3.4...
Page 22
CHAPTER 4: Operation Table 4-3. Pinning, Modem to COS (ECM12C Cable*) Modem COS as DTE DB25 DB25 RD 2 ----------------------------------- 2 TD 3 ----------------------------------- 3 CTS† 5 ----------------------------------- 5 CTS† SGND 7 ----------------------------------- 7 SGND DTR† 20 ----------------------------------- 20 DTR† *Our ECM12C cable is pinnned this way.
COS tests its internal circuitry, and then the display will show “1” as the unit establishes a default connection between Port 0 (the master port) and Port 1. Your High Speed COS-4 or COS-8 is now ready for continuous operation. High Speed COS-8...
), followed by the character correpsonding to the number of the Section 3.3 desired port (“1” through “4” for the High Speed COS-4 or “1” through “8” for the High Speed COS-8), from the master device. You can also connect the master to all slaves (to send “broadcast” data to all ports) by sending the arming code followed by the number “9”.
5.3 The Barber-Pole Self-Test To have the High Speed COS-4 or COS-8 perform a self-test of its transmission circuitry, unplug it, open it up as described in , and Section 3.2...
6. Troubleshooting 6.1 First Steps If your High Speed COS-4 or High Speed COS-8 does not seem to be passing data or switching correctly, the first thing to try is to have the COS perform its barber-pole self-test as described in .
HIGH SPEED COS-4 AND HIGH SPEED COS-8 6.3 Shipping and Packaging If you need to transport or ship your High Speed COS-4 or COS-8: • Package it carefully. We recommend that you use the original container. • Before you ship a unit for repair or return, contact your supplier to get a Return Materials Authorization (RMA) number, and make sure you include everything you received with the unit when you ship it.
Page 30
Technical support and fax orders 24 hours a day, 7 days a week SUPPORT Phone orders 24 hours, 7 A.M. Monday to midnight Friday; Saturday 8 to 4 (Eastern) INFORMATION Mail order: Black Box Corporation, 1000 Park Drive, Lawrence, PA 15055-1018...
