HONEYWELL EXCEL 5000 OPEN SYSTEM
GENERAL INFORMATION
left DIP switch
LonWorks
(USED = wall
service LED
module connected)
LonWorks
terminal assign-
service
right DIP switch
ment label
button
(USED = terminal
11 enabled)
W7754Kxxxx
UNUSED
ON
UNUSED
0345
WALL MOD.
DI2
230 Vac, 50/60 Hz
USED
USED
max. 5 VA unloaded
8 9 10 11 12
10A
2 A
+ -
1
2
3
4 5 6
7
131415
16
17
III II
5 3 4 2 1
L
LON
230 V
N
T7460 / T7560
terminals for hardwiring
to wall module and/or sensor(s)
removable LonWorks
terminal plug
digital output for low-voltage
PWM control of solid-state relay

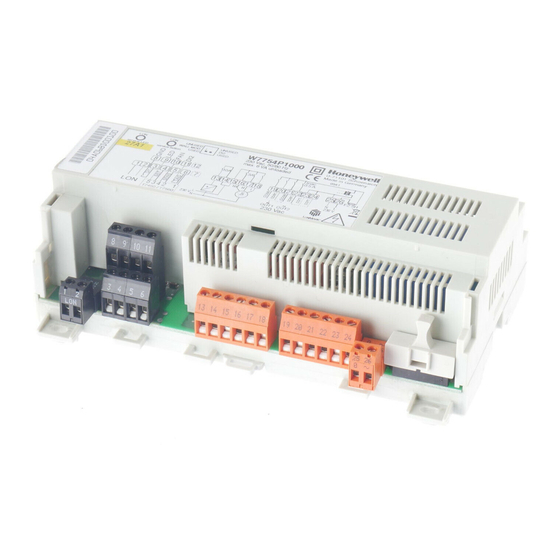

Fig. 1. Top view of Excel 10 W7754 FCU Controller
(optional terminal cover removed)
All three models of the Excel 10 W7754 Fan Coil Unit (FCU)
Controller are equipped with a minimum of
three relays,
one LED digital output,
two digital inputs, and
two analog inputs.
Further, depending on the hardware requirements of your
specific application, you can choose from among models
equipped with the following additional features:
® U.S. Registered Trademark
Copyright © 2006 Honeywell Inc.
All Rights Reserved
D-71101 Schönaich
Made in Germany
triac
0.5 A
18
1920 2122
2324
2526
2A/M
I
N
L
230 V
OUT1 OUT2
230 Vac
relays
triacs
removable power
supply terminal plug
W7754K,P,Q FAN COIL UNIT
W7754K1001
230 Vac power supply
one triac output
one digital output, for the low-voltage Pulse-Width
Modulated (PWM) control of a solid-state relay
employed in high-current electrical reheat applications
three relays
W7754P1000
230 Vac power supply
four triac outputs
four relays
W7754Q1008
24 Vac power supply
four triac outputs
four relays
See also Table 1 on page 3 for a complete overview of
terminals and their functions.
fuse
BEFORE INSTALLATION
IMPORTANT
It is recommended that the controller be kept at room
temperature for at least 24 hours before applying
power; this is to allow the evaporation of any
condensation resulting from low shipping / storage
temperatures.
US requirement, only: This device must be installed
in a UL-listed enclosure offering adequate space to
maintain the segregation of line voltage field wiring
and Class 2 field wiring.
CAUTION
To avoid electrical shock or equipment damage, you
must switch OFF the power supply before attaching /
removing connections to/from any terminals.
Excel 10
CONTROLLERS
INSTALLATION INSTRUCTIONS
EN1B-0304GE51 R0306C
