MUL-1.2M-KU Satellite Dish Manual

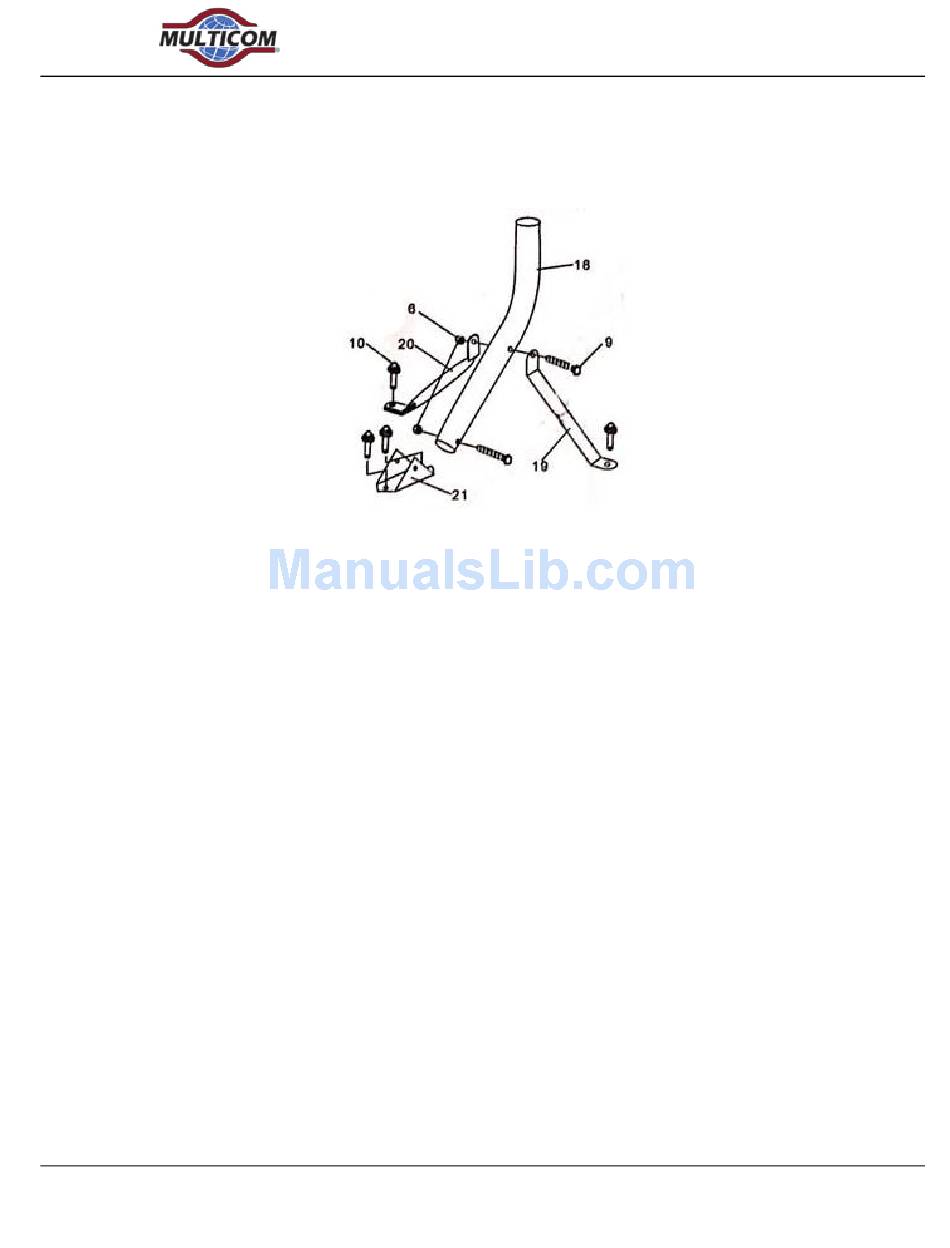

2.5.1 Assemble Universal Mount
1. Pre drill holes in mounting surface using base (21) as a template
2. Attach base to mounting surface with 2 anchor bolts (8)
3. Install mount arm/pipe (18) into base (21)
4. Insert and loosely tighten both mast/pipe support legs (20), using nut (7), screw (19)
www.multicominc.com
All Rights Reserved © 2017 Multicom, Inc.
(800) 423-2594
(407) 331-7779
9
