2.5.3 Assemble Satellite Dish and Mount

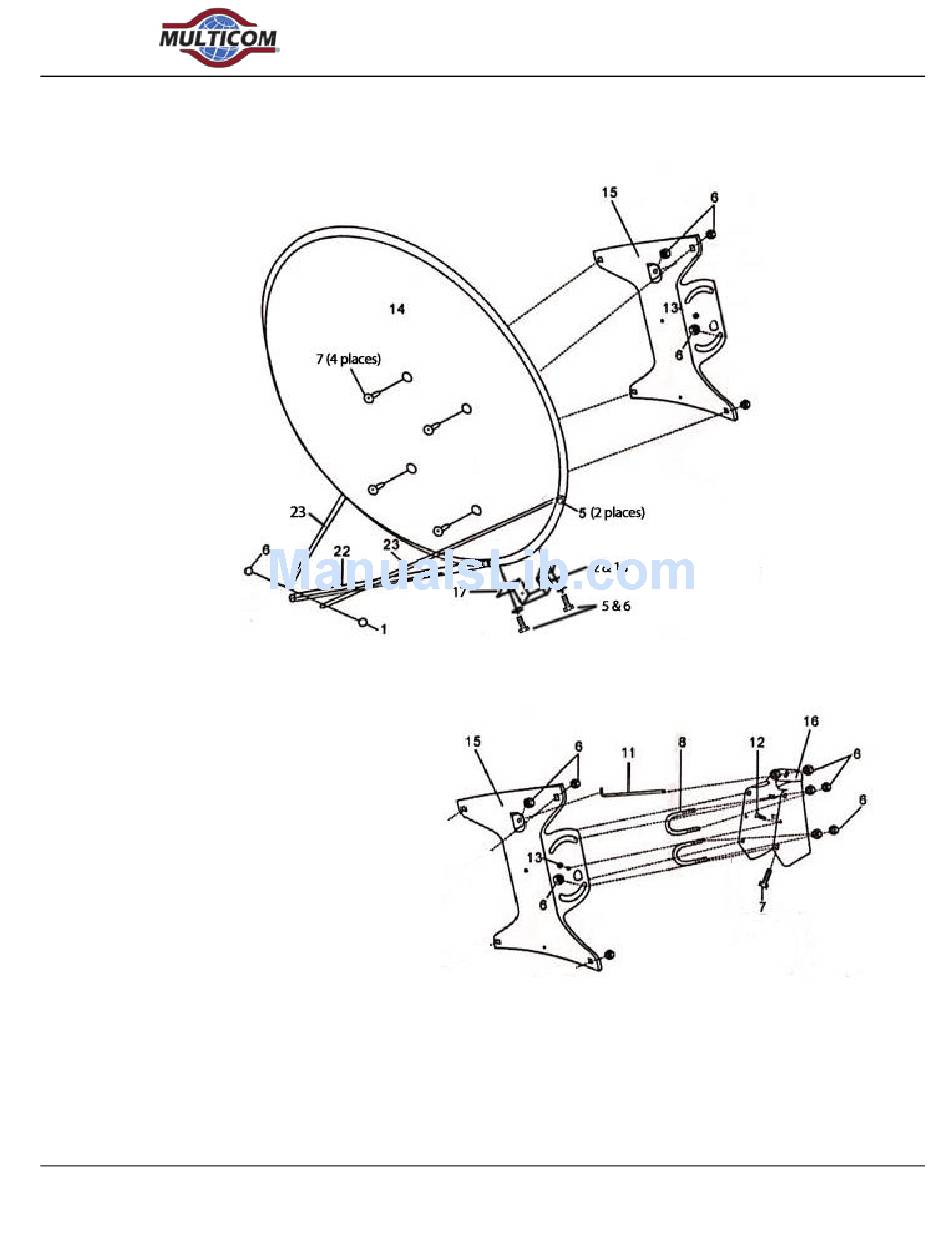

1. Attach satellite dish reflector (14) to satellite reflector bracket/mount (15) with 4 nuts (6) and screws (7)
2. Tighten all pieces
2.5.4 Assemble Mast/Pipe Mount and Clamp
1. Loosely assemble 2 u-bolts (8) through the
pipe mount (16) using 4 nuts (6)
2. Mount the pipe mount assembly (16) into
the satellite reflector bracket (15) using 4
bolts (4) with their heads on the inside and
4 nuts (5) on the outside.
3. Mount the dish assembly on the mast/pipe,
orient and then tighten all screws/nuts.
