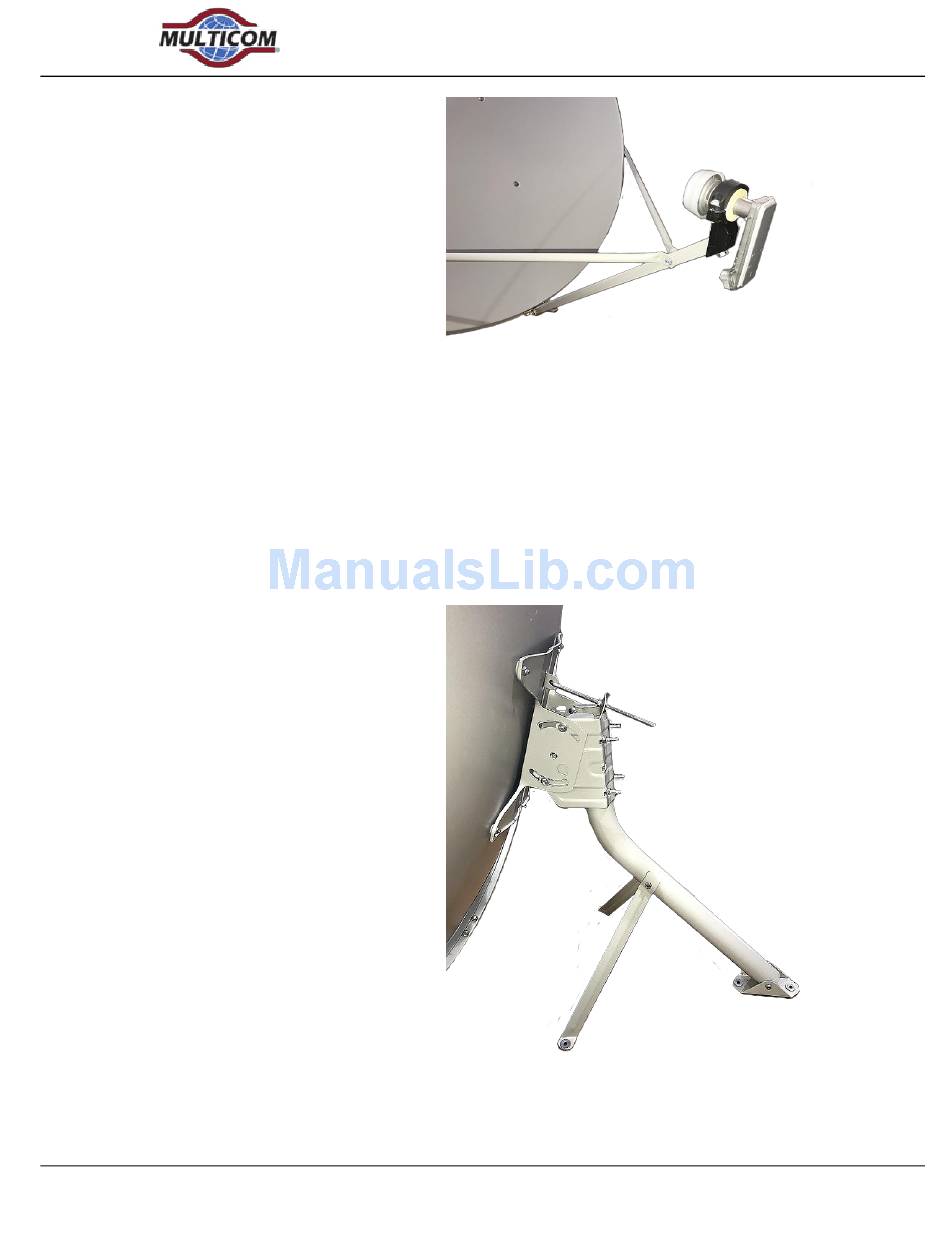

2.5.5 Install LNBF

1. Take care to align LNBF so that it is
positioned correctly (not rotated and so that
it is facing dish).
2. Mount with F‐connectors facing
downwards.
3. Do not overtighten LNB clamp.
4. Use high quality compression connector on
coaxial cable.
5. Attach and tighten coaxial cable to LNBF –
take care not to overstress F‐connector.
6. Route coaxial cable along the LNB feed
arm and use the cable clip or cable ties to
attach to the arm.
Note that Multicom also offers optional adapters that allow Dish Network or DirecTV LNBFs to be mounted
on Multicom satellite dishes.
2.6 Satellite Dish Alignment Instructions
1. Write down desired the azimuth and
elevation to point the dish
2. Using a magnetic/electronic compass to
determine the azimuth direction
3. Adjust the azimuth – making sure the U-
bolts are loosened first, then tighten when
in place at the correct azimuth.
4. Using a protractor determine the elevation
5. Adjust the elevation with the long elevation
adjustment bolt and its nut at the top of the
mast clamp – making sure the elevation
bolts/nuts are loosened first
