4 Using the Torpedo Captor
4.1 Overview
The Torpedo Captor offers a solution for silent and quality sound pick-up in many situations. The

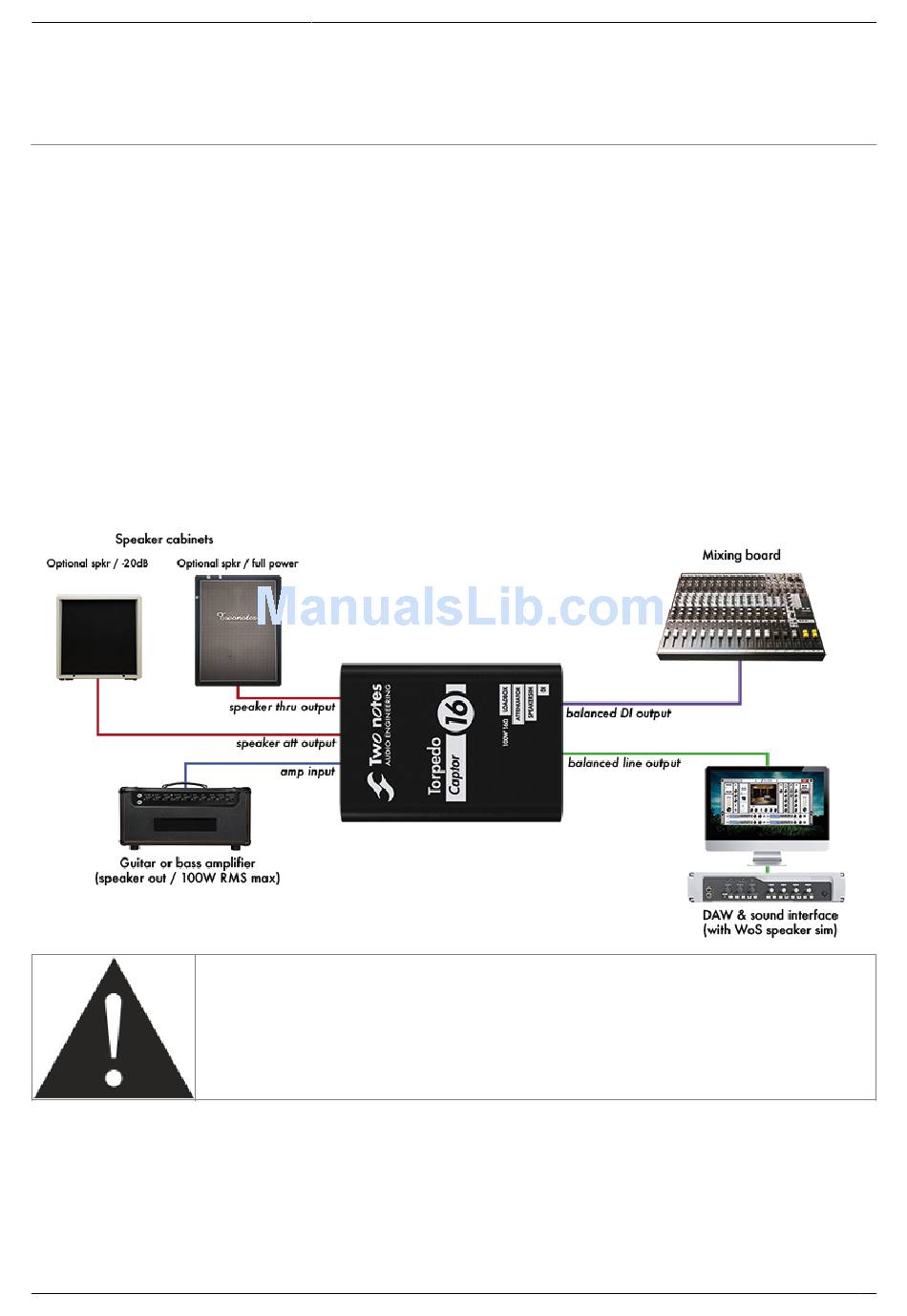

following diagram presents the various connections of the Torpedo Captor. Only the amp is
mandatory, all the other connections can be omitted. Please note that this diagram doesn't show all
the wiring possibilities of the product, just the most common ones. All functions can be used
separately or together.
Please keep in mind that tube amplifiers MUST be connected to an
appropriate load (cabinet or loadbox). Always plug the speaker output
from your amp to the speaker input of the Torpedo Captor.
