RRU3232
Installation Guide

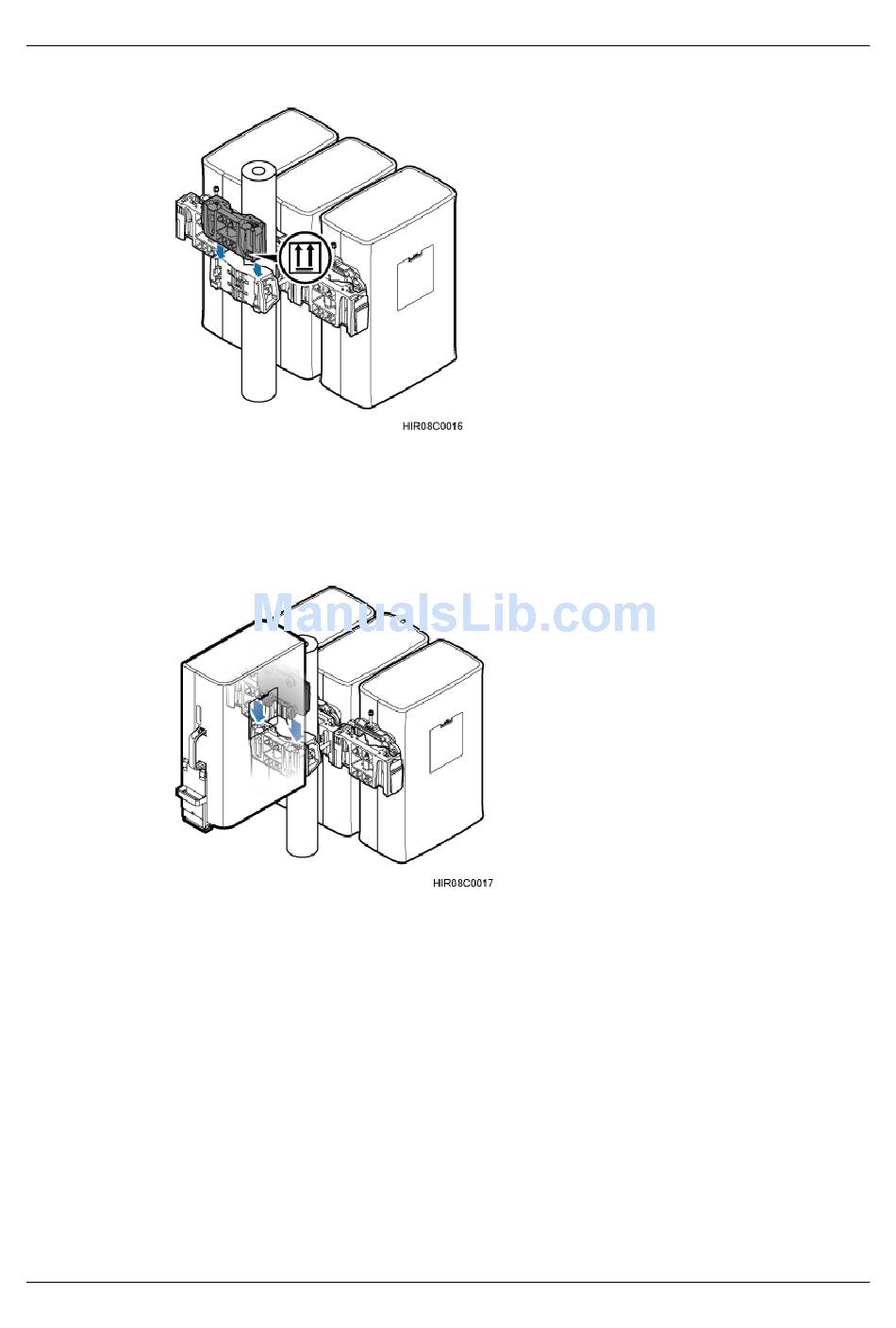

Figure 6-21 Installing the fourth main mounting bracket
Step 8 Install the fourth RRU on the fourth main mounting bracket, as shown in
Figure 6-22 Installing the fourth RRU on the fourth main mounting bracket
----End

6.3 Installing the RRU on U-steel

This section describes the procedure for installing the RRU on U-steel and the precautions that
must be taken during the installation. The RRU installed on U-steel can be mounted to a tower
or placed on the ground. It is recommended that only one RRU be installed on U-steel.
Prerequisite
Before you install an RRU on a tower, the RRU and mounting kits are hoisted onto the tower.
For details, see
Issue 05 (2011-10-20)
6.6 Hoisting the RRU and Mounting Kits onto a
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
6 Installing the RRU
Figure 6-22.
Tower.
