ELECTRICAL CONNECTIONS

ATTENTION INSTALLER
All electric wall ovens must be hard wired (direct
wired) into an approved junction box. A plug and
receptacle is NOT permitted on these products.
Do not shorten the flexible conduit. The conduit
strain relief clamp must be securely attached to
the junction box and the flexible conduit must
be securely attached to the clamp. If the flexible
conduit will not fit within the clamp, do not
install the oven until a clamp of the proper size is
obtained.
RECOMMENDED INSTALLATION OPTIONS

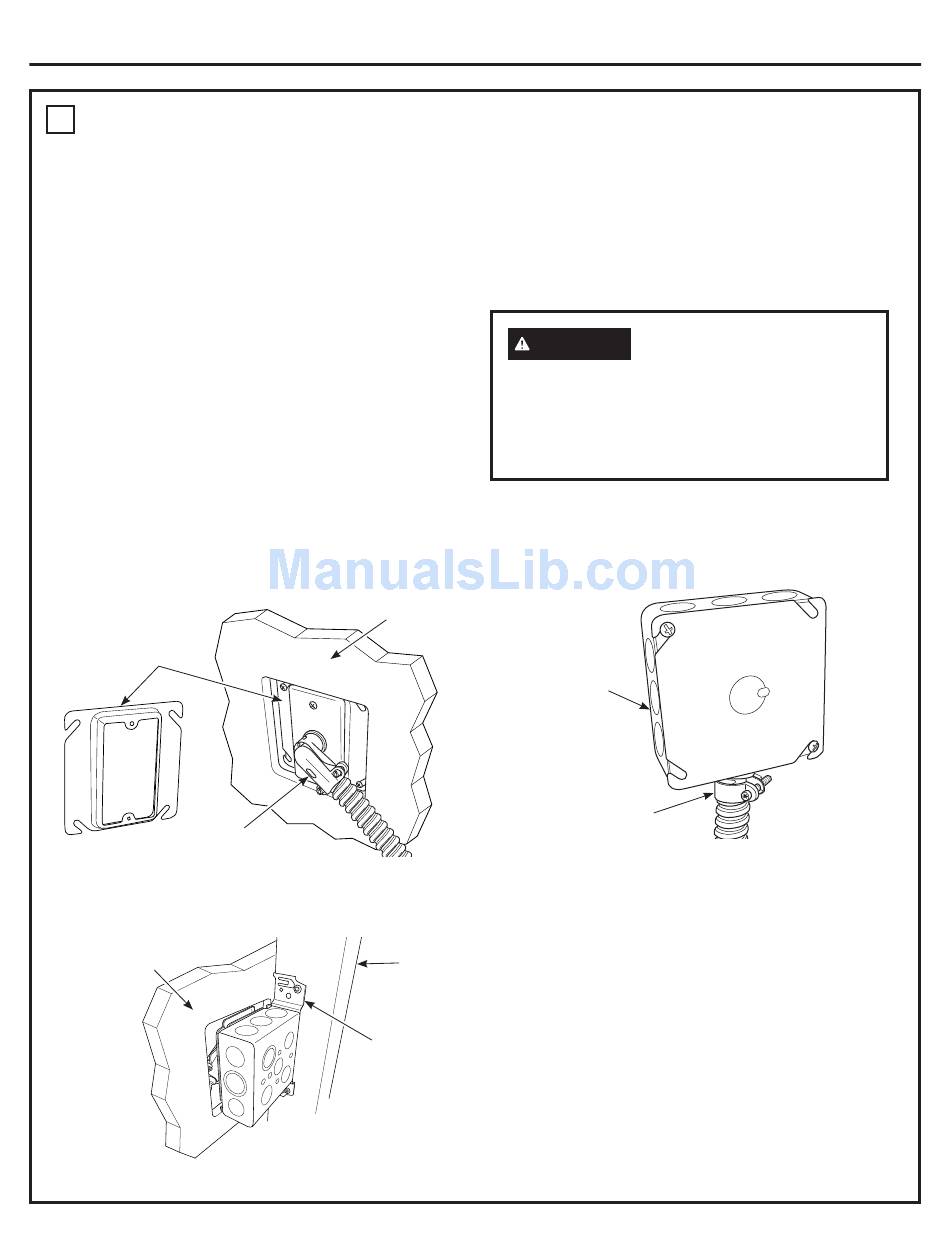

Option 1 - A junction box with a plaster ring and 90°
strain relief, mounted to a stud behind
the drywall.
Plaster Ring
90° Strain Relief
FRONT VIEW
Back of Drywall
BACK VIEW
31-11062
Installation Instructions
Front of Drywall
Stud
Mounted
Junction Box
NOTE TO ELECTRICIAN: The 3 power leads supplied
with this appliance are UL recognized for connection
to heavier gauge household wiring. The insulation of
these 3 leads is rated at temperatures much higher
than the temperature rating of household wiring.
The current carrying capacity of the conductor is
governed by the wire gauge and the temperature
rating of the insulation around the wire.
WARNING
Improper connection of
aluminum house wiring to copper leads can
result in an electrical hazard or fire. Use only
connectors designed for joining copper to
aluminum and follow the manufacturer's
recommended procedure closely.
Option 2 - Standard junction box with a straight
strain relief.
Junction Box
Straight Strain Relief
