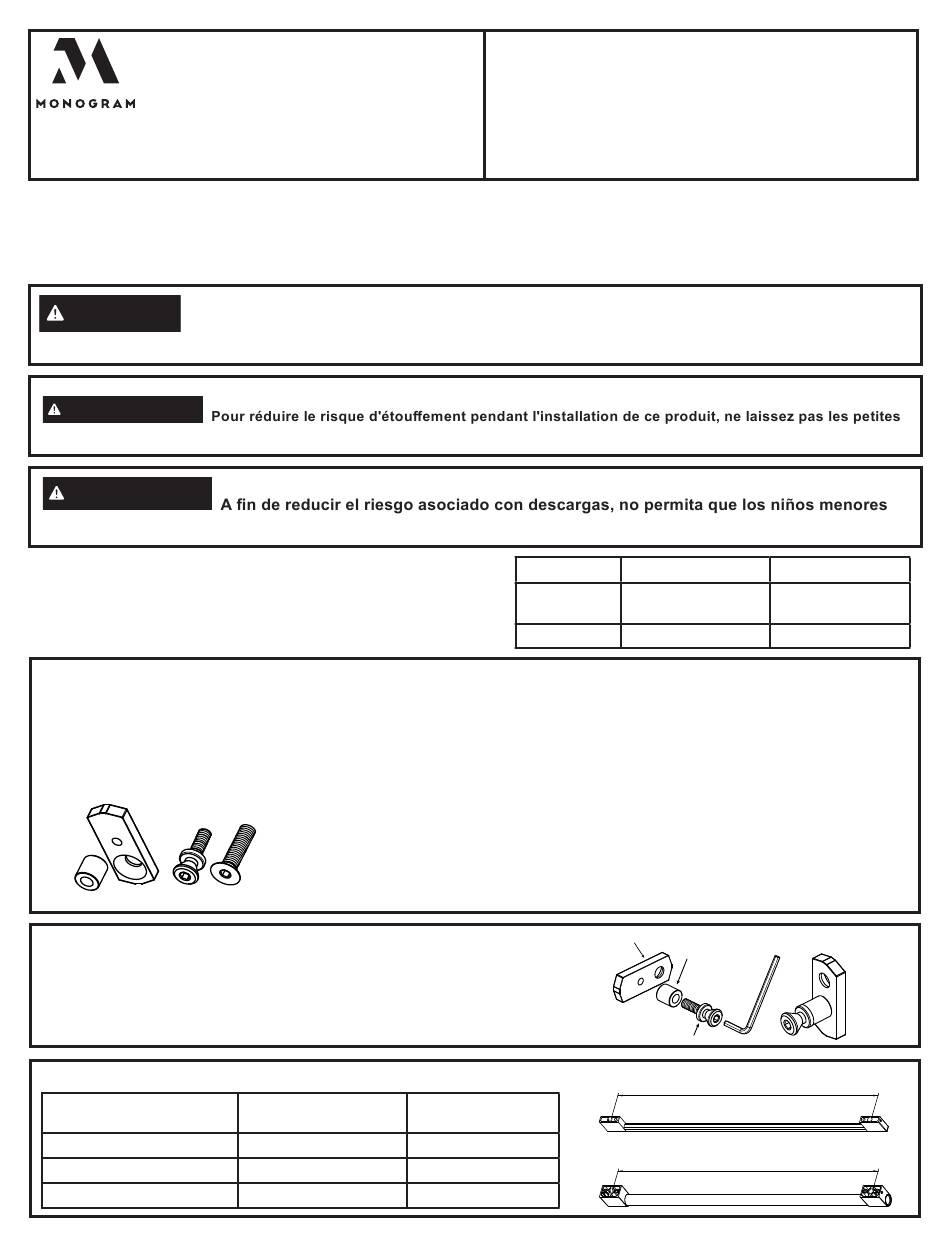

Monogram ZKPN Installation Instructions Manual

Installation
Instructions
Before you begin - Read these instructions completely and carefully.
Note to Installer: Be sure to leave these instructions with the Consumer.
Note to Consumer: Keep these instructions with your Installation Instructions for future reference.
Pour obtenir une version française de ce manuel d'instructions, visitez notre site monogram.com
Para consultar una versión en español de este manual de instrucciones, visite nuestro sitio de internet monogram.com
WARNING
To reduce the risk associated with choking, do not allow children under 3 years of age to have access
to small parts during the installation of this product.
AVERTISSEMENT
pièces à la portée des enfants âgés de moins de 3 ans.
ADVERTENCIA
de 3 años de edad tengan acceso a las partes pequeñas durante la instalación de este producto.
NOTE: 36" wide built-in bottom freezer applications require specific
handle kits for drawer panel applications on both Standard Case Flush
and Flush Inset installations.
All other platforms are recommended to follow comparable stainless
steel models for Minimalist and Statement handles.
This kit allows for the attachment of up to three Monogram Minimalist or Statement collection handles on custom panels.
Parts List:
A - Spacer (Qty 8)
B - Threaded bracket (Qty 8)
C - Handle Mounting Fastener (Qty 8)
D - 5/16 countersunk screw (Qty 8)
A B C
This kit contains the required parts to attach
a total of 4 handles.
Handle Mounting Fastener insert assembly:
• Assemble part A, B and C as illustrated
and create assembly E
Model
All
ZIP360NN / ZIC360NN
ZIC363 / ZIP364
D
Table 1
Handle Orientation
Vertical
Horizontal
Horizontal
Printed in the United States
Handle Mounting Fastener
Kit For Custom Panels
Application
ZIP360NN
ZIC360NN
Tools and Materials Required:
Allen Key (Provided with the kit)
Drill, 1/2" and 11/32" drill bit and 1" router bit
Custom door panel
Safety glasses
Center punch
Hammer
Pencil
Measuring tape or scale
Monogram Statement or Minimalist handle collection
Center to center
distance (L)
32-1/32" (81.36 cm)
27-1/8" (68.88 cm)
33-1/16" (84.0 cm)
ZKPN
Statement Minimalist
ZKGC3H3PNSS ZKGC3H3CNSS
ZKSP1H1PNSS ZKSP1H1CNSS
ZKGC3H3PNSS ZKGC3H3CNSS
B
A
C
Center to Center Dislance (L)
Center to Center Dislance (L)
31-1000561 Rev. 3 11-22 GEA
E
