Monogram ZEP30 Installation Instructions Manual page 3

PRE-INSTALLATION CHECKLIST
ALL INSTALLATION INFORMATION ON THE
FOLLOWING PAGES IS TO BE USED FOR
ELECTRIC INDOOR PIZZA OVEN INSTALLATION!
Remove packaging materials and literature pack.
1 A

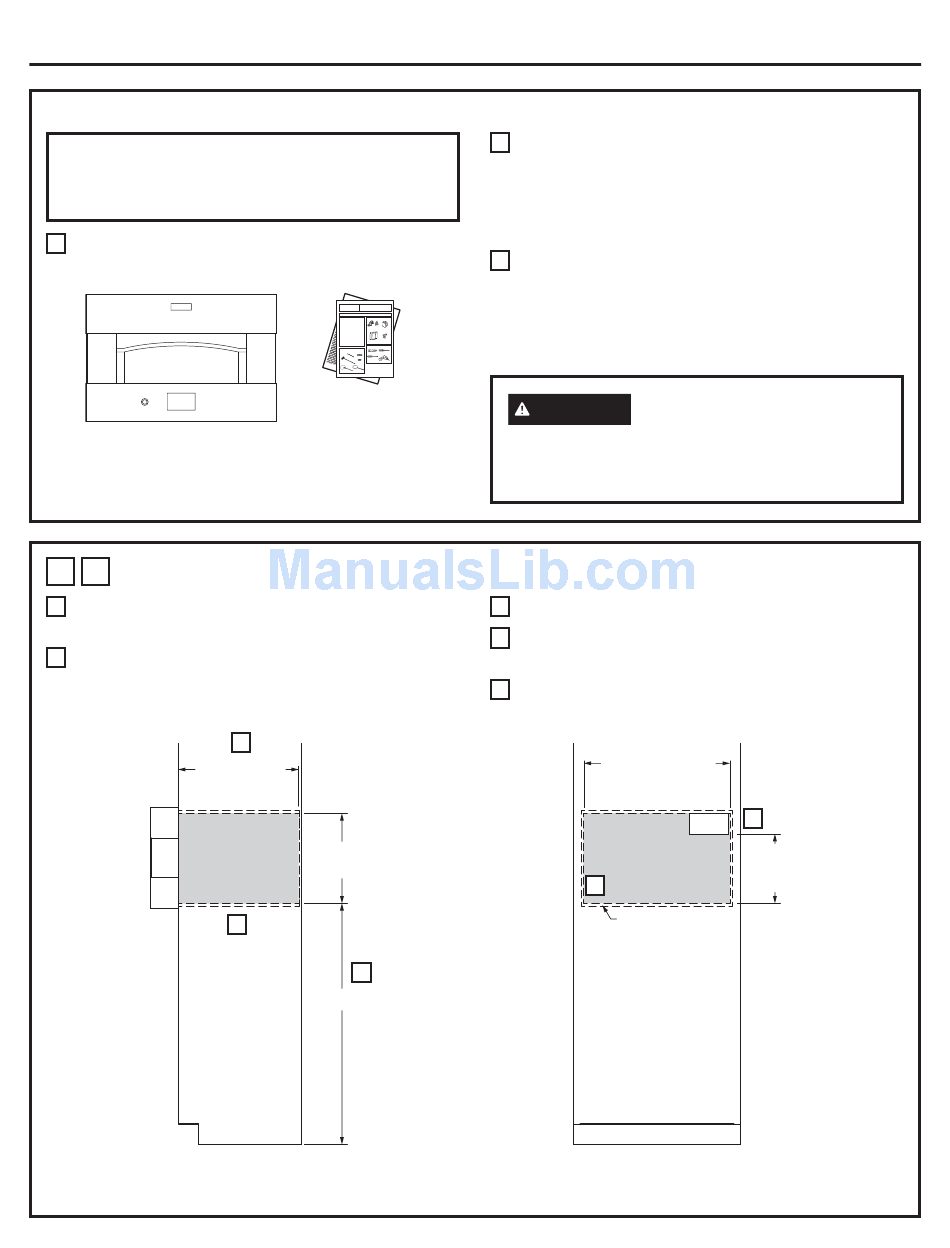

CUTOUT FOR 30" (76.2 CM) ELECTRIC INDOOR PIZZA OVEN
A 47" is the required minimum installation height. Oven
may be installed higher based on owner preference.
B Back of standard depth cabinet may need to be
removed to install oven at correct depth. Drywall is
acceptable as back enclosure.
24" (60.9) min
cutout depth
INSTALLATION
SIDE VIEW
31-11062
Installation Instructions
Installation Electric Indoor Pizza Oven
Instructions
ZEP30
If you have questions, call GE Appliances at 800.GE.CARES (800.432.2737)
or visit our website at: GEAppliances.com.
BEFORE YOU BEGIN MATERIALS NEEDED
Read these instructions carefully and completely.
IMPORTANT
• — Save these instructions
for local inspector's use.
IMPORTANT Option 2
• — Observe all governing Option 1
codes and ordinances.
• Note to Installer – Be sure to leave these Strain Relief Clamp Junction Box
instructions with the consumer. for 1/2" conduit (1 1/2 Depth Max.)
• Note to Consumer – Keep these instructions for
future reference.
• Proper installation is the responsibility of the
installer and product failure due to improper
installation is NOT covered under warranty.
• Note – This appliance must be properly grounded.
Wire Nuts
• ATTENTION INSTALLER Plaster Ring
(Option 1)
All electric wall ovens must be hard wired (direct
wired) into an approved junction box. A plug and
receptacle is NOT permitted on these products.
TOOLS NEEDED
PARTS INCLUDED
(Appearance will vary)
Wire Strippers Phillips #2
Screwdriver
Tether 1" Drywall Screw
Flathead
Screwdriver
Brush
5/8" Phillips Drill and 1/8" drill bit
Case Screw
Wooden Peel
Metal Peel
31-11062 12-16 GEA
Literature Pack
B
18 3/8" (46.6) min
18 7/16" (46.8) max
C
A
47" (119.4) min
Remove Installation Instructions from literature pack
and read them carefully before you begin.
Be sure to place all literature, Owner's Manual,
Installations, etc. in a safe place for future
reference.
Place the oven on a table or platform even
with the cutout opening. Platform must support
200 lbs. (91 Kg).
These ovens are not approved for stackable
installations.
CAUTION
Installing the oven below the
minimum height of 47 inches creates a burn
hazard for children. Do not install below the
minimum height.
C Platform must be able to support 200 lbs (91 kg).
D Solid enclosure required on the top, bottom, left and
right sides and back of oven.
E Junction box location (May also be located in
adjacent cabinet)
28 1/2" (72.4) min
28 5/8" (72.7) max
D
Solid enclosure
required on the
top, bottom, left
and right sides,
and back of oven
INSTALLATION
FRONT VIEW
E
ELEC
4" (10.2) min
to bottom of
junction box
3
