Installation
Instructions
If you have questions, call GE Appliances at 800.GE.CARES (800.432.2737)
or visit our website at: GEAppliances.com.
BEFORE YOU BEGIN
Read these instructions carefully and completely.
IMPORTANT
•
for local inspector's use.
IMPORTANT
•
codes and ordinances.
• Note to Installer – Be sure to leave these
instructions with the consumer.
• Note to Consumer – Keep these instructions for
future reference.
• Proper installation is the responsibility of the
installer and product failure due to improper
installation is NOT covered under warranty.
• Note – This appliance must be properly grounded.
ATTENTION INSTALLER
•
All electric wall ovens must be hard wired (direct
wired) into an approved junction box. A plug and
receptacle is NOT permitted on these products.

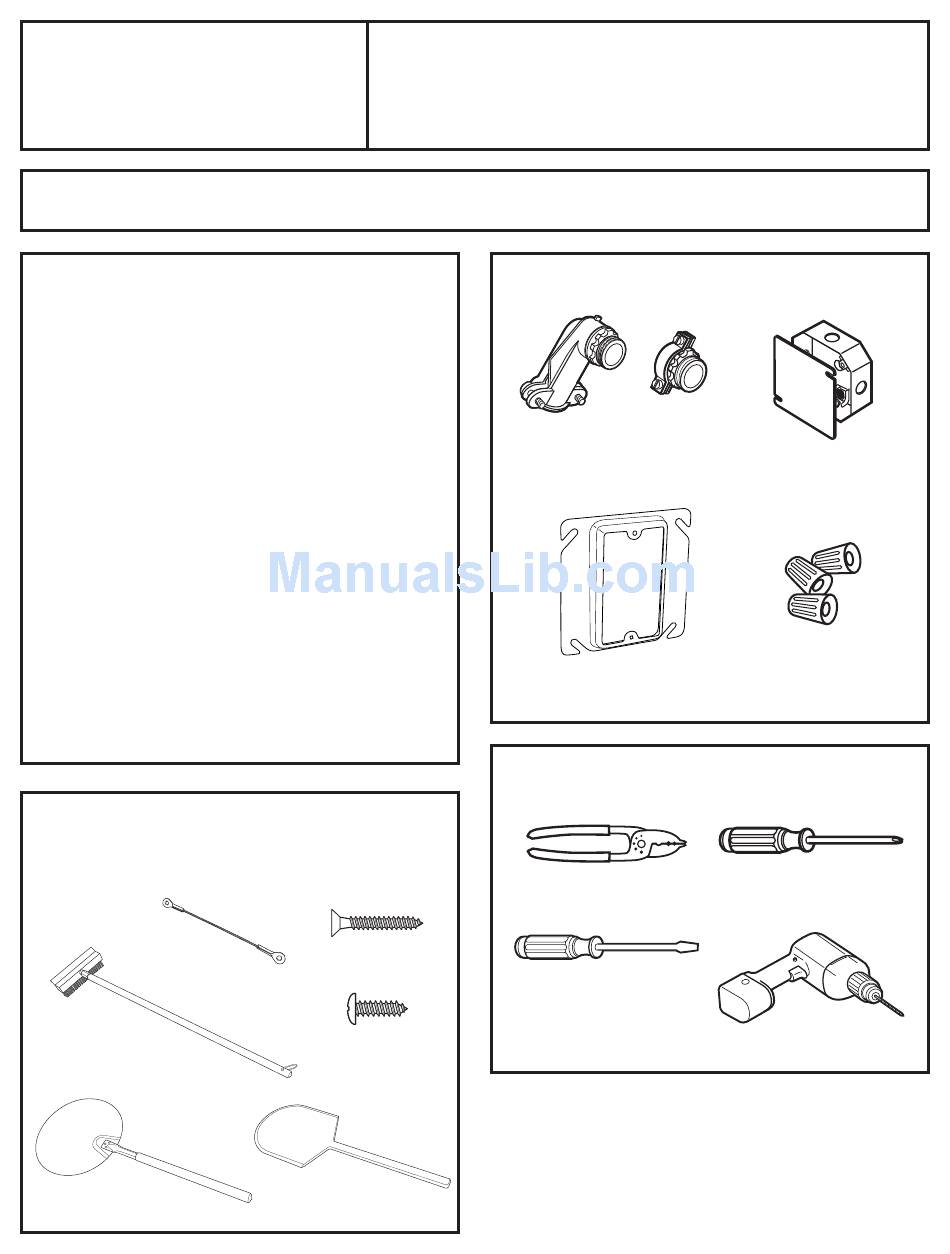

PARTS INCLUDED
(Appearance will vary)
Tether
Brush
Metal Peel

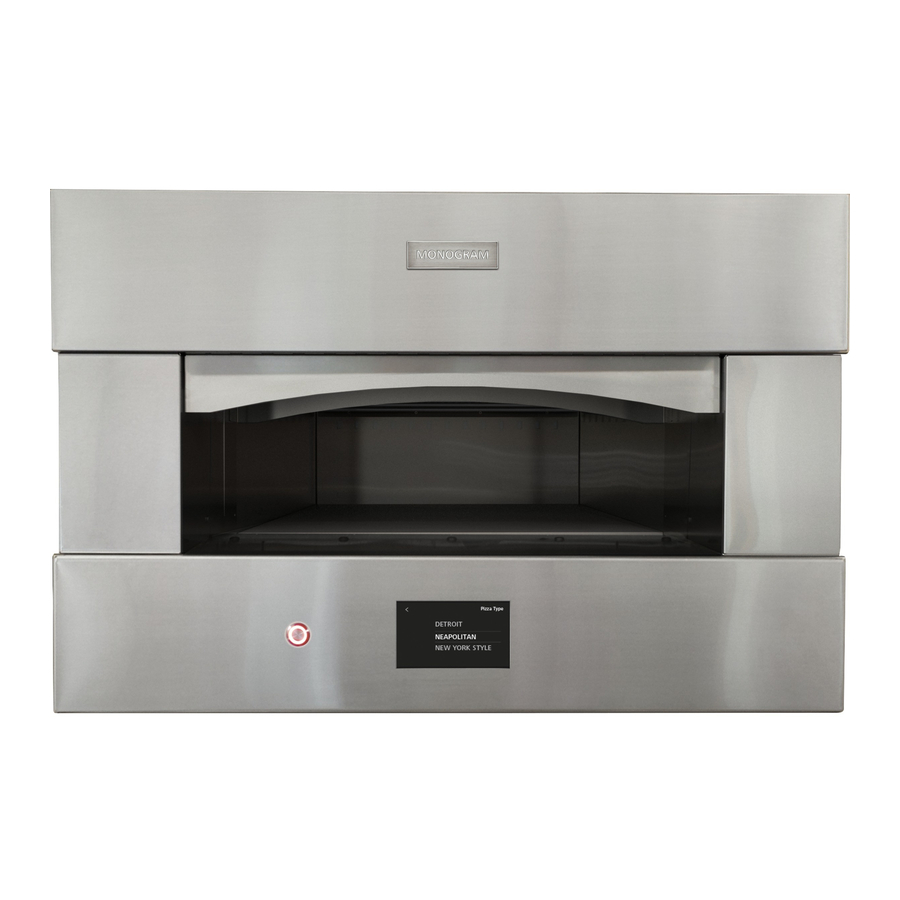

Electric Indoor Pizza Oven
ZEP30
— Save these instructions
— Observe all governing
1" Drywall Screw
5/8" Phillips
Case Screw
Wooden Peel
MATERIALS NEEDED
Option 2
Option 1
Strain Relief Clamp
for 1/2" conduit
Plaster Ring
(Option 1)
TOOLS NEEDED
Wire Strippers
Flathead
Screwdriver
Junction Box
(1 1/2 Depth Max.)
Wire Nuts
Phillips #2
Screwdriver
Drill and 1/8" drill bit
31-11062 12-16 GEA
