Summary of Contents for TCL LIFE CONNECT
- Page 1 Quick Start Guide...
- Page 2 What's In The Box? LIFECONNECT x 1 Power adapter x 1 USB cable x 1 (1 metre) Quick start guide x 1...
- Page 3 Specification Product name LIFECONNECT Model name HB01 Operating frequency 2.4 GHz Transmitted power • ZigBee: 8±2dbm • Wi-Fi: 17±2dbm (Mode: 11b, Rate: 1Mbps)

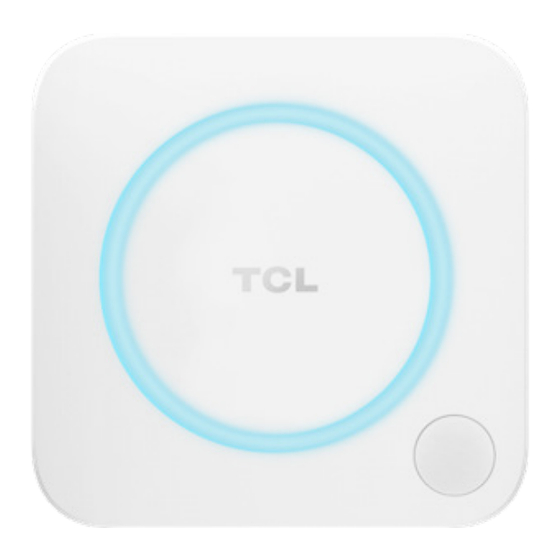

- Page 4 Getting to Know Your LIFECONNECT Your LIFECONNECT is the control centre of your smart home. Through the LIFE app, LIFECONNECT allows you to remotely monitor your home, no matter where you are. Reconnect button LED indicator Micro-USB port • Short press: Turn on LED Reconnect • Long press (5 seconds): Reconnect to button...
- Page 5 Download the app using either of the QR codes shown below. Both QR codes are also printed on the box. Alternatively, you can also search for “TCL LIFE” in the App Store or Google Play Store. App Store Google Play 2.
- Page 6 2) Ensure your smartphone and your LIFECONNECT are connected to the same Wi-Fi network. 3) Open the LIFE app and create an account. 4) Log in your account, select “+” in the LIFE App, and follow the on- screen instructions to continue. 5) If the connection fails, long press the Reconnect button until the blue LED turns on, then retry.
- Page 7 Q: Does the LIFECONNECT have a battery inside? A: No, the LIFECONNECT does not have a battery inside, but it supports a 1A/5V or 2A/5V power supply adapter. A 1A/5V or 2A/5V power bank can also be used to power the device using a USB cable. Q: What’s the connectivity capacity of my LIFECONNECT? What is the coverage range? A: For ZigBee devices, up to 14 devices can be connected.
- Page 8 2) Open the LIFE app on your smartphone and go to LIFECONNECT. 3) If LIFECONNECT is offline, touch "Check Now" -> "Yes" and follow the setup process. Safety and Use We recommend that you read this chapter carefully before using your device. The manufacturer disclaims any liability for damage, which may result as a consequence of improper use or use contrary to the instructions contained herein.
- Page 9 When the device is switched on, it should be kept at least 15 cm from any medical device such as a pacemaker, a hearing aid, or an insulin pump, etc.. When this device is switched on, it should be kept at least 20 cm from the body.
- Page 10 Use only batteries, battery chargers, and accessories which are recommended by TCL Communication Ltd. and its affiliates and are compatible with your device model. TCL Communication Ltd. and its affiliates disclaim any liability for damage caused by the use of other chargers or batteries.
- Page 11 and collection facilities; instead they are to be taken to collection points for them to be recycled. Power Adapters: Mains power adapter will operate within the temperature range of: 0°C (32°F) to 40°C (104°F ). The power adapters designed for your device meet the standard for safety of information technology equipment and office equipment use.
- Page 12 Your device is equipped with a built-in antenna. For optimal operation, you should avoid touching it or degrading it. Note that any data shared with TCL Communication Ltd. is stored in accordance with applicable data protection legislation. For these purposes TCL Communication Ltd. implements and maintains...
- Page 13 processing and accidental loss or destruction of or damage to such personal data whereby the measures shall provide a level of security that is appropriate having regard to - The technical possibilities available; - The costs for implementing the measures; - The risks involved with the processing of the personal data, and;...
-
Page 14: General Information
Transmitted power: ZigBee: 8±2dbm / Wi-Fi: 17±2dbm (Mode: 11b, Rate: 1Mbps) Hereby, TCL Communication Ltd. declares that the radio equipment type TCL HB01 is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the... - Page 15 Ltd. will at no stage be responsible for the inability or failure of the Third Party Materials to operate on this device or in interaction with any other device. To the maximum extent permitted by law, TCL Communication Ltd. disclaims all liability for any claims, demands,...
- Page 16 Third Party Materials. Moreover, the present Third Party Materials, which are provided free of charge by TCL Communication Ltd., may be subject to paid updates and upgrades in the future; TCL Communication Ltd. waives any responsibility regarding such additional costs, which shall be borne exclusively by the purchaser.
- Page 17 - Connection to any equipment not supplied or not recommended by TCL Communication Ltd.; - Modification or repair performed by individuals not authorised by TCL Communication Ltd. or its affiliates or your vendor;...
- Page 18 In no event shall TCL Communication Ltd. or any of its affiliates be liable for indirect, incidental or consequential damages of any nature whatsoever, including but not limited to commercial or financial loss or damage, loss of data or loss of image to the full extent those damages can be disclaimed by law.
- Page 19 © Copyright 2017 TCL Communication Ltd. All rights reserved. TCL Communication Ltd. reserves the right to alter material or technical specification without prior notice.
- Page 20 CJB1H10LCAAC...
