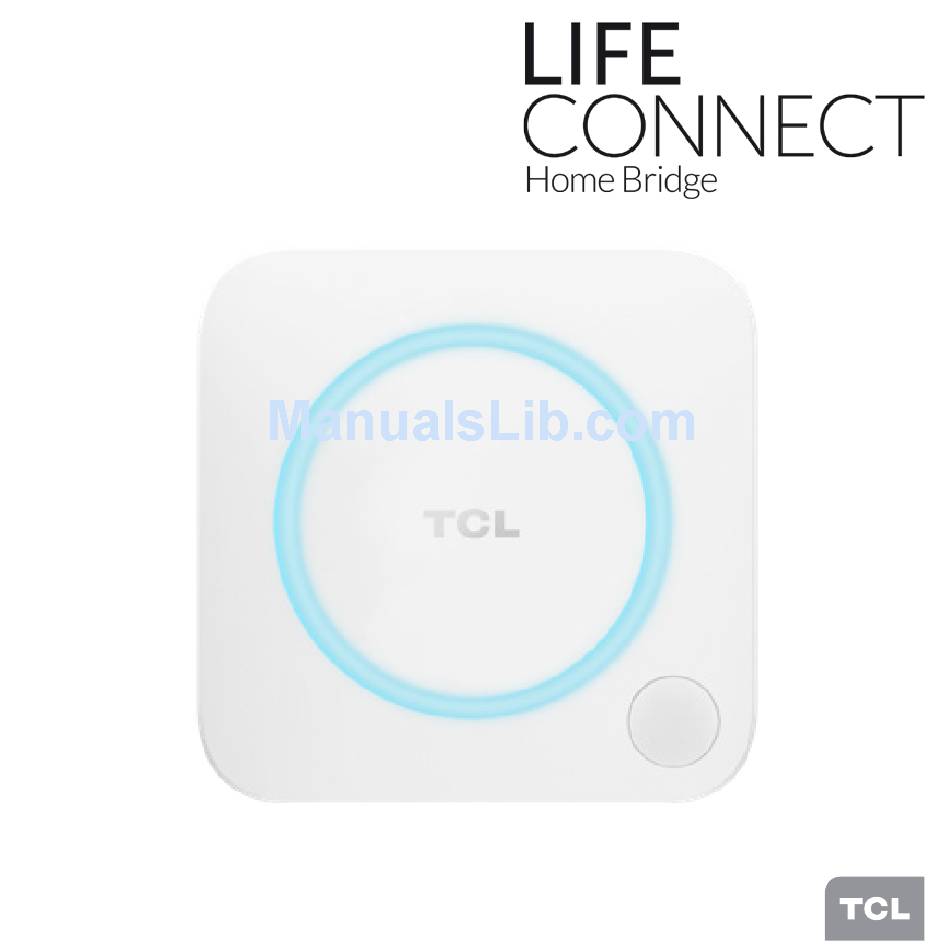

Page 1: Quick Start Guide
Quick Start Guide CJB1H1002AAA... -
Page 2: What's In The Box
What's In The Box? LIFECONNECT x 1 Charger x 1 USB cable x 1 (1 meter) Quick start guide x 1... - Page 3 Specification Product LIFECONNECT name Model name HB01 Operating 2.4 GHz frequency • Zigbee: 8±2dbm Transmitted power • Wi-Fi: 17±2dbm (Mode: 11b, Rate: 1Mbps)
- Page 4 Getting to Know Your LIFECONNECT Your LIFECONNECT is the control center of your smart home. It allows you to monitor and remotely control your home from anywhere, using a range of connected smart devices. You can also create customized scenarios using the LIFE App. Reconnect Button LED Indicator Micro-USB Port • Short press: Turn on LED Reconnect Button • Long press: 5s to reconnect to Wi-Fi • Flashing Blue: Configuring Wi-Fi • Constant Blue: Wi-Fi connected LED Indicator...
- Page 5 Your LIFECONNECT: Quick Set Up Guide 1. Download the LIFE Application Download the App using either of the QR codes shown below. Both QR codes are also printed on the box. Alternatively, you can also search for “LIFE” in the Apple Store or in the Google Play Store. Apple Store Google Play 2. Connecting Devices 1) Connect your LIFECONNECT to the power supply as shown in the following figure. LIFECONNECT can only be added to the App when it is powered on with the LED flashing blue.
- Page 6 2) Ensure your smartphone and your LIFECONNECT are in the same Wi-Fi zone. 3) Open the LIFE App and create an account. 4) Log in to your account, select “+” in the LIFE App, and follow the on-screen instructions to continue. 5) If the connection fails, long press the Reconnect button until the blue LED turns on, then retry. Note: • Keep some distance between your LIFECONNECT and router. 2~6 meters is ideal • This device does not support 5 GHz Wi-Fi.
- Page 7 Q: Does the LIFECONNECT have a battery inside? A: No, the LIFECONNECT does not have a battery inside, but it supports a 1A/5V or 2A/5V charger power supply. It also supports a 1A~2A/5V power bank to power supply via the USB cable. Q: What’s the connectivity capacity of my LIFECONNECT? How wide is the coverage? A: For Zigbee devices, connectivity of over 60,000 devices is theoretically possible. The coverage range is up to 100 meters (without obstructions).
- Page 8 Q: Why is my LIFECONNECT offline again? A: Make sure your smartphone and your LIFECONNECT are both connected to the same Wi-Fi network. If the Wi-Fi network password has been changed, reconnect the LIFECONNECT to your smartphone as follows: 1) Long press the Reconnect button for about 5 seconds until the blue LED turns on. 2) Open the LIFE App on your smartphone and go to LIFECONNECT. 3) If LIFECONNECT is offline, touch "Check Now" -> "Yes" and follow the setup process.
-
Page 9: Safety And Use
Safety and Use Electronic Devices Turn off your device near high-precision electronic devices. The wireless device may affect the performance of these devices. Such devices include hearing aids, pacemakers, fire alarm systems, automatic gates, and other automatic devices. If you are using an electronic medical device, consult the device manufacturer to confirm whether radio waves affect its operation. - Page 10 cooker or a microwave oven. Otherwise, circuit failure, fire, or explosion may occur. • Do not leave your wireless device in a very hot or cold place. Malfunction of the product, fire, or explosion may occur. • Do not subject your wireless device to serious collision or shock. Wireless device malfunction, overheating, fire, or explosion may occur. Child Safety • Put your wireless device in places beyond the reach of children. Do not allow children to use the wireless device without adult supervision. • Do not allow children to put the device in their mouths. • Do not allow children to touch small fittings. Suffocation or choking could occur if they are swallowed.
- Page 11 may occur. • The wireless device may interfere with nearby TV sets, radios, and PCs. • In accordance with international standards for radio frequency and radiation, use wireless device accessories approved by the manufacturer only. Traffic Safety When driving, do not use the wireless device. • When switched on, this device emits electromagnetic waves that can interfere with the vehicle’s electronic systems such as ABS anti-lock brakes or airbags. To ensure that there is no problem, do not place this device on top of the dashboard or within an airbag deployment area.
- Page 12 • When this device is switched on, it should be kept at least 20 cm from the body. • When this device is switched on, it should be kept at least 15 cm from any medical device such as a pacemaker, a hearing aid or insulin pump, etc. • When replacing the cover, please note that this device may contain substances that could create an allergic reaction. • Do not paint it. • The manufacturer’s recommended operating temperature range is -20°C to +65°C. • Always handle this device with care and keep it in a clean and dust-free place. • Clean this device with a dry cloth only. • Do not attempt to disassemble or repair this device or its accessories.
- Page 13 Certification This symbol on the device means that these products must be taken to collection points at the end of their life: - Municipal waste disposal centers with specific bins for these types of equipment. - Collection bins at points of sale. They will then be recycled, preventing substances from being disposed of in the environment and allowing their components to be reused In European Union countries: These collection points are accessible free of charge. All products with this sign must be brought to these collection points.
-
Page 14: Radio Waves
The chargers designed for your device meet the standard for safety of information technology equipment and office equipment use. They are also compliant with the ecodesign directive 2009/125/EC. Due to different applicable electrical specifications, a charger you purchased in one jurisdiction may not work in another jurisdiction. They should be used for this purpose only. Characteristics of power supply (depending on the country): Charger: Input: 100-240 V, 50/60 Hz, 500 mA Output: 5V, 2A Radio Waves THIS DEVICE MEETS THE GOVERNMENT’S REQUIREMENTS FOR EXPOSURE TO RADIO WAVES. Your device is a radio transmitter and receiver. It is designed and manufactured not to exceed the emission limits for exposure to radio-frequency (RF) energy. These limits are part of comprehensive guidelines and establish permitted levels of RF energy for the... - Page 15 The World Health Organization (WHO) considers that present scientific information does not indicate the need for any special precautions for use of wireless devices. If individuals are concerned, they might choose to limit their own or their children’s RF exposure by limiting the length of use to keep device away from the head and body. Additional WHO information about electromagnetic fields and public health are available on the following website: http:/ /www. who.int/peh-emf. Note: This equipment has been tested and found to comply with the limits for a Class B digital device pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause...
- Page 16 - C onsult the dealer or an experienced radio/ TV technician for help. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. For the receiver devices associated with the operation of a licensed radio service (e.g. FM broadcast), they bear the following statement: This device complies with Part 15 of the FCC Rules and Innovation, Science and Economic Development Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: - T his device may not cause harmful interference; - T his device must accept any interference received, including interference that may cause undesired operation.
- Page 17 Note that any data shared with TCL Communication Ltd. is stored in accordance with applicable data protection legislation. For these purposes TCL Communication Ltd. implements and maintains appropriate technical and organizational measures to protect all personal data, for example...
-
Page 18: Warranty
- T his device may not cause interference, and; - T his device must accept any interference, including interference that may cause undesired operation of the device. This Class B digital apparatus complies with Canadian ICES-003. Innovation, Science and Economic Development Canada (ISEDC) Radiation Exposure Statement This EUT is compliance with SAR for general population/uncontrolled exposure limits in ISEDC RSS-102 and had been tested in accordance with the measurement methods and procedures specified in IEEE 1528 and IEC 62209. This equipment should be installed and operated with minimum distance 15 mm between the radiator and your body. This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter. - Page 19 Batteries and accessories sold with your device are also warranted against any defect which may occur during the first six (6) months from the date of purchase as shown on your original invoice.Under the terms of this warranty, you must immediately inform your vendor in case of a conformity defect on this device, and present a proof of purchase. The vendor or repair center will decide whether to replace or repair this device, as appropriate. Repaired or replaced versions of this device are warranted for ONE (1) month unless there are statutory provisions to the contrary. This warranty shall not apply to damage or defects to this device due to: 1) Not following the instructions for use or installation. 2) Not being compliant with technical and safety standards applicable in the geographical area where this device is used. 3) Improper maintenance of sources of energy, and of the overall electric installation.
- Page 20 6) Any servicing, modification or repair performed by individuals not authorized by the manufacturer, the vendor or the approved maintenance center. 7) Use of this device for a purpose other than that for which it was designed. 8) Malfunctions caused by external causes (e.g., radio interference from other equipment, power voltage fluctuations). 9) Faulty connections resulting from unsatisfactory radio transmission or caused by the absence of radio relay coverage. Warranty is also excluded for this device on which markings or serial numbers have been removed or altered. This device is also warranted against hidden defects (defects inherent in the design, manufacture, etc.). There are no other express warranties other than this printed limited warranty, expressed or implied, of any nature whatsoever. In no event shall the manufacturer be liable for incidental or consequential damages of any nature whatsoever, including but not limited to trading loss, commercial loss, to the full extent those damages can be disclaimed by law. Some countries/states do not...
- Page 21 All rights reserved © 2017 TCL Communication LTD. TCL Communication Ltd. reserves the right to alter material or technical specification without prior notice. Address: 5/F, Building22E, Science Park West Avenue, Hong Kong Science Park, Pak Shek Kok, Hong Kong...
