Attaching the Servo Motor Mounts

Find the 3 motor mounts (H). These parts will have a small ridge on the notched end that
slides into slots on the body (A). The motor mounts are symmetrical so they may be
inserted in either direction in the notch on the body (A). File or sand the ridge off and try
dry fitting them into the matching notches on the body (A). IMPORTANT: The motor
mounts (H) must be installed on the same side of the body (A) as the center beam (F & G)
was installed on. When you glue the motor mounts in place, don't worry about a little glue
squeeze out. Cut it off with a Xacto knife after it dries. I suggest that you don't try to wipe it
off because it makes a mess of the body.
42 – Cricket Robot Documentation

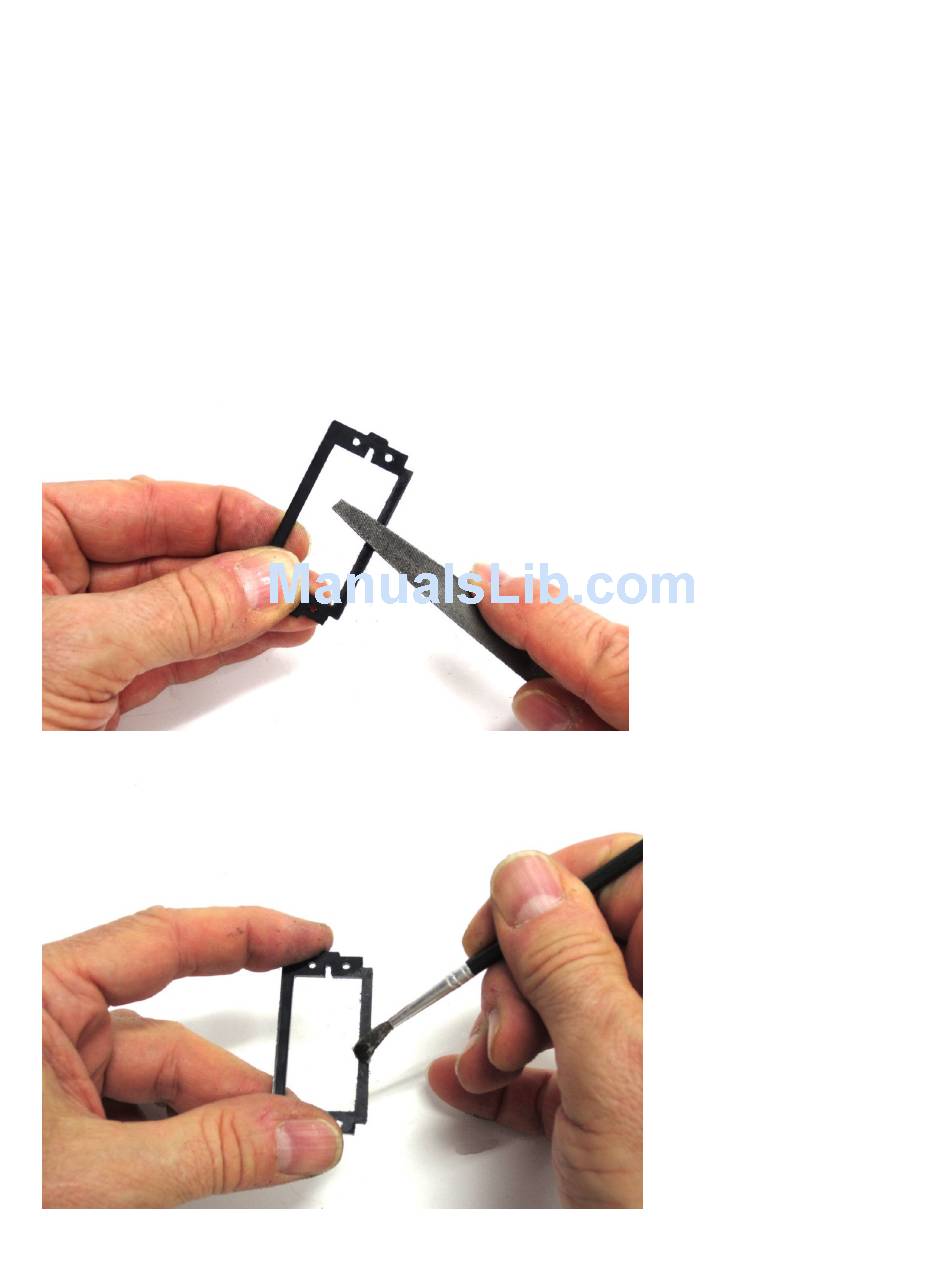

File or sand off the small ridge
on each tab as shown.
Apply glue sparingly on each
side of the tab.
