Panasonic KX-HNP100 Installation Manual

Home network system backup battery
Hide thumbs

Advertisement

Quick Links

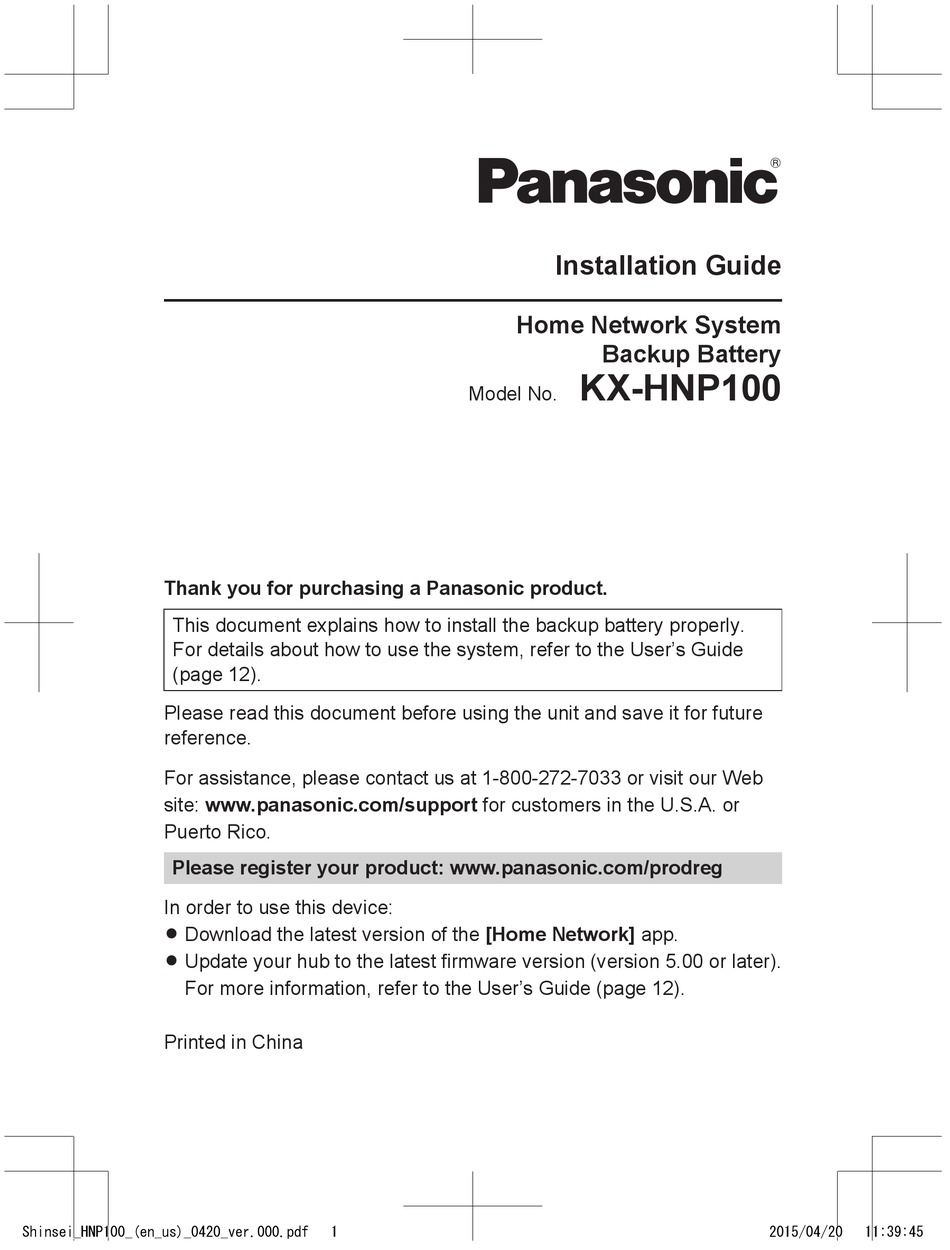

Thank you for purchasing a Panasonic product.
This document explains how to install the backup battery properly.
For details about how to use the system, refer to the User's Guide
(page 12).
Please read this document before using the unit and save it for future
reference.
For assistance, please contact us at 1-800-272-7033 or visit our Web
site: www.panasonic.com/support for customers in the U.S.A. or
Puerto Rico.
Please register your product: www.panasonic.com/prodreg
In order to use this device:
R Download the latest version of the [Home Network] app.
R Update your hub to the latest firmware version (version 5.00 or later).
For more information, refer to the User's Guide (page 12).
Printed in China
Shinsei_HNP100_(en_us)_0420_ver.000.pdf
Model No.
1
Installation Guide
Home Network System
Backup Battery
KX-HNP100
2015/04/20
11:39:45

Advertisement

loading

  Also See for Panasonic KX-HNP100

  Related Manuals for Panasonic KX-HNP100

  Summary of Contents for Panasonic KX-HNP100

  • Page 1 Please read this document before using the unit and save it for future reference. For assistance, please contact us at 1-800-272-7033 or visit our Web site: www.panasonic.com/support for customers in the U.S.A. or Puerto Rico. Please register your product: www.panasonic.com/prodreg In order to use this device: R Download the latest version of the [Home Network] app.
  • Page 2: Table Of Contents

    Table of Contents Introduction Accessory information ....3 Other information .......3 Important Information About this system ......4 For your safety ......4 Important safety instructions ..6 For best performance ....6 Other information .......7 Setup Part names and functions ..8 LED indicator ......8 Backup battery performance (when using the supplied battery) ........8...
  • Page 3: Accessory Information

    Introduction Accessory information Supplied accessories Accessory item/Part number Quantity Rechargeable battery Additional/replacement accessories Please contact your nearest Panasonic dealer for sales information (page 16). Accessory item Model no./Specifications Rechargeable KX-PRA10EX battery R To order, please visit www.panasonic.com/batterystore Battery type: – Lithium Ion (Li-Ion) type battery The replacement battery may have a different capacity from that of the supplied battery.
  • Page 4: Important Information

    R Do not connect non-specified protection from property loss. devices. Panasonic will not be held R Do not leave the power cable responsible in the event that exposed outdoors. property loss occurs while this system is in operation.
  • Page 5 Do not allow conductive thoroughly with water, and then consult a doctor. materials such as rings, bracelets, or keys to touch the batteries, otherwise a short circuit may cause the batteries and/or the conductive For assistance, please visit www.panasonic.com/support Shinsei_HNP100_(en_us)_0420_ver.000.pdf 2015/04/20 11:39:45...
  • Page 6: Important Safety Instructions

    Damp basements should also be avoided. The hub and other compatible R Operating the product near electrical Panasonic devices use radio waves to appliances may cause interference. communicate with each other. Move away from the electrical R For maximum coverage and appliances.
  • Page 7: Other Information

    European Union. If you wish to discard these items, please contact your local authorities or dealer and ask for the correct method of disposal. Note for the battery removal procedure Refer to “Inserting the battery” on page 9. For assistance, please visit www.panasonic.com/support Shinsei_HNP100_(en_us)_0420_ver.000.pdf 2015/04/20 11:39:45...
  • Page 8: Setup

    (KX-HNC200) mode) Outdoor Approx. 1.6 hours Amber, lit Battery charging Camera (standby, night view (KX-HNC600) mode) Amber, Power failure blinking detected Indoor Siren Approx. 8 hours (KX-HNS105) (standby) Low battery For assistance, please visit www.panasonic.com/support Shinsei_HNP100_(en_us)_0420_ver.000.pdf 2015/04/20 11:39:45...
  • Page 9: Setup Overview

    Insert the power supply plug firmly into the DC jack of the compatible device. Connect the AC adaptor plug to the backup battery. For assistance, please visit www.panasonic.com/support Shinsei_HNP100_(en_us)_0420_ver.000.pdf 2015/04/20 11:39:45...
  • Page 10: Registering The Backup Battery

    Connect the AC adaptor to the backup battery power outlet. Note: This procedure is not required for R Use only the supplied Panasonic AC devices that were included as part of adaptor PNLV236. a bundle. R It takes about ten hours to fully charge the battery.
  • Page 11: Wireless Communication Range

    Note: R The LED indicator blinks in red if it is out of range of the hub. In this case, confirm all connections, including those of the hub. For assistance, please visit www.panasonic.com/support Shinsei_HNP100_(en_us)_0420_ver.000.pdf 2015/04/20 11:39:45...
  • Page 12: Appendix

    [Home Network] app. ® ® iPhone /iPad in the app’s home screen. Android™ devices or press your mobile device’s menu button in the app’s home screen. For assistance, please visit www.panasonic.com/support Shinsei_HNP100_(en_us)_0420_ver.000.pdf 2015/04/20 11:39:45...
  • Page 13: Specifications

    R Power source 120 V AC, 60 Hz Lithium Ion (Li-Ion) type battery (1 ´ 3.7 V, 1,450 mAh) R Operating conditions 5 °C – 40 °C (41 °F – 104 °F) For assistance, please visit www.panasonic.com/support Shinsei_HNP100_(en_us)_0420_ver.000.pdf 2015/04/20 11:39:45...
  • Page 14: Fcc And Other Information

    FCC RF exposure interference to radio or television requirements. reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the For assistance, please visit www.panasonic.com/support Shinsei_HNP100_(en_us)_0420_ver.000.pdf 2015/04/20 11:39:45...
  • Page 15 Appendix Notice: R FCC ID can be found inside the battery compartment or on the bottom of the unit. For assistance, please visit www.panasonic.com/support Shinsei_HNP100_(en_us)_0420_ver.000.pdf 2015/04/20 11:39:46...
  • Page 16: Customer Services

    Appendix Customer services Shop Accessories! for all your Panasonic gear Go to www.panasonic.com/accessories Get everything you need to get the most out of your Panasonic products Accessories & Parts for your Camera, Phone, A/V products, TV, Computers & Networking, Personal Care, Home Appliances, Headphones, Ba eries, Backup Chargers &...
  • Page 17: Warranty (For United States And Puerto Rico)

    If your product does not work properly because of a defect in materials or workmanship, Panasonic Corporation of North America (referred to as “the warrantor”) will, for the length of the period indicated on the chart below, which starts with the date of original purchase (“Limited Warranty period”), at its option either (a) repair your product with new or...
  • Page 18 Send the unit to Panasonic Exchange Center, prepaid and adequately insured. Do not send your unit to Panasonic Corporation of North America listed on the back cover or to executive or regional sales offices. These locations do not repair consumer products.
  • Page 19 Notes Shinsei_HNP100_(en_us)_0420_ver.000.pdf 2015/04/20 11:39:46...
  • Page 20 Date of purchase (found inside the battery compartment or on the bottom of the unit) Name and address of dealer Attach your purchase receipt here. Two Riverfront Plaza, Newark, NJ 07102-5490 © Panasonic System Networks Co., Ltd. 2015 Shinsei_HNP100_(en_us)_0420_ver.000.pdf 2015/04/20 11:39:46...
