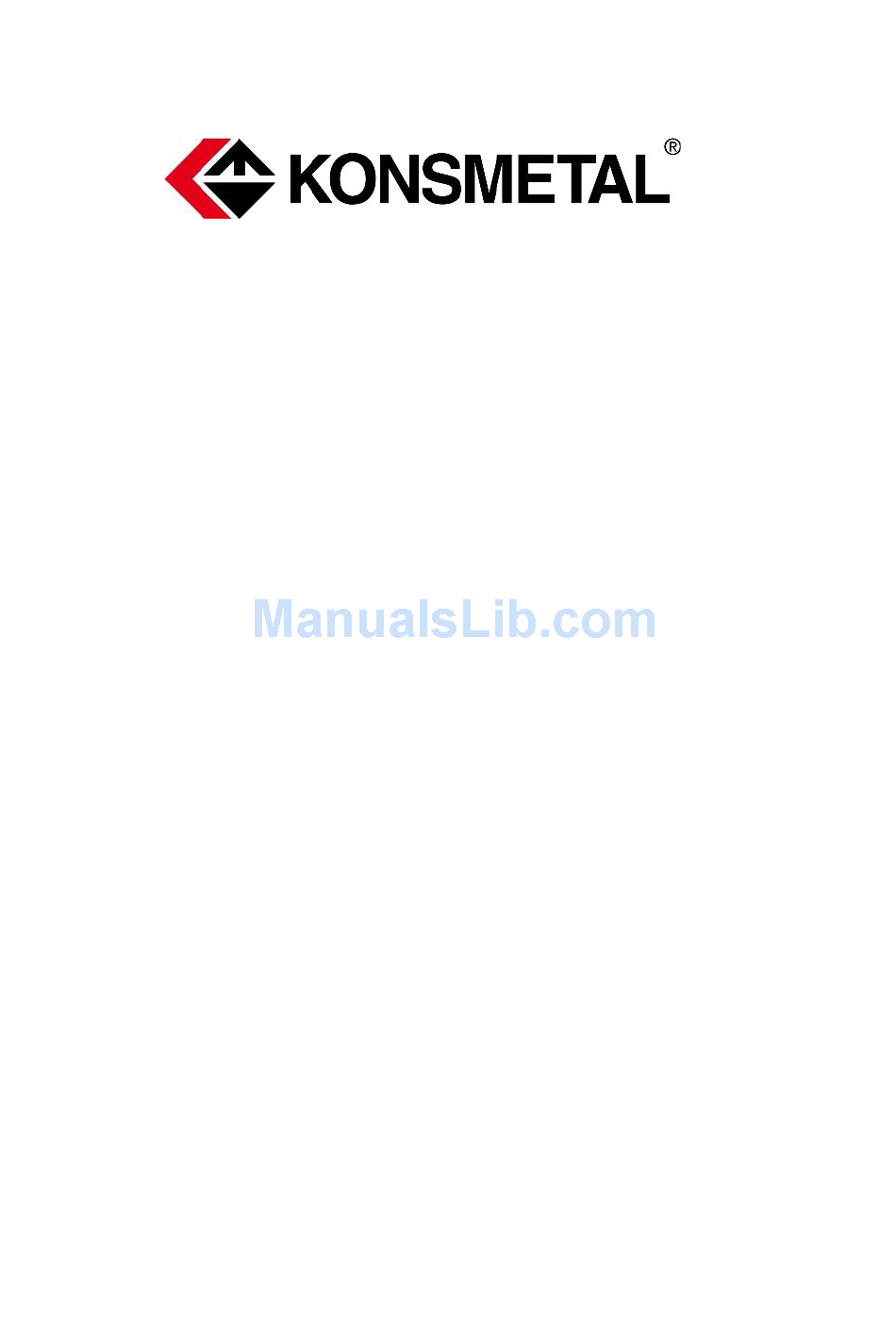

Page 1: Konsmetal Export Department
Product card User manual SL Light Safe Grade I KONSMETAL Export Department export@konsmetal.pl KONSMETAL Service: phone: +48 89 6253799 (Monday – Friday: 8-16) e-mail: serwis@konsmetal.pl... -
Page 2: Table Of Contents
Installation of shelves ......................8 Replacement of the electronic lock’s battery ..............8 Use ............................9 Maitenance ......................... 10 Adjustment of hinges ......................10 Most common problems and remedies ................11 Contact details to the KONSMETAL Service ..............11 str. 2... -
Page 3: Application

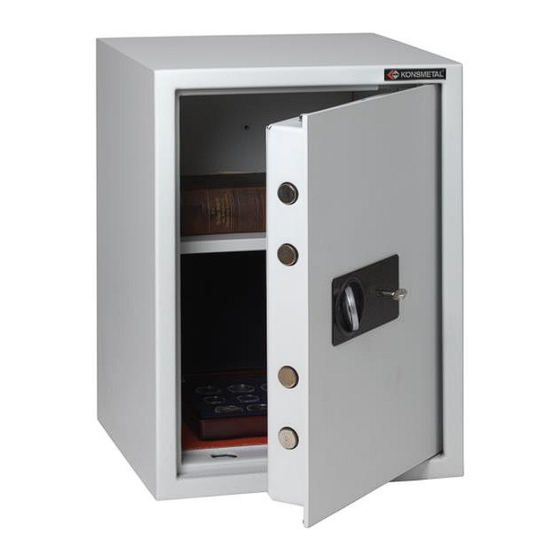

SL Light Safes, grade I Application SL Light Safes are designed to protect cash, promissory notes, checks, classified documents, stocks and shares, as well as jewelry. They are used in offices, stores, pharmacies, hospitals and private apartments. Certificates for storing Valuables in accordance with EN 1143-1 standard, grade I;... -
Page 4: Product Description
SL Light Safes, grade I Before closing the safe door you MUST check if the bolts are maximally retracted. Extended bolts while closing the safe door can damage the paint coat at the place of bolts impact on the edge of the door opening. -
Page 5: Types Of Locks
SL Light Safes, grade I Types of locks combination electronic Standard colours Light grey RAL 7035 (by default unless another color is indicated in the order); Light grey RAL 9002 (must be indicated in the order, no additional cost); Black RAL 9005 (must be indicated in the order, no additional cost). -
Page 6: Installation
SL Light Safes, grade I Installation Safes are mounted to the floor using two steel expansion connectors (Fig.1). Fig. 1 Anchoring depth min. 65mm Concrete min. C16/20 In order to anchor the safe to the floor, the following steps should be taken: Place the safe in the final location. -
Page 7: Operation - Opening
SL Light Safes, grade I Operation - opening Opening of a safe fitted with a key lock only: 1. Insert the key into the lock hole. 2. Turn the key by over 90 (over 1/4 of a turn) clockwise, resistance indicates that the lock is open, the key must remain in the lock (the key lock design prevents the key from being removed when the lock is in open position). -
Page 8: Installation Of Shelves
SL Light Safes, grade I 4. Close the combination/ electronic lock following the steps described in the enclosed lock’s operation manual, the safe is closed. Closing of safes fitted with two key locks: 1. Close the door by pressing it against the body (door bolts must be concealed). -
Page 9: Use
Pay attention to foundation of the safe so that the door does not directly hit obstacles. Bolting mechanisms and locks should operate smoothly and without jamming. In the event of any reservations about operation of the said subassemblies, they ought to be reported to the KONSMETAL service. -
Page 10: Maitenance
Adjustment of hinges SL Safes have internal hinges, so their adjustment is possible when the door is opened. To make an adjustment you need two hex keys of size 3 and 5. Fig. 3 Internal hinge (view from the inside of the safe) Adjustment of hinges is performed as follows: 1. -
Page 11: Most Common Problems And Remedies
SL Light Safes, grade I 4. After setting the correct door height with the screw M10 of the lower hinge, tighten the screw M10 of the upper hinge, but not too tight (the door move freely). 5. At the end, tighten the screws M6 of both hinges to prevent twisting of the screws M10.
