Operating Instructions

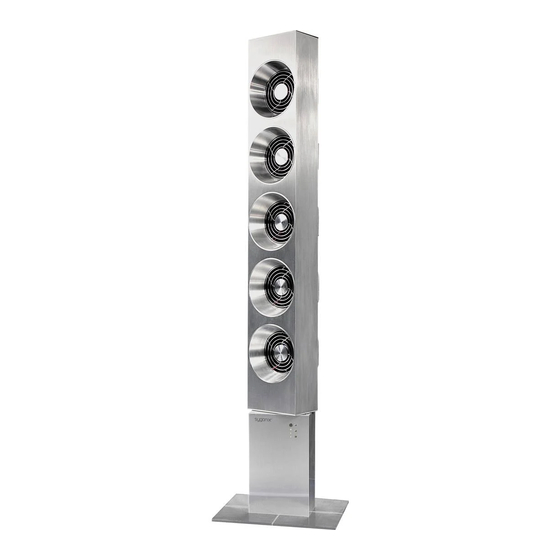

Tower fan
Item No. 1462502

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 1462502 and is the answer not in the manual?

Questions and answers

Related Manuals for Sygonix 1462502

Summary of Contents for Sygonix 1462502

  • Page 1 Operating Instructions Tower fan Item No. 1462502...

  • Page 2: Table Of Contents

    Contents Page Introduction ................................3 Description of symbols ............................3 Intended use ................................4 Delivery content ..............................4 Features and functions ............................4 Safety instructions ...............................5 a) General ................................5 b) (Rechargeable) batteries (remote control) .....................7 c) Internal rechargeable battery .........................7 Operating elements .............................8 a) Tower fan ...............................8 b) Remote control ..............................9 c) Control panel ..............................9 Installation of the foot ............................10...

  • Page 3: Introduction

    1. Introduction Dear customer, Thank you for purchasing this product. This product complies with the statutory national and European requirements. We kindly request the user to follow the operating instructions, to preserve this condition and to ensure safe operation! These operating instructions relate to this product. They contain important notices on commissioning and handling.

  • Page 4: Intended Use

    3. Intended use The product is used for indoor air circulation. It includes 5 fans and has 3 switch settings. It is controlled via buttons on the device or via the supplied remote control. The product has a built-in rechargeable battery, which allows a mains independent operation of up to 8.5 hours.

  • Page 5: Safety Instructions

    6. Safety instructions Read the operating instructions carefully and especially observe the safety information. If you do not follow the safety instructions and information on proper handling in this manual, we assume no liability for any resulting personal injury or damage to property. Such cases will invalidate the warranty/guarantee.
  • Page 6 • Make sure that the mains cable is not squeezed, bent, damaged by sharp edges or put under mechanical stress. Avoid excessive thermal stress on the mains cable from extreme heat or cold. Do not modify the mains cable. Otherwise the mains cable may be damaged. A damaged mains cable can cause a deadly electric shock. • Do not touch the mains cable if it is damaged. First, power down the respective mains socket (e.g. via the respective circuit breaker) and then carefully pull the mains plug from the mains socket.

  • Page 7: B) (Rechargeable) Batteries (Remote Control)

    b) (Rechargeable) batteries (remote control) • Correct polarity must be observed while inserting the (rechargeable) batteries. • (Rechargeable) batteries should be removed from the device if it is not used for a long period of time to avoid damage through leaking. Leaking or damaged (rechargeable) batteries might cause acid burns when in contact with skin, therefore use suitable protective gloves to handle corrupted (rechargeable) batteries.

  • Page 8: Operating Elements

    7. Operating elements a) Tower fan 1 Handle / Storage compartment for remote control 5 Charging switch 2 Oscillating part 6 Power cord connection 3 Air inlet 7 Control panel 4 Air outlet 8 Foot...

  • Page 9: B) Remote Control

    b) Remote control 9 Oscillation button 10 IR transmitter 11 Power level button 12 On/off switch c) Control panel 13 On/off switch 14 Power level button 15 Oscillation button 16 LED indicators 17 IR receiver...

  • Page 10: Installation Of The Foot

    8. Installation of the foot • Place the product upside down. Use a soft surface to protect the casing from scratches or other damage. • Attach both feet with 4 screws each on the bottom of the product. Use a Phillips screwdriver. The black plastic feet must be at the bottom when the product is in a normal, upright position.

  • Page 11: Inserting/Replacing Batteries (Remote Control)

    10. Inserting/replacing batteries (remote control) • Remove the battery compartment lid from the back of the remote control. • Insert 2 AAA batteries and heed correct polarity. Heed correct polarity as indicated in the battery compartment. • Close the battery compartment. Change the batteries when the product no longer responds to commands from the remote control.

  • Page 12: Cleaning And Care

    • Turn off the product after use. • Disconnect the power plug from the outlet when not using the product for a long time. 12. Cleaning and care Under no circumstances use aggressive cleanings agents, cleaning alcohol or other chemical solutions since these can penetrate the housing or impair functionality.

  • Page 13: B) (Rechargeable) Batteries

    b) (Rechargeable) batteries You as the end user are required by law (Battery Ordinance) to return all used (rechargeable) batteries. Disposing of them in the household waste is prohibited. Contaminated (rechargeable) batteries are labelled with this symbol to indicate that disposal in the domestic waste is forbidden.
  • Page 14 This is a publication by Conrad Electronic SE, Klaus-Conrad-Str. 1, D-92240 Hirschau (www.conrad.com). All rights including translation reserved. Reproduction by any method, e.g. photocopy, microfilming, or the capture in electronic data processing systems require the prior written approval by the editor. Reprinting, also in part, is prohibited. This publication represent the technical status at the time of printing.
