MODEL
CD-BH950
MINI COMPONENT SYSTEM

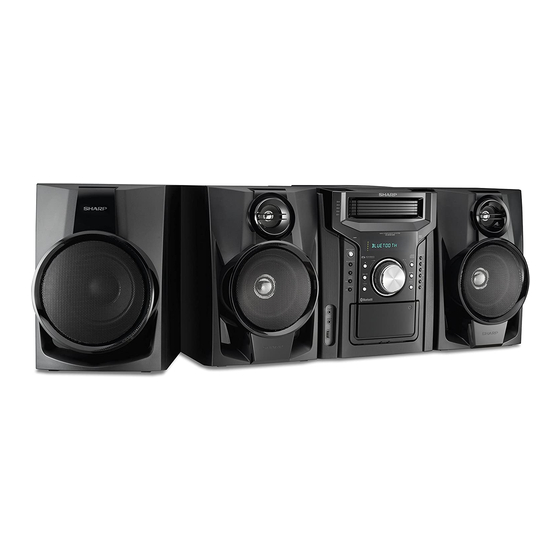

CD-BH950 Mini Component System consisting of CD-BH950 (main unit) and CP-BH950 (speaker system).
RRMCGA397AWSA
This audio system supports devices with Android 4.1, Jelly Bean and higher.
soft
●
For device with a lower Android version, refer the operation manual of the device for recommended app (application).
●
Accessories
barcodesoft.com
Please confirm that only the following accessories are included.
mbology: Code 93 ; Font Facename: Code93MHr
code: TINSZB995AWZZ
Remote control x 1
(RRMCGA397AWSA)
:
Special Note
*TINSZB995AWZZWE*|
Supply of this product does not convey a license nor imply any right to distribute content created with this product in
revenue-generating broadcast systems (terrestrial, satellite, cable and/or other distribution channels), revenue generating
streaming applications (via Internet, intranets and/or other networks), other revenue-generating content distribution
systems (pay-audio or audio-on-demand applications and the like) or on revenue-generating physical media (compact
discs, digital versatile discs, semiconductor chips, hard drives, memory cards and the like). An independent license for
such use is required. For details, please visit http://mp3licensing.com
0 :
*TINSZB995AWZZWE*|
MPEG Layer-3 audio coding technology licensed from Fraunhofer IIS and Thomson.
TINSZB995AWZZ
OPERATION MANUAL
AM loop antenna x 1
(QANTLA016AW01)
PORTABLE MUSIC BOOMBOX GX-BT9
REMOTE
SENSOR
iPhone, iPod, iPod nano, and iPod touch a
trademarks of Apple Inc., registered in the
and other countries.
Lightning is a trademark of Apple Inc.
FM antenna x 1
(92LFANT1535A)
ENGLISH
Printed in Malaysia
1
16G R KI
Advertisement
Table of Contents
Related Manuals for Sharp CD-BH950
Summary of Contents for Sharp CD-BH950
-
Page 1: Operation Manual
ENGLISH MODEL CD-BH950 MINI COMPONENT SYSTEM OPERATION MANUAL CD-BH950 Mini Component System consisting of CD-BH950 (main unit) and CP-BH950 (speaker system). PORTABLE MUSIC BOOMBOX GX-BT9 REMOTE SENSOR RRMCGA397AWSA iPhone, iPod, iPod nano, and iPod touch a trademarks of Apple Inc., registered in the and other countries. -
Page 2: Special Notes
(servicing) instruc- trademarks owned by the Bluetooth SIG, Inc. and tions in the literature accompanying the appliance. any use of such marks by SHARP is under license. Other trademarks and trade names are those of their respective owners. - Page 3 Refer internal service to your in the vicinity of overhead power lines or other electric light or local SHARP service facility. power circuits, or where it can fall into such power lines or cir- ● This unit should only be used within the range of cuits.
-
Page 4: For U.s. Customer Only
Product, and shall constitute full satisfaction of all claims, whether based on contract, negligence, strict liability or otherwise. In no event shall Sharp be liable, or in any way responsible, for any damages or defects in the Product which were caused by repairs or attempted repairs performed by anyone other than an authorized servicer. -
Page 5: Controls And Indicators
Controls and indicators ■ Front Panel 1. Disc Trays 2. Timer Indicator 3. CD / USB, Tape Stop Button 4. On/Standby Button 5. Bluetooth Button 6. CD Button 7. Tuner (Band) / Tape Button 8. Audio In / USB Button 9. - Page 6 Controls and indicators (continued) ■ Speaker System 1. Tweeter 2. Woofer 3. Bass Reflex Duct 4. Speaker Wire ■ Remote Control 1. Remote Control Transmitter 2. On / Standby Button 3. Disc Number Select Buttons 4. USB Button 5. CD Button 6.
-
Page 7: System Connection
System connection Make sure to unplug the AC power cord before making any connections. Black To right To left speaker speaker FM antenna External FM antenna for better reception (not supplied) AM loop antenna CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT. -
Page 8: Remote Control
Remote control ■ Battery installation ■ Test of the remote control Check the remote control after checking all the connections. Use 2 “AAA” size batteries (UM/SUM-4, R3, HP-16 or Point the remote control directly at the remote sensor on the similar). -
Page 9: General Control
General control ■ Volume auto fade-in ON/ STANDBY If you turn off and on the main unit with the volume set to 27 or higher, the volume starts at 16 and fades in to the Bluetooth last set level. TIMER REMOTE SENSOR VOL. -
Page 10: Bluetooth One Touch Connection Via Nfc
Bluetooth one touch connection via NFC Unlike other wireless technology, NFC requires no ■ About NFC technology discovery or pairing. Simply tap the source device to the NFC detection area Near Field Communication (NFC) is a set of standards for to instantly enjoy seamless connectivity between your devices (smartphones/tablets) to establish radio communi- smart device and the audio system. -
Page 11: Listening To Bluetooth Enabled Devices
CD-BH950 supports Bluetooth profile AVRCP 1.4. If your de- ● vice supports the same profile (refer to device manufacturer’s specification), CD-BH950 is able to control the volume of the device. Note: Some music applications do not support this feature, hence... - Page 12 Listening to Bluetooth enabled devices (continued) ■ Listening to the sound ■ To disconnect the Bluetooth device Perform any of the followings. Check that: - Disconnect the Bluetooth connection on the audio source The source device Bluetooth functionality is ON. ●...
-
Page 13: Listening On Android™ Devices
Listening on Android™ devices ■ Introduction : Open Accessory ■ Android device playback Open Accessory support allows external USB hardware Press the ON/STANDBY button to turn the power on. (an Android USB accessory) to interact with an Android- Press the AUDIO IN (USB) button repeatedly on the powered device in a special accessory mode. -
Page 14: Listening To A Cd Or Mp3/Wma Disc
Listening to a CD or MP3/WMA disc ■ Disc playback ■ To specify a disc to play Press the ON/STANDBY button to turn the power on. You can play a disc by specifying the disc number. Press the CD button. Press one of the Press the 1 button and within 5 seconds, press the OPEN/... -
Page 15: Programmed Play (Cd)
Listening to a CD or MP3/WMA disc (continued) ■ Programmed play (CD) ■ Procedure to playback MP3/WMA disc with folder mode on You can choose up to 32 selections for playback in the order you like. To play back CD-R/RW. While in the stop mode, In CD function, load an MP3/WMA disc. -
Page 16: Listening To Usb Mass Storage Device/Mp3 Player
● For MP3/WMA files, please put “.MP3” “.WMA” extension. Notes: Files cannot be played back if there is no MP3/WMA ● SHARP will not be held liable for the loss of data while the extension. USB memory device is connected to the audio system. -
Page 17: Listening To The Radio
Listening to the radio ■ Memorizing a station OPEN / CLOSE You can store 40 AM and FM stations in memory and recall them at the push of a button. (Preset tuning) TUNER Perform steps 1 - 3 in “Tuning”. (BAND) TAPE Press the MEMORY... -
Page 18: Listening To A Cassette Tape
Listening to a cassette tape Setting the clock (Remote control only) Before playback: ● For playback, use normal or low- noise tapes for the best sound. (Metal or CrO tapes are not recommended.) ● Do not use C-120 tapes or poor-quality tapes, as they may cause malfunctions. -
Page 19: Timer Playback
Timer and sleep operation (Remote control only) (continued) Timer playback: volume. The timer indicator will blink during timer playback. The unit turns on and plays the desired source (CD, When the timer end time is reached, the system will TUNER, USB, AUDIO IN, TAPE) at a preset time. enter the power standby mode automatically. -
Page 20: Enhancing Your System
If something is wrong with this product, check the following before calling your ■ To use timer and sleep operation together authorized SHARP dealer or service center. Sleep and timer playback: ■ General For example, you can fall asleep listening to the radio and wake up to CD in the next morning. -
Page 21: Maintenance
Troubleshooting chart (continued) ■ Tuner ■ If problem occurs When this product is subjected to strong external Symptom Possible cause interference (mechanical shock, excessive static ● The radio makes ● Is the unit placed near the TV electricity, abnormal supply voltage due to lightning, etc.) unusual noises or computer? or if it is operated incorrectly, it may malfunction. -
Page 22: Specifications
Specifications As part of our policy of continuous improvement, SHARP ■ Cassette deck reserves the right to make design and specification changes for product improvement without prior notice. The performance Frequency response 50 - 14,000 Hz (normal tape) specification figures indicated are nominal values of production units.
Need help?
Do you have a question about the CD-BH950 and is the answer not in the manual?
Questions and answers
SHARP CD-BH950: why is my unit all of a sudden connecting to bluetooth while I'm playing CD's?
The Sharp CD-BH950 has Bluetooth functionality for wireless streaming, but it does not support Bluetooth headphone pairing. If the unit is connecting to Bluetooth while playing CDs, it may be due to difficulty in turning off the Bluetooth prompt, as mentioned in user feedback. This could cause the system to remain in Bluetooth mode even when switching to CD playback.
This answer is automatically generated
@Mr. Anderson Thank you for your response.
What is the step-by-step instructions to play CDs?
To play CDs on a Sharp CD-BH950, insert up to five CDs into the front-loading drawer. The system supports CD-RW, CD-R, WMA, and MP3 formats. You can select a disc and track using the controls or remote. The system has a "Random" mode that plays all tracks from one CD before switching to the next.
This answer is automatically generated
I **** trying to play CDs and the unit keeps switching to bluetooth
The Sharp CD-BH950 may switch to Bluetooth when trying to play CDs if no CD is inserted or detected in the selected disc tray. According to the manual, if a disc tray with no disc is selected, playback will not start and the disc indicator will disappear. This may cause the system to revert to a previously used input, such as Bluetooth.
This answer is automatically generated
How do I disable the bluetooth feature?
To disable the Bluetooth feature on the Sharp CD-BH950, do one of the following:
- Disconnect the Bluetooth connection from the audio source device.
- Turn off the Bluetooth function on the source device.
- Turn off the unit.
- Press and hold the BLUETOOTH (PAIRING) button to exit Bluetooth mode.
- Press the ECO button on the remote control to cancel Bluetooth standby mode and enter low power consumption mode.
This answer is automatically generated
How to set my clock
How do I fold the OEM antenna (with CD-BH950) so that it stands up?
