Summary of Contents for Xomax XM-2CDB622

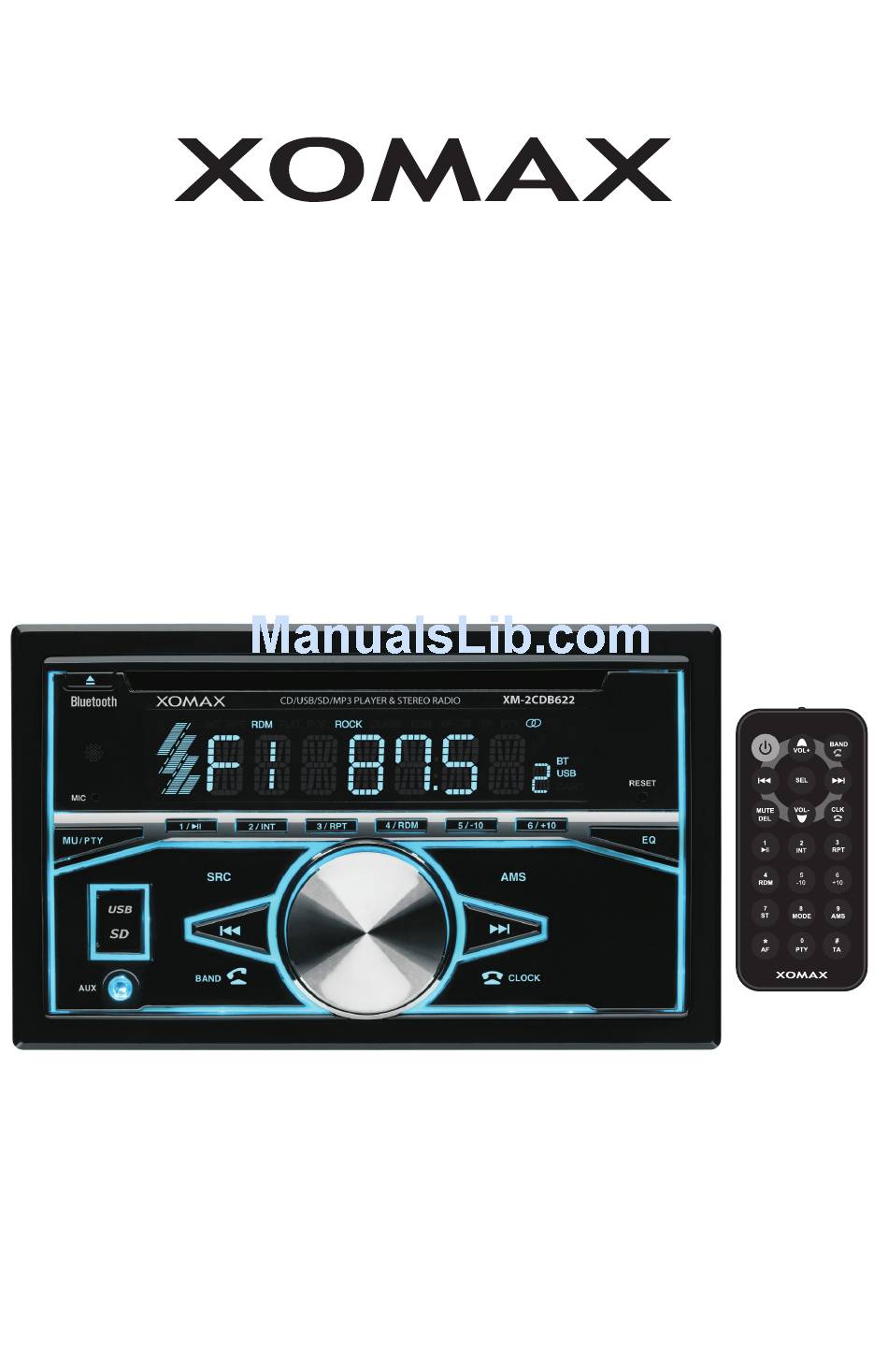

- Page 1 2 Din Car RDS/FM Radio, CD, CD-R/RW, MP3 Player with USB/SD Card Inputs Model No.:XM-2CDB622 USER’S MANUAL...
-
Page 2: Table Of Contents
CONTENTS Precautions........................1 How to Handle Discs....................1 Precautions & Warnings....................1 Lithium Battery Cell Warnings..................1 Drivers and Connections.....................1 Other Warnings......................1 Installation........................2 Installation Procedures....................2 Important........................2 To Install the Car Radio....................2-3 Wiring Connections....................3 Removal of the Main Unit ....................3 Control Panel Button Locations..................4 General Operation......................5 Turn Unit On/Off......................5 Adjust Volume (VOL)....................5 Adjust Menu Options (SEL)..................5-6... -
Page 3: Precautions
PRECAUTIONS How to Handle Discs • Handle a disc by its edges. Do not touch the playing side • Before inserting a disc, wipe the disc outward from the disc center with a clean, soft, dry and lint-free cloth. Do not use solvents or thinners such a petrol/benzene or cleaners. -
Page 4: Installation
INSTALLATION Installation Procedures First complete the electrical connections and then check for correctness. Installation Opening This unit can be installed in any dashboard Having 103 mm an opening as shown the right figure. 182 mm Important: Remove the transport CD deck screws before use. To Install the Car Radio Be sure you test all connections first, and then follow these steps to install this unit. -
Page 5: Wiring Connections
INSTALLATION(CONT.) INSTALLATION DIAGRAM - Only use speakers with 4 ohms impedance. - The maximum current of the auto antenna is 200mA. Wiring Connections WIRING DIAGRAM CAUTION +12V DC NEGATIVE GROUND Removal of the Main Unit Remove the metal strap from the main unit. Remove the plastic trim out from the main unit. -
Page 6: Control Panel Button Locations
CONTROL PANEL BUTTON LOCATIONS (power)/Volume knob and SEL (select/menu) button 2. SRC (source) button 3. BAND(band) button, (answer call) button 4. AMS (automatic store / preset station scan, automatic music search) button (pause/play), Preset station1 button 6. INT (intro), Preset station 2 button 7. -
Page 7: General Operation
GENERAL OPERATION Turn Unit On/Off • Press any button on the front panel or remote control to turn on the unit. • Press and hold the power button (VOL knob) or POWER( ) button on the remote control to turn the unit off. Adjust Volume (VOL) Rotate the VOL knob on the front panel or press the VOL+ /VOL-... -
Page 8: Set The Clock (Clock)
GENERAL OPERATION (CONT.) When this function is enabled, the tuner will periodically scan received frequencies and play any traffic information message that may be broadcast. - REG ON/OFF: Enables or disables the region mode. Some broadcasting stations change their program from normal broadcasting to regional broadcasting for a certain time period. -
Page 9: Radio Operation
RADIO OPERATION Change Bands (BAND) Press the BAND button to switch between the FM1, FM2 and FM3 band. Each band stores up to six preset stations. Manual Tuning ( Press and hold the button on the front panel or on the remote control to enter manual tuning mode. - Page 10 RADIO OPERATION Numeric key Speech PTY Group Music PTY Group NEWS, AFFAIRS, INFO POP M, ROCK M SPORT, EDUCATE, DRAMA EASY M, LIGHT M CULTURE, SCIENCE, VARIED CLASSICS, OTHER M WEATHER, FINANCE, CHILDREN JAZZ, COUNTRY NATION(national), OLDIES SOCIAL, RELIGION, PHONE IN TRAVEL,LEISURE, DOCUMENT FOLK M When you select a program type, the...
-
Page 11: Disc/Usb/Micro Sd Card Operation
DISC / USB / MICRO SD CARD OPERATION To insert DISC / USB / SD CARD • To play files on a disc, insert a disc with the label surface facing upward into the disc slot. Playback will begin automatically. Label surface up •... -
Page 12: Select The Track Or File For Playback In Mp3 Format
DISC / USB / MICRO CARD OPERATION (CONT.) Select the track or file for playback in MP3 format Press the AMS button repeatedly to select one of the following 3 search modes: NUM SCH (Searching by track or file serial number) DIR SCH (Searching by folder serial number) FILE SCH (Searching by track or file name) Searching by track or file serial number:... -
Page 13: Bluetooth Operation
To begin pairing, enable BT mode on your mobile phone. 2. When the phone finds the car audio system,the XM-2CDB622 name will be displayed. 3. Choose the XM-2CDB622 from the device list to pair and connect with the car audio system. Upon confirming, the BT logo will stop flashing. -
Page 14: Remote Control
REMOTE CONTROL Remove Insulating Sheet The remote control comes with an insulating sheet attached to the underside of the remote control, as illustrated on the right. The remote control will not work until the insulating sheet is removed. Replace Lithium Battery Cell 1. -
Page 15: Specifications
SPECIFICATIONS General Chassis Dimensions.............178(W) x 160(D) x 100(H) mm Power Supply Requirement ..................DC 12V Current Consumption ..................15A (max.) Maximum Power Output ..................60W x 4CH Radio Frequency Range...............87.5 - 108.0 MHz (50KHz/Step) Usable Sensitivity ....................30 dBu I.F. Frequency ....................10.7 MHz CD/USB/Card Usable Audio Formats ................CD/MP3/WMA USB Port Type......................2.0 USB Charging......................5V/1A... -
Page 16: Tr O U B L E S H O O T I N
TROUBLESHOOTING The following chart will help in solving most problems that may occur. If you still have questions after going through the checklist, please consult your local customer service representative. Before going through this check list, refer the wiring and operating procedures.
