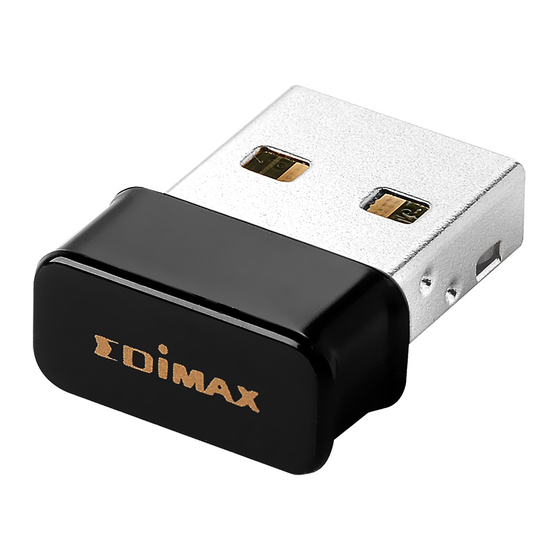

EW-7611ULB
Quick Installation Guide
05-2016 / v1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EW-7611ULB and is the answer not in the manual?

Questions and answers

Summary of Contents for Edimax EW-7611ULB

  • Page 1 EW-7611ULB Quick Installation Guide 05-2016 / v1.0...
  • Page 2: Table Of Contents

    I. Product Information ................1 I-1. Package Contents ........................1 I-2. LED Status ..........................1 I-3. System Requirements ......................1 I-4. Safety ............................. 2 II. Installation .................... 3 III. Windows ....................4 III-1. Driver Installation ........................4 III-2. Driver Uninstallation ......................8 IV.
  • Page 3 Č š a : Českého prů od e r hlou i stala alez ete a přilože é CD s o ladači š : Finden Sie bitte das deutsche S.A.L. beiliegend in der Treiber CD l : Incluido en el CD el G.R.I. en Español. ñ...
  • Page 4: Product Information

    I. Product Information I-1. Package Contents I-2. LED Status LED Status Description Wireless activity: transmitting or WLAN receiving data. No wireless activity. I-3. System Requirements 7 - 10, Mac OS X 10.7 – 10.11 - Windows - USB 2.0 Port - Hard Disk: 100MB - CD-ROM Drive...
  • Page 5: I-4. Safety

    I-4. Safety In order to ensure the safe operation of the device and its users, please read and act in accordance with the following safety instructions. The wireless adapter is designed for indoor use only; do not place the wireless adapter outdoors. Do not place the wireless adapter in or near hot/humid places, such as a kitchen or bathroom.
  • Page 6: Installation

    Never use force to insert the USB adapter. Insert the included CD-ROM into the CD drive of your computer. The setup wizard is also available for download from the Edimax website. For Windows users the setup wizard will open. For Mac users the CD’s folder ill ope .
  • Page 7: Windows

    III. Windows III-1. Driver Installation If the CD didn’t auto-run, please open the Autorun.exe file to start the setup wizard. Click the EW-7611ULB wireless USB adapter to continue. Cli k I stall Wi-Fi Dri er to install the Wi-Fi drivers.
  • Page 8 Cli k Ne t to o ti ue a d follo the i stru tio s o -screen until installation is complete. You need to install the Bluetooth drivers next, so select restart your computer later and click Fi ish .
  • Page 9 Cli k I stall Bluetooth Dri er to i stall the Bluetooth dri ers. Cli k Ne t to o ti ue a d follo the i stru tio s o -screen until installation is complete.
  • Page 10 You need to restart your computer before using the adapter. Choose hether to restart o or later a d li k Fi ish to o ti ue. Cli k E it to lose the setup izard. The multi-language QIG is also included on the CD-ROM. To open it li k Multi-language QIG .
  • Page 11: Iii-2. Driver Uninstallation

    Programs and Features, Uninstall a Program or Add or Remove Programs feature. An example is shown below: Open Control Panel using the Start menu or Search function. Select Uninstall a program under the Programs category. Select Edimax Wi-Fi N150 (or similar) and Edimax Bluetooh 4.0 (or similar) and click Uninstall.
  • Page 12: Mac Os

    IV. Mac OS IV-1. Driver Installation Bluetooth connectivity is Windows only. Open the RTLWLANU_Ma OS.. folder and double click the I staller.pkg file to ope the dri er i stallatio izard. Cli k Co ti ue to pro eed to the e t step. The next screen displays important information, please read it carefully.
  • Page 13 Sele t a la guage the default la guage is E glish a d li k Co ti ue to install the driver. To read the soft are li e se li k Read Li e se a d the li k Agree to confirm you agree to the terms.
  • Page 14 If prompted, select which user to install the software for and click Co ti ue . Cli k I stall to i stall the dri er.
  • Page 15 You may be prompted to enter your system/administrative password efore the i stallatio egi . E ter our pass ord a d li k I stall Soft are . You will be prompted that you must restart your computer when the i stallatio is o plete.
  • Page 16 Please wait while the driver is installing. When the installation is complete, you will see the following screen i for i g ou that The i stallatio as su essful . Cli k Restart to restart your computer. Next, please disable any other wireless adapters as described in V. Disabling Network Adapters.
  • Page 17: Iv-2. Driver Uninstallation

    IV-2. Driver Uninstallation Ope the RTLWLANU_Ma OS.. folder. Dou le li k the U i stall.pkg file a d follo the on-screen instructions.
  • Page 18: Disabling Network Adapters

    V. Disabling Network Adapters To ensure that your USB wireless adapter can function correctly, it is recommended that you disable any other existing wireless network and Bluetooth adapters installed on your computer. If you are unsure how to do so, you can refer to the user manual for your computer, or follow the examples below.
  • Page 19: V-2. Windows 8.1 & 10

    V-2. Windows 8.1 & 10 Go to File Explorer > Network (right click) > Properties > Change adapter settings. Right li k our ireless adapter, sele t Properties a d the Disable .
  • Page 20: Mac

    V-3. Sele t S ste Prefere es fro the do k. S ste Prefere es , select Net ork . All of your network connections will be displayed, as shown below. Select Wi-Fi fro the left pa el. Cli k Tur Wi-Fi off i the ai pa el.
  • Page 21: Using The Adapter

    VI. Using The Adapter After you have installed the driver and if necessary disabled other adapters, Windows users can connect to a Wi-Fi network or Bluetooth device as usual. Mac users need to connect to a Wi-Fi network using the included utility, as described in VI-2.
  • Page 22 After correctly entering your password, you will be successfully connected to your Wi-Fi network. To connect to a Bluetooth device, go to Windows Bluetooth settings by using the search bar, or by right clicking the Bluetooth icon in the task bar and choosing Add a Bluetooth Device.
  • Page 23 Select your Bluetooth device and click Pair and then confirm the passcode.
  • Page 24 Your Bluetooth device will display Connected and is now available for use.
  • Page 25: Vi-2. Mac

    VI-2. Click the new USB adapter icon from the menu in the top right of your Mac desktop and select your Wi-Fi network as you usually would. Enter the password (network key) for the Wi-Fi network a d li k Joi . After entering your password, you will be successfully connected to your Wi-Fi network and the icon will display the Wi-Fi signal strength.
  • Page 26 You can use the other items in the menu to switch your USB adapter on/off, join another network (manually enter SSID name) display WPS PIN or activate WPS push button mode. WPS (Wi-Fi Protected Setup) is a simple, alternative way to establish connections between WPS compatible devices.
  • Page 27 COPYRIGHT Copyright  Edimax Technology Co., Ltd. all rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without the prior written permission from Edimax Technology Co., Ltd.
  • Page 28: Federal Communication Commission Interference Statement

    Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
  • Page 29 EU Declaration of Conformity This equipment is in compliance with the essential requirements and other relevant English: provisions of Directive 1999/5/EC, 2009/125/EC. Cet équipement est conforme aux exigences essentielles et autres dispositions de la Français: directive 1999/5/CE, 2009/125/CE. Toto zař ze je souladu se základ i požada k a ostat i př...
  • Page 30: Declaration Of Conformity

    Declaration of Conformity We, Edimax Technology Co., Ltd., declare under our sole responsibility, that the equipment described below complies with the requirements of the European R&TTE directives. Equipment: N150 WiFi Bluetooth 4.0 USB Adapter Model No.: EW-7611ULB The following European standards for essential requirements have been followed:...
