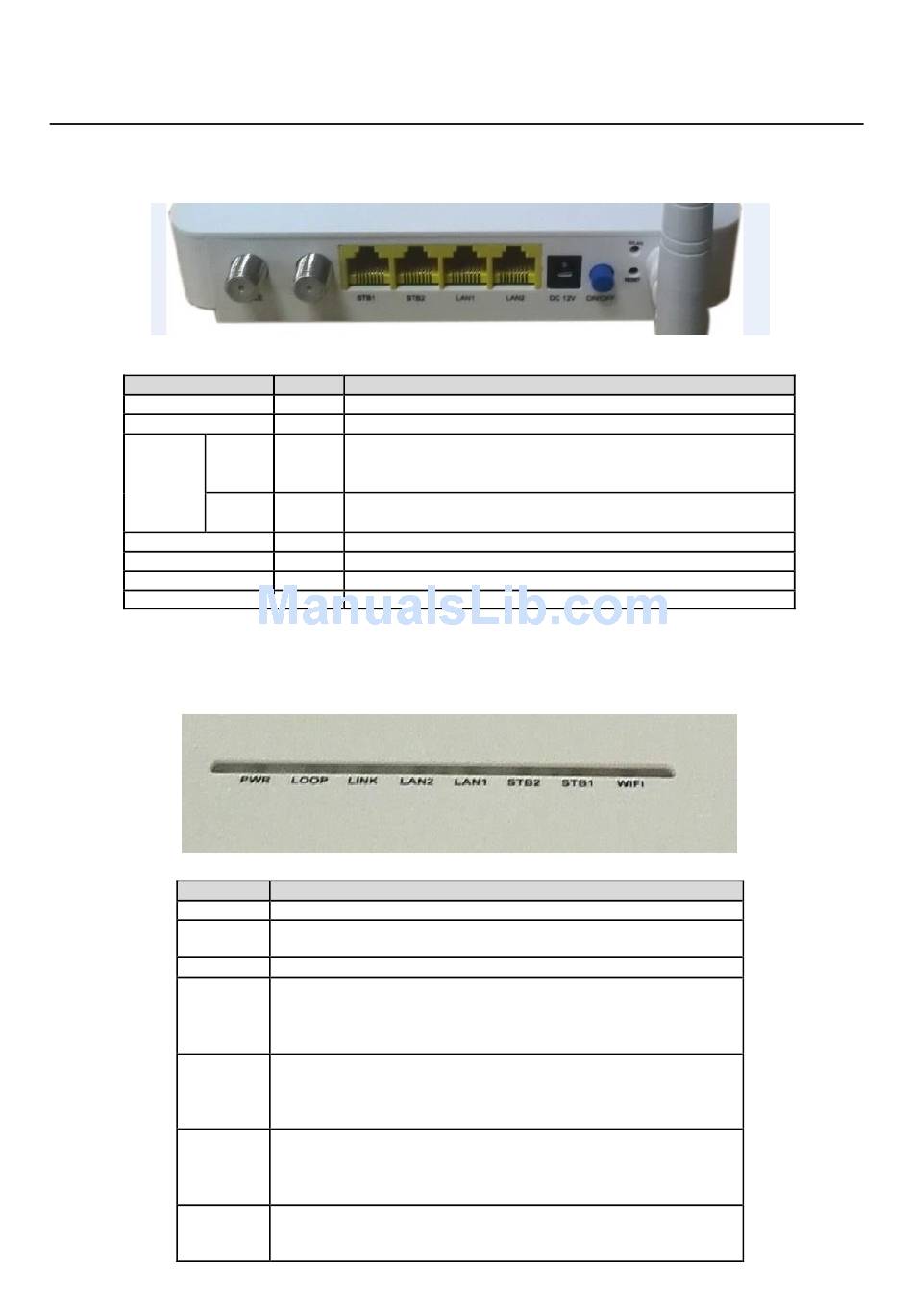

The back panel has the connections and button shown in the following figure.
Interface
Cable
TV
Ethernet
Power Connector
Power Button
Reset
WLAN

Front Panel

The router front panel has the status LEDs shown in the following figure.
LED
POWER
SYS
LOOP
LINK
LAN1-2
STB1-2
WIFI
Qty.
1 Connect to uplink CATV network
1 Connect to STB or TV by Cable
Ethernet LANn ports for connecting to PC，can work on
LAN 2 Router Mode. WAN connection can get the IP address from
upper-layer device.
Ethernet ports for connecting to PC, the user-side IP
STB 2
address is obtained through the upper-layer device.
1 Power connector
1 Power On/Off
1 Reset button
1 Wifi button
Description
Solid green. Power is supplied to the CL64WLAN.
Solid green. System has started.
Blinking green. The CL64WLAN is starting up.
If the loop happened the LOOP led will on
•Solid green. The CABLE port has detected a link with the
IPC-M by coaxial cable network.
•Blinking green. Data is being transmitted or received.
•Off. The unit is off or there is no link established.
•Solid green. The LAN port has detected an Ethernet link with
a device such as a computer.
•Blinking green. Data is being transmitted or received.
•Off. No link is detected on this port.
•Solid green. The STB port has detected an Ethernet link with
a device such as a computer.
•Blinking green. Data is being transmitted or received.
•Off. No link is detected on this port.
Blinking green. Data is being transmitted or received over the
wireless link.
OFF. No wireless PC connected.
Description
3
