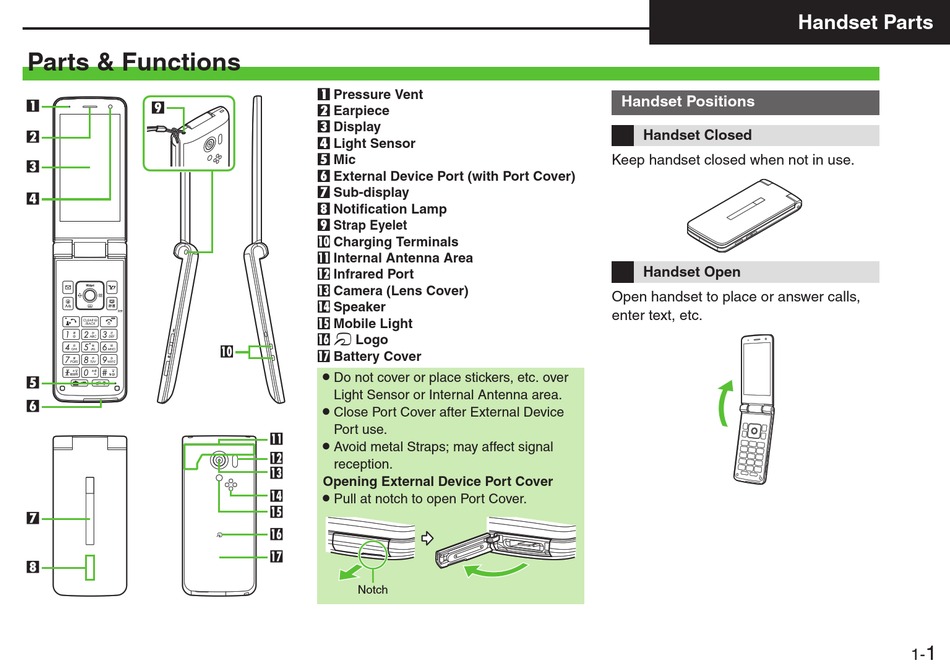

Getting Started
Parts & Functions
1
9
2
3
4
5
6
7
8
1 Pressure Vent
2 Earpiece
3 Display
4 Light Sensor
5 Mic
6 External Device Port (with Port Cover)
7 Sub-display
8 Notification Lamp
9 Strap Eyelet
a Charging Terminals
b Internal Antenna Area
c Infrared Port
d Camera (Lens Cover)
e Speaker
f Mobile Light
g m Logo
a
h Battery Cover
. Do not cover or place stickers, etc. over
Light Sensor or Internal Antenna area.
. Close Port Cover after External Device
Port use.
b
. Avoid metal Straps; may affect signal
c
reception.
d
Opening External Device Port Cover
e
. Pull at notch to open Port Cover.
f
g
h
Notch
Handset Parts

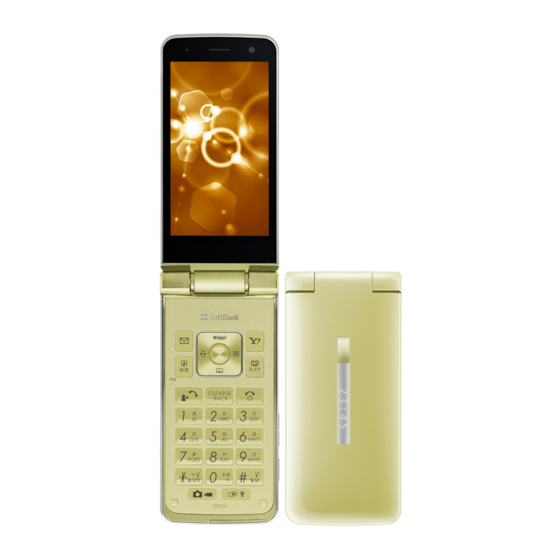

Handset Positions
Handset Closed
Keep handset closed when not in use.
Handset Open
Open handset to place or answer calls,
enter text, etc.
1
1-
Advertisement
Table of Contents
Related Manuals for SoftBank 109SH
Summary of Contents for SoftBank 109SH
-
Page 1: Handset Parts
Handset Parts Getting Started Parts & Functions 1 Pressure Vent Handset Positions 2 Earpiece 3 Display Handset Closed 4 Light Sensor 5 Mic Keep handset closed when not in use. 6 External Device Port (with Port Cover) 7 Sub-display 8 Notification Lamp 9 Strap Eyelet a Charging Terminals b Internal Antenna Area... - Page 2 Handset Parts 4 Multi Selector (left) c g # Key # Handset Keys Open Call Log (All). Long Press to enable/ Enter #. Long Press to activate/cancel ®* disable Bluetooth Manner mode. . Keys are indicated in this guide as shown. 5 Mail Key B h Multi Job &...
-
Page 3: Battery & Usim Card
Battery & USIM Card Battery & USIM Card Installation Do not apply excessive force to Battery or USIM Card. . Fit Battery Cover into slot, then firmly Slide in USIM Card with IC Inserting press down along edges. chip facing up . -
Page 4: About Battery
Important times activates PUK Lock, disabling corrosion, etc. due to water seepage. . USIM Card is the property of SoftBank Mobile. handset. For recovery, USIM Card must be . Battery is not water or dust proof. . USIM Card will be reissued for a fee if reissued at a SoftBank Shop (fees apply). -
Page 5: Charging Battery
Connector Port charge it. Holder Release Charging Battery Outside Japan Tabs . SoftBank Mobile is not liable for problems resulting from charging Battery abroad. Important AC Charger Usage Note Arrows Down Notification Lamp . Retract blades after charging. Do not pull, bend or twist cord. -
Page 6: Power On/Off
Power On/Off Power On/Off Yes or No S % Retrieving Network Information Power On A prompt appears when %, a, d, B or Described for initial power on. A is Pressed for the first time. " (Long Press) . After Power On Graphics, water/dust proofing information appears;... -
Page 7: Display And Indicators
Display & Indicators Display Indicator Descriptions Information Window Standby Check active indicators and their Opens at the bottom for missed calls, new Indicator Area descriptions. (Status Icon List) mail, etc. Mobile Widgets Tap indicator Hereafter, most screenshots omit Mobile Widgets and other icons. Information Window Information label (e.g., Message, etc.) . - Page 8 Display & Indicators Display Rotation Softkeys Display Saving Motion Control sensor detects handset Function/operation labels appear at the Display goes completely dark after set orientation. Display orientation changes bottom of Display; see key assignments Display Saving time elapses. Press any key (except "...
-
Page 9: Display Indicators
Display & Indicators Indicators [ Function Status [ Notifications Display Indicators When Double Number is set to Dual Mode, line type appears at the bottom right of some indicators. S! Appli Active [ Basic Status Unread Mail S! Appli Paused Unread Delivery Report Music Playback Answer Phone Active &... - Page 10 Display & Indicators [ Transmissions [ Settings Auto Answer or Remote Monitor Active Show Secret Data Active Function Lock (Once) Active Wakeup TV Set SSL Browsing Indicator does not appear when Call Packet Transmission Active Forwarding is set to Video Calls only, with Offline Mode Receiving Mail Voicemail unset.
-
Page 11: Sub-Display
Sub-display Sub-display [ Notifications [ Warnings View date/time and the following indicators with handset closed. Missed Call Message Delivery Failure Activating Sub-display Answer Phone Message Recorded S! Information Channel Info Reception Failure Missed Call Notification Weather Indicator Update Failure New Voicemail . -
Page 12: Using Touchscreen
Touchscreen Using Touchscreen Touch Display to select menu items, open functions, scroll pages, etc. Touch & Hold Flick Basic Operations Flick to scroll. Touch item for 1+ seconds to move icon, open menu, etc. Pinch & Spread Tap item or key to open or execute Drag corresponding function/operation. - Page 13 Touchscreen Screen Scroll Important Touchscreen Usage Notes Usage Examples For hidden items, Flick/Drag in opposite . Touchscreen may not respond in these Selection & Execution direction. situations: Tap item to open or execute corresponding , Use with gloves/long fingernails , Use of pens, pencils or sharp objects function/operation.
- Page 14 Touchscreen Zoom In & Zoom Out Open Menus Calibrating Touchscreen Pinch or Spread to zoom in or out on Touch & Hold Display to open menu. Calibrate Touchscreen to improve response. images, etc. Hold handset normally during calibration. Touch & Hold S % S f Settings Spread...
-
Page 15: Menu Operations
Menu Operations Main Menu Opening Main Menu Menu Layout Main Menu Items Messaging Open/create messages, etc. ■Touchscreen Yahoo! Access the Internet. S! Appli Use S! Appli including games. Entertainment Read e-Books, receive news updates, etc. Camera Shoot photos or videos. Media Play/download media files. -
Page 16: Menu Navigation
Menu Operations Menu Navigation To open World Clock using handset keys or Touchscreen: Open Main Menu Select Item Open Tab Select Item Use g to select Tools Use f to select Use e to select Press % and Press % World Clock and Press % Clock/Gauge tab Handset... - Page 17 Menu List Menu List [ Clock/Gauge Scan Card Messaging S! Appli Kanji/English Grabber Stopwatch Received Msg. S! Appli Library Review Countdown Timer Create Message Osaifu-Keitai Set Camera Key World Clock Retrieve New Msg. Settings Hour Minder Media Drafts Information Pedometer Templates Compass Music...
-
Page 18: Data Folder
Menu List [ Phone/G [ Network Data Folder Phone User Dictionary Select Network Pictures Phone Book Set Key Shortcut Select Service DCIM Add New Entry Motion Control Re-search Signal Ring Songs·Tones Information Touch Panel Offline Mode S! Appli Call Log Set Key Light Retrieve NW Info Widget... -
Page 19: Security Codes
. Do not forget Security Codes. Locks S % . Call Barring settings will be locked if . Do not reveal Security Codes. SoftBank incorrect Center Access Code (Network Mobile is not liable for misuse or damages. Password) is entered three times consecutively when making a setting. - Page 20 Security Codes Saving Administrator Code Need/UnNeed Setting Enter four to eight digits. For enhanced security, set Need/UnNeed Setting to Need; then Handset Code will be In Locks menu, required to delete all files/entries, etc. Administrator Setting S % In Locks menu, Handset Register Administrator Code Settings S % Code S %...
-
Page 21: Mobile Manners
Mobile Manners Mobile Manners Please use your handset responsibly. When Manner Mode is Active Offline Mode Take care not to disturb others when . Ringtones and other sounds are muted. Suspend signal transmission and reception. using your handset. . Handset vibrates for incoming . -
Page 22: My Details & Basic Settings
My Details & Basic Settings My Details & Basic Settings Handset Number & Address Date & Time Language % S 0 % S Settings S % S In % S Settings S % S In Sound/Display menu, Date Sound/Display menu, &... -
Page 23: Using World Clock
World Clock Using World Clock f Select city S % Auto World Clock Setting World Clock Manually " S Standby returns % S Tools S % S f Powering on outside Japan automatically Clock/Gauge S World Clock sets World Clock; the local time for your Advancing One Hour (Daylight Saving) current location appears in Standby. -
Page 24: Using Memory Card
Top: For details, contact SoftBank Customer metal objects. Memory Card Slot Support, General Information (P.9-1). . SoftBank Mobile is not liable for any Bottom: . If Memory Card is inserted, captured damages resulting from accidental loss/ USIM Card Slot photos, downloads and other files are alteration of information. -
Page 25: Remove Battery
Memory Card Appears after Power On Inserting & Removing Formatting Memory Card . Memory Card may not be inserted Always power off first. When using a new Memory Card for the properly; reinsert it. first time, format it on handset before Removing Memory Card Remove Battery (P.1-3) trying to save files, etc.
