Abilize Ranger MS01077 Instruction Booklet page 5

Before attempting to drive this scooter on your own, it is important that you familiarise
yourself with the controls and how to operate them.
Wig Wag
Hand Brake
Tiller Angle Adjustment
Seat Adjustment Lever
Headlight
Indicators
Front Bumper
Left Turn Power
Indicator Indicator
Headlight
Indicator
Please turn to the next page for more information.

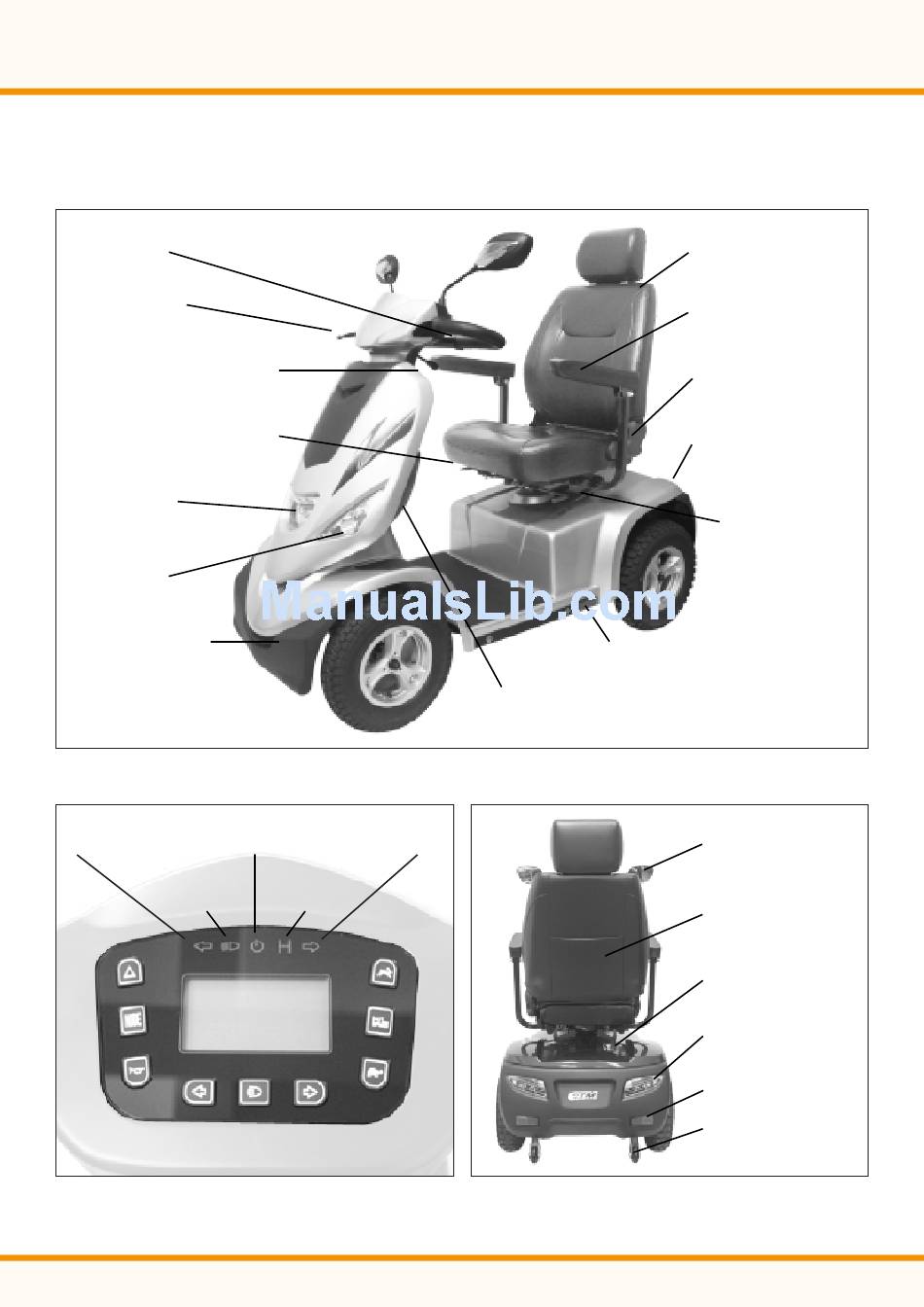

Figure 2 - Top Control Panel
Figure 1 - Front View
Right Turn
Indicator
High Speed
Indicator
Side Reflectors
Tiller Storage Compartment
Figure 3 - Back View
Captain Seat
Angle Armrest
Adjustment
Seat Back Angle
Adjustment
Rear Bumper
Swivel Lever
Rear Mirror
Rear Bag
N-D Lever
Rear Indicator
Rear Reflector
Anti-Tip Wheels
