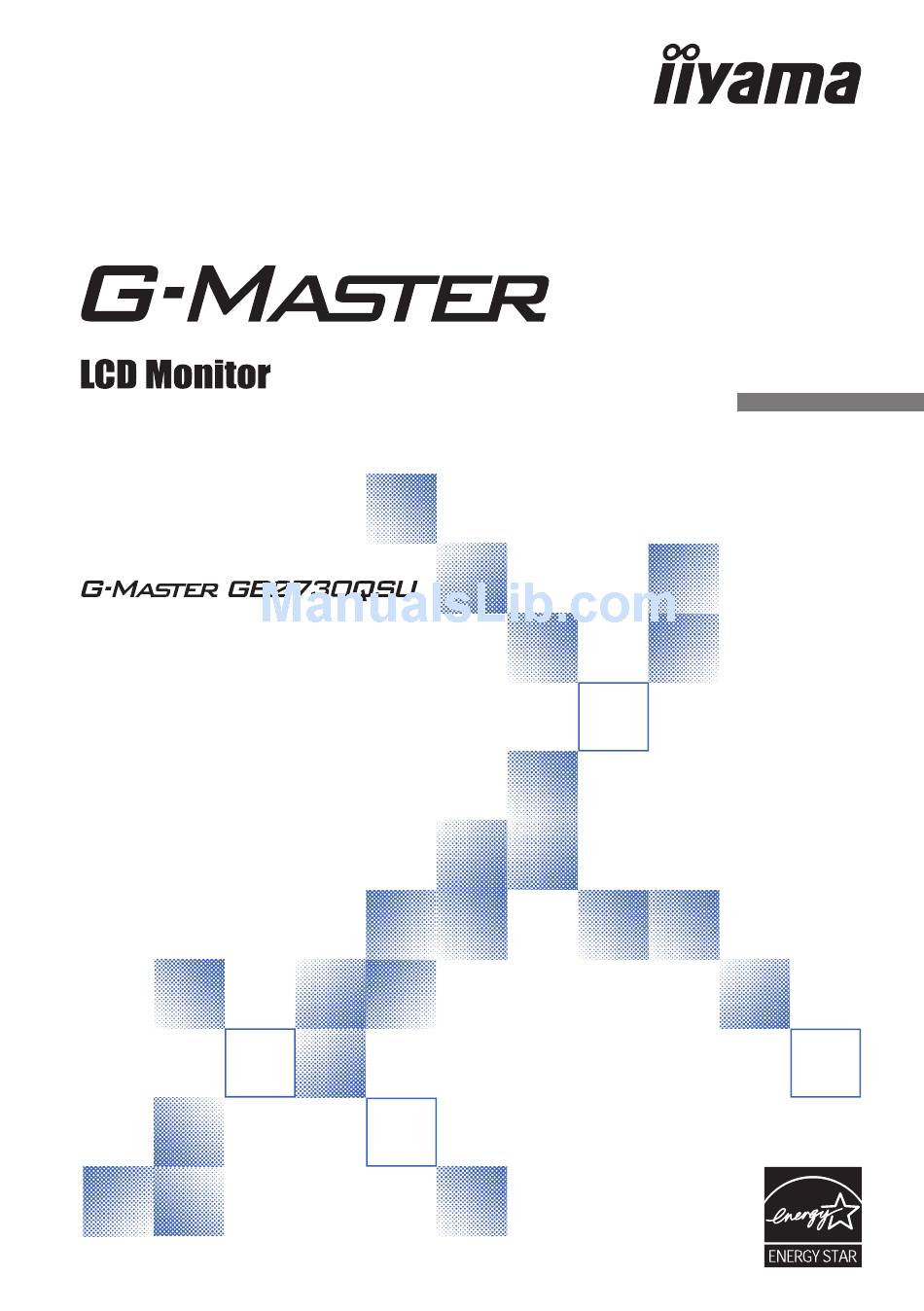

Page 1: User Manual
USER MANUAL ENGLISH Thank you very much for choosing the iiyama LCD monitor. We recommend that you take a few minutes to read this comprehensive manual carefully before installing and switching on the monitor. Please keep this manual in a safe place for... - Page 3 Congratulations! This product is TCO Certified for Sustainable IT TCO Certified is an international third party sustainability certification for IT products. TCO Certified ensures that the manufacture, use and recycling of IT products reflect environmental, social and economic responsibility. Every TCO Certified product model is verified by an accredited independent test laboratory.
-
Page 4: Ce Marking Declaration Of Conformity
IIYAMA CORPORATION: Wijkermeerstraat 8, 2131 HA Hoofddorp, The Netherlands Model No. : PL2730Q We recommend recycling of used product. Please contact your dealer or iiyama service center. Recycle information is obtained via the Internet, using the address: http://www.iiyama.com You can access the Web page of different countries from there. -
Page 5: Table Of Contents
TABLE OF CONTENTS FOR YOUR SAFETY ................1 SAFETY PRECAUTIONS..............1 SPECIAL NOTES ON LCD MONITORS .........3 CUSTOMER SERVICE ..............3 CLEANING ..................3 BEFORE YOU OPERATE THE MONITOR ..........4 FEATURES..................4 CHECKING THE CONTENTS OF THE PACKAGE ......4 WALL MOUNTING ................5 FITTING AND REMOVAL OF BASE ..........6 CONTROLS AND CONNECTORS..........7 CONNECTING YOUR MONITOR ..........8 COMPUTER SETTING ..............9... -
Page 6: For Your Safety
DO NOT PUT ANY OBJECT INTO THE MONITOR Do not put any solid objects or liquids such as water into the monitor. In case of an accident, unplug your monitor immediately and contact your dealer or iiyama service center. Using the monitor with any object inside may cause fire, electric shock or damage. -
Page 7: Installation Location
CAUTION INSTALLATION LOCATION Do not install the monitor where sudden temperature changes may occur, or in humid, dusty or smoky areas as it may cause fire, electric shock or damage. You should also avoid areas where the sun shines directly on the monitor. DO NOT PLACE THE MONITOR IN A HAZARDOUS POSITION The monitor may topple and cause injury if not suitably located. Please also ensure that you do not place any heavy objects on the monitor, and that all cables are routed such that children may not pull the cables and possibly cause injury. -
Page 8: Special Notes On Lcd Monitors
If you drop any materials or liquids such as water into the monitor when cleaning, WARNING unplug the power cable immediately and contact your dealer or iiyama service center. For safety reasons, turn off the power switch and unplug the monitor before you CAUTION clean it. -
Page 9: Before You Operate The Monitor
CHECKING THE CONTENTS OF THE PACKAGE The following accessories are included in your package. Check to see if they are enclosed with the monitor. If anything is missing or damaged, please contact your local iiyama dealer or regional iiyama office. Power Cable* ... -
Page 10: Wall Mounting
WALL MOUNTING WARNING When you use with the wall mounting, in consideration of thickness of the mounting stage, tighten the M4 Screw with washer which “L” length is 7mm to fasten the monitor. Using the screw longer than this may cause electric shock or damage because it may contact with the electrical parts inside the monitor. -
Page 11: Fitting And Removal Of Base
FITTING AND REMOVAL OF BASE Put the monitor on a stable surface. The monitor may cause injury or damage if it CAUTION falls or is dropped. Do not give a strong impact to the monitor. It may cause damage. ... -
Page 12: Controls And Connectors
CONTROLS AND CONNECTORS <Front> <Back> Power Indicator NOTE Blue: Normal operation Orange: Power Management Power Switch ( ) Menu / Select Button (ENTER) Scroll Down / Volume Button ( Scroll Up / ECO Mode Button ( Exit Button (EXIT) Input Select Button (INPUT) Speakers USB Downstream Connector ( USB Upstream Connector ( Keyhole for Security Lock NOTE You can fasten a security lock and cable to prevent the monitor from being removed without your permission. -
Page 13: Connecting Your Monitor
An incorrect connection may cause serious damage to both the monitor and the computer. The cable supplied with the monitor is for a standard connector. If a special cable is required please contact your local iiyama dealer or regional iiyama office. -
Page 14: Computer Setting
COMPUTER SETTING Signal Timing Change to the desired signal timing listed on page 28: COMPLIANT TIMING. ADJUSTING THE HEIGHT AND THE VIEWING ANGLE For optimal viewing it is recommended to position yourself directly opposite to the full face of the monitor, then adjust the monitor’s height and angle to your own preference. -
Page 15: Operating The Monitor
OPERATING THE MONITOR To create the best picture, your iiyama LCD monitor has been preset at the factory with the COMPLIANT TIMING shown on page 28. You are also able to adjust the picture by following the button operation shown below. -
Page 16: Adjustment Menu Contents
ADJUSTMENT MENU CONTENTS Picture Adjust * G-MASTER GB2730QSU PICTURE ADJUST PICTURE ADJUST INPUT SELECT CONTRAST AUDIO SETTINGS BRIGHTNESS OVERDRIVE STORE USER SETTING COLOR SETTING ADV. CONTRAST MODE 1 IMAGE ADJUST LANGUAGE BLUE LIGHT REDUCER MODE 3 SETUP MENU BLACK TUNER... -
Page 17: Input Select
Input Select G-MASTER GB2730QSU PICTURE ADJUST INPUT SOURCE Direct INPUT SELECT AUTO MANUAL AUDIO SETTINGS MANUAL STORE USER SETTING SELECT COLOR SETTING SELECT HDMI IMAGE ADJUST DISPLAYPORT (DP) SELECT LANGUAGE SETUP MENU DISPLAY INFORMATION RECALL Problem / Option Button to Press... -
Page 18: Audio Settings
Audio Settings G-MASTER GB2730QSU PICTURE ADJUST VOLUME INPUT SELECT AUDIO SETTINGS OPTIONS STORE USER SETTING MUTE AUDIO COLOR SETTING AUDIO INPUT HDMI LINE-IN IMAGE ADJUST LANGUAGE SETUP MENU DISPLAY INFORMATION RECALL Adjustment Item Problem / Option Button to Press Too soft... -
Page 19: Color Settings
Store User Setting G-MASTER GB2730QSU PICTURE ADJUST STORE USER SETTINGS INPUT SELECT USER MODES USER MODE 1 AUDIO SETTINGS STORE USER SETTING COLOR SETTING IMAGE ADJUST LANGUAGE SETUP MENU DISPLAY INFORMATION RECALL Adjustment Item Problem / Option Button to Press User Mode 1 Save the settings of the screen adjustment. -
Page 20: Image Adjust
Image Adjust G-MASTER GB2730QSU PICTURE ADJUST MISCELLANEOUS INPUT SELECT I-STYLE COLOR CINEMA AUDIO SETTINGS SHARP AND SOFT FULL LIMITED STORE USER SETTING HDMI RGB RANGE COLOR SETTING VIDEO MODE ADJUST FULL IMAGE ADJUST LANGUAGE SETUP MENU DISPLAY INFORMATION RECALL Adjustment Item... - Page 21 OSD is too high You can set the OSD display duration time between OSD Time 5 and 30 seconds. iiyama Logo does not display when the monitor is turned on. Opening Logo iiyama Logo displayed when the monitor is turned on.
-
Page 22: Display Information
Display Information G-MASTER GB2730QSU PICTURE ADJUST DISPLAY INFORMATION INPUT SELECT AUDIO SETTINGS STORE USER SETTING COLOR SETTING IMAGE ADJUST LANGUAGE SETUP MENU DISPLAY INFORMATION RECALL Displays information regarding the current input signal coming from the graphic card in your computer. - Page 23 ● Lock Mode <OSD Menu> 1. The OSD lock will be activated by pressing the front button ENTER for about 10 seconds. If you try to access the OSD by pressing any of the buttons, message "OSD Locked" will appear on the screen.
-
Page 24: Power Management Feature
POWER MANAGEMENT FEATURE The power management feature of this product complies with power saving requirement of ENERGY STAR ® and VESA DPMS. When activated, it automatically reduces unnecessary power consumption of the monitor when your computer is not in use. To use the feature, the monitor needs to be connected to a VESA DPMS compliant computer. -
Page 25: Trouble Shooting
MONITOR or if the problem persists. 3. If you are experiencing a problem which is not described below or you cannot correct the problem, discontinue using the monitor and contact your dealer or iiyama service center for further assistance. Problem... -
Page 26: Recycling Information
A strange noise is The Audio Cable is properly connected. heard. RECYCLING INFORMATION For better environment protection please don't dispose your monitor. Please visit our web site: www.iiyama.com/recycle for monitor recycling. TROUBLE SHOOTING / RECYCLING INFORMATION 21... -
Page 27: Appendix
APPENDIX Design and specifications are subject to change without prior notice. SPECIFICATIONS Size Category 27" Panel technology Size Diagonal: 27" (68.5cm) Pixel pitch 0.233mm H × 0.233mm V Brightness 350cd/m (Typical) Panel Contrast ratio 1000 : 1 (Typical), Adv. Contrast Function Available Viewable angle Right / Left : 85 degrees each, Up / Down : 80 degrees each (Typical) Response time 1ms (Gray to Gray) Display Colors Approx. 16.7M DVI: Horizontal: 30.0-89.0kHz, Vertical: 50-76Hz HDMI: Horizontal: 30.0-89.0kHz, Vertical: 50-76Hz Sync Frequency DisplayPort(without FreeSync): Horizontal: 30.0-89.0kHz, Vertical: 50-75Hz DisplayPort(with FreeSync): Horizontal: 30.0-117.0kHz, Vertical: 48-75Hz... -
Page 28: Dimensions
DIMENSIONS 611.0mm/24.1” 54.0mm/2.1” 605.5mm/23.8” 300.0mm/11.8” ( ) : Maximum adjustment range COMPLIANT TIMING Horizontal Vertical Video Mode Dot Clock Frequency Frequency 640 × 480 31.469kHz 59.940Hz 25.175MHz SVGA 800 × 600 37.879kHz 60.317Hz 40.000MHz 1024 × 768 48.363kHz 60.004Hz 65.000MHz SXGA 1280 × 1024 63.981kHz 60.020Hz 108.000MHz UXGA...
