MyTek Manhattan II Phono Board Owner's Manual page 7

User's Manual

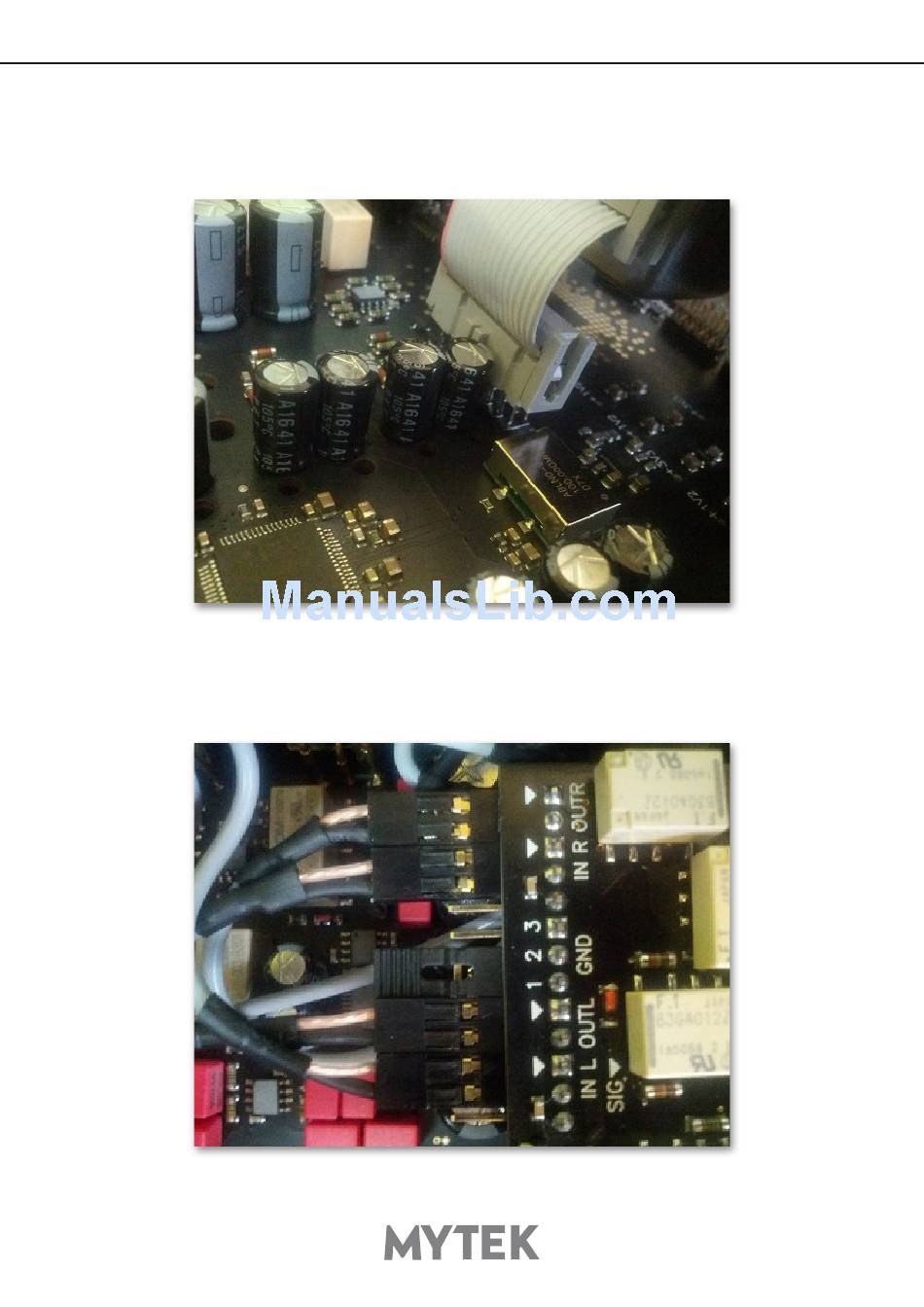

6. Plug the other end of ribbon attached to card to the header on the mainboard. Be carefull as
there is a capacitor and clock generator very close to the header! Be sure to plug the ribbon fully
into the header.
7. Screw the board to the brass spacers with four M3 screws, remembering to attach the ground
post wire under the upper-right screw (where it was before inserting the card). The board goes
the transformers upside down – descriptions and mytek logo facing up.
8. Plug the cables running from Manhattan RCAs (ANALOG IN2 L, ANALOG IN2 R) to the phono
card headers described INL, INR.
7
