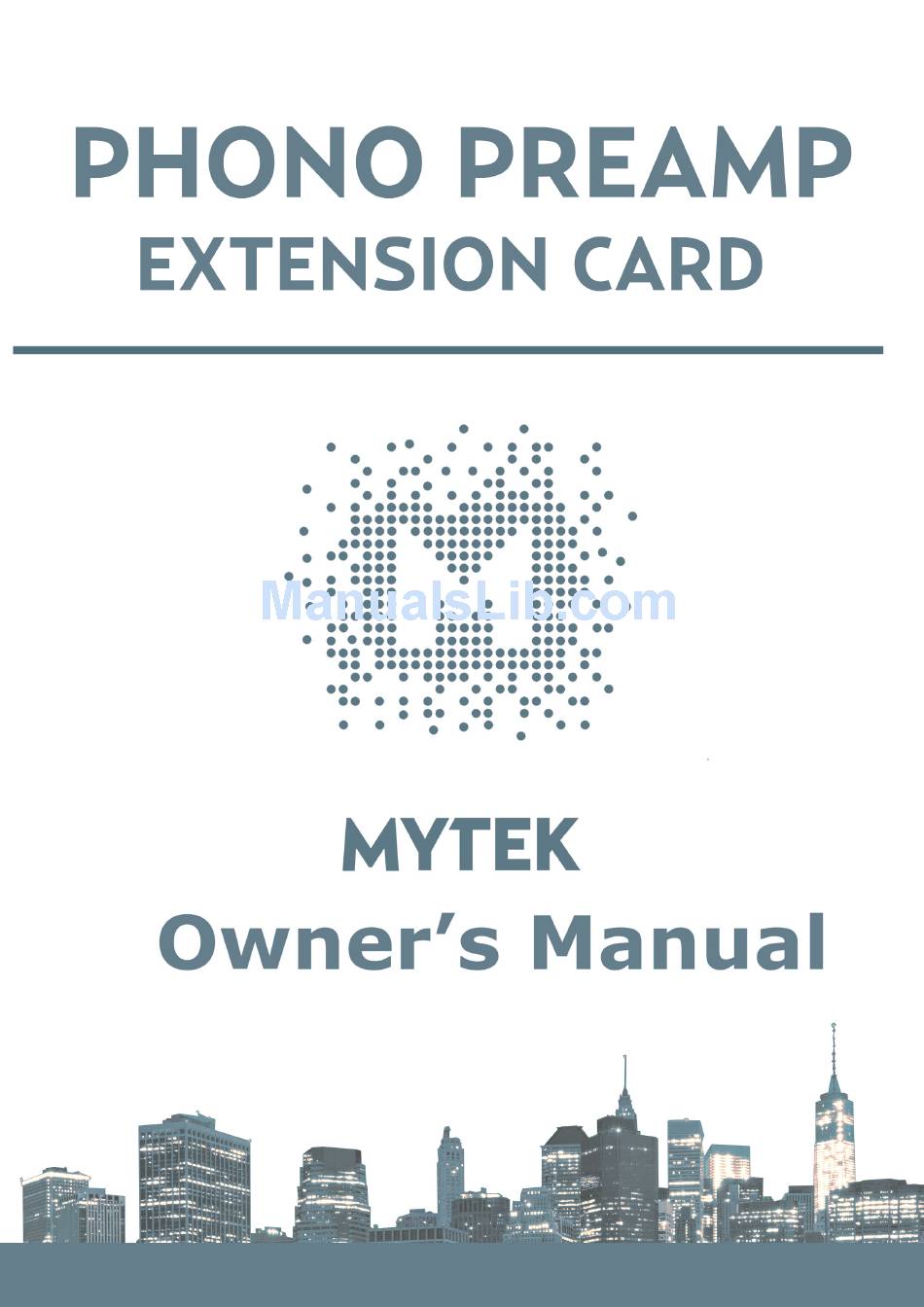

MyTek Manhattan II Phono Board Owner's Manual

Extension card
Hide thumbs
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Manhattan II Phono Board and is the answer not in the manual?

Questions and answers

Related Manuals for MyTek Manhattan II Phono Board

Summary of Contents for MyTek Manhattan II Phono Board

  • Page 3 Technical support issues are handled via our online support ticketing system. Please enter details of the ticket in the support/download section on Mytek website. 148 India St. Brooklyn, NY 11222 tel. +1 (347) 384-2687...

  • Page 4: Table Of Contents

    Mytek Phono Preamp Contents 1. Introduction ...................5 2. Package Content ..................5 3. Features ....................5 4. Quick Start....................6 5. Menu ......................8 5.1 Menu Navigation ................8 5.2 Menu Operation .................8 6. Technical Specification ................9 7. Warranty ....................9...

  • Page 5: Introduction

    RIAA filters and two MC input stages – all settings available from the Manhattan front panel. The Phono Preamp card is compatible with the Manhattan II DAC only. All the best, The Mytek Digital Team 2. Package Content • The Phono Preamp expansion card •...

  • Page 6: Quick Start

    Mytek Phono Preamp 4. Quick Start 1. Start the installation with turning off the Manhattan II DAC and disconnecting it from mains. 2. Unscrew the screws securing the top lid of the converter and remove the top lid. 3. Unscrew four M3 screws that were inserted in the brass spacers in the center of the Manhattan main PCB (If there was no screws please use attached spares in the next steps).
  • Page 7 (where it was before inserting the card). The board goes the transformers upside down – descriptions and mytek logo facing up. 8. Plug the cables running from Manhattan RCAs (ANALOG IN2 L, ANALOG IN2 R) to the phono...

  • Page 8: Menu

    Mytek Phono Preamp 9. The attached jumper should be plugged into the header described as GND. The recommended default is position 1 2. If you will experience mains hum after connecting the gramophone one of the possible solutions is to replug the jumper into 2 3 position.

  • Page 9: Technical Specification

    Mytek extends affordable repair service for all units manufactured to date that are not covered by this Warranty. Mytek repair centers are located at Mytek Headquarters in Brooklyn / New York, and in Warsaw / Poland (at Mytek EU Distribution Office).

  • Page 10: Important Safety Information

    • If any form of liquid or a forin object enter the device switch it off and unplug it from the power source. Do not operate device until the foreign object is removed or the liquid has completly dried. If doubt please contact Mytek Digital. • Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
  • Page 11 User’s Manual Warning Excessive sound pressure from speakers and headphones can cause hearing loss. In order to use this product safely, avoid prolonged listening at excessive sound pressure levels. For the customers in the U.S.A. This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules.
