Summary of Contents for MyTek Liberty DAC II

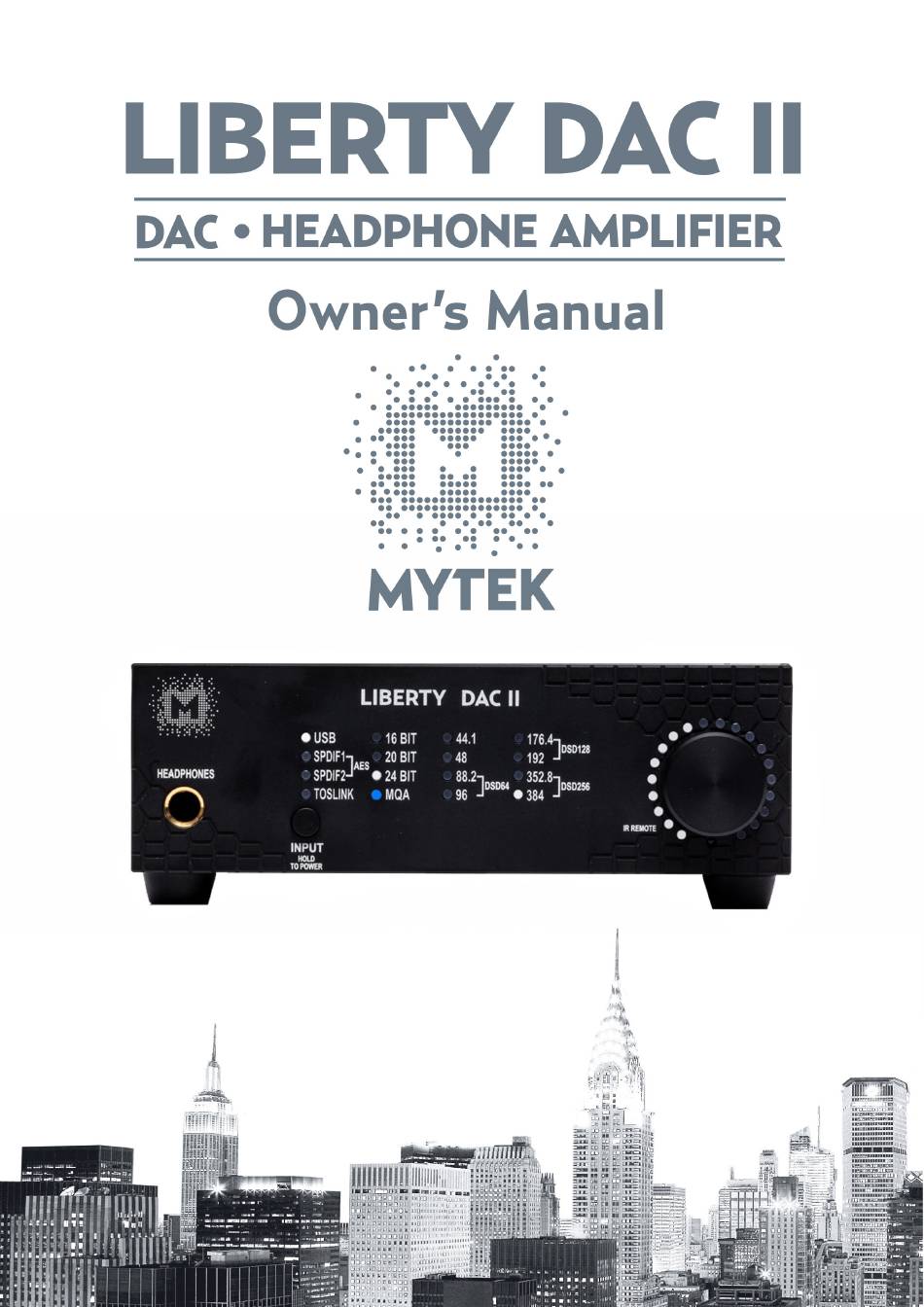

- Page 2 Owner's Manual Ver. 1.0 / September 2022 © Mytek Audio 2022 The Liberty DAC II firmware can be easily updated via Mytek Firmware Uploader app. As the firmware is updated, Mytek will be posting new firmware releases in the support/download section on Mytek website.
-
Page 3: Table Of Contents
User’s Manual Contents 1. Introduction ...................4 2. Package’s Content ..................5 3. About Liberty DAC II ................5 4. Device Features ..................6 5. Quick Start....................7 5.1 Front Panel ..................7 5.2 Rear Panel ..................8 6. Firmware update Windows ..............9 7. MQA - Master Quality Authenticated ............. 11 8. -
Page 4: Introduction
• Any other digital source equipped with USB, TOSLINK, SPDIF or AES The Liberty DAC II has been optimized for highest performance and it is plug & play under Windows, Mac OS and Linux (doesn’t require any additonal drivers). Enjoy your new Liberty DAC II! -
Page 5: Package's Content
The DAC features several digital inputs, digital volume control and unbalanced as well as balanced audio outputs, and a high-performance headphone amplifier. Designed as a little brother of Brooklyn DAC, Liberty DAC II provides robust performance in a small portable 1/3 rack package. -
Page 6: Device Features
Mytek Liberty DAC II 4. Device Features • Up to 384k, 32bit PCM, native DSD up to DSD256, DXD, ES9038 chipset, 127dB DR • Analog outputs: 1 pair of unbalanced RCA, 1 pair of balanced XLR • Headphone amplifier: Reference High Current, High transient Headphone Amp, 300mA, 3 Watts, designed for hard to drive headphones, 0.1 Ohm impedance... -
Page 7: Quick Start

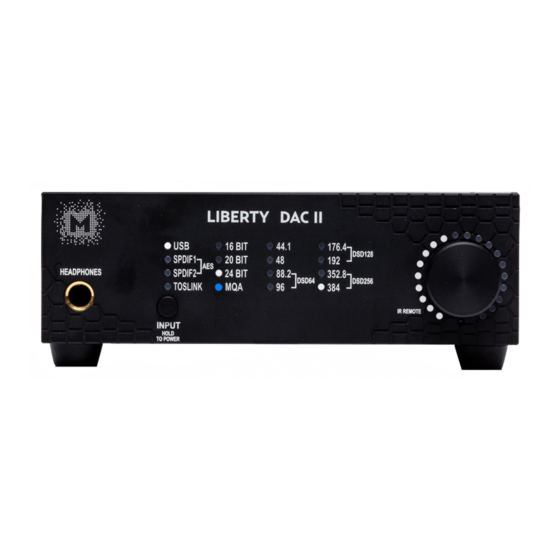

• 16/20/24 BIT LEDs are on = 32 BIT bit rate is detected 6. Sample rate LEDs section 7. Volume knob (press to mute) 8. IR receiver 9. Volume level LEDs - show current volume level Press and hold the input button (3) to power on/off the Liberty DAC II... -
Page 8: Rear Panel
Connect the digital source (CD player) to the DAC. Power up the player, power amplifier and the Liberty DAC II. Choose the input you would like to use by pressing input button.. Immediate Playback USB The Liberty DAC II custom designed USB2 controller supports driverless operation on all operating systems. -
Page 9: Firmware Update Windows
User’s Manual 6. Firmware update for Windows The current revision of the Liberty DAC II is shown in the Liberty DAC II Uploader App. • The firmware can be updated by using USB2 port and Liberty DAC II Uploader app. - Page 10 After uploading completion, Liberty DAC II will perform a Software Reset to apply changes related to firmware update. Your device should be re-connected and re- discovered by Uploader App as Liberty DAC II running User Mode. Please verify if current firmware version matches desired one.
-
Page 11: Mqa - Master Quality Authenticated
8. Remote The Liberty DAC II is infrared remote ready and comes with Aluminum Apple Remote. To pair it, please press and hold [Menu] + [Select] or [Menu] + [Next] buttons on Remote Controller for at last 5s... -
Page 12: Warranty
Each individual Liberty DAC II undergoes comprehensive quality control and a complete test before shipping. This Liberty DAC II is warranted by Mytek to the original purchaser against defects in workmanship and materials used in manufacture for a period of two years from the date of purchase. - Page 13 User’s Manual Warning Excessive sound pressure from speakers and headphones can cause hearing loss. In order to use this product safely, avoid prolonged listening at excessive sound pressure levels. For the customers in the U.S.A. This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules.
