1.2 Central control block's installation
Connect the power supply cable to the
PS Gate's main control block. After that,
connect it to the power supply
(Scheme 3).
1.3 Installation possibilities
PS Gate is a product, constructed for
installation in limited access zones and must
be installed to the switchboard using a
Eurorim (Scheme 4).
1.4 A few requirements must always be considered and followed during
installation:
- The device's installation and connection must be accomplished
according to the national legislation for electrical installations.
- All activities on the device's installation, uninstallation, service
and repair are to be made only after it had been securely removed from

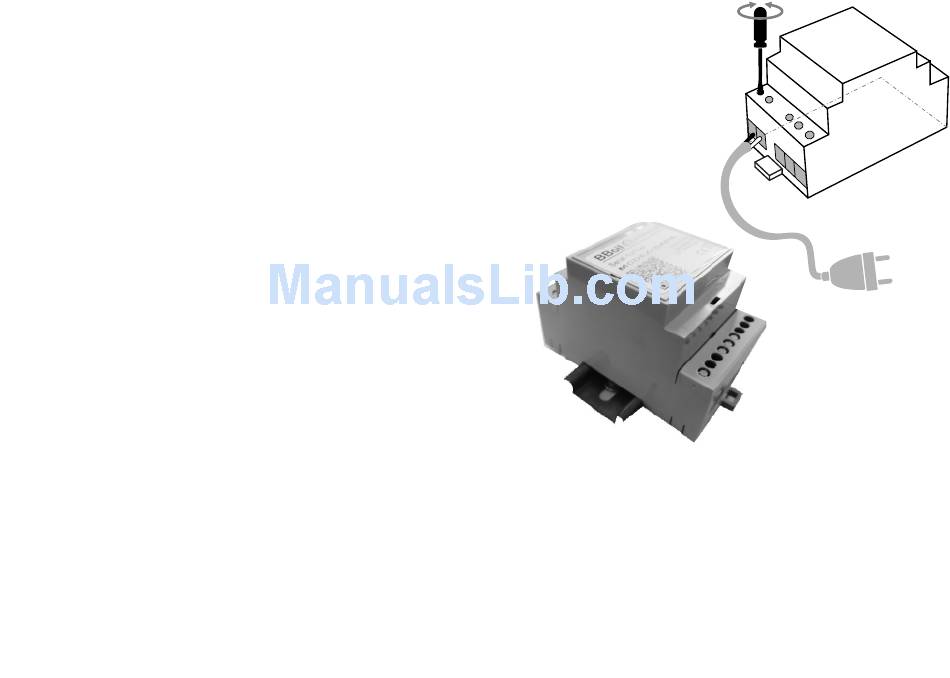

Scheme 3
Scheme 4
