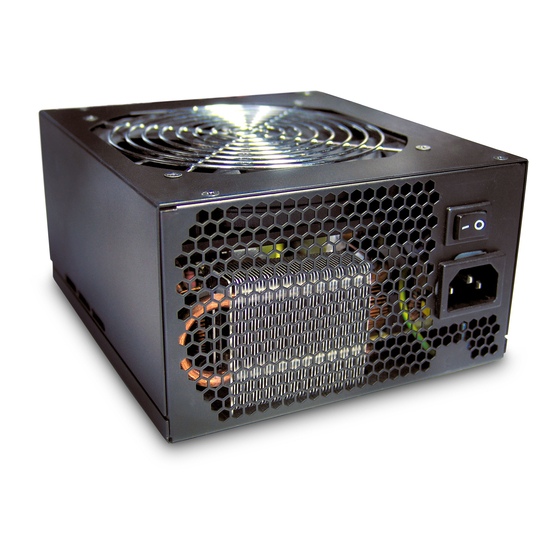

ZALMAN ZM600-HP Manual

FCC Compliance Statements
Note: This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to part 15 of the FCC Rules.
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or more of the
following measures:
- Reorient or relocate the receiving antenna
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
- Consult the dealer or an experienced radio / TV technician for help.
Warning : Your are cautioned that any change or modifications to the equipment
not expressly approved by the party responsible for compliance could void your
authority to operate such equipment.

1. Safety Precautions

▣ The following precautions and directions are measures against possible accidents
These limits are
and injuries. Please read them thoroughly before using this product.
Neglecting the following may cause
Serious injury or death.
▶ Opening the cover of the product while
the power cord is plugged into an outlet may
cause electrocution or critical damage to the
product.
▶ Handling the power cord with wet hands
may cause in electrocution.
▶ Inserting fingers or metallic objects into
the cooling fan may cause in injury or
electrocution.

2. Components

1) One Power Supply
2) One Cable for CPU2
3) One Cable for PCI-E2
4) Three Cables for ODD/HDD
5) Two Cables for S-ATA
6) One Fan Dual-connector (ZM-DC1)
(See page 4 for details)
7) One Power Cord for AC Power Source (Not included in some countries)
8) One User's Manual
9) Five Cable Ties

3. Notes on Installation

※ To ensure a safe and easy installation, please read the safety precautions above
and the following notes.
▣ Plugging the main power connector P1 into the motherboard while the product is connected
to the AC power source may result in damage to the motherboard.
▣ Make sure that the connectors are connected to their designated locations, and that the
connectors are not oriented in the wrong direction when connecting the DC output connectors.
▣ If the Power on LED fails to light up when the main power button is pressed after completing
the installation procedure, some devices may be connected incorrectly or the motherboard may
be faulty.
*For more information on the product, please visit our website at www.zalman.co.kr.
Warning
Neglecting the following may cause minor
injuries, degrade product conditions or
cause malfuncion.
▶ Operating the product in an extremely cold or
hot environment can degrade product
performance and lifespan.
▶ Liquids that enter the product may cause
malfunction.
▶ Operation in a humid or non-ventilated
environment may reduce product lifespan.
Caution
