Summary of Contents for ZALMAN ZM500-HP PLUS

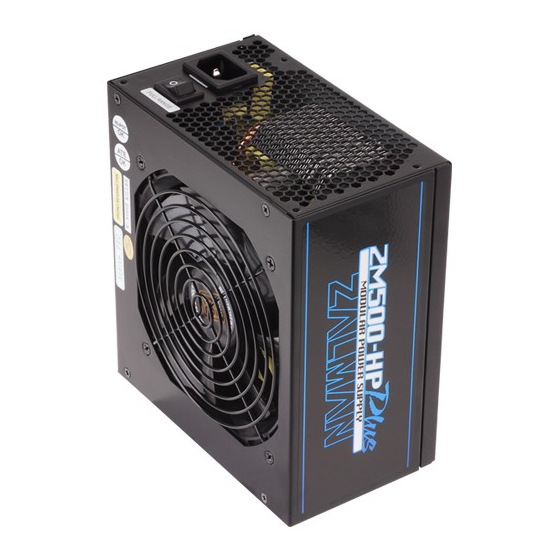

- Page 1 User’s Manual ZM500-HP PLUS ZM600-HP PLUS Resonant Switching Power Supply To ensure safe and easy installation, please read the following precautions. www.ZALMAN.com Ver. 1.0...
-
Page 2: Warnings And Safety Precautions
▶ Product designs and specifications may be revised without prior notification to improve quality and performance. Disclaimer) Zalman Tech Co., Ltd. is not responsible for any damages due to external causes, including but not limited to, improper use, problems with electrical power, accident, neglect, alteration, repair, improper installation, or improper testing. -
Page 3: Specifications
3. Specifications 1) ZM500-HP PLUS Electrical & Physical Specifications Voltage 100 ~ 240VAC ZM500-HP PLUS AC Input Range Frequency 50 ~ 60㎐ Output Load Rating Combined Combined Power 115VAC peak AC Input Current 230VAC +3.3V 0.5A 130W PFC Type Active PFC 0.1A... - Page 4 3) ZM600-HP PLUS Electrical & Physical Specifications Voltage 100 ~ 240VAC ZM600-HP PLUS AC Input Range Frequency 50 ~ 60㎐ Output Load Rating Combined Combined Power 115VAC peak AC Input Current 230VAC +3.3V 0.5A 140W PFC Type Active PFC 0.1A Power Factor MAX 99% +12V1...
- Page 5 4. Certifications...
