Page 1: Power Supply

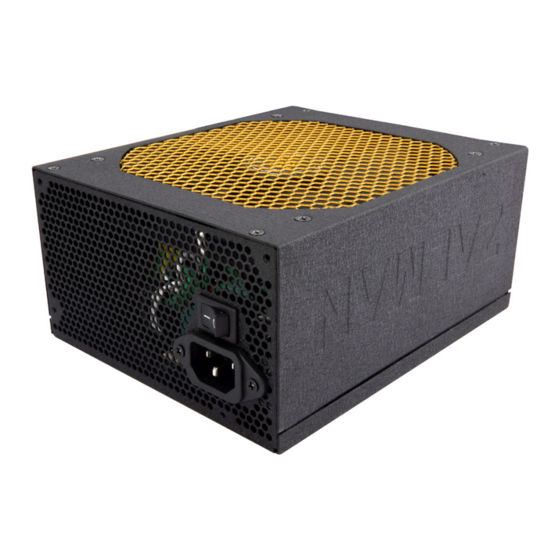

Users Manual ZM550/650/750-XG Ultra High Efficiency Switching Power Supply ※To ensure safe and easy installation, please read the following precautions. www.ZALMAN.com Ver. 1.0... - Page 2 ▶ Product designs and specifications may be revised without prior notification to improve quality and performance. Disclaimer) Zalman Tech Co., Ltd. is not responsible for any damages due to external causes, including but not limited to, improper use, problems with electrical power, accident, neglect, alteration, repair, improper installation, or improper testing.
-
Page 3: Specifications
3. Specifications 1)ZM550-XG Electrical & Physical Specifications Voltage 100~240VAC Output Load Rating Combined Combined AC Input Range Vout Power Frequency 50Hz~60Hz peak 100VAC +3.3V 0.2A AC Input Current 140W 240VAC 3.5A 0.2A PFC Type Active PFC +12V 0.3A 540W 550W... - Page 4 3. Specifications 3)ZM650-XG Electrical & Physical Specifications Voltage 100~240VAC Output Load Rating Combined Combined AC Input Range Vout Power Frequency 50Hz~60Hz peak 100VAC +3.3V 0.2A AC Input Current 150W 240VAC 0.2A PFC Type Active PFC +12V 0.3A 648W 650W Power Factor Correction Max 99% -12V 0.0A...
- Page 5 3. Specifications 5)ZM750-XG Electrical & Physical Specifications Voltage 100~240VAC Output Load Rating Combined Combined AC Input Range Vout Power Frequency 50Hz~60Hz peak 100VAC 9.5A +3.3V 0.0A AC Input Current 150W 240VAC 4.8A 0.0A PFC Type Active PFC +12V 0.0A 744W 750W Power Factor Correction Max 99%...
- Page 6 4. Certifications E198072...
