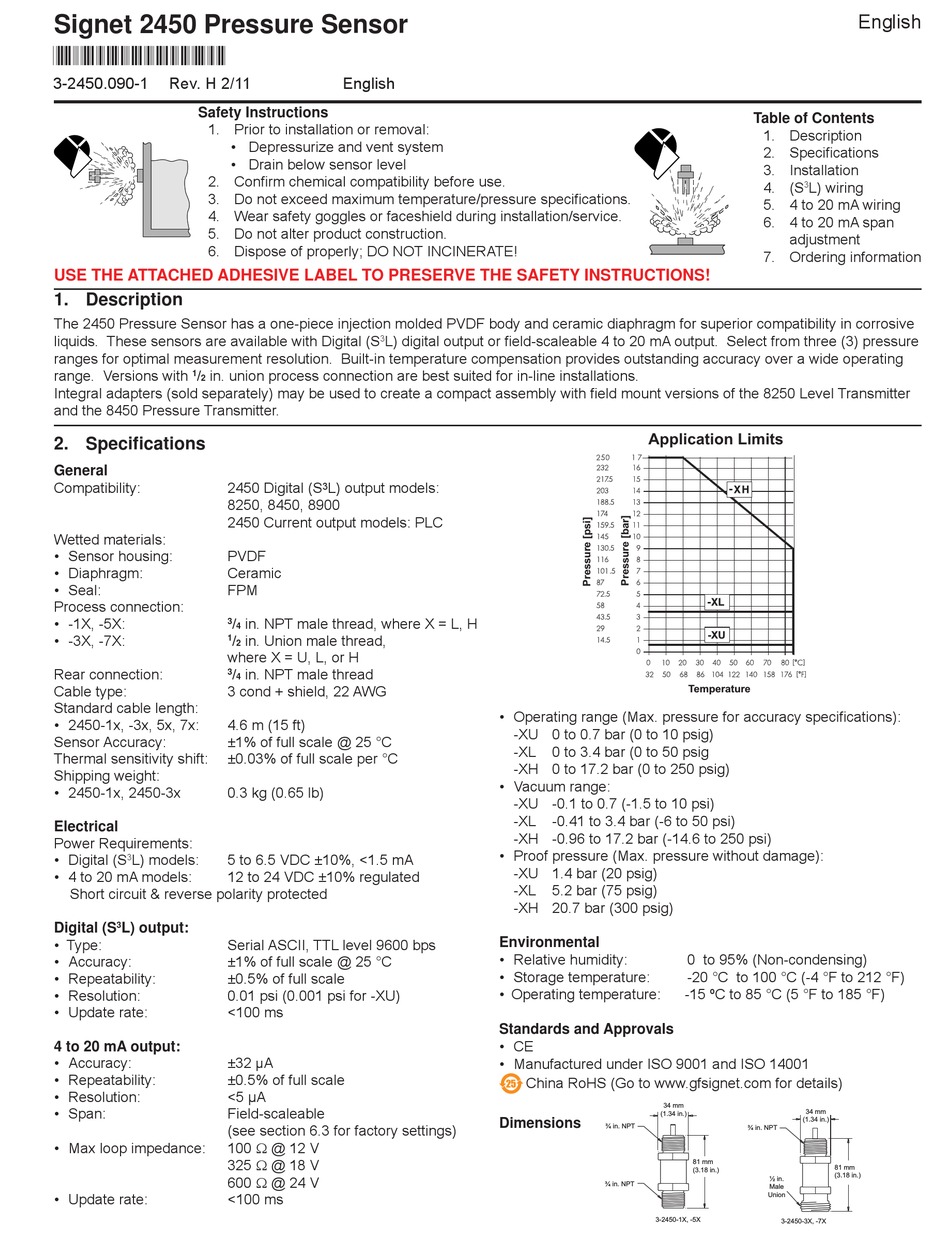

GF Signet 2450 User Manual

Signet 2450 Pressure Sensor
*3-2450.090-1*
3-2450.090-1 Rev. H 2/11
Safety Instructions
1. Prior to installation or removal:
• Depressurize and vent system
• Drain below sensor level
2. Confi rm chemical compatibility before use.
3. Do not exceed maximum temperature/pressure specifi cations.
4. Wear safety goggles or faceshield during installation/service.
5. Do not alter product construction.
6. Dispose of properly; DO NOT INCINERATE!
USE THE ATTACHED ADHESIVE LABEL TO PRESERVE THE SAFETY INSTRUCTIONS!
1. Description
The 2450 Pressure Sensor has a one-piece injection molded PVDF body and ceramic diaphragm for superior compatibility in corrosive
liquids. These sensors are available with Digital (S
ranges for optimal measurement resolution. Built-in temperature compensation provides outstanding accuracy over a wide operating
range. Versions with / in. union process connection are best suited for in-line installations.
1
2
Integral adapters (sold separately) may be used to create a compact assembly with fi eld mount versions of the 8250 Level Transmitter
and the 8450 Pressure Transmitter.
2. Specifi cations
General
Compatibility: 2450 Digital (S
8250, 8450, 8900
2450 Current output models: PLC
Wetted materials:
• Sensor housing: PVDF
• Diaphragm: Ceramic
• Seal: FPM
Process connection:
• -1X, -5X:
3
• -3X, -7X:
1
where X = U, L, or H
Rear connection:
3
Cable type: 3 cond + shield, 22 AWG
Standard cable length:
• 2450-1x, -3x, 5x, 7x: 4.6 m (15 ft)
Sensor Accuracy: ±1% of full scale @ 25 °C
Thermal sensitivity shift: ±0.03% of full scale per °C
Shipping weight:
• 2450-1x, 2450-3x 0.3 kg (0.65 lb)
Electrical
Power Requirements:
• Digital (S L) models: 5 to 6.5 VDC ±10%, <1.5 mA
3
• 4 to 20 mA models: 12 to 24 VDC ±10% regulated
Short circuit & reverse polarity protected
3
Digital (S L) output:
• Type: Serial ASCII, TTL level 9600 bps
• Accuracy: ±1% of full scale @ 25 °C
• Repeatability: ±0.5% of full scale
• Resolution: 0.01 psi (0.001 psi for -XU)
• Update rate: <100 ms
4 to 20 mA output:
±32 μA
• Accuracy:
• Repeatability: ±0.5% of full scale
• Resolution: <5 μA
• Span: Field-scaleable
(see section 6.3 for factory settings)
100  @ 12 V
• Max loop impedance:
325  @ 18 V
600  @ 24 V
• Update rate: <100 ms
English
L) digital output or fi eld-scaleable 4 to 20 mA output. Select from three (3) pressure
3
L) output models:
3
/ in. NPT male thread, where X = L, H
4
/ in. Union male thread,
2
/ in. NPT male thread
4
Application Limits
• Operating range (Max. pressure for accuracy specifi cations):
-XU 0 to 0.7 bar (0 to 10 psig)
-XL 0 to 3.4 bar (0 to 50 psig
-XH 0 to 17.2 bar (0 to 250 psig)
• Vacuum range:
-XU -0.1 to 0.7 (-1.5 to 10 psi)
-XL -0.41 to 3.4 bar (-6 to 50 psi)
-XH -0.96 to 17.2 bar (-14.6 to 250 psi)
• Proof pressure (Max. pressure without damage):
-XU 1.4 bar (20 psig)
-XL 5.2 bar (75 psig)
-XH 20.7 bar (300 psig)
Environmental
• Relative humidity:
• Storage temperature:
• Operating temperature:
Standards and Approvals
• CE
• Manufactured under ISO 9001 and ISO 14001
China RoHS (Go to www.gfsignet.com for details)
34 mm
(1.34 in.)
Dimensions
¾ in. NPT
¾ in. NPT
3-2450-1X, -5X
English
Table of Contents
1. Description
2. Specifi cations
3. Installation
4. (S L) wiring
3
5. 4 to 20 mA wiring
6. 4 to 20 mA span
adjustment
7. Ordering information
-XU
Temperature
0 to 95% (Non-condensing)
-20 °C to 100 °C (-4 °F to 212 °F)
-15 ºC to 85 °C (5 °F to 185 °F)
34 mm
(1.34 in.)
¾ in. NPT
81 mm
81 mm
(3.18 in.)
(3.18 in.)
½ in.
Male
Union
3-2450-3X, -7X
