Signet 2540 High Performance Flow Sensor
*3-2540.090*
3-2540.090
D 08/07 English

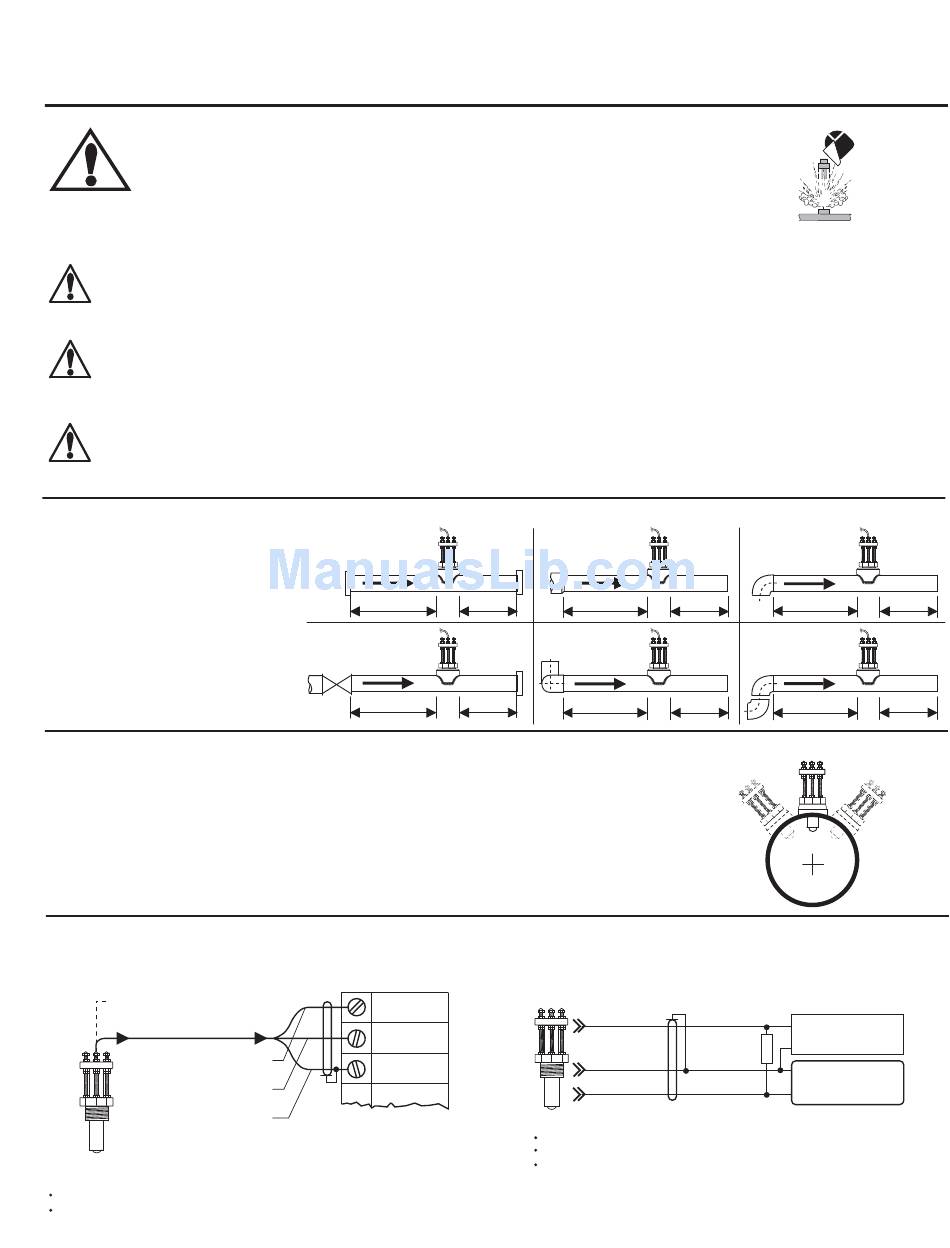

SAFETY INSTRUCTIONS
1. Do not remove from pressurized lines.
2. Do not exceed maximum temperature/pressure specifi cations.
3. Wear safety goggles or faceshield during installation/service.
4. Do not alter product construction.
5. Apply sealant or PTFE tape to sensor threads, inspecting threads to ensure integrity.
Do not install a sensor with damaged threads.
Pipe fi ttings MUST be installed by a certifi ed welder only. Signet will not assume liability of any kind for improper fi tting
installations.
2540 Hot-Tap sensor specifi cations and limitations depend on the lowest maximum rating of the components associated
with the system. For example, if a ball valve in the system is rated at a maximum 100 psi @ 175°F, you must limit the entire
system's maximum pressure/temperature rating to 100 psi @ 175°F. All higher maximum specifi cations MUST yield to the
component with the lowest maximum specifi cation.
Maximum Operating Pressure/Temperature:
• 17 bar (250 psi) @ 82°C (180°F) with standard FPM sensor fi tting O-rings.
• 17 bar (250 psi) @ 100°C ( 212°F) with optional EPDM sensor fi tting O-rings.
Note: Pressure/temperature specifi cations refer to sensor performance in water. Certain chemical limitations may apply.
Chemical compatibility should be verifi ed.
1. Location of Fitting
Recommended sensor upstream/
downstream
mounting requirements.
2. Sensor Mounting Position
Vertical mounting is recommended for best overall performance. Mount at a maximum of 30°
when air bubbles are present. DO NOT mount on the bottom of the pipe when sediments are
present.
3. Sensor Wiring
Signet Instruments
½ in. NPT conduit port
Black (5 to 24 VDC)
Red (signal out)
Silver (DC return)
Use 2-conductor shielded cable for cable extensions up to 300m (1000 ft.)
Maintain cable shield through splice.
Inlet
Outlet
Flange
10x I.D.
5x I.D.
Valve/Pump
50x I.D.
5x I.D.
Blk, sensor
power
Red, freq.
input
Shld,
Gnd
instrument
Reducer
15x I.D.
5x I.D.
2 x 90° Elbow
3 dimensions
40x I.D.
5x I.D.
Other Brands
black
silver
red
pull-up resistor required (10 kΩ recommended).
Use 2-conductor shielded cable for cable extensions up to 300m (1000 ft.)
Maintain cable shield through splice.
English
90° Elbow
20x I.D.
5x I.D.
2 x90° Elbow
25x I.D.
5x I.D.
0°
30°
+30°
-
Process Pipe
+
5 to 24
-
VDC
10 kΩ
Gnd.
Other
instrument
Input
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for GF Signet 2540
Summary of Contents for GF Signet 2540
- Page 1 Signet 2540 High Performance Flow Sensor English *3-2540.090* 3-2540.090 D 08/07 English SAFETY INSTRUCTIONS 1. Do not remove from pressurized lines. 2. Do not exceed maximum temperature/pressure specifi cations. 3. Wear safety goggles or faceshield during installation/service. 4. Do not alter product construction.
-
Page 2: Electronics Module Installation And Removal
4. Electronics Module Installation and Removal The electronics module of this sensor can be replaced without removing the steel sensor body from the line. 1. Loosen liquid tight connector cap. 2. Loosen liquid tight connector compression fi tting from sensor body. 3. -
Page 3: Installation
5. Installation The following items are required to properly install Signet 2540 Sensors. 5.1 Hardware, Standard Sensor • Female pipe fi tting (weld-on or saddle) with 1½ in. NPT or ISO 7-Rc 1½ threads • 32 mm (1¼ in.) diameter drill •... - Page 4 5.5 Calculating the H Dimension Before installing the sensor some critical dimensions must be established (for Hot-Tap installations, we assume the pipe dimensions are known). The rotor shaft must be located 10% inside the pipe I.D. to ensure accurate calibration capability. To accomplish this, the "H" dimension is measured from the outside surface of the pipe to the bottom of the sensor fl...
- Page 5 5.6 Standard Sensor Installation A. Thread one hex nut onto each of the three threaded rods Fig. 4 included in package. Install threaded rod with a lock washer onto the sensor fi tting. Secure rods in place by tightening each hex nut hex nut against the sensor fi...
-
Page 6: Standard Sensor Removal
Hot-Tap Sensor Installation - Continued protector plate protector plate cap nuts F. Thread protector plate hex nuts onto each of the three removed during threaded rods. Adjust each hex nut to a height of sensor installation approximately 25 mm (1 in.) from the top of each rod. (Fig. 12) 25 mm (1.0 in.) protector plate... -
Page 7: Hot-Tap Sensor Removal
7. Hot-Tap Sensor Removal installation tool threaded shaft To remove the Hot-Tap sensor safely from a pressurized active pipe, the entire installation upper hex nuts and lock washers process must be reversed. sensor flange A. Remove the cap nuts, protector plate and protector plate hex nuts. (Fig. 16) lower hex and 372 mm jam nuts... - Page 8 9. K-Factors (Stainless Steel, Wrought Steel & Plastic Pipe) SCH 5S STAINLESS STEEL PIPE XS WROUGHT STEEL PIPE SCH 40S STAINLESS STEEL PIPE PER ANSI B36.19 PER ANSI B36.10 PER ANSI B36.19 K-Factor K-Factor K-Factor K-Factor K-Factor K-Factor PIPE PULSES/ PULSES/ PIPE PULSES/...
- Page 9 K-Factors (Stainless Steel, Wrought Steel & Plastic Pipe) continued SCH 80S STAINLESS STEEL PIPE SCH 80 WROUGHT STEEL PIPE PER ANSI B36.19 PER ANSI B36.10 K-Factor K-Factor K-Factor K-Factor PIPE PULSES/ PULSES/ PIPE PULSES/ PULSES/ SIZE U.S. GAL LITER SIZE U.S.
-
Page 10: Specifications
10. Specifi cations General Data Fluid Conditions Flow velocity range: 0.1 to 6 m/s (0.3 to 20 ft/s) Maximum operating pressure/temperature: Linearity: ±1% of full range • Sensor with standard FPM sensor fi tting O-rings: Repeatability: ±0.5% of full range 17 bar (250 psi) @ 82°C (180°F) Pipe range: •... - Page 11 Notes: 2540 High Performance Flow Sensor...
-
Page 12: Ordering Information
11. Ordering Information Sensor Part Number 3-2540 Stainless Steel High Performance fl ow sensor with removable electronics Mounting option - choose one -1 1½ inch NPT thread -2 1½ inch ISO thread -3 1½ inch NPT thread, hot tap design* -4 1½...
