Signet 2450 Pressure Sensor
*3-2450.090-1*
3-2450.090-1 Rev. L 07/16
Safety Instructions
1. Prior to installation or removal:
2. Confi rm chemical compatibility before use.
3. Do not exceed maximum temperature/pressure specifi cations.
4. Wear safety goggles or faceshield during installation/service.
5. Do not alter product construction.
6. Dispose of properly; DO NOT INCINERATE!
USE THE ATTACHED ADHESIVE LABEL TO PRESERVE THE SAFETY INSTRUCTIONS!
1. Description
The 2450 Pressure Sensor has a one-piece injection molded PVDF body and ceramic diaphragm for superior compatibility in corrosive
liquids. These sensors are available with Digital (S
ranges for optimal measurement resolution. Built-in temperature compensation provides outstanding accuracy over a wide operating
range. Versions with
/
in. union process connection are best suited for in-line installations.
1
2
Integral adapters (sold separately) may be used to create a compact assembly with fi eld mount versions of the 8450 Pressure Transmitter
and the 9900 Transmitter.
2. Specifi cations
General
Compatibility
Digital (S
L) models:
8450, 8900, 9900
3
4 to 20 mA models:
PLC
Wetted materials:
• Sensor housing:
PVDF
• Diaphragm:
Ceramic
• Seal:
FPM
Process connection:
• -3X, -7X:
1
where X = U, L, or H
Rear connection:
3
Cable type:
3 cond + shield, 22 AWG
Standard cable length:
• -3X, -7X:
4.6 m (15 ft)
Sensor Accuracy:
±1% of full scale @ 25 °C
Thermal sensitivity shift:
±0.03% of full scale per °C
Shipping weight:
0.3 kg (0.65 lb.)
Electrical
Power Requirements:
• Digital (S
3
L) models:
5 to 6.5 VDC ±10%, <1.5 mA
• 4 to 20 mA models:
12 to 24 VDC ±10% regulated
Short circuit & reverse polarity protected
Digital (S
3
L) output:
• Type:
Serial ASCII, TTL level 9600 bps
• Accuracy:
±1% of full scale @ 25 °C
• Repeatability:
±0.5% of full scale
• Resolution:
0.01 psi (0.001 psi for -XU)
• Update rate:
<100 ms
4 to 20 mA output:
±32 μA
• Accuracy:
• Repeatability:
±0.5% of full scale
• Resolution:
<5 μA
• Span:
Field-scaleable
(see section 6.3 for factory settings)
• Max loop impedance:
100 Ω @ 12 V
325 Ω @ 18 V
600 Ω @ 24 V
• Update rate:
<100 ms
• Operating range (Max. pressure for accuracy specifi cations):
-XU 0 to 0.7 bar (0 to 10 psig)
-XL
0 to 3.4 bar (0 to 50 psig)
-XH 0 to 17.2 bar (0 to 250 psig)
English
• Depressurize and vent system
• Drain below sensor level
L) digital output or fi eld-scaleable 4 to 20 mA output. Select from three (3) pressure
3
/
in. Union male thread,
2
/
in. NPT male thread
4
• Vacuum range:
-XU -0.1 to 0.7 bar
(-1.5 to 10 psi)
-XL
-0.41 to 3.4 bar
(-6 to 50 psi)
-XH -0.96 to 17.2 bar
(-14.6 to 250 psi)
• Proof pressure
(Max. pressure without damage):
-XU 1.4 bar (20 psig)
-XL
5.2 bar (75 psig)
-XH 20.7 bar (300 psig)
Environmental
• Relative humidity:
0 to 95% (Non-condensing)
• Storage temperature:
• Operating temperature:
Standards and Approvals
• CE
• RoHS Compliant
• Manufactured under ISO 9001 for Quality,
ISO 14001 for Environmental Management and
OHSAS 18001 for Occupational Health and Safety.
Declaration of Conformity according to FCC Part 15:
This device complies with Part 15 of the FCC rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and,
(2) This device must accept any interference received,
including interference that may cause undesired operation.
China RoHS (Go to www.gfsignet.com for details)

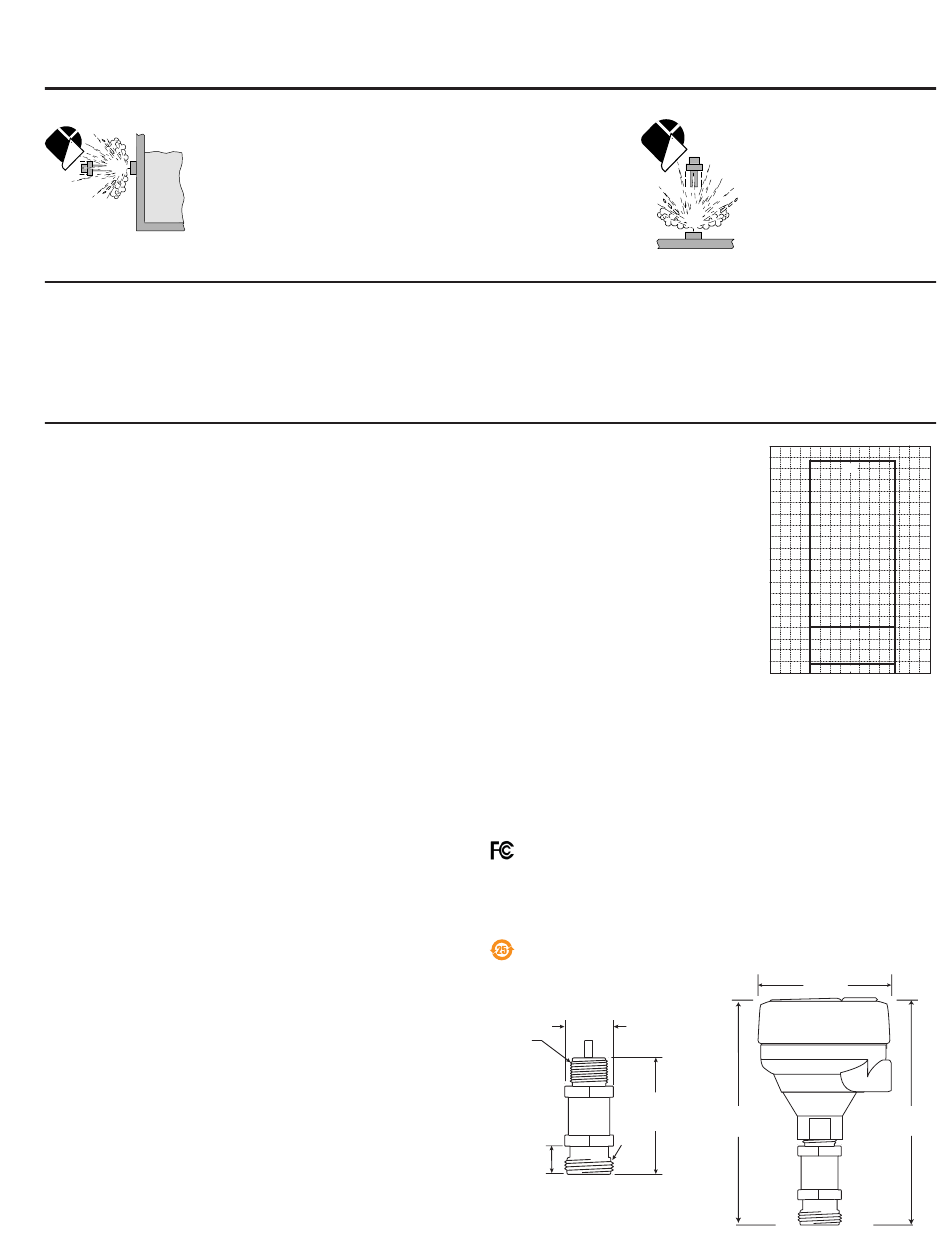

Dimensions
34 mm
(1.34 in.)
¾ in.
NPT
81 mm
(3.18 in.)
½ in.
Male
19.1 mm
Union
(0.75 in.)
3-2450-3X, -7X
Table of Contents
1. Description
2. Specifi cations
3. Installation
4. Digital (S
3
L) Wiring
5. 4 to 20 mA Wiring
6. 4 to 20 mA Span
Adjustment
7. Ordering Information
(psi)
(bar)
275 19.0
225 15.5
-XH
200
13.8
175
12.1
150
10.3
125
8.6
100
6.9
75
5.2
50
3.4
-XL
1.7
25
-XU
0
°C
-40
-20
0
20
40
60
°F
-40
-4
32
68
104
140
-20 °C to 100 °C (-4 °F to 212 °F)
-15 °C to 85 °C (5 °F to 185 °F)
96 mm
(3.78 in.)
97 mm (7.75 in.)
216.1 mm (8.5 in.)
(8450)
3-8450, 3-9900-1
English
80
100
120
176
212
248
(9900-1)
