Tcpip232 Hardware Configuration - AVE ATM Interface TCPIP232 Operation Manual

TCPIP232 Hardware Configuration:

TCPIP232 hardware operation depends on your network connection. TCPIP232 is able to operate
with HUB and Network Switcher. There are 2 hardware configurations:
1. Mirror Mode
This Mode supports HUB and Programmable Network Switchers. The user needs to provide a
port for TCPIP232 to capture ATM transactions on the HUB and needs to mirror the ATM LAN port
for TCPIP232 port to capture data. This kind of switcher we called " programmable network switcher"
which is very expensive.
2. Tapping Mode.
The Tapping mode supports HUB and Typical Network Switcher. Tappping Mode captures
ATM transactions by tapping receiving data at the ATM only. So HUB and Switch will not see
TCPIP232 as a network device. see Figure 3
JP6
Tapping Mode Setup. (This is defualt from manufacturer)
1. Close JP7 and JP15. Open JP16. (Lifted up Pin of C20 on Old PCB)
2. JP6 Close PIN5-6, PIN11-12
Mirror Mode Setup
1. Close JP7, JP15, JP16 ( Need to install C20)
2. JP16 Close Pin1-2, Pin3-4, Pin5-6,Pin7-8,Pin9-10,Pin11-12,Pin13-14,Pin15-16
2
1
JP7, JP15 JP16

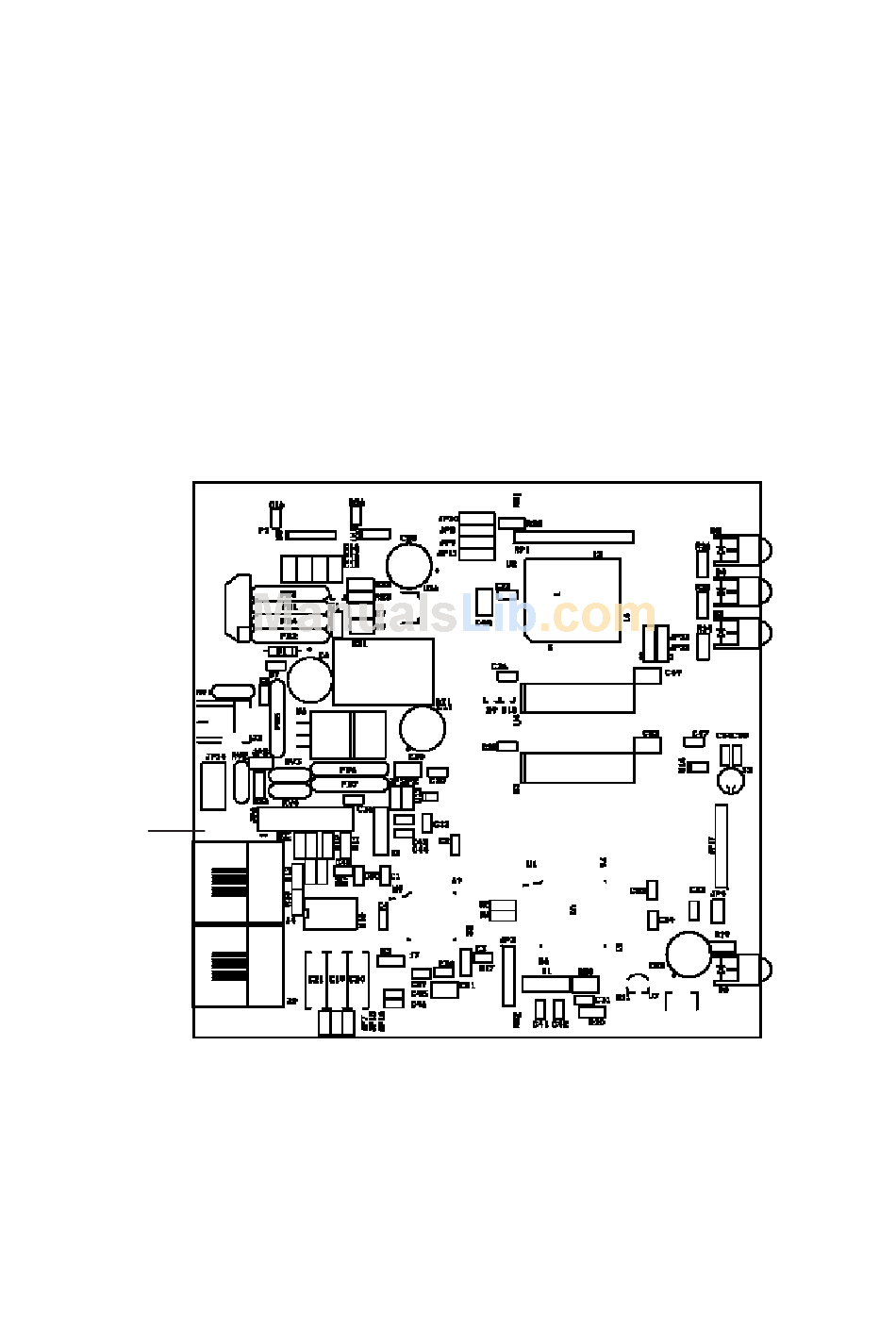

Figure 3. TCPIP232 Hardware Silkscreen
PAGE 3
