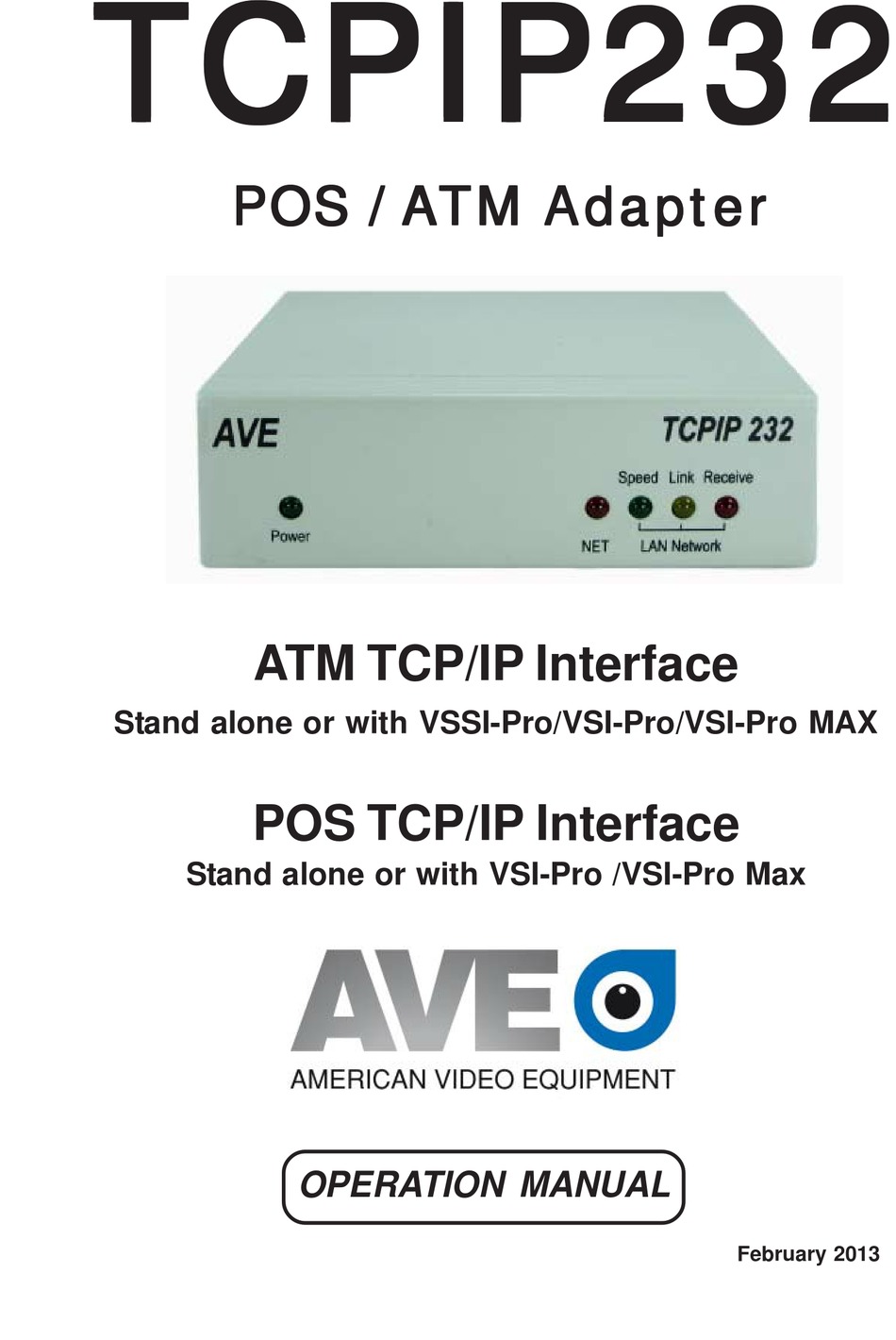

AVE TCPIP232 Operation Manual

Pos/atm adapter; atm tcp/ip interface; stand alone or with vssi-pro/vsi-pro/vsi-pro max; pos tcp/ip interface; stand alone or with vsi-pro /vsi-pro max
Hide thumbs Also See for TCPIP232:
Table of Contents

Advertisement

Quick Links

Download this manual
T T T T T CPIP232
CPIP232
CPIP232
CPIP232
CPIP232
POS /
POS / A A A A A TM
POS /
POS /
POS /
ATM TCP/IP Interface
Stand alone or with VSSI-Pro/VSI-Pro/VSI-Pro MAX
POS TCP/IP Interface
Stand alone or with VSI-Pro /VSI-Pro Max
TM
TM
TM
TM Ada
OPERATION MANUAL
Ada
Ada
pter
pter
Ada
Ada pter
pter
pter
February 2013

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TCPIP232 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for AVE TCPIP232

Summary of Contents for AVE TCPIP232

  • Page 1 T T T T T CPIP232 CPIP232 CPIP232 CPIP232 CPIP232 POS / POS / A A A A A TM POS / pter pter POS / POS / TM Ada Ada pter pter pter ATM TCP/IP Interface Stand alone or with VSSI-Pro/VSI-Pro/VSI-Pro MAX POS TCP/IP Interface Stand alone or with VSI-Pro /VSI-Pro Max OPERATION MANUAL...
  • Page 2 Email: ave-uk@multiview.net http://www.americanvideoequipment.com Email: ave@avethailand.com www.multiview.net http://www.ave.co.th (Thai) http://www.avethailand.com (English) AVE Europe LTD 123 Millennium Business Park Ballycoolin, Dublin 15, Ireland Tel:353 1 684 7450 Fax: 353 1 684 7451 Email; sales@ave-europe.eu Website: www.ave-europe.eu Copyright C AVE Thailand Co., Ltd. 2000-2012...

  • Page 3: Table Of Contents

    TCPIP 232 Connecting with Gilbraco Passport.............30 TCPIP 232 Connecting with INFO GENESIS............32 TCPIP 232 Connecting with DIGISM 5500...............34 TCPIP232 Micros VSS 3700 UDP Interface................36 TCPIP232 Micros VSS 3700 Connections................36 TCPIP232 Micros VSS 3700 Hardware Configuration............37 TCPIP232 Micros VSS 3700 Setups....................38 IP Address/Subnet Mask/Gate Way/Port..............38...
  • Page 4 Figure 27: INFO GENESIS with RS485 Network Interface..........32 Figure 28: DIGISM 5500 Stand Alone Tapping Mode Connection........34 Figure 29: DIGISM 5500 Stand Alone Mirror Mode Connection.........34 Figure 30: DIGISM 5500 with RS485 Network Interface..........34 Figure 31: TCPIP232 Micros VSS 3700 and Micros Workstation Connection..36...

  • Page 5: Boot Menu

    BOOT MENU TCPIP232 is able to select upon boot u p to the “TCPIP232 ATM/POS” , “VSS 3700” or “UPDATE FIRMWARE” by connecting the PC/DVR cable (021-037-SF). The connects from the TCPIP232 adapter to your laptop. Power up the TCPIP232 RS-232 Port and your laptop and run a serial communications program like Hyper Terminal at baudrate 19200,n,81 with VT100 emulation.
  • Page 6 VSS 3700 By selecting the VSS 3700 you will enter to the VSS 3700 operating mode. Wait for the TCPIP232 to reboot and show the message as below. You will then be ready to use the TCPIP232 for the Micros VSS 3700 UDP Interface.

  • Page 7: Itcpip232 Atm/Pos

    TCPIP232 ATM/POS The TCPIP232 Interface is designed to capture ATM or POS transactions on a Ethernet LAN system and then convert captrued transactions to a serial port to interface with VSSI- Pro (ATM Synchronous Serial Interface), VSI-Pro Max or VSI-Pro to overlay the text on the video and export the data in formated ASCII to other devices like a DVR.

  • Page 8: Figure 3: Vsi-Pro Or Vsi-Pro Max Interface

    The AVE RS485 Network is a text and information streaming solution that connects multiple devices via an RS485 port. There are Master and Slave units for AVE RS485 Net- work solution. The Master unit is used for polling the data of the slave device and sending the text and information (Alarm , Time and Date) steaming to the DVR that supports AVE RS485 network solution commonly called the VSI-ADD protocol.

  • Page 9: Tcpip232 Hardware Configuration

    This Mode supports HUB and Programmable Network Switchers. The user needs to provide a port for TCPIP232 to capture ATM transactions on the HUB and needs to mirror the ATM LAN port for TCPIP232 port to capture data. This kind of switcher we called “program- mable network switcher”...

  • Page 10: Tcpip232 Setups

    Connect the PC/DVR cable (021-037-SF) which comes from the TCPIP232 adapter to your laptop. Power up your TCPIP232 and your laptop and run serial program like Hyper Terminal at baudrate 19200,n,81 with VT100 emulation. Press ESC key (1BH) , [ (5Bh) and P (50H) to enter to the Main Menu.

  • Page 11: Information Settings

    VSSI-Pro. Select REGCOM57600 or REGCOM9600 or VNET when you connect with RS485 network. Put jumper on JP9(1-2) , JP10(1-2) and JP11(1-2) for using AVE RS485 Network. Use when you select REGCOM57600 or REGCOM9600 or VNET. EXIT Exit to main menu.

  • Page 12: Time Sync Settings

    FILTER TYPE Select filter type to be ATM , EPSON , NCRACS ,CRE or DUMP ATM filter format. Connecting diagram and TCPIP232 setting refer to page 14. EPSON EPSON printer filter format. Default port at 9100 but you can change what ever you want.

  • Page 13: Watchdog Timer

    25. GILBRACO PASSPORT GILBRACO PASSPORT filter format. Default port at 700 but you can change what ever you want. Connecting diagram and TCPIP232 setting refer to page 30. INFO GENESIS INFO GENESIS filter format. Default port at 7005 but you can change what ever you want.

  • Page 14: Tcpip 232 Connecting Diagram And Setting

    Video Coaxial Router/ Network Switch CAT-5 Video CAT-5 Serial TCPIP232 Figure 7. ATM Stand Alone Mirror Mode Connection Note : TCPIP232 Tapping Mode and Mirror Mode Setting refer to page 9 CAM1 CAM2 CAM3 CAM4 ATM4 ATM3 ATM1 ATM2 CAT-5...
  • Page 15 2. Select TCPIP 232 Fiter Type for ATM. TCPIP232 SETUP - TCP/IP SETTINGS - INFORMATION SETTINGS - INTERFACE SETTINGS - TIME SYNC SETTINGS - SENSE AUTO - TRANSACTION ALARM * FILTER TYPE - WATCHDOG TIMER - EXIT 3. Setting the IP Address in TCP/IP Setting Menu to be an IP of the ATM.

  • Page 16: Tcpip 232 Connecting With Printer

    Serial Cash CAT-5 register TCPIP232 EPSON Printer Figure 10. EPSON or GENERIC LAN PRINTER Stand Slone Mirror Mode Connection Note : TCPIP232 Tapping Mode and Mirror Mode Setting refer to page 9 CAM3 CAM4 CAM2 CAM1 Cash Cash Cash Cash...
  • Page 17 2. Select TCPIP232 Fiter Fype for EPSON or GENERIC LAN PRINTER TCPIP232 SETUP - TCP/IP SETTINGS - INFORMATION SETTINGS - INTERFACE SETTINGS - TIME SYNC SETTINGS - SENCE AUTO - TRANSACTION ALARM * FILTER TYPE EPSON - WATCHDOG TIMER - EXIT 3.

  • Page 18: Tcpip 232 Connecting With Ncracs

    Video Coaxial Router/ NCRACS Network Switch CAT-5 Video CAT-5 Serial TCPIP232 Figure 13. NCRACS Stand Alone Mirror Mode Connection Note : TCPIP232 Tapping Mode and Mirror Mode Setting refer to page 9 CAM1 CAM2 CAM3 CAM4 NCRACS NCRACS NCRACS NCRACS CAT-5...
  • Page 19 2. Select TCPIP232 Fiter Type to be NCRACS. TCPIP232 SETUP - TCP/IP SETTINGS - INFORMATION SETTINGS - INTERFACE SETTINGS - TIME SYNC SETTINGS - SENCE AUTO - TRANSACTION ALARM * FILTER TYPE NCRACS - WATCHDOG TIMER - EXIT 3. Setting the IP Address in TCP/IP setting menu to be an IP of NCRACS.

  • Page 20: Tcpip 232 Connecting Diagram With Filter Type Setting As Dump

    Figure 17. Printer Dump Data Tapping Mode Connection Rounter/Network Switcher Hyper Terminal PC Cash Register CAT-5 CAT-5 CAT-5 Serial TCPIP232 Figure 18. Printer Dump Data Mirror Mode Connection Note : TCPIP232 Tapping Mode and Mirror Mode Setting refer to page 9...
  • Page 21 2. Setting TCPIP 232 in Filter Type as DUMP. TCPIP232 SETUP - TCP/IP SETTINGS - INFORMATION SETTINGS - INTERFACE SETTINGS - TIME SYNC SETTINGS - SENCE AUTO - TRANSACTION ALARM * FILTER TYPE DUMP - WATCHDOG TIMER - EXIT 3. Setting the IP Address in TCP/IP setting menu to be an IP of the ATM or Printer that need to capture data.
  • Page 22 5. Select Emulation to be ANSI. 6. Click on ASCII setup button then set ASCII Sending and ASCII Receiving as follows.
  • Page 23 7. Click on Tranfer Menu and select Capture Text 8. Locate the file that need to capture.
  • Page 24 9. Click Call menu and select call for ready to receive data from RS232. 10. Try to make some transaction from ATM or Cash register and transaction data will appear on Hyper Terminal screen. 11. Click Tranfer menu and seclect Capture Text and click Stop then RAW transaction data will store in the file where that locate in the PC.

  • Page 25: Tcpip 232 Connecting With Cash Register Express(Cre)

    Figure 19. Cash Register Express Tapping Mode Connection Camera Video Rounter/Network Monitor CRE client PC CAT-5 CRE server PC Video CAT-5 CAT-5 Serial TCPIP232 Figure 20. Cash Register Express Mirror Mode Connection Note : TCPIP232 Tapping Mode and Mirror Mode setting refer to page 9...

  • Page 26: Figure 21: Cash Register Express Client Server Setting Rs485 Network Interface

    Hydra/VSI-Pro MAX Master Server PC Figure 21. Cash Register Express Client Server Setting RS485 Network Interface 2. Setting TCPIP 232 in FILTER TYPE to be CRE. TCPIP232 SETUP - TCP/IP SETTINGS - INFORMATION SETTINGS - INTERFACE SETTINGS - TIME SYNC SETTINGS...
  • Page 27 3. Setting the IP Address in TCP/IP setting menu to be an IP of the Cash Register Express server PC. TCPIP SETTING * IP ADDRESS 192.168.0.0 - DESTINATION PORT - EXIT 4. Start cash register express server on the CRE server PC. Then from the login screen select file, go to the security tab select “...
  • Page 28 6.Setting network environment of the client Cash Register Express network setting by press Option button. 7. Click on “Setup” button(1) and click on “Setup Screen” (2) then Setup Screen setting will appear.
  • Page 29 8. Put the IP of Cash Register Expressx server by click on “Hardware” tab(1) and click on “Page2” tab(2) and put the IP of the Cash Register Express (3) that configuration to be Cash Register Express server. 9. Exit from Cash Register Express setting and back to operating mode. 10.

  • Page 30: Tcpip 232 Connecting With Gilbraco Passport

    Gilbraco Rounter/Network Passport CAT-5 Video Serial CAT-5 TCPIP232 Figure 23. Gilbraco Passport stand alone mirror mode connection Note : TCPIP232 tapping mode and mirror mode setting is refer to page 9 CAM1 CAM2 CAM3 CAM4 Gilbraco Gilbraco Gilbraco Gilbraco Passport...
  • Page 31 2. Select TCPIP232 Fiter Type to be GILBRACO PASSPORT. TCPIP232 SETUP - TCP/IP SETTINGS - INFORMATION SETTINGS - INTERFACE SETTINGS - TIME SYNC SETTINGS - SENCE AUTO - TRANSACTION ALARM * FILTER TYPE GILBRACO PASSPORT - WATCHDOG TIMER - EXIT 3.

  • Page 32: Tcpip 232 Connecting With Info Genesis

    Video INFO GENESIS Rounter/Network CAT-5 Video CAT-5 Serial TCPIP232 Figure 26. INFO GENESIS Stand Alone Mirror Mode Connection Note : TCPIP232 Tapping Mode and Mirror Mode Setting refer to page 9 CAM1 CAM2 CAM3 CAM4 INFO INFO INFO INFO GENESIS...
  • Page 33 2. Select TCPIP232 Fiter Type to be INFO GENESIS. TCPIP232 SETUP - TCP/IP SETTINGS - INFORMATION SETTINGS - INTERFACE SETTINGS - TIME SYNC SETTINGS - SENCE AUTO - TRANSACTION ALARM * FILTER TYPE INFO GENESIS - WATCHDOG TIMER - EXIT 3.

  • Page 34: Tcpip 232 Connecting With Digism 5500

    Video Rounter/Network DIGISM 5500 CAT-5 Video CAT-5 Serial TCPIP232 Figure 29. DIGISM 5500 Stand Slone Mirror Mode Connection Note : TCPIP232 Tapping Mode and Mirror Mode Setting refer to page 9 CAM1 CAM2 CAM3 CAM4 DIGISM DIGISM DIGISM DIGISM 5500...
  • Page 35 2. Select TCPIP232 Fiter Type to be DIGISM 5500. TCPIP232 SETUP - TCP/IP SETTINGS - INFORMATION SETTINGS - INTERFACE SETTINGS - TIME SYNC SETTINGS - SENCE AUTO - TRANSACTION ALARM * FILTER TYPE DIGISM 5500 - WATCHDOG TIMER - EXIT 3.

  • Page 36: Tcpip232 Micros Vss 3700 Udp Interface

    TCPIP232 Figure 31. TCPIP232 Micros VSS 3700 and Micros Workstation Connection The TCPIP232 Micros VSS 3700 is able to receive UDP Messages from up to 16 Micros Workstation Stations simultaneously and output via one RS-232 using the AVE VSI-ADD protocol.

  • Page 37: Tcpip232 Micros Vss 3700 Hardware Configuration

    TCPIP232 Micros VSS 3700 Hardware Configuration: Figure 32. TCPIP232 Hardware Silkscreen Default settings for TCPIP232 Micros VSS 3700 UDP Interface 1. Close JP15, JP16 2. JP6 Close 1-2,3-4,5-6,7-8,9-10,11-12 3. JP18 and JP19 Close 2-3...

  • Page 38: Tcpip232 Micros Vss 3700 Setups

    19200,8,n,1 with VT100 emulation. Press ESC key (1BH) , [ (5BH) and P (50H) to enter to the Main Menu of the TCPIP232 VSS 3700. If the TCPIP232 starts listening to a UDP message you can not enter programming mode until reboot the system again so disconnect all LAN cables prior to selection.
  • Page 39 Workstations Settings * 1.Enable 000000001 - 2.Enable 000000002 - 3.Enable 000000003 - 4.Enable 000000004 - 5.Disable 000000005 - 6.Disable 000000006 - 7.Disable 000000007 - 8.Disable 000000008 - 9.Disable 000000009 -10.Disable 000000010 -11.Disable 000000011 -12.Disable 000000012 -13.Disable 000000013 -14.Disable 000000014 -15.Disable 000000015 -16.Disable 000000016 - Exit...

  • Page 40: Vssi-Pro Setup

    VSSI-Pro Setup Connect the TCPIP232 adapter to the VSSI-Pro with the provided cable(021-010-SF), connect video, ATM LAN and power up both units. 1.Enter the VSSI-Pro Main Menu by simultaneously pressing and holding the DOWN and UP while then press and releasing RESET Button. The main menu will be displayed as below.

  • Page 41: Vsi-Pro And Vsi-Pro Max Setup

    VSI-Pro and VSI-Pro MAX Setup 1.To access the main-menu of the VSI-Pro, simultaneously hold down the “Down” & “Up” buttons and press and release the “Reset” button and then release the “Down” & “Up” buttons. This will take you to the main programming menu. REGISTER SELECT SCREEN SETUP TEXT DISPLAY...

  • Page 42: Information Display Setup

    EXIT 4.) Press the “Up” or “Down” button to move the cursor to “Download Configuration” and press “Set” to execute. Make sure a TCPIP232 Adapter is connected and the VSI-Pro will download the configuration to this device. TCPIP232 LED Indicators...
  • Page 43 DVR to get text insertion. This connection will also send the data to the DVR to be used to search the video by searching from Text . This feature is for AVE or compatibly 3rd party DVR only.

  • Page 44: Firmware Update

    TCPIP232 is able to update firmware by connecting with the PC/DVR cable (021-037-SF) which comes from the TCPIP232 adapter to your laptop via the RS-232 port. Power up your TCPIP232 and your laptop and run any serial communications program like Hyper Terminal at baudrate 19200,n,81 with VT100 emulation.
  • Page 45 Download mode message will appear and ready to send the firmware file to the TCPIP232 Click Transfer menu and select “Send Text file” then select .bin firmware file that locate in the PC then click Open button for doing update firmware...

  • Page 46: Tcpip232 Testing

    “ Downloading Firmware ” message will appear with NET LED flashing in the front panel of TCPIP 232 until message “ Download Completed “ appear son the Hyper terminal screen. Then power down and power up TCPIP232 again for going to the operating mode. TCPIP232 Testing The TCPIP232 can be tested by using 2 computers in simulate mode.Connect the...
