- Page 1 T T T T T CPIP232 CPIP232 CPIP232 CPIP232 CPIP232 ATM TCPIP Interface O P E R A T I O N M A N U A L June 15, 2006...

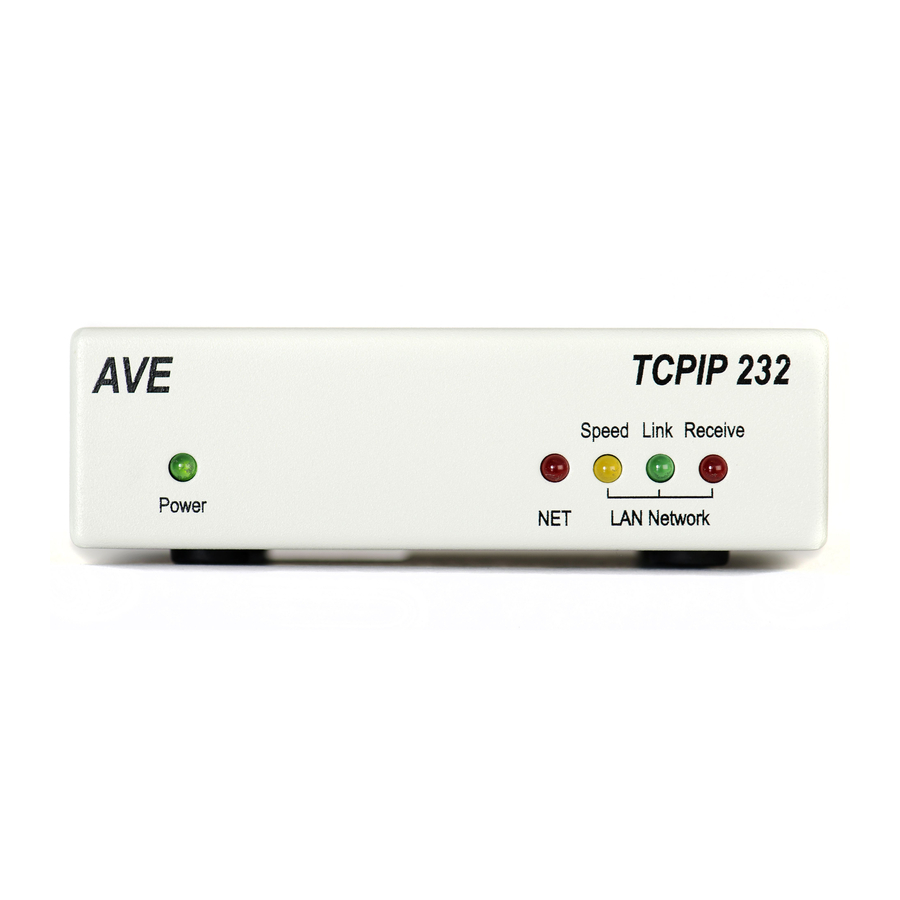

- Page 2 Introduction TCPIP232 ATM Interface. TCPIP232 ATM Interface is designed to capture ATM transactions on ATM LAN system then convert caputered transactions to serial port to interface with VSSI-Pro (ATM Serial Interface) or Digital Video Recorder (DVR) which supports text insertion and overlays trasaction informa- tion to video.
- Page 3 TCPIP232 Hardware Configuration: TCPIP232 hardware operation depends on your network connection. TCPIP232 is able to operate with HUB and Network Switcher. There are 2 hardware configurations: 1. Mirror Mode This Mode supports HUB and Programmable Network Switchers. The user needs to provide a port for TCPIP232 to capture ATM transactions on the HUB and needs to mirror the ATM LAN port for TCPIP232 port to capture data.
-
Page 4: Main Programming Menu
TCPIP232 Setups The user must be careful to unplug the LAN cable from the ATM. The ATM has the protection when there is no comunication between the ATM and Host Server in limited time your ATM will be offline automatically. This peroid is called the “ATM Time Out’. This time out depends on your ATM system. - Page 5 Serial output to connect with DVR to get text insertion. This kind of text insertion will help user to used it to serach video by seraching from Text . This feature is for AVE DVR only. TCPIP232...
-
Page 6: Limited Warranty
LIMITED WARRANTY (Terms and Conditions) For 2 Years from the date of shipment, Seller warrants to Buyer that the Product is free from defects in material or workmanship under normal use and service. Equipment manufactured by other than Seller but furnished by Seller carries the same warranty to Buyer as Seller receives from the other manufacturer, notwithstanding any provision to the contrary. - Page 7 RETURNS. AVE products are fully inspected and carefully packed to ensure you are delivered a quality product in good condition. If you are not fully satisfied with our product, returns of standard stocking items with no restocking fee can be made within thirty (30) days of invoice to Buyer. All such returns must have prior consent of Seller by obtaining an RMA number and must include the sales or delivery receipt showing the date of original purchase and be in an unused condition contained in its original packaging.
- Page 8 ASIA AVE (Thailand) Co., Ltd. 217/4 Crystal Garden Soi 4 (Nanatai), Sukhumvit Rd. Klongtoey, Klongtoey Bangkok, 10110 Thailand Tel: 662-656-8231 Fax: 662-656-9554 Email: ave@avethailand.com www.avethailand.com NORTH AMERICA AVE USA 2000 West Governors Circle, Suite E Houston, Texas 77092 Tel: 281-443-2300 Fax: 281- 443-8915 Email: aveus@ave-us.com...
