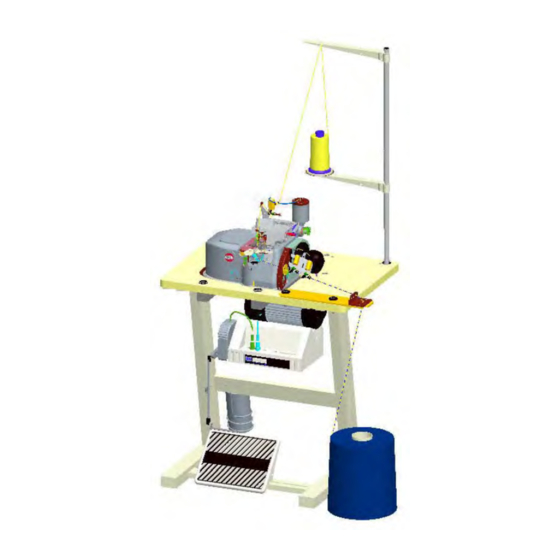

- Page 1 TITAN DK 2500 English PERATOR ANUAL NV. A. DE KONINCK Avenue Sleeckx 84-86 B-1030 BRUSSELS -BELGIUM Phone : ++32/2 216 31 40 Fax : ++32/2 242 41 89 E-mail : info@titansew.com Web : www.titansew.com...
-
Page 2: Table Of Contents
......................... 23-25 HE PRESSER FOOT 6. F .............................26 7. C ..........................27 HAIN GUIDE 8. S ........................27 TITCH PLATE FINGER Chapter 5: Maintenance schedule Maintenance schedule......................28 DK 2500 MANUAL E PAGE 1 From the Library of Superior Sewing Machine & Supply LLC... - Page 3 From the Library of Superior Sewing Machine & Supply LLC DK 2500 MANUAL E PAGE 2...
-
Page 4: Chapter 1: Installation And Lubrication
3. Place the black rubber anti-vibration blocks(25840) in the aluminium holders . 4. Take the TITAN DK 2500 machine out of its box. TAKE CARE NOT TO LIFT UP the machine by holding the UPPER PARTS. Instead, place your hands underneath the closing plate of the machine, and lift the machine. - Page 5 From the Library of Superior Sewing Machine & Supply LLC DK 2500 MANUAL E PAGE 4...
-
Page 6: Sewing Head Only
From the Library of Superior Sewing Machine & Supply LLC... - Page 7 From the Library of Superior Sewing Machine & Supply LLC DK 2500 MANUAL E PAGE 6...
-
Page 8: Chapter 2: Threading
(for example, mercerized cotton, thickness No.18). b. Chain yarn (or “looper yarn”): A wide range of threads can be used with DK 2500 machines. Good results have been obtained with following qualities: Polypropylene and Polyamide Nylon are most frequently used in thickness ranging from 1800 detex till 5200 detex. - Page 9 From the Library of Superior Sewing Machine & Supply LLC DK 2500 MANUAL E PAGE 8...
-
Page 10: Chain Yarn
H eye (see figure 3.2 and 3.3) and then adjust thread feed so that the stitch thus formed is similar to the one shown in figure 3.4. From the Library of Superior Sewing Machine & Supply LLC DK 2500 MANUAL E PAGE 9... - Page 11 From the Library of Superior Sewing Machine & Supply LLC DK 2500 MANUAL E PAGE 10...
-
Page 12: Stitch Density Setting
Retighten the nut K and replace the knurled screw on the sewing head! b. With the stitch density regulator (RPE/DK 2500 SEE OPTIONAL ATTACHMENTS) The RPE option as illustrated in figure 3.7 is fitted on to the left-hand side of the sewing machine. - Page 13 From the Library of Superior Sewing Machine & Supply LLC DK 2500 MANUAL E PAGE 12...
-
Page 14: Chapter 4: Mechanic Adjustment Of The Sewing Head
++32/2-216.31.40 a. How often are the needles to be replaced? Considering the typical up and down movement of needles on DK 2500 series sewing machines is about 2.800 movements per minute, needles will need replacing after a couple of days as they become blunt, thin, and the groove disappears, thus result : false stitches. - Page 15 From the Library of Superior Sewing Machine & Supply LLC...
- Page 16 From the Library of Superior Sewing Machine & Supply LLC...
- Page 17 From the Library of Superior Sewing Machine & Supply LLC DK 2500 MANUAL E PAGE 14...
-
Page 18: Needle Height Adjustment
• In this position, the point of the lower looper should just pass behind the needle as seen in Fig. 4.3 + Detail A. From the Library of Superior Sewing Machine & Supply LLC DK 2500 MANUAL E PAGE 15... -
Page 19: U Pper Looper
From the Library of Superior Sewing Machine & Supply LLC DK 2500 MANUAL E PAGE 16... -
Page 20: Upper Looper
After having adjusted the upper looper, put back all parts and put back again the pressure on the pressure foot. From the Library of Superior Sewing Machine & Supply LLC DK 2500 MANUAL E PAGE 17... - Page 21 From the Library of Superior Sewing Machine & Supply LLC DK 2500 MANUAL E PAGE 18...
-
Page 22: The Lower Looper
6, while screwing the block nut K (figure 4.5) through ½ a turn, using an open ended spanner n° 10. From the Library of Superior Sewing Machine & Supply LLC DK 2500 MANUAL E PAGE 19... - Page 23 From the Library of Superior Sewing Machine & Supply LLC DK 2500 MANUAL E PAGE 20...
-
Page 24: Adjusting The Upper Looper To The Lower Looper
Adjust, if necessary. For each adjustment, remember to re-check all the positions and adjust until the positions of the three parts are concordant. From the Library of Superior Sewing Machine & Supply LLC DK 2500 MANUAL E PAGE 21... - Page 25 From the Library of Superior Sewing Machine & Supply LLC DK 2500 MANUAL E PAGE 22...
-
Page 26: The Cutting Motion
4. The cutting motion For an extended operational life, the lower knife (25655) and the upper knife (25656) of TITAN DK 2500 series machines are equipped with special hardened steel. a. Renewing the upper knife • Loosen the screw C (see figure 4.6). - Page 27 From the Library of Superior Sewing Machine & Supply LLC DK 2500 MANUAL E PAGE 24...
- Page 28 Presser foot for carpets fine overlocking, typical stitch width 5,5mm 25583B Buttseamer presser foot 25583E Buttseamer presser foot for fine delicate fabrics. 25280 For car carpets DK 2500Ag From the Library of Superior Sewing Machine & Supply LLC DK 2500 MANUAL E PAGE 25...
-
Page 29: Feed-Dog
Standard, for medium quality carpets 25744K With fine teeth, for light or delicate materials 25744CAR Heavy duty 25744KPCAR Heavy duty, with pyramid shaped teeth From the Library of Superior Sewing Machine & Supply LLC DK 2500 MANUAL E PAGE 26... -
Page 30: Chain Guide
30560GR Normal carpets with tape insertion 25560C Blankets (DK 2500C type) 25560K Butt-seamer (DK 2500 E type) 8. Stitch plate finger The type of stitch plate finger used will depend on different factors such as : • Thickness of yarn •... -
Page 31: Chapter 5: Maintenance Schedule
CHAPTER 5 : MAINTENANCE SCHEDULE MAINTENANCE SCHEDULE : to prolong the life time of your TITAN Machine. TO DO EVERY 8 HOURS (+/- DAY) • Blow clear the machine with compressed air at the end of each shift! TO DO EVERY 40 HOURS (WEEK) •... - Page 32 PARAMETER SETTINGS ON THE EFKA MOTOR PLEASE NOTE As the Controller is programmed with a memory key from Titan and you want to change some parameters. It is necessary to erase the settings from the memory key by changing the parameter 399 cFP.
- Page 33 PARAMETER .2.7.0. IS DISPLAYED PRESS KEY ANDSET VALUE TO WITH – PRESS PARAMETER .4.5.1. IS DISPLAYED PRESS AND TURN HANDWHEEL CLOCKWISE AND SET NEEDLE ON LOWEST POINT PRESS PARAMETER .4.5.3. IS DISPLAYED PRESS AND TURN HANDWHEEL CLOCKWISE AND SET NEEDLE ON TOP POINT PRESS PARAMETER .2.9.0.
