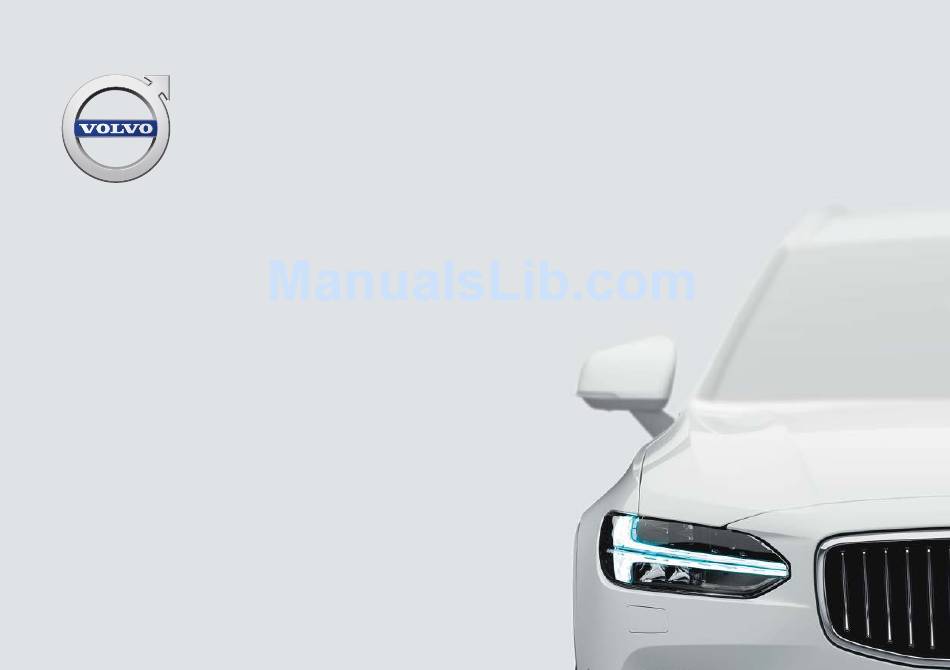

O W N ER' S MA N UAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the V90 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Volvo V90

Summary of Contents for Volvo V90

  • Page 1 O W N ER' S MA N UAL...
  • Page 3 VÄLKOMMEN! We hope your Volvo will give you many years of happy motoring. The manual. The owner's manual is also available as a mobile app (Volvo vehicle is designed for the safety and comfort of you and your passen- Manual) and on Volvo Cars support page (support.volvocars.com).

  • Page 4: Table Of Contents

    Safety Owner's Manual in the center display Volvo ID Safety during pregnancy Navigate in the Owner's Manual in Creating and registering a Volvo ID Occupant safety the center display Drive-E ‒ purer driving pleasure Reporting safety defects Owner's manual in mobile devices...
  • Page 5 DISPLAYS AND VOICE CONTROL Top tether anchors Instruments and controls in left-hand Handling the center display drive vehicles Lower child seat attachment points Activating and deactivating the cen- Instrument panel ter display ISOFIX/LATCH lower anchors Instrument panel settings Navigating in the center display's views Integrated booster cushion* Fuel gauge Handling tiles in the center display...
  • Page 6 LIGHTING WINDOWS, GLASS AND MIRRORS Setting types in the center display Lighting panel and controls Windows, glass and mirrors Table of settings in the center display Adjusting light functions via the cen- Pinch protection for windows and ter display sun curtains Driver profiles Parking lights Reset procedure for pinch protection...
  • Page 7 SEATS AND STEERING WHEEL CLIMATE CONTROL Manual front seats Climate Activating and deactivating the heated steering wheel* Power front seats* Climate zones Activating and deactivating automatic Climate control sensors Adjusting the power front seats* steering wheel heating* Perceived temperature Storing memory settings in power Activating auto climate control front seats* Climate control system voice commands...
  • Page 8 KEY, LOCKS AND ALARM DRIVER SUPPORT Lock indication Locking and unlocking from inside Driver support systems the vehicle Lock confirmation settings Speed-dependent steering wheel Unlocking the tailgate from inside resistance Remote key the vehicle Stability system Roll Stability Control Locking and unlocking using the Activating and deactivating child remote key Electronic Stability Control...
  • Page 9 Cruise control Starting passing assistance with Pilot Assist limitations Adaptive Cruise Control Activating and starting Cruise Control Pilot Assist* symbols and messages Limitations of passing assistance Managing Cruise Control speed Radar sensor with Adaptive Cruise Control Deactivating and putting Cruise Con- Radar sensor limitations Switching target vehicles with Adap- trol in standby mode...
  • Page 10 BLIS limitations Selecting guidance to a rest area if Activating/deactivating Steering the Driver Alert Control warning has assistance during collision risks with Recommended maintenance for BLIS been given oncoming vehicles BLIS messages Driver Alert Control limitations Limitations of steering assistance during collision risks from oncoming Cross Traffic Alert* Lane Keeping Aid...
  • Page 11 STARTING AND DRIVING Park Assist Camera limitations Starting the vehicle Using the steering wheel paddles* to shift Recommended maintenance of the Switching off the vehicle Park Assist Camera Shiftlock Ignition modes Park Assist Camera symbols and Deactivating the automatic shiftlock Selecting ignition mode messages The kickdown function...
  • Page 12 AUDIO, MEDIA AND INTERNET ® Fuel Audio, media and Internet * - Fuel SiriusXM Travel Link Octane rating Sound settings ® * - Sports SiriusXM Travel Link Emission controls Apps Media player Overheating of engine and transmission Download apps Playing media Battery drain Updating apps Controlling and changing media...
  • Page 13 WHEELS AND TIRES Sharing Internet from the vehicle via Tires Tips for using Android Auto* Wi-Fi hotspot (tethering) Phone Tire direction of rotation No or poor Internet connection Connecting a phone to the car via Tread wear indicator Deleting Wi-Fi networks Bluetooth for the first time Tire terminology Connecting a phone to the car via...
  • Page 14 LOADING, STORAGE AND MAINTENANCE AND SERVICE PASSENGER COMPARTMENT Tire sealing system Volvo's service program Passenger compartment interior Using the tire sealing system Data transfer between vehicle and workshop over Wi-Fi Tunnel console Inflate tires with the compressor included in the tire sealing system...
  • Page 15 SPECIFICATIONS Replacing daytime running lights/ Cleaning the exterior Type designations front parking light bulbs Polishing and waxing Dimensions Replacing front turn signal bulbs Hand washing Weights Replacing backup lights Automatic car washes Towing capacity and tongue weight Replacing the rear fog light bulb High-pressure washing Engine specifications Bulb specifications...
  • Page 16 INDEX Index...
  • Page 17 OWNER'S INFORMATION...
  • Page 18 Owner's Manual is available on the vehicle's contains information on fuses to visual navigation with exterior center display, as a mobile app and on Volvo and specifications as well as a and interior images of the vehi- Cars' support website. There is also a Quick summary of important and cle.
  • Page 19 The digital Owner's Manual can be accessed important that the vehicle is operated, main- from Top view and in certain cases, the contex- tained and serviced according to Volvo's rec- tual Owner's Manual can also be accessed from ommendations provided in the owner's infor- Top view.

  • Page 20: Navigate In The Owner's Manual In The Center Display

    OWNER'S INFORMATION Navigate in the Owner's Manual in Related information Opening the menu in the Top menu • the center display Navigate in the Owner's Manual in the center – in the upper list in the Owner's display (p. 18) Manual.
  • Page 21 OWNER'S INFORMATION 2. Tap a hotspot. Quick Guide Information Tap the symbol to go to a page Tap the symbol for information > The title of a relevant article will be dis- with links to a selection of use- about the current version of the played.
  • Page 22 Manual is available as an app for certain Volvo The mobile app is available on both App Store and Goo- Play. This QR code will take models. The Volvo On Call app can also be down- gle Play. you directly to the app. You can loaded from the support site.
  • Page 23 The equipment described in the Owner's Manual get the most out of everything your Volvo has to is not available in all vehicles. Vehicles may be offer. Pay particular attention to the safety warn- equipped differently depending on market ings provided in the Owner's Manual.
  • Page 24 OWNER'S INFORMATION Decals White ISO symbols and white text/image on a Risk of damage black message field. There are various types of decals affixed in the vehicle to communicate important information in NOTE a clear and concise manner. The importance of these decals is explained as follows, in descend- The decals shown in the Owner's Manual do ing order of importance.
  • Page 25 Owner's Manual in the center display (p. 17) tions, information, etc.) that can be listed in a ran- • Owner's manual in mobile devices (p. 20) dom order. • Volvo Cars support site (p. 20) For example: • Coolant • Engine oil...

  • Page 27: Your Volvo

    YOUR VOLVO...

  • Page 28: Contacting Volvo

    1 Volvo Drive, Examples of services: P.O. Box 914 • Volvo On Call - Volvo ID is used to log in to Rockleigh, New Jersey 07647 the Volvo On Call app. 1-800-458-1552 • Send to Car - Send an address from an www.volvocars.com/us...

  • Page 29: Creating And Registering A Volvo Id

    Registering your Volvo ID to the vehicle If your Volvo ID was created using the Volvo On A Volvo ID can be created in two ways. If your Volvo is committed to the well-being of its cus- Call app, follow these steps to register the ID to Volvo ID was created with the Volvo On Call tomers.

  • Page 30: Intellisafe - Driver Support

    • Air quality (p. 205) accidents and protect passengers and other When you drive a Volvo, you become our partner road users. in the work to lessen the vehicle's impact on the environment. To reduce your vehicle's environ-...
  • Page 31 YOUR VOLVO • possible collision and help the driver act in time Airbags (p. 52) to prevent it. If the driver does not react to the • Whiplash Protection System (p. 46) warning and the risk of collision is determined to be imminent, City Safety can automatically apply the brakes.

  • Page 32: Sensus - Connection And Entertainment

    YOUR VOLVO Sensus - connection and different displays depending on how it should be entertainment prioritized by the driver. Sensus makes it possible to surf the Internet, use apps, and turn your vehicle into a Wi-Fi hot- spot. This is Sensus Sensus provides an intelligent interface and Internet connection to the digital world.
  • Page 33 YOUR VOLVO Different types of information are shown in different displays depending on how the information should be prioritized. and navigation messages*. Road sign information Instrument panel Head-up display* and incoming phone calls are also shown in the head-up display. These can be handled using the right-side steering wheel keypad or the center display.
  • Page 34 YOUR VOLVO Many of the vehicle's main functions are con- trolled from the center display, a touchscreen that reacts to taps and other gestures. This minimizes the number of physical buttons and controls nee- ded in the vehicle. The screen can also be oper- ated while wearing gloves.

  • Page 35: Software Updates

    EDR data with the type of personally identifying data rou- So that you as a Volvo customer shall have the As part of Volvo's commitment to safety and tinely acquired during a crash investigation. To...

  • Page 36: Terms & Conditions For Services

    Terms & Conditions for Services Customer Privacy Policy Related information • Contacting Volvo (p. 26) Volvo offers services to help make driving your Volvo respects and safeguards the personal pri- • Volvo Structural Parts Statement (p. 38) Volvo as safe and comfortable as possible.

  • Page 37: Important Information On Accessories And Extra Equipment

    NOTE WARNING accessories and extra equipment Certain of the vehicle's components, such as Do not export your Volvo to another country Incorrectly connected or installed accessories or airbag modules, seat belt tensioners, adjusta- before investigating that country's applicable extra equipment may have an adverse effect on ble steering wheel columns and button cell safety and exhaust emission requirements.

  • Page 38: Accessory Installation

    Additionally, a trained and qualified Volvo service technician knows where accessories may and may not be safely installed in your Volvo. In all cases, please consult a trained and qualified Volvo service technician before installing any accessory in or on your vehicle.

  • Page 39: Technician Certification

    (p. 35) and perform the necessary maintenance proce- FCC ID: 2AGKKACUII-06 dures to keep your Volvo at peak operating con- dition. This device complies with part 15 of the FCC rules. Operation is subject to the following two...

  • Page 40: Viewing The Vehicle Identification Number (Vin)

    YOUR VOLVO Viewing the Vehicle Identification Volvo Structural Parts Statement In addition Volvo does not support the use or re- Number (VIN) use of structural components from an existing Volvo is one of the leading companies for car vehicle that has been previously damaged.

  • Page 41: Driver Distraction

    Your new Volvo is, or can be, equipped with fea- parked. ture-rich entertainment and communication sys- •...

  • Page 43: Safety

    SAFETY...

  • Page 44: Safety

    Volvo recommends contacting an authorized activate different safety systems, such as the air- Volvo workshop for repairs as soon as possi- ble. bag system and seat belt tensioners. Depending on the specific conditions of the accident, e.g.

  • Page 45: Occupant Safety

    Our concern for safety dates back to 1927 when Related information Seat belt the first Volvo rolled off the production line. • Safety (p. 42) Three-point seat belts (a Volvo invention), safety •...

  • Page 46: Reporting Safety Defects

    Keep your windshield and headlights clean. become involved in individual problems • Replace wiper blades when they start to between you, your retailer, or Volvo Car leave streaks. USA, LLC. To contact NHTSA, you may • Take into account the traffic, road, and...

  • Page 47: Recall Information

    Please check with • Viewing the Vehicle Identification Number your local retailer or Volvo Car USA, Volvo customers in Canada (VIN) (p. 38) LLC if your vehicle is covered under For any questions regarding open recalls for your vehicle, please contact your authorized Volvo these conditions.

  • Page 48: Whiplash Protection System

    Do not attempt to alter or repair the seat or • Reporting safety defects (p. 44) designed to help reduce the risk of whiplash- WHIPS on your own. Volvo recommends con- type injuries. The system consists of energy tacting an authorized Volvo workshop. •...
  • Page 49 SAFETY • Seat belts Rear Collision Warning (p. 341) WARNING Seat belts should always be worn by all occu- Do not squeeze box-like cargo between the pants in your vehicle. Children should be prop- rear seat cushion and the front seat backrest. erly restrained using an infant seat, adjustable If the rear seat backrests are folded down, child seat or booster cushion as determined by...

  • Page 50: Buckling And Unbuckling Seat Belts

    > A distinct "click" indicates that the belt is their seat belts before starting to drive. should only be performed by a trained locked into place. and qualified Volvo service technician. Buckling seat belts • 1. Pull out the belt slowly and make sure it is...
  • Page 51 SAFETY 3. The height of the seat belts in the front seats WARNING can be adjusted. Never use a seat belt for more than one occupant. Never wear the shoulder portion of the belt under the arm, behind the back or otherwise out of position.

  • Page 52: Seat Belt Tensioners

    All seat belts are equipped with a standard seat Never attempt to alter or repair the seat belt belt tensioner. on your own. Volvo recommends contacting an authorized Volvo workshop. In a collision of sufficiently violent force, the seat belt tensioners will tension the seat belts in order If the seat belt has been exposed to extreme to more effectively restrain the occupants.

  • Page 53: Resetting The Electric Seat Belt Ten

    WARNING Never attempt to alter or repair the seat belt Reminder light in ceiling console. on your own. Volvo recommends contacting an authorized Volvo workshop. The seat belt reminder consists of an audible sig- If the seat belt has been exposed to extreme nal and a symbol in the instrument panel.

  • Page 54: Airbags

    Volvo recommends towing the seat belt in the rear seat is removed while while you are driving, have the vehicle vehicle directly to an authorized Volvo work- the vehicle is in motion. The reminder will shop. inspected by a trained and qualified Volvo stop when the seat belt has been rebuckled.

  • Page 55: Driver/Passenger-Side Airbags

    The airbag Volvo recommends contacting an authorized deflates when compressed by the collision. A Volvo workshop for repairs. Incorrectly per- small amount of powder will also be released formed repairs to the airbag system could from the airbag.
  • Page 56 However, not all frontal collisions activate the not indicate fire. ing wheel pad/airbag housing. front airbags. • Volvo's front airbags use special sensors • The front airbags are designed to help • If the collision involves a nonrigid object (e.g., that are integrated into the front seat belt prevent serious injury.
  • Page 57 Should you have questions about any component leaning toward the instrument panel or in the SRS system, please contact a trained and otherwise sit out of position. qualified Volvo service technician or Volvo cus- • The occupant's back must be as upright tomer support:...

  • Page 58: Occupant Weight Sensor

    This should only be done by a present in a forward-facing child restraint trained and qualified Volvo service techni- that is installed according to the manufactur- cian. er's instructions, •...
  • Page 59 Volvo recommends that children always be properly restrained the event of a collision. In this case, the SRS in appropriate child restraints in the rear seats. Do not assume...
  • Page 60 In Canada place the backrest in an upright position. passenger's seat. If a child is seated in Volvo Car Canada Ltd. • Have the person sit upright in the seat, cen- the front passenger's seat with any addi-...

  • Page 61: Side Airbags

    SAFETY Side airbags WARNING WARNING The side airbags, on the driver's and passenger • • Keep the following points in mind with Do not place any type of object on the sides, protect the chest and hip in a collision. respect to the OWS system.

  • Page 62: Inflatable Curtain

    Volvo recommends only using seat covers Never screw or mount anything to the vehi- approved by Volvo. Other seat covers could cle's headlining, door pillars or side panels. prevent the side airbags from functioning This could impair the intended protective properly.

  • Page 63: Safety Mode

    When the vehicle is in safety mode, it should not be towed behind another vehicle. It should WARNING be towed from the site on a tow truck. Volvo recommends towing the vehicle directly to an Never attempt to restart the vehicle if you authorized Volvo workshop.

  • Page 64: Starting And Moving The Vehicle

    WARNING When the vehicle is in safety mode, it should not be towed behind another vehicle. It should be towed from the site on a tow truck. Volvo recommends towing the vehicle directly to an authorized Volvo workshop.

  • Page 65: Child Safety

    A specially designed and tested booster cushion LATCH attachments, which make it more conven- erly restrained. A child restraint system can help and backrest can be obtained from your Volvo ient to install child seats. protect a child in a vehicle. Here's what to look retailer.
  • Page 66 Volvo's recommendations during certain types of accidents. Volvo rec- Why does Volvo believe that no child should sit in ommends that you do not disconnect the air- the front seat of a vehicle? It's quite simple really.

  • Page 67: Child Restraints

    SAFETY Child restraints Suitable child restraints should always be used when children travel in the vehicle. Child restraint systems Convertible seat Booster cushion WARNING WARNING A child seat should never be used in the front Always refer to the child restraint manufactur- passenger seat of any vehicle with a front er's instructions for detailed information on Infant seat...
  • Page 68 WARNING • Lower child seat attachment points (p. 73) is still very weak. Volvo recommends that Do not use child safety seats or child booster children up to age 4 travel, properly •...

  • Page 69: Infant Seats

    SAFETY Infant seats WARNING Suitable child restraints should always be used A child seat should never be used in the front when children (depending on their age/size) are passenger seat of any vehicle with a front seated in the vehicle. passenger airbag - not even if the "Passenger airbag off"...
  • Page 70 SAFETY NOTE WARNING It should not be possible to move the child The locking retractor will automatically restraint more than 2.5 cm (1 in.) in any direc- release when the seat belt is unbuckled and tion along the seat belt path. allowed to retract fully.

  • Page 71: Convertible Seats

    (depending on their age/size) are able part of its total weight and its neck is seated in the vehicle. still very weak. Volvo recommends that children up to age 4 travel, properly Securing a convertible seat with a seat restrained, facing rearward.
  • Page 72 SAFETY NOTE WARNING It should not be possible to move the child The locking retractor will automatically restraint more than 2.5 cm (1 in.) in any direc- release when the seat belt is unbuckled and tion along the seat belt path. allowed to retract fully.

  • Page 73: Booster Cushions

    SAFETY Booster cushions Related information 3. Fasten the seat belt by inserting the latch • plate into the buckle (lock) until a distinct Child restraints (p. 65) Suitable child restraints should always be used click is audible. • when children (depending on their age/size) are Infant seats (p.
  • Page 74 3. Attach the strap for the lower tether anchors • in the lower ISOFIX/LATCH attachment Child restraints (p. 65) Your Volvo is equipped with child restraint top points. If the child restraint is not equipped • Convertible seats (p. 69)
  • Page 75 SAFETY • • Lower child seat attachment points Child restraint anchorages are designed ISOFIX/LATCH lower anchors (p. 74) to withstand only those loads imposed by The rear seats are equipped with lower child correctly fitted child restraints. Under no seat attachment points. circumstances are they to be used for The lower child seat attachment points are adult seat belts or harnesses.
  • Page 76 4. Firmly tension the lower child seat straps according to the manufacturer's instructions. WARNING Volvo's ISOFIX/LATCH anchors conform to Fasten the attachment correctly to the ISOFIX/LATCH FMVSS/CMVSS standards. Always refer to lower anchors the child restraint system's manual for weight and size ratings.
  • Page 77 SAFETY Related information Integrated booster cushion* Before driving, make sure that: • Child restraints (p. 65) • The integrated booster cushions in the rear the booster cushion is raised to the correct • Top tether anchors (p. 72) seat's outboard seating positions help ensure position for the child's weight that children can sit comfortably and safely.
  • Page 78 The booster cushion should also be replaced if it is badly worn or damaged in any way. This work should be performed by a trained and qualified Volvo service technician only. Related information • Child restraints (p. 65) •...

  • Page 79: Folding Up The Integrated Booster Cushion

    SAFETY Folding up the integrated booster cushion* When the integrated booster cushion is used, it must be folded up. Lower position: Press the booster cushion rearward to lock it Lift the front edge of the booster cushion into position. and press it rearward toward the backrest to lock it into position.
  • Page 80 The booster cushion should also be replaced if it is badly worn or damaged in any way. This work should be performed by a trained and qualified Volvo service technician only. Pull the handle forward to release the booster cushion. * Option/accessory.
  • Page 81 The integrated booster cushion must be damaged in any way. This work should be stowed (folded down) before folding down performed by a trained and qualified the seat backrest. Volvo service technician only. Related information • Integrated booster cushion* (p. 75) •...

  • Page 83: Displays And Voice Control

    DISPLAYS AND VOICE CONTROL...

  • Page 84: Instruments And Controls In Left-Hand Drive Vehicles

    DISPLAYS AND VOICE CONTROL Instruments and controls in left- Horn hand drive vehicles Left-side steering wheel keypad The overviews show the location of the vehicle's displays and controls. Hood open Steering wheel and dashboard Display lighting, tailgate unlock/open*/ close*, halogen headlight height adjustment Ceiling console Center display Hazard warning flashers, defrosting, media...
  • Page 85 DISPLAYS AND VOICE CONTROL Memory for power front seat settings*, door mirrors and head-up display* Central locking Power windows, door mirrors, electric child safety locks* Controls for front seat Related information • Manual front seats (p. 188) • Adjusting the power front seats* (p. 189) •...

  • Page 86: Instrument Panel

    Activate ignition mode I. part/all of the panel cannot be read, do not drive the vehicle. Consult a workshop immedi- • Open one of the doors. ately. Volvo recommends an authorized Volvo workshop. Location in the instrument panel: Left side In the center...
  • Page 87 DISPLAYS AND VOICE CONTROL Left side In the center Right side – Navigation system map Current fuel consumption – Phone App menu (activated using steering wheel keypad) – Voice Control – Depends on selected drive mode. Total distance. Instrument panel 8" Location in the instrument panel: Left side In the center...
  • Page 88 DISPLAYS AND VOICE CONTROL Left side In the center Right side Gear indicator Cruise control/speed limiter information Navigation information Door and seat belt status Clock Tachometer/ECO gauge Distance to empty tank Start/Stopp function's status App menu (activated using steering wheel keypad) Ambient temperature sensor –...
  • Page 89 DISPLAYS AND VOICE CONTROL Example with indicator symbol. Related information • Instrument panel settings (p. 88) • Warning symbols in the instrument panel (p. 97) • Indicator symbols in the instrument panel (p. 95) • Trip computer (p. 89) • Messages in the instrument panel (p.

  • Page 90: Instrument Panel Settings

    DISPLAYS AND VOICE CONTROL • Instrument panel settings Changing settings in the center display Select theme (p. 136) Settings 1. Tap in the center display's Top Display settings for the instrument panel can be view. set in the instrument panel's app menu and in the center display's Settings menu.

  • Page 91: Fuel Gauge

    DISPLAYS AND VOICE CONTROL Fuel gauge Trip computer The fuel gauge in the instrument panel shows The vehicle's trip computer registers and calcu- the fuel level in the tank. lates data while driving such as mileage, fuel consumption and average speed. To help promote fuel-efficient driving, data is recorded on both current and average fuel con- sumption.
  • Page 92 DISPLAYS AND VOICE CONTROL • Distance to empty tank This calculation is based on average fuel con- sumption during the last 30 km (20 miles) and • Tourist - alternative speedometer the amount of fuel remaining in the tank. Unit standards for distance, speed, etc. can be When the gauge displays "----", there is not changed via system settings in the center display.

  • Page 93: Displaying Trip Data In The Instrument Panel

    DISPLAYS AND VOICE CONTROL • Displaying trip data in the Displaying trip statistics in the center display 1. Open the app menu in the instrument panel instrument panel (p. 92) by pressing (1). • Instrument panel (p. 84) Data recorded and calculated by the trip com- (The App menu cannot be opened while puter can be displayed on the instrument panel.

  • Page 94: Resetting The Trip Odometer

    DISPLAYS AND VOICE CONTROL Resetting the trip odometer Displaying trip statistics in the Related information • center display Trip computer (p. 89) Resetting the trip odometer using the left-side • Resetting the trip odometer (p. 92) steering wheel lever. Trip computer statistics can be displayed graphi- cally in the center display, providing an overview that facilitates more fuel-efficient driving.

  • Page 95: Trip Statistics Settings

    DISPLAYS AND VOICE CONTROL • Trip statistics settings Resetting the trip odometer (p. 92) Trip statistics settings can be reset or adjusted. 1. Open the Driver performance app in the App view to display trip statistics. 2. Tap Preferences Trip computer statistics •...

  • Page 96: Date And Time

    DISPLAYS AND VOICE CONTROL Date and time Ambient temperature sensor Automatic time for vehicles with GPS When the vehicle is equipped with a navigation The clock is displayed in both the instrument The ambient temperature is shown in the instru- Auto Time system, is also available.

  • Page 97: Indicator Symbols In The Instrument Panel

    DISPLAYS AND VOICE CONTROL Indicator symbols in the instrument To change the measurement standard for the Symbol Meaning panel temperature sensor and other readings, go to Fault in ABS system system settings in the center display's Top view. The indicator symbols alert the driver that a func- tion has been activated, that a system is running, If this symbol is illuminated, the Related information...
  • Page 98 Active high beams off trol system. Have the vehicle This symbol illuminates when the checked by a workshop. Volvo rec- This symbol lights up in white when rear fog light is on. ommends contacting an authorized the active high beams are off.

  • Page 99: Warning Symbols In The Instrument Panel

    DISPLAYS AND VOICE CONTROL Warning symbols in the instrument Symbol Meaning Symbol Meaning panel Stability system Lane Keeping Aid and rain sen- The warning symbols alert the driver that an important function is activated or that a serious This symbol flashes when the sta- bility system is actively working to White symbol: Lane Keeping Aid is fault or error has occurred.

  • Page 100: Instrument Panel Licenses

    The following text is Volvo's agreement with the manufacturer has been detected in one of the Stop the engine immediately and or developer.
  • Page 101 DISPLAYS AND VOICE CONTROL AND FITNESS FOR A PARTICULAR PURPOSE Boost Software License 1.0 BSD 4-clause "Original" or "Old" License ARE DISCLAIMED. IN NO EVENT SHALL THE Permission is hereby granted, free of charge, to Copyright (c) 1982, 1986, 1990, 1991, 1993 REGENTS OR CONTRIBUTORS BE LIABLE any person or organization obtaining a copy of The Regents of the University of California.
  • Page 102 DISPLAYS AND VOICE CONTROL SERVICES; LOSS OF USE, DATA, OR PROFITS; OR CONTRIBUTORS BE LIABLE FOR ANY BSD 3-clause "New" or "Revised" License OR BUSINESS INTERRUPTION) HOWEVER DIRECT, INDIRECT, INCIDENTAL, SPECIAL, Copyright (c) 2011-2014, Yann Collet. CAUSED AND ON ANY THEORY OF LIABILITY, EXEMPLARY, OR CONSEQUENTIAL DAMAGES Redistribution and use in source and binary WHETHER IN CONTRACT, STRICT LIABILITY,...
  • Page 103 DISPLAYS AND VOICE CONTROL provided that all warranty or liability claims IN NO EVENT WILL ANY OF THE FreeType Project License are assumed by the product vendor. Legal AUTHORS OR COPYRIGHT HOLDERS BE 1. 1 Copyright 1996-1999 by David Turner, Terms 0.
  • Page 104 DISPLAYS AND VOICE CONTROL on the FreeType code, not just the libpng versions 0.97, January 1998, through Libpng License unmodified files. If you use our work, you 1.0.6, March 20, 2000, are Copyright (c) 1998, This copy of the libpng notices is provided for must acknowledge us.
  • Page 105 DISPLAYS AND VOICE CONTROL For the purposes of this copyright and license, 3. This Copyright notice may not be removed or sublicense, and/or sell copies of the Software, "Contributing Authors" is defined as the following altered from any source or altered source and to permit persons to whom the Software is set of individuals: distribution.

  • Page 106: App Menu In Instrument Panel

    DISPLAYS AND VOICE CONTROL App menu in instrument panel documentation files (the "Software"), to deal in zlib License The zlib/libpng License Copyright (c) <year> the Software without restriction, including without The application menu (App menu) in the instru- <copyright holders> limitation the rights to use, copy, modify, merge, ment panel provides quick access to commonly publish, distribute, sublicense, and/or sell copies...

  • Page 107: Handling The App Menu In The Instrument Panel

    DISPLAYS AND VOICE CONTROL Handling the App menu in the Opening and closing the app menu Functions instrument panel – Tap open/close (1). Trip com- Select a trip odometer, change The App (application) menu in the instrument (The App menu cannot be opened while puter instrument panel display set- panel is controlled using the right-side steering...

  • Page 108: Messages In The Instrument Panel

    DISPLAYS AND VOICE CONTROL Messages in the instrument panel Related information High-priority messages for the driver are dis- • played in the instrument panel. App menu in instrument panel (p. 104) The instrument panel shows messages in certain • Messages in the instrument panel (p. 106) circumstances to inform or assist the driver.

  • Page 109: Handling Messages In The Instrument Panel

    - contact a work- shop Part of message, shown along with information on the location of the problem. An authorized Volvo workshop is recommended. Service urgent Contact a workshop Drive to work- have the vehicle inspected Related information shop immediately.

  • Page 110: Handling Messages Saved From The Instrument Panel

    DISPLAYS AND VOICE CONTROL For messages without buttons: – Close the message by pressing confirm (2) or let the message automatically time-out after a short period. > The message will disappear from the instrument panel. Messages that need to be saved are stored in Car status app, which can be opened from the App view in the center display.

  • Page 111: Handling Messages Saved From The

    Saved messages in the app are automatically taneously appear in the center display. Owner's Manual. deleted each time the engine is started. Market dependent. Volvo ID and selected workshop also need to be registered...
  • Page 112 DISPLAYS AND VOICE CONTROL Related information • Messages in the instrument panel (p. 106) • Handling messages in the instrument panel (p. 107) • Messages in the center display (p. 142)
  • Page 113 DISPLAYS AND VOICE CONTROL Center display overview Many of the vehicle's functions can be con- trolled from the center display. The center dis- play and its possibilities are presented below.
  • Page 114 DISPLAYS AND VOICE CONTROL Three of the center display's basic views. Swipe to the right/left to access Function or App view Function view ‒ vehicle functions that can be functions, called "trigger functions", open is the Camera. Settings for the head-up dis- activated or deactivated with one tap.
  • Page 115 DISPLAYS AND VOICE CONTROL • Fourth tile ‒ most recently used apps or adjusted using the right-side steering wheel Changing system language (p. 134) keypad. vehicle functions not associated with the • Changing system units of measurement other tiles. Tap the tile to expand it. Home view ‒...

  • Page 116: Handling The Center Display

    DISPLAYS AND VOICE CONTROL Handling the center display ent views, mark objects, scroll in a list and move CAUTION apps by touching the screen in various ways. Many of the vehicle's functions and features can Do not use sharp objects on the screen as be controlled and adjusted from the center dis- An infrared light curtain just above the surface of this could cause scratches.
  • Page 117 DISPLAYS AND VOICE CONTROL Procedure Gesture Result Drag Moves between screen views or scrolls in a list, text or a view. Press and hold to drag apps or points on a map*. Drag horizontally or vertically over the screen. Swipe Moves between screen views or scrolls in a list, text or a view.
  • Page 118 DISPLAYS AND VOICE CONTROL • Returning to Home view from another drag the control to the desired temperature, view • − to raise or lower the temperature 1. Briefly press the home button below the cen- by degrees, or ter display. •...

  • Page 119: Activating And Deactivating The Cen

    DISPLAYS AND VOICE CONTROL Activating and deactivating the Navigating in the center display's 1. Press and hold the button beneath the center display views screen. > The screen will go dark (the climate bar The center display can be dimmed and reactiva- There are five different basic views in the center will remain visible).
  • Page 120 DISPLAYS AND VOICE CONTROL Top view view when an app (e.g. navigation) is being NOTE used. In Home view's standard mode – short press • Contextual Owner's Manual (e.g. Navigation on the Home button. An animation describing Manual ). Access articles in the digital access to the various views is shown on the Owner's Manual related to the content screen.
  • Page 121 DISPLAYS AND VOICE CONTROL App view Tap an app to open it. It will then be opened in its Function view associated tile, e.g. Media Depending on the number of apps, it is possible to scroll down in the App view. This is done by sweeping/dragging from the bottom upwards.
  • Page 122 DISPLAYS AND VOICE CONTROL If there are many functions, you can also scroll downward through the view. This is done by sweeping/dragging from the bottom upwards. Unlike in App view, where you tap an app to open it, in Function view, tapping a function activates or deactivates it.

  • Page 123: Handling Tiles In The Center Display

    DISPLAYS AND VOICE CONTROL Handling tiles in the center display Navigation Home view consists of four tiles: Media Phone and a fourth tile. These views can be expanded.
  • Page 124 DISPLAYS AND VOICE CONTROL Expanding a tile from standard mode Standard mode and expanded mode of a tile in the center display.
  • Page 125 DISPLAYS AND VOICE CONTROL Expanding a tile: In expanded mode, open the Related information • app in full-screen mode. Tap Handling the center display (p. 114) – For tiles Navigation Media Phone the symbol. • Activating and deactivating the center display Tap the screen anywhere in the tile.

  • Page 126: Function View In The Center Display

    DISPLAYS AND VOICE CONTROL Function view in the center display Different types of buttons to Function view by swiping from left to right There are three different types of buttons for over the screen Function view, which is one of the center dis- vehicle functions;...
  • Page 127 DISPLAYS AND VOICE CONTROL Button modes The function is deactivated when the LED indica- tor light is switched off. When a function or parking button's LED indica- tor is green, the function is activated (on). For some functions, an additional text explaining the function will be shown when the function is ini- tially activated.

  • Page 128: Moving Apps And Buttons In The Cen

    DISPLAYS AND VOICE CONTROL Moving apps and buttons in the Symbols in the center display status NOTE center display Hide the apps that are rarely or never used by The apps and buttons for vehicle functions can Overview of symbols displayed in the center dis- moving them far down, outside of the visible be moved and organized in the App and Func- play status bar.
  • Page 129 DISPLAYS AND VOICE CONTROL Related information Symbol Meaning • Navigating in the center display's views Tethering activated (Wi-Fi hotspot). (p. 117) This means that the vehicle shares • Messages in the center display (p. 142) an available Internet connection. Vehicle modem activated. USB sharing active.

  • Page 130: Using The Center Display Keyboard

    DISPLAYS AND VOICE CONTROL Using the center display keyboard You can use the keyboard in the center display to enter characters or to switch to handwriting mode to "write" letters and characters on the screen. The keyboard can be used to enter characters (letters, numbers, symbols, etc.) to e.g.
  • Page 131 DISPLAYS AND VOICE CONTROL The illustration shows an overview of some of the buttons that may be shown on the keyboard. The appearance may vary depending on language settings and the context in which the keyboard is used.
  • Page 132 DISPLAYS AND VOICE CONTROL Row showing suggestions for words or char- uppercase letter. In text fields intended for Variants of letters or characters passwords, website addresses or email acters . The suggested words change as addresses, all letters will automatically be new letters are entered.

  • Page 133: Changing Keyboard Language In The

    DISPLAYS AND VOICE CONTROL Changing keyboard language in the Entering characters, letters and To toggle between keyboard languages from the center display words by hand in the center display list: In order to toggle between keyboard languages, Characters, letters and words can be entered in 1.
  • Page 134 DISPLAYS AND VOICE CONTROL Space bar. Blank spaces can be created by Handwriting characters/letters/words Erasing/changing handwritten characters/ writing a dash (‒) in the field for handwritten 1. Write a character, a letter, a word or parts of letters letters (1). See "Writing blank spaces in free- a word in the field for handwritten letters (1).

  • Page 135: Changing The Appearance Of The

    DISPLAYS AND VOICE CONTROL Changing the appearance of the Turning off and adjusting the New lines in free-text fields in handwriting center display volume of the center display system mode sounds The appearance of the center display can be changed by selecting a different theme. The volume of the center display system sounds Settings 1.

  • Page 136: Changing System Units Of Measurement

    DISPLAYS AND VOICE CONTROL Changing system units of Changing system language Opening settings in the center measurement display Settings Language settings are adjusted in the Settings Settings menu in the center display. Unit settings are adjusted in the menu The center display is used to manage in the center display.

  • Page 137: Opening Contextual Setting In The

    Third-party apps are apps that are not factory- ter display via contextual settings. • Setting types in the center display (p. 137) installed in the vehicle's system, but can be Volvo ID downloaded, e.g. . Settings for these • Table of settings in the center display apps are changed in the apps themselves, not in (p.

  • Page 138: Changing Settings In The Center Display

    2. Tap Settings to open the Settings menu. changes owner. It is also important to change the owner of the Volvo On Call service. 3. Tap one of the categories and sub-catego- ries to navigate to the desired setting. Related information •...

  • Page 139: Resetting Center Display Settings

    DISPLAYS AND VOICE CONTROL Resetting center display settings Setting types in the center display 4. Tap to confirm the reset. All settings made in the center display's Settings Different types of settings are changed in differ- Reset Personal Settings , confirm the menu can be reset to default values.

  • Page 140: Table Of Settings In The Center Display

    DISPLAYS AND VOICE CONTROL Table of settings in the center Type of Description Sub-categories display setting Locking The center display's Settings menu has a num- Slider Select a level for a function by ber of main categories and sub-categories that Parking Brake and Suspension pressing and dragging the slider contain settings and information for many of the...

  • Page 141: Driver Profiles

    Vehicle Modem Internet can be changed but are not saved to a specific • Resetting center display settings (p. 137) driver profile. Changes to global settings affect all Volvo On Call profiles. Volvo Service Networks Climate Climate main category does not have any sub-categories.

  • Page 142: Selecting A Driver Profile

    DISPLAYS AND VOICE CONTROL Selecting a driver profile 4. Tap Confirm Global settings Global settings and parameters do not change > The driver profile has now been selected When the center display starts up, the selected when driver profiles are changed. They remain and the system will load the settings driver profile will be shown at the top of the the same regardless of which driver profile is cur-...

  • Page 143: Changing A Driver Profile's Name

    DISPLAYS AND VOICE CONTROL Changing a driver profile's name Resetting driver profile settings Linking a remote key to a driver profile It is possible to change the names of the differ- Settings that have been saved for one or more ent driver profiles used in the vehicle.

  • Page 144: Messages In The Center Display

    DISPLAYS AND VOICE CONTROL • Messages in the center display 4. Pull down Top view again and tap Settings Remote key (p. 233) System Driver Profiles Edit The center display shows messages in certain Profile. circumstances to inform or assist the driver. 5.

  • Page 145: Handling Messages In The Center Display

    DISPLAYS AND VOICE CONTROL Handling messages in the center For messages without buttons: Pop-up messages display Messages are sometimes shown as pop-up win- – Close the message by tapping it or let the dows. Pop-up messages have a higher priority Messages in the center display are handled in message automatically time-out after a short than messages shown in the status bar and...

  • Page 146: Handling Messages Saved From The Center Display

    DISPLAYS AND VOICE CONTROL Handling messages saved from the Head-up display* Handling saved messages center display Some messages have a button to e.g. activate/ The head-up display is a complement to the deactivate a function related to the message. Messages saved from the instrument panel and instrument panel and projects information from center displays are handled in the center display.
  • Page 147 DISPLAYS AND VOICE CONTROL NOTE NOTE The driver's ability to see information in the People with certain types of vision problems head-up display may be impeded by: may experience headaches or eye strain when using the head-up display. • the use of polarizing sunglasses •...

  • Page 148: Activating And Deactivating The Head Up Display

    DISPLAYS AND VOICE CONTROL Activating and deactivating the Head-up display settings* Adjusting brightness and height head-up display* position Adjusting settings for the head-up display. Settings can be adjusted in the center display's The head-up display can be activated and deac- Settings menu when the vehicle is started and a tivated when the vehicle has been started.

  • Page 149: Voice Control

    The brightness of the graphic is automatically Bluetooth-connected phone, the climate system adapted to the light conditions in its background. and the Volvo navigation system*. Brightness is also affected by adjustments to the Voice commands offer extra convenience and brightness of the other displays in the vehicle.

  • Page 150: Using Voice Commands

    DISPLAYS AND VOICE CONTROL Voice control is carried out as a dialog, with spo- Using voice commands Voice command examples ken commands from the user and verbal respon- Call [First name] [Last name] Press , say " Press the button for voice con- ses from the system.

  • Page 151: Voice Control For Cellular Phones

    DISPLAYS AND VOICE CONTROL Voice control for cellular phones Related information Numbers • Number commands can be given in different Voice control (p. 147) Call a contact in the phone book, have a text ways depending on the function to be controlled: •...

  • Page 152: Voice Control Settings

    DISPLAYS AND VOICE CONTROL • Voice control for radio and media " " - starts playback from USB. Voice control settings • iPod " " - starts playback from iPod. Voice commands for the radio and media play- Settings for the voice control system are made ers are shown below.
  • Page 153 DISPLAYS AND VOICE CONTROL Related information • Voice control (p. 147) • Using voice commands (p. 148) • Voice control for cellular phones (p. 149) • Climate control system voice commands (p. 204) • Voice control for radio and media (p. 150) •...
  • Page 155 LIGHTING...

  • Page 156: Exterior Lighting

    High beams can be activated. NOTE High beam flash can be used. Volvo recommends use of Daytime Running Lights in the US. Its use is mandatory in Can- Lighting ring position. ada. With the ignition in position II or when the engine...

  • Page 157: Adjusting Light Functions Via The Cen Ter Display

    LIGHTING • Adjusting light functions via the Using turn signals (p. 160) WARNING center display • Using high beam (p. 158) The vehicle lighting system cannot in all situa- Multiple light functions can be adjusted and acti- • tions determine when the daylight is too weak Low beams (p.

  • Page 158: Parking Lights

    LIGHTING Parking lights Daytime running lights deactivated. In weak daylight or dark conditions, the parking lights and low beams will be illumi- The parking lights can be used to help other The vehicle has sensors that detect ambient nated. road users see the vehicle if it is stopped or lighting conditions.

  • Page 159: Low Beams

    NOTE • the rear and front fog lights are activated. Volvo recommends use of Daytime Running Lights in the US. Its use is mandatory in Can- With the lighting ring in the position, the ada.

  • Page 160: Using High Beam

    LIGHTING Using high beam wheel lever forward. Deactivate by moving Tunnel detection the steering wheel lever backward. The vehicle will detect if it enters a tunnel and High beam is operated via the left-hand steering shift from daytime running lights to low beams. wheel lever.

  • Page 161: Active High Beam

    LIGHTING Active high beam This function can be used in dark conditions If this symbol and the message Active when the vehicle's speed is approx. 20 km/h High Beam Temporarily Active high beams is a function that uses cam- (approx. 12 mph) or higher. unavailable is displayed in the instru- era sensors in the upper edge of the windshield...

  • Page 162: Using Turn Signals

    LIGHTING Using turn signals Related information NOTE • Lighting panel and controls (p. 154) The vehicle's turn signals are controlled using • This automatic flashing sequence can be • Using high beam (p. 158) the left-side steering wheel lever. The turn sig- interrupted by immediately moving the nals flash three times or continuously, depend- •...

  • Page 163: Active Bending Lights

    LIGHTING Front fog lights/cornering Active Bending Lights* The function is only active in weak daylight or illumination* dark conditions and only when the vehicle is mov- Active Bending Lights (ABL) are designed to ing and the low beams are on. help provide maximum illumination in curves and The front fog lights have a stronger beam than intersections.

  • Page 164: Rear Fog Light

    LIGHTING • Rear fog light ignition or when the lighting ring is turned to the Adjusting light functions via the center dis- play (p. 155) position. The rear fog light is considerably brighter than ordinary taillights and should only be used to NOTE help other road users see the vehicle when visi- bility is reduced by conditions such as fog,...

  • Page 165: Brake Lights

    LIGHTING Brake lights Emergency brake lights Press the button for On/Off. The symbol in the instrument panel illuminates when the rear The brake lights are automatically illuminated The emergency brake lights are activated to fog light is on. when braking. warn following vehicles of hard braking.

  • Page 166: Hazard Warning Flashers

    LIGHTING Hazard warning flashers Using home safe lighting Welcome Light Hazard warning flashers warn other road users Some of the exterior lights remain on to illumi- Approach lighting is activated when the vehicle by all of the vehicle's turn signals being activated nate the area around the vehicle.

  • Page 167: Interior Lighting

    LIGHTING Interior Lighting Courtesy lighting auto switch Rear roof lighting Reading lights are located in the rear section of The interior is equipped with several different Reading light right side the vehicle and can also be used as passenger types of lighting to improve the experience. This compartment lighting.

  • Page 168: Adjusting Interior Lighting

    LIGHTING Adjusting interior lighting Briefly press the button on the light to turn on or Mood lighting* off the reading lights. To adjust the brightness, The vehicle is equipped with several LEDs that Illumination in the vehicle varies depending on press and hold the button.
  • Page 169 LIGHTING Changing the brightness Settings 1. Tap in the Top view in the center display. 2. Tap My Car Lights and Lighting Interior Lighting Interior Mood Lighting. 3. Under Interior Mood Light Intensity , select High Changing the color of the light 1.
  • Page 171 WINDOWS, GLASS AND MIRRORS...

  • Page 172: Windows, Glass And Mirrors

    WINDOWS, GLASS AND MIRRORS • Windows, glass and mirrors Pinch protection for windows and Using the windshield and headlight washers sun curtains (p. 183) The vehicle is equipped with controls for win- • Activating and deactivating the heated wind- dows, glass and mirrors. Some of the windows All windows and sun curtains* that are controlled in the car are laminated.

  • Page 173: Power Windows

    Operating the power windows (p. 172) • Using sun curtains* (p. 173) The power windows have pinch protection. If there is any problem with the pinch protection, a rest procedure can be tested. An authorized Volvo workshop is recommended. * Option/accessory.

  • Page 174: Operating The Power Windows

    WINDOWS, GLASS AND MIRRORS Operating the power windows WARNING All power windows can be operated using the Children, other passengers or objects can be control panel in the driver's door. The control trapped by the moving parts. panels in the other doors can be used to oper- •...

  • Page 175: Using Sun Curtains

    WINDOWS, GLASS AND MIRRORS Rearview/door mirrors Using sun curtains* WARNING Sun curtains are integrated into each of the rear The rearview mirror and door mirrors can be Make sure that no child or other passenger doors. used to improve the driver's visibility behind the comes into contact with the windows as they vehicle.

  • Page 176: Adjusting The Rearview Mirror Dim Ming Function

    WINDOWS, GLASS AND MIRRORS • Adjusting the rearview mirror Storing memory settings in power front glare. The forward-pointing sensor monitors dimming function ambient light, while the rearward-pointing sensor seats* (p. 190) monitors light from the headlights of following • Activating and deactivating the heated rear Bright light entering the vehicle from behind, e.g.

  • Page 177: Adjusting The Door Mirrors

    WINDOWS, GLASS AND MIRRORS Adjusting the door mirrors Resetting the mirrors' position Tilting when parking A mirror that has been moved out of position The door mirrors can be tilted down to improve To improve visibility to the rear, the door mirrors manually (e.g.

  • Page 178: Panoramic Roof

    WINDOWS, GLASS AND MIRRORS Panoramic roof* Automatic folding when the vehicle is WARNING locked* The panoramic roof is divided into two glass Children, other passengers or objects can be The door mirrors automatically fold in when the sections. The front section can be opened verti- trapped by the moving parts.

  • Page 179: Operating The Panoramic Roof

    WINDOWS, GLASS AND MIRRORS Operating the panoramic roof* Wind blocker CAUTION The panoramic roof and sun curtain are oper- • Remove ice and snow before opening the ated using a control in the ceiling panel, and panoramic roof. both are equipped with pinch protection. •...
  • Page 180 WINDOWS, GLASS AND MIRRORS direction opposite that of the current direction of Opening and closing ventilation Fully opening and closing the movement. position panoramic roof with the control in the ceiling The panoramic roof and sun curtain are also equipped with pinch protection. NOTE For manual opening, the sun curtain must be completely open before the panoramic roof...

  • Page 181: Auto Closing The Panoramic Roof* Sun Curtain

    WINDOWS, GLASS AND MIRRORS • Auto closing the panoramic roof* Auto operation Keyless locking and unlocking* (p. 248) sun curtain 1. To open the sun curtain to the fully open • Locking and unlocking using the remote key position, pull the control backward to the (p.

  • Page 182: Using The Windshield Wipers

    WINDOWS, GLASS AND MIRRORS • Using the windshield wipers Locking and unlocking using the remote key Continuous wipers (p. 235) Move the lever upward for the wipers to The windshield wipers clean the windshield. The • operate at normal speed. Locking and unlocking from inside the vehi- right-side steering wheel lever is used to adjust cle (p.

  • Page 183: Heated Windshield Washer Nozzles

    WINDOWS, GLASS AND MIRRORS • Using the rain sensor Heated windshield washer nozzles* Filling washer fluid (p. 623) • Windshield wipers in the service position The washer nozzles are heated automatically in The rain sensor monitors the amount of water on (p.

  • Page 184: Using The Rain Sensor's Memory Function

    WINDOWS, GLASS AND MIRRORS Using the rain sensor's memory Activate the rain sensor by pressing the rain sen- Related information • function Using the windshield and headlight washers sor button (p. 183) The rain sensor monitors the amount of water on If the lever is pressed down, the wipers will make •...

  • Page 185: Using The Windshield And Headlight

    WINDOWS, GLASS AND MIRRORS • Using the windshield and headlight Windshield wipers in the service position CAUTION washers (p. 622) Avoid activating the washer system when it is • Replacing windshield wiper blades (p. 621) The windshield and headlight washers clean the frozen or the fluid reservoir is empty.
  • Page 186 WINDOWS, GLASS AND MIRRORS • Using the rear window wiper/ Windshield wipers in the service position – Move the right-side steering wheel lever for- washer (p. 622) ward to wash/wipe the rear window. • Replacing windshield wiper blades (p. 621) The rear window wiper/washer cleans the rear Related information window.

  • Page 187: Using Automatic Rear Window Wiping When Backing Up

    WINDOWS, GLASS AND MIRRORS • Using automatic rear window wiping Changing rear window wipers (p. 620) when backing up • Using the windshield wipers (p. 180) If reverse gear is engaged while the windshield wipers are on, the rear window wipers will start. This function is deactivated when a different gear is selected.
  • Page 189 SEATS AND STEERING WHEEL...

  • Page 190: Manual Front Seats

    SEATS AND STEERING WHEEL • Manual front seats Raise/lower the seat by moving the control Adjusting front seat lumbar support* (p. 194) up/down. • The power front seats can be adjusted in a num- Adjusting the passenger seat from the driv- Change the backrest tilt by turning the knob ber of different ways for optimal comfort and er's seat* (p.

  • Page 191: Power Front Seats

    SEATS AND STEERING WHEEL • Power front seats* Adjusting the power front seats* Adjusting front seat side bolster settings* (p. 194) The power front seats can be adjusted in a num- Set the desired sitting position using the control • ber of different ways for optimal comfort and Adjusting front seat lumbar support* (p.

  • Page 192: Front Seats

    SEATS AND STEERING WHEEL Storing memory settings in power Only one movement (forward/rearward/up/ 2. Press and hold the M button. The indicator front seats* down) can be performed at a time. light in the button will illuminate. The front seat backrests cannot be folded down The memory function can be used to store the 3.

  • Page 193: Front Seat

    SEATS AND STEERING WHEEL • Using stored memory in a powered Adjusting front seat lumbar support* (p. 194) WARNING front seat • Adjusting the passenger seat from the driv- • Because the front seats can be adjusted The memory function can be used to store the er's seat* (p.

  • Page 194: Adjusting Front Seat Massage Settings

    SEATS AND STEERING WHEEL Adjusting front seat massage Front seat massage settings* Restarting the massage function settings* The massage function turns off automatically The settings can be adjusted using either the after 20 minutes. The function is reactivated multifunction control* on the seat or the center The settings for the multifunctional seats can be manually.

  • Page 195: Adjusting Front Seat Cushion Length

    SEATS AND STEERING WHEEL • Adjusting front seat cushion length Storing memory settings in power front 2. Select Cushion extension in the seat set- tings view. seats* (p. 190) The settings can be adjusted using either the • • Using stored memory in a powered front seat multifunction control* on the seat or the center Push in the front part of the four-way but- (p.

  • Page 196: Adjusting Front Seat Side Bolster Settings

    SEATS AND STEERING WHEEL Adjusting front seat side bolster Adjusting front seat lumbar 2. Select Side bolsters in the seat settings settings* support* view. • The settings can be adjusted using either the Press the front part of the four-way button Activate the multifunction control* by turning the multifunction control* on the seat or the center control upward/downward.

  • Page 197: Adjusting The Passenger Seat From The Driver's Seat

    SEATS AND STEERING WHEEL Adjusting the passenger seat from 2. Select Lumbar in the seat settings view. the driver's seat* • Press the four-way button (the round but- ton) up/down to move the lumbar support The front passenger seat can be adjusted from upward/downward.

  • Page 198: Folding Down The Rear Seat

    SEATS AND STEERING WHEEL • Folding down the rear seat Adjusting front seat side bolster settings* CAUTION backrests (p. 194) The seat cushion of the integrated child • Adjusting front seat lumbar support* (p. 194) The rear seat backrest is split into two sections. restraint* must be in the stowed position The two sections can be folded forward individu- before the rear seat backrest can be folded...
  • Page 199 SEATS AND STEERING WHEEL Folding down the backrests To fold down the backrests electrically: 3. The backrest lock will release and the back- rest will automatically fold down to the hori- Models with the electric backrest fold-down 1. Make sure that the rear seat is unoccupied zontal position.

  • Page 200: Adjusting The Rear Seat Head Restraints

    SEATS AND STEERING WHEEL Adjusting the rear seat head Electrically folding down the rear seat's restraints outboard head restraints* Adjust the center head restraint in the rear seat to the seat occupant's height. Fold down the outboard head restraints* to improve rear visibil- ity.

  • Page 201: Steering Wheel Controls And Horn

    SEATS AND STEERING WHEEL Steering wheel controls and horn Tap the Headrest Fold button to activate/deactivate folding. The steering wheel has a horn and controls for e.g. driver support systems and voice control. Manually push the head restraint until it clicks into position.

  • Page 202: Adjusting The Steering Wheel

    SEATS AND STEERING WHEEL Adjusting the steering wheel Horn The steering wheel can be adjusted to various positions. Steering wheel adjuster lever. The horn is located in the center of the steering wheel. 1. Move the lever forward to release the steer- ing wheel.
  • Page 203 CLIMATE CONTROL...

  • Page 204: Climate

    CLIMATE CONTROL Climate Climate zones 4-zone climate system* The vehicle is equipped with electronic climate The vehicle is divided into climate zones to make control. The climate system cools, heats and it possible to set different temperatures for dif- dehumidifies the air in the passenger compart- ferent parts of the passenger compartment.

  • Page 205: Climate Control Sensors

    CLIMATE CONTROL Climate control sensors Perceived temperature On vehicles equipped with the Interior Air Quality System*, there is also an air quality sensor in the The climate system has a number of sensors to The climate control system regulates the climate climate system's air intake.
  • Page 206 CLIMATE CONTROL • • Climate control system voice " Turn on auto " - activates automatic climate " Turn on seat ventilation "/" Turn off seat control. ventilation commands " - activates/deactivates seat ventilation*. • Air condition on Air condition off "...

  • Page 207: Air Quality

    The mats in both the passenger compartment and cargo compartment can be easily removed for cleaning. The indicator is shown in the center display's Use Volvo-recommended cleaning agents and Climate view. car care products to clean the interior. The indicator is shown in the climate bar Air filtering systems when Climate view is not open.

  • Page 208: Clean Zone Interior Package

    CLIMATE CONTROL • Clean Zone Interior Package* Interior Air Quality System* The blower is activated. • Air recirculation is deactivated. Clean Zone Interior Package (CZIP) is a series Interior Air Quality System (IAQS) is a fully auto- of modifications that filters even more allergy and matic air quality system that removes gases and asthma-inducing substances from the passenger particles to reduce odors and contaminants in...

  • Page 209: Passenger Compartment Air Filter

    To maintain the high performance of the climate control system, the filter must be replaced regu- 2. Tap Climate larly. Follow Volvo's service schedule for recom- 3. Select Air Quality Sensor to activate/deac- mended replacement intervals. When driving in tivate the air quality sensor.

  • Page 210: Air Distribution

    CLIMATE CONTROL Air distribution Adjusting air distribution The climate system distributes incoming air Air distribution can be adjusted manually if nee- through a number of vents in the passenger ded. compartment. Automatic and manual air distribution When the auto-climate feature is on, air distribu- tion is regulated automatically.

  • Page 211: Opening, Closing And Directing Air Vents

    CLIMATE CONTROL Opening, closing and directing air Related information Opening and closing the air vents • vents Air distribution (p. 208) Front seat air vents: • Opening, closing and directing air vents Some of the air vents in the passenger compart- (p.
  • Page 212 CLIMATE CONTROL Rear seat air vents: Directing air flow Airflow control Air vent thumb wheel – Move the control from side to side or up and – Turn the thumb wheel to open/close the air- down to direct airflow from the vent. flow from the vent.

  • Page 213: Air Distribution Options

    CLIMATE CONTROL Air distribution options Air distribution can be adjusted manually if nee- ded. The following options are available. Air distribution Purpose If all air distribution buttons are deselected in manual mode, the climate control system will revert to automatic mode. Main airflow from defroster vents.
  • Page 214 CLIMATE CONTROL Air distribution Purpose Main airflow from defroster and dashboard vents. Some airflow Provides a comfortable climate in warm and dry weather. from other vents. Main airflow from defroster and floor vents. Some airflow from Provides a comfortable climate and effective defogging in cold and other vents.
  • Page 215 CLIMATE CONTROL Related information • Air distribution (p. 208) • Opening, closing and directing air vents (p. 209) • Adjusting air distribution (p. 208)

  • Page 216: Climate System Controls

    CLIMATE CONTROL Climate system controls Main climate In addition to the functions in the climate bar, The climate system functions are controlled from other main climate system functions can be con- physical buttons on the center console, the cen- Main climate trolled from the tab.
  • Page 217 CLIMATE CONTROL Blower control for the front seats (also for Climate controls on the rear side of the the rear seats on vehicles with 2-zone sys- tunnel console* tems). AUTO - Automatic climate control. Rear climate control* All climate system functions for the rear seat can be controlled from the Rear climate tab.

  • Page 218: Activating And Deactivating Power

    CLIMATE CONTROL • Activating and deactivating power all selected climate settings will be displayed. The Activating and deactivating air conditioning front seats* screen locks automatically after a period of inac- (p. 229) tivity. The seats can be heated for added comfort for the driver and passengers in cold weather.

  • Page 219: Activating And Deactivating The Heated Front Seat

    CLIMATE CONTROL Activating and deactivating the Activating and deactivating the Related information • heated front seat* heated rear seats* Climate system controls (p. 214) • Activating and deactivating the heated front The seats can be heated for added comfort for The seats can be heated for added comfort for seat* (p.

  • Page 220: Seat Ventilation

    CLIMATE CONTROL Activating and deactivating front Activating and deactivating the heated With 4-zone system*: seat ventilation* rear seats from the rear seat With 2-zone system: The seats can be ventilated to provide increased comfort in warm weather. The ventilation system consists of fans in the seats and backrest that draw air through the seat upholstery.

  • Page 221: Heated Steering Wheel

    CLIMATE CONTROL Activating and deactivating the 2. Tap the seat ventilation button repeatedly to Related information heated steering wheel* • select one of the four levels: High Climate system controls (p. 214) Medium • Activating and deactivating automatic steer- The steering wheel can be heated for added >...

  • Page 222: Activating And Deactivating Automatic Steering Wheel Heating

    CLIMATE CONTROL Activating and deactivating Activating auto climate control 2. Tap or press and hold AUTO automatic steering wheel heating* • If auto climate control is activated, several cli- Tap - air recirculation, air conditioning and mate system functions are controlled automati- The steering wheel can be heated for added air distribution are controlled automati- cally.

  • Page 223: Activating And Deactivating Recirculation

    CLIMATE CONTROL Activating and deactivating Activating and deactivating the NOTE recirculation recirculation timer setting Recirculation cannot be activated when the The climate system's recirculation function helps The climate system's recirculation function helps max defroster is on. shut out smog, smoke, exhaust fumes, etc. by shut out smog, smoke, exhaust fumes, etc.
  • Page 224 CLIMATE CONTROL Activating and deactivating max Vehicles with a heated windshield: Activating and deactivating max defroster defroster from the center display – Press the button repeatedly to switch Max defroster is used to quickly remove conden- between the three levels: sation and ice from windows.

  • Page 225: Heated Windshield

    CLIMATE CONTROL Activating and deactivating the Related information Activating and deactivating windshield • heated windshield* heating from the center display Climate system controls (p. 214) Windshield heating is used to quickly remove condensation and ice from the windshield. Activating and deactivating windshield heating from the center console A button in the center console is used to quickly access windshield heating.

  • Page 226: Activating And Deactivating The Heated Rear Window And Door Mirrors

    CLIMATE CONTROL Activating and deactivating Activating and deactivating the NOTE automatic windshield heating* heated rear window and door If windshield heating is activated when the mirrors Windshield heating is used to quickly remove Start/Stop function auto-stops the engine, condensation and ice from the windshield. The heated rear window and door mirrors are the engine will be restarted.

  • Page 227: Automatically Activating And Deacti

    CLIMATE CONTROL Automatically activating and Setting the blower speed for the Activating and deactivating the heated deactivating the heated rear window rear window and door mirrors from the front seats and door mirrors center display The blower can be set to several different auto- The heated rear window and door mirrors are matically controlled speeds for the front seat.
  • Page 228 CLIMATE CONTROL Setting the blower speed for the Setting blower speed for the rear seats NOTE rear seats* from the rear seats The climate system automatically adapts air- 1. Tap the unlock button on the tunnel con- The blower can be set to several different auto- flow as needed within the set blower speed, sole's climate panel to access the controls.

  • Page 229: Seats

    CLIMATE CONTROL Setting the temperature for the NOTE front seats The climate system automatically adapts air- The temperature can be set to the desired num- flow as needed within the set blower speed, ber of degrees for the front seat climate zones. which means that airflow speed may vary slightly within the same blower speed.

  • Page 230: Setting The Temperature For The Rear Seats

    CLIMATE CONTROL Setting the temperature for the rear seats* The temperature can be set to the desired num- ber of degrees for the rear seat climate zones. Setting the temperature for the rear seats from the front seats Temperature control. Temperature controls on the rear climate panel of the tunnel console.

  • Page 231: Synchronize Temperature

    CLIMATE CONTROL Synchronize temperature Activating and deactivating air Related information • conditioning Climate system controls (p. 214) The temperature in the different climate zones of the vehicle can be synchronized with the tem- The air conditioning cools and dehumidifies perature set for the driver's side. incoming air as needed.
  • Page 232 CLIMATE CONTROL NOTE The air conditioning cannot be activated when the fan speed is set to Related information • Climate system controls (p. 214)
  • Page 233 KEY, LOCKS AND ALARM...

  • Page 234: Lock Indication

    KEY, LOCKS AND ALARM Lock indication Lock button indicators Lock and alarm indicator When the vehicle is locked or unlocked, the turn Front door signals will flash to indicate that the vehicle has been locked or unlocked correctly. Exterior confirmation Locking •...

  • Page 235: Lock Confirmation Settings

    KEY, LOCKS AND ALARM Lock confirmation settings Remote key In rear door* Settings for how the vehicle confirms locking The remote key is used to lock and unlock and unlocking can be adjusted in the center dis- doors, the tailgate and the fuel filler door. The play's Settings menu.
  • Page 236 KEY, LOCKS AND ALARM The keyless system for locking/unlocking the Remote key buttons open tailgate (an audible warning signal will sound). doors, tailgate (Passive Entry*) and fuel filler door is available as an option. This system has a range Panic alarm - Used to attract attention in in a semicircle with a radius of approximately emergency situations.

  • Page 237: Locking And Unlocking Using The Remote Key

    KEY, LOCKS AND ALARM • Locking and unlocking using the Interference Replacing the remote key's battery (p. 238) remote key Electromagnetic fields or obstructing objects may • Detachable key blade (p. 244) interfere with the remote key's functions for key- All doors, tailgate and fuel filler door can be •...

  • Page 238: Settings For Remote And Inside Door

    KEY, LOCKS AND ALARM Settings for remote and inside door To activate the locking sequence, the driver's If the remote key is not working to lock or unlock unlock the vehicle, its battery may be discharged. Use door must be closed .
  • Page 239 KEY, LOCKS AND ALARM Unlocking the tailgate using the Remote key range 1. Press the button on the remote key. remote key In order to function correctly, the remote key > The lock and alarm indicator on the dash- The remote key can be used to unlock the tail- must be within a certain distance from the vehi- board will go out to indicate that the vehi- gate while keeping the rest of the vehicle locked.

  • Page 240: Replacing The Remote Key's Battery

    KEY, LOCKS AND ALARM • Replacing the remote key's battery For keyless use, a remote key or the Key Tag Keyless and touch-sensitive surfaces* must be within the shaded areas shown in the (p. 247) The battery in the remote key must be replaced illustration, i.e.
  • Page 241 Hold the remote key with the front side The cover will loosen and can be (with the Volvo logo) facing up and move the removed from the key. button on the key ring section to the right.
  • Page 242 KEY, LOCKS AND ALARM Use a screwdriver or similar object to turn The battery's positive side (+) faces upward. Insert a new battery with the positive side (+) the battery cover counterclockwise so the Carefully pry out the battery as shown in the facing upward.
  • Page 243 KEY, LOCKS AND ALARM NOTE CAUTION Volvo recommends that batteries used in the Be sure to dispose of end-of-life batteries in remote control key satisfy UN Manual of Test a way that protects the environment. and Criteria, Part III, sub-section 38.3. The...

  • Page 244: Ordering Additional Remote Keys

    One or more Red Keys can be ordered from a Volvo retailer. A total of twelve keys can be pro- grammed and used for the same vehicle. Up to ten may be restricted keys, but at least two must be standard remote keys.

  • Page 245: Red Key* Settings

    KEY, LOCKS AND ALARM Red Key* settings secure when handing over the vehicle to e.g. a Speed reminder (On/Off): • young driver, parking attendant or workshop. The Setting interval: 0-250 km/h (0-160 mph) The holder of a regular remote key can adjust settings for a Red Key cannot be changed by its •...

  • Page 246: Detachable Key Blade

    A Volvo workshop can provide you with the key blade's unique code, which is recommended in case you need to order a new key blade.

  • Page 247: Locking And Unlocking With Detacha Ble Key Blade

    KEY, LOCKS AND ALARM Locking and unlocking with Lock the door in the same way, but turn the key Locking detachable key blade 45 degrees counterclockwise in step (3). The vehicle can also be locked using the remote key's detachable key blade, e.g. if either the vehi- The detachable key blade can be used to unlock Turning off the alarm cle's or remote key's batteries are discharged.

  • Page 248: Electronic Immobilizer

    • Related information Ordering additional remote keys (p. 242) • Detachable key blade (p. 244) Volvo Standard Key FCC ID: YGOHUF8423 • Arming and disarming the alarm (p. 262) Volvo Tag ID FCC ID: YGOHUF8432 • Replacing the remote key's battery (p. 238) This device complies with part 15 of the FCC •...

  • Page 249: Keyless And Touch-Sensitive Surfaces

    RSS standards. Operation is sub- Canada ject to the following two conditions: Volvo Standard Key IC: 4008C-HUF8423 (1) This device may not cause harmful interfer- ence, and (2) this device must accept any inter- Volvo Tag ID IC: 4008C-HUF8432...

  • Page 250: Keyless Locking And Unlocking

    KEY, LOCKS AND ALARM Keyless locking and unlocking* Pressure-sensitive surfaces Tailgate The tailgate handle has a rubberized pressure The vehicle can be locked or unlocked from out- Door handle plate that can only be used for unlocking. side using the door or tailgate handles if the There are indentations on the outside of the vehicle is equipped with keyless locking/unlock- outer door handles for locking, and pressure-sen-...
  • Page 251 KEY, LOCKS AND ALARM • – To lock, touch the marked area on the out- Keyless and touch-sensitive surfaces* side of one of the door handles after the (p. 247) door is closed or press the button on the lower edge of the tailgate before it is closed.

  • Page 252: Keyless Unlock Settings

    KEY, LOCKS AND ALARM Keyless unlock settings* Keyless tailgate unlock* 2. Lift the outer handle to fully open the tail- gate. Several different sequences are available for The tailgate can be opened using the remote keyless unlocking. key. The key only needs to be within range, e.g. CAUTION in a pocket or bag.

  • Page 253: Lock System

    KEY, LOCKS AND ALARM Antenna locations for the start and Locking and unlocking from inside WARNING lock system the vehicle Individuals with an implanted pacemaker The vehicle is equipped with a keyless start and The doors and tailgate can be locked and should not allow the pacemaker to come unlocked from inside the vehicle using the cen- lock system...
  • Page 254 KEY, LOCKS AND ALARM Locking using the front door buttons Related information Alternative unlocking method • Settings for remote and inside door unlock – Press the button (both front doors must (p. 236) be closed). • Unlocking the tailgate from inside the vehicle >...

  • Page 255: The Vehicle

    KEY, LOCKS AND ALARM Unlocking the tailgate from inside Activating and deactivating child Related information the vehicle • safety locks Locking and unlocking from inside the vehi- cle (p. 251) The tailgate can be locked from the inside using Child safety locks help prevent children from •...
  • Page 256 KEY, LOCKS AND ALARM 2. Press the button on the driver's door control NOTE Symbol Message Meaning panel. • The door's knob control only locks that Rear child The child safety Rear child lock Activated > The message specific door, not both rear doors simulta- locks are acti- lock Acti- will be shown in the instrument panel and...

  • Page 257: Automatic Locking When Driving

    KEY, LOCKS AND ALARM Automatic locking when driving Opening and closing the power – Press and hold the button on the dash- tailgate* board until the tailgate begins to open. The doors and tailgate will automatically lock when the vehicle begins to move. The tailgate can be opened and closed automat- ically with the optional power tailgate.
  • Page 258 KEY, LOCKS AND ALARM – Move your foot in a kicking motion* under the – – Press the button on the lower edge of Press and hold the button on the dash- rear bumper. the tailgate to close. board. > The tailgate closes automatically and an audible signal will sound - the tailgate will remain unlocked.
  • Page 259 KEY, LOCKS AND ALARM Interrupting opening or closing Closing and locking the power WARNING Interrupt opening or closing by doing one of the tailgate Be aware of the risk of serious injury when following: – Press the button on the lower edge of operating the tailgate.

  • Page 260: Power Tailgate

    KEY, LOCKS AND ALARM Setting a maximum height for the Related information NOTE • power tailgate* Setting a maximum height for the power tail- • If the system has been working continu- gate* (p. 258) The tailgate can be set to stop opening at a cer- ously for a prolonged period of time, it will •...
  • Page 261 KEY, LOCKS AND ALARM Foot movement tailgate operation* Foot movement operation Interrupting opening or closing with a foot movement To make it easier to operate the tailgate when – Make one slow forward kicking motion while your hands are full, it can be opened and closed the tailgate is opening or closing to stop its by moving your foot in a forward kicking motion movement.

  • Page 262: Private Locking

    KEY, LOCKS AND ALARM Private Locking Activating and deactivating private 2. Enter your security code. locking > The security code is saved. The private The tailgate can be locked using the private locking function is now ready for activa- locking function to prevent it from being opened, Private locking is activated using the function tion.

  • Page 263: Alarm

    NOTE If private locking is activated and the vehicle is unlocked using Volvo On Call* or the Volvo On Call* app, private locking will be deacti- vated automatically. Certain markets only.

  • Page 264: Arming And Disarming The Alarm

    In the event of alarm system failure If a problem is detected in the alarm system, a symbol and the message Alarm system failure Service required will appear in the instrument panel. Contact a workshop - an authorized Volvo workshop is recommended.
  • Page 265 KEY, LOCKS AND ALARM Arming the alarm Disarming the alarm 3. Turn the start knob clockwise and release. Lock and arm the vehicle by: Unlock and disarm the vehicle alarm by: > The alarm will be disarmed. • • pressing the lock button on the remote key pressing the unlock button on the remote Turning off a triggered alarm –...

  • Page 266: Foreign Component Detection

    Unknown vehicle part Service required, unknown part found . will be dis- Related information played in the instrument panel. Volvo recom- • Alarm (p. 261) mends contacting an authorized Volvo workshop. Related information • Volvo's service program (p. 566)
  • Page 267 DRIVER SUPPORT...

  • Page 268: Driver Support Systems

    DRIVER SUPPORT • Driver support systems Speed-dependent steering wheel Cross Traffic Alert* (p. 347) resistance • The vehicle is equipped with a number of driver Road Sign Information* (p. 351) support systems that can provide the driver with Speed-dependent power steering increases the •...
  • Page 269 DRIVER SUPPORT • Stability system Roll Stability Lane Keeping Aid (p. 358) WARNING Control • Steering assistance at risk of collision While the power steering is working at (p. 366) The Roll Stability Control (RSC ) system helps reduced power, the driver support functions •...

  • Page 270: Electronic Stability Control

    This function also helps prevent the wheels from spinning while the vehicle is accelerating. Roll Stability Control Electronic Stability Control Also called traction control. Engine Drag Control Trailer Stability Assist is included if the vehicle is equipped with a Volvo original towbar. Trailer Stability Assist * Option/accessory.

  • Page 271: Electronic Stability Control Sport Mode

    DRIVER SUPPORT • Electronic Stability Control Sport Activating/deactivating Sport mode Electronic Stability Control Sport mode limi- mode in Electronic Stability Control tations (p. 270) • Electronic Stability Control symbols and mes- The ESC system is always activated and can- The ESC system is always activated and can- sages (p.
  • Page 272 DRIVER SUPPORT Electronic Stability Control Sport mode limitations There are certain limitations associated with the ESC Sport Mode system's subfunction being activated. ESC Sport Mode function cannot be selected when any of the following functions are activated: • Speed limiter •...
  • Page 273 Stop the vehicle in a safe place, turn off the engine and then restart it. Service required • Consult a workshop if the message persists ‒ an authorized Volvo workshop is recommended. If the message persists: Contact a workshop ‒ an Related information A text message can be erased by briefly pressing •...

  • Page 274: Speed Limiter

    DRIVER SUPPORT Speed limiter Related information : Reduces the set maximum speed • Cruise Control limitations (p. 276) A Speed Limiter (SL ) could be described as a Marker for set maximum speed • Activating and starting Speed Limiter reverse cruise control. The driver regulates the (p.

  • Page 275: Activating And Starting Speed Limiter

    DRIVER SUPPORT Activating and starting Speed Managing Speed Limiter speed – With the Speed Limiter in standby mode and Limiter The Speed Limiter (SL ) can be set to various symbol displayed, press the speeds. The Speed Limiter (SL ) function must be button (2) on the steering wheel key- selected and activated in order to regulate pad.

  • Page 276: Deactivating And Putting Speed Lim Iter In Standby Mode

    DRIVER SUPPORT Deactivating and putting Speed Related information Temporarily deactivating using the • Limiter in standby mode accelerator pedal Speed limiter (p. 272) The set maximum speed can be temporarily The Speed Limiter (SL ) can be temporarily deactivated and exceeded using the accelerator deactivated and put in standby mode.

  • Page 277: Reactivating Speed Limiter From

    DRIVER SUPPORT Reactivating Speed Limiter from Turning off Cruise Control – Press the button on the steering wheel standby mode (2). The Speed Limiter (SL ) can be turned off. > The speed limit markings and symbols in Speed Limiter (SL ) can be reactivated after the instrument panel will change from having been temporarily deactivated and put in...

  • Page 278: Cruise Control Limitations

    DRIVER SUPPORT Cruise Control limitations Automatic Speed Limiter Related information • Speed limiter (p. 272) On steep downgrades, the Speed limiter's brak- The Automatic Speed Limiter (ASL ) function ing capacity may not be sufficient and the set helps the driver adapt the vehicle's maximum maximum speed may be exceeded.
  • Page 279 DRIVER SUPPORT Is SL or ASL active? WARNING Road sign Explanation The symbols in the instrument panel indicate symbol's color • The ASL function is supplementary driver which Speed Limiter function is active: support intended to facilitate driving and Greenish-yel- ASL is active help make it safer –...

  • Page 280: Activating/Deactivating Automatic Speed Limiter

    DRIVER SUPPORT Activating/deactivating Automatic Deactivating ASL NOTE Speed Limiter To deactivate the Automatic Speed Limiter: • If the Automatic Speed Limiter function is The Automatic Speed Limiter (ASL ) is a sup- – Speed Sign Assist Tap the button in Func- activated, road sign information is shown plement to the Speed Limiter (SL ) and can be...

  • Page 281: Changing Automatic Speed Limiter

    DRIVER SUPPORT Changing Automatic Speed Limiter Automatic Speed Limiter limitations – Tap the (1) button on the steering tolerance wheel keypad until 70 km/h (43 mph) has ASL utilizes the speed limit information provided been changed to 75 km/h (47 mph) in the by the RSI system, not from the speed limit The Automatic Speed Limiter (ASL...

  • Page 282: Cruise Control

    DRIVER SUPPORT Cruise control : Reduces the set speed WARNING Cruise Control (CC ) helps the driver maintain • Marker for set speed The cruise control function is supplemen- an even speed to provide a more relaxing driving tary driver support intended to facilitate experience on highways and long, straight roads The vehicle's current speed driving and help make it safer –...

  • Page 283: Activating And Starting Cruise Control

    DRIVER SUPPORT • Activating and starting Cruise Reactivating Cruise Control from standby Activating/starting Cruise Control Control mode (p. 284) In order to start Cruise Control from standby • mode, the vehicle's current speed must be Switching off Cruise Control (p. 284) The Cruise Control (CC ) function must be 30 km/h (20 mph) or higher.

  • Page 284: Managing Cruise Control Speed

    DRIVER SUPPORT • Managing Cruise Control speed The most recently set speed will be stored. not affect the setting. The vehicle will return to the set speed when the accelerator pedal is If speed is increased by depressing the accelera- Cruise Control (CC ) can be set to various released.

  • Page 285: Deactivating And Putting Cruise Con Trol In Standby Mode

    DRIVER SUPPORT Deactivating and putting Cruise Cruise Control Eco Cruise Standby mode due to action by the driver Control in standby mode In the ECO drive mode, cruise control's accelera- Cruise Control will be temporarily deactivated and tion and deceleration will be smoother than in put in standby mode if: Cruise Control (CC ) can be temporarily put...

  • Page 286: Reactivating Cruise Control From

    DRIVER SUPPORT Reactivating Cruise Control from Switching off Cruise Control To start Cruise Control from standby mode: standby mode Cruise control (Cruise Control - CC) can be – Press the button on the steering wheel turned off. Cruise Control (CC ) can be temporarily put (2).

  • Page 287: Distance Alert

    DRIVER SUPPORT Distance Alert* NOTE The Distance Alert function can help the driver In vehicles equipped with Adaptive Cruise become aware if the time interval to the vehicle Control*, it is possible to switch between in front is too short. cruise control and Adaptive Cruise Control –...

  • Page 288: Head-Up Display For Distance Alert

    DRIVER SUPPORT Head-up display for Distance Alert Related information WARNING • Distance Alert* (p. 285) In vehicles equipped with a head-up display*, a Distance Alert only reacts of the time interval • symbol will be displayed on the windshield as Head-up display* (p.
  • Page 289 DRIVER SUPPORT Activating/deactivating Distance Setting a time interval for Distance Alert Alert It is possible to set time intervals for Distance The Distance Alert function can be set to differ- Alert or to turn the function off. ent time intervals. Different time intervals to the On/Off vehicle ahead can be selected...

  • Page 290: Distance Alert Limitations

    Maintenance of radar sensor components • may only be performed by a trained and The driver should be aware that short qualified Volvo technician. time intervals give them limited time to react and act to any unforeseen traffic • Strong sunlight, reflections from the road situation.

  • Page 291: Adaptive Cruise Control

    DRIVER SUPPORT Adaptive Cruise Control* distance than the one that has been set are no longer slower-moving vehicles ahead, the or not illuminating at all. vehicle will return to the set speed. Adaptive Cruise Control (ACC ) helps the • High speeds may also result in the warn- driver maintain a constant speed with a set time WARNING...
  • Page 292 Adaptive Cruise Control and stores the cur- 200 km/h (125 mph). ponents may only be performed by a work- rent speed shop – an authorized Volvo workshop is rec- : From active mode - deactivates/ ommended. switches the Adaptive Cruise Control to...
  • Page 293 DRIVER SUPPORT • Reduces the time interval to the vehicle Managing Adaptive Cruise Control speed Instrument panel ahead (p. 294) • Target vehicle indicator: ACC has detected Setting Adaptive Cruise Control time inter- and is following a target vehicle using the set vals (p.

  • Page 294: Collision Warning

    DRIVER SUPPORT Adaptive Cruise Control and Head-up display for Adaptive Cruise WARNING collision warning Control with collision warning Adaptive Cruise Control only issues a warning In vehicles equipped with a head-up display*, a for vehicles detected by its radar unit – thus, a flashing warning symbol will be displayed on the warning may come after a delay or not at all.

  • Page 295: Activating And Starting Adaptive

    DRIVER SUPPORT Activating and starting Adaptive Starting/activating Adaptive Cruise ACC will only regulate the time Cruise Control interval to the vehicle ahead Control when the distance symbol To start ACC: Adaptive Cruise Control (ACC ) must first be shows two vehicles. •...
  • Page 296 DRIVER SUPPORT Managing Adaptive Cruise Control to a standstill, but it is not possible to set speeds – Change a set speed by pressing the speed lower than 30 km/h (20 mph). (2) buttons briefly or by pressing and holding them: The highest possible speed that can be set is Adaptive Cruise Control (ACC ) can be set to...

  • Page 297: Setting Adaptive Cruise Control Time

    DRIVER SUPPORT Setting Adaptive Cruise Control NOTE time intervals • The greater the vehicles' speed, the Adaptive Cruise Control (ACC ) can be set to greater the distance between them for a various time intervals to the vehicle ahead. set time interval. •...

  • Page 298: Cruise Control

    DRIVER SUPPORT Deactivating/reactivating Adaptive Select one of the following: To temporarily deactivate Adaptive Cruise Control Cruise Control and put it in standby mode: • - ACC will focus on providing optimal fuel economy, which will increase the time Adaptive Cruise Control (ACC ) can be tempo- –...

  • Page 299: Cruise Control

    DRIVER SUPPORT Adaptive Cruise Control may go into standby Reactivating Adaptive Cruise Control Standby mode due to action by the driver mode if: from standby mode Adaptive Cruise Control will be temporarily deac- tivated and put in standby mode if: •...

  • Page 300: Passing Assistance With Adaptive Cruise Control

    DRIVER SUPPORT Passing assistance with Adaptive Starting passing assistance with Limitations of passing assistance Cruise Control Adaptive Cruise Control with Adaptive Cruise Control Passing assistance functionality may be reduced Adaptive Cruise Control (ACC ) can assist the Requirements for passing assistance in certain situations.

  • Page 301: Switching Target Vehicles With Adap

    DRIVER SUPPORT Switching target vehicles with Automatic braking with Adaptive WARNING Adaptive Cruise Control Cruise Control When Adaptive Cruise Control follows another At certain speeds, models with automatic trans- The Adaptive cruise control (ACC ) has a spe- vehicle at speeds over approx. 30 km/h missions and Adaptive Cruise Control (ACC (20 mph) and changes target vehicle –...
  • Page 302 DRIVER SUPPORT Adaptive Cruise Control limitations This occurs if Adaptive Cruise Control is keeping NOTE the vehicle stationary using the brakes and: Adaptive Cruise Control (ACC ) may have lim- ACC can keep the vehicle stationary for no • the driver opens the door or unbuckles ited functionality in certain situations.

  • Page 303: Switching Between Cruise Control And Adaptive Cruise Control

    DRIVER SUPPORT Switching between Cruise Control Related information 2. Tap the Cruise Control button in the center • and Adaptive Cruise Control display's Function view. The button's indica- Adaptive Cruise Control* (p. 289) tor will change from GRAY to GREEN. In vehicles equipped with Adaptive Cruise Con- >...
  • Page 304 DRIVER SUPPORT Switching from CC to ACC To do so: 1. Press the button on the steering wheel keypad to put Cruise Control in standby mode. 2. Tap the Cruise Control button in Function view. The button's indicator will change from GREEN to GRAY.

  • Page 305: Symbols And Messages For Adaptive Cruise Control

    DRIVER SUPPORT Symbols and messages for vehicle ahead, which is traveling at the same The previous illustration shows that Adaptive Adaptive Cruise Control speed. Cruise Control is set to maintain a speed of 110 km/h (68 mph) and that there is no target A number of symbols and messages relating to vehicle ahead to follow.
  • Page 306 The vehicle is maintaining the set speed. Adaptive cruise Adaptive Cruise Control is in standby mode. Unavailable The symbol is GRAY. The system is not functioning as intended. Contact a workshop ‒ an authorized Volvo workshop is Adaptive cruise recommended. Service required The symbol is GRAY.

  • Page 307: Pilot Assist

    DRIVER SUPPORT Pilot Assist The driver sets the desired speed and distance to The color of the steering wheel the vehicle ahead. Pilot Assist monitors the dis- symbol indicates the current Pilot Assist helps the driver keep the vehicle in tance to the vehicle ahead and the traffic lane's status of steering assistance: the current traffic lane by providing steering...
  • Page 308 Pilot Assist may only be performed by a work- cle is driven in a safe manner, at the exceeds the set speed for your vehicle. shop – an authorized Volvo workshop is rec- proper position within the lane, at the •...
  • Page 309 DRIVER SUPPORT When the vehicle is approaching an off-ramp or a Overview Increases the time interval to the vehicle fork in the road, the driver should steer toward ahead Controls the desired lane to indicate to Pilot Assist the ▶: Switches from Adaptive Cruise Control to desired direction of travel.

  • Page 310: Pilot Assist And Collision Warning

    DRIVER SUPPORT • Pilot Assist and collision warning Setting a time interval for Pilot Assist Instrument panel (p. 311) Collision warning • Deactivating/reactivating Pilot Assist (p. 313) • Passing assistance with Pilot Assist (p. 315) • Starting passing assistance with Pilot Assist (p.

  • Page 311: Head-Up Display For Pilot Assist Dur Ing Collision Risks

    DRIVER SUPPORT Head-up display for Pilot Assist Activating and starting Pilot Assist WARNING during collision risks Pilot Assist must first be activated and then Pilot Assist only issues a warning for vehicles started before it can regulate speed and dis- In vehicles equipped with a head-up display*, a detected by its camera and radar unit –...

  • Page 312: Managing Pilot Assist Speed

    DRIVER SUPPORT Managing Pilot Assist speed With Adaptive Cruise Control in standby mode: A speed interval will be marked at the same time. 1. Press the ▶ button on the steering wheel (6). Pilot Assist can be set to various speeds. The higher speed is the set >...

  • Page 313: Setting A Time Interval For Pilot Assist

    DRIVER SUPPORT Setting a time interval for Pilot The highest possible speed that can be set is – Change a set speed by pressing the Assist 200 km/h (125 mph). (2) buttons briefly or by pressing and Pilot Assist can be set to different time intervals. holding them: Related information •...
  • Page 314 DRIVER SUPPORT Select one of the following: NOTE • - Pilot Assist will focus on providing • The greater the vehicles' speed, the optimal fuel economy, which will increase the greater the distance between them for a time interval to the vehicle ahead. set time interval.

  • Page 315: Deactivating/Reactivating Pilot Assist

    DRIVER SUPPORT Deactivating/reactivating Pilot ...or... the set speed when the accelerator pedal is Assist released. Press the ◀ button on the steering wheel (3). – Pilot Assist can be temporarily put into standby When the turn signals are used, Pilot Assist's >...
  • Page 316 DRIVER SUPPORT • your vehicle's speed goes below 5 km/h Automatic standby mode WARNING (3 mph) and Pilot Assist cannot determine if Pilot Assist is dependent on other systems, such A noticeable increase in speed may follow the vehicle ahead is stationary or if it is as Electronic Stability Control (ESC ).

  • Page 317: Passing Assistance With Pilot Assist

    DRIVER SUPPORT Passing assistance with Pilot Assist Starting passing assistance with Passing assistance with Pilot Assist Pilot Assist limitations Pilot Assist can assist the driver when passing other vehicles. Passing assistance functionality may be reduced Requirements for passing assistance in certain situations. How passing assistance works In order to activate passing assistance: WARNING...

  • Page 318: Switching Target Vehicles With Pilot Assist

    DRIVER SUPPORT Switching target vehicles with Pilot Automatic braking with Pilot Assist WARNING Assist Pilot Assist has a special braking function in When Pilot Assist follows another vehicle at At certain speeds, models with automatic trans- slow traffic and at a standstill. speeds over approx.

  • Page 319: Pilot Assist Limitations

    DRIVER SUPPORT Pilot Assist limitations Deactivation of the Auto-hold brake function WARNING In certain situations, Auto-hold will be deactivated Pilot Assist functionality may be reduced in cer- In some situations, Pilot Assist may have trou- when the vehicle is at a standstill and Pilot Assist tain situations.

  • Page 320: Pilot Assist* Symbols And Messages

    DRIVER SUPPORT Pilot Assist* symbols and messages The driver is responsible for ensuring that be extra attentive and prepared to apply the the vehicle maintains a suitable distance brakes. A number of symbols and messages relating to from such obstacles. •...
  • Page 321 DRIVER SUPPORT Several examples are provided below. The previous illustration shows that Pilot Assist The previous illustration shows that Pilot Assist is set to maintain a speed of 110 km/h (68 mph) is set to maintain a speed of 110 km/h (68 mph) The previous illustration shows that Pilot Assist and is following a target vehicle ahead that is...

  • Page 322: Radar Sensor

    DRIVER SUPPORT Radar sensor Related information • Radar sensor limitations (p. 321) The radar sensor is used by several driver sup- • port systems to detect other vehicles. Recommended maintenance for the radar sensor (p. 324) • Radar sensor type approval (p. 324) The previous illustration shows that Pilot Assist is set to maintain a speed of 110 km/h (68 mph)

  • Page 323: Radar Sensor Limitations

    DRIVER SUPPORT Radar sensor limitations The radar sensor is located on the upper interior If this symbol and the message section of the windshield along with the camera. " Windscreen sensor Sensor The radar sensor used by several of the driver blocked, see Owner's manual "...
  • Page 324 There is dirt between the inside of the windshield and the camera/radar Consult a workshop to have the area of the windshield on the inside of the cam- sensor. era's casing cleaned. An authorized Volvo workshop is recommended. between your vehicle and the vehicle directly NOTE ahead.
  • Page 325 DRIVER SUPPORT • High temperatures Damaged windshield The same type of windshield wipers or wipers approved by Volvo should be used If the temperature in the passenger compartment for replacement. is very high, the camera/radar sensor will switch CAUTION off temporarily for approx. 15 minutes after the...

  • Page 326: Recommended Maintenance For The

    DRIVER SUPPORT Recommended maintenance for the Radar sensor type approval Note: Changes or modifications not expressively radar sensor approved by the party responsible for compliance The type approval for the vehicle radar sensor in could void the user's authority to operate the In order for the camera/radar sensor to function the ACC , PA...

  • Page 327: Camera

    DRIVER SUPPORT Camera Related information • Camera limitations (p. 326) The camera is used by several driver support • systems to e.g. detect lane marker lines or road Recommended maintenance for the camera/ signs. radar sensor (p. 329) Note: This illustration is general and details may vary depending on model.

  • Page 328: Camera Limitations

    DRIVER SUPPORT Camera limitations Obstructed camera If this symbol and the message The camera used by several of the driver support Windscreen sensor Sensor " functions has certain limitations, which also blocked, see Owner's manual " is affect the functions using the camera. displayed in the instrument panel, it Reduced visibility means that the camera and radar sensor are...
  • Page 329 There is dirt between the inside of the windshield and the camera/ Consult a workshop to have the area of the windshield on the inside of the camera's radar sensor. casing cleaned. An authorized Volvo workshop is recommended. Bright sunlight No action. The camera/radar sensor will reset automatically when lighting conditions improve.
  • Page 330 • The same type of windshield wipers or wipers approved by Volvo should be used for replacement. CAUTION If the windshield is replaced, the camera and radar unit must be recalibrated by a workshop to help ensure proper functioning of all of the vehicle's camera and radar-based systems –...

  • Page 331: City Safety

    DRIVER SUPPORT Recommended maintenance for the City Safety™ changes in the traffic ahead and driver distraction camera/radar sensor could lead to an incident. City Safety can alert the driver with light, sound In order for the camera/radar sensor to function and pulsations in the brake pedal to help the The function assists the driver by automatically properly, the area of the windshield in front of the...

  • Page 332: City Safety Parameters And Sub-Functions

    DRIVER SUPPORT • City Safety parameters and sub- The driver is advised to read all sections WARNING functions in the Owner's Manual that relate to City • The City Safety function is supplementary Safety to learn about factors such as its City Safety can help avoid a collision with a vehi- driver support intended to help improve limitations and what the driver should be...
  • Page 333 DRIVER SUPPORT City Safety carries out three steps in the follow- Large animals 2 - Brake assistance ing order: If there is a risk of colliding with a large animal, If the risk of a collision increases after the colli- City Safety can help reduce your vehicle's speed sion warning, brake support will be activated.

  • Page 334: Setting A Warning Distance For City Safety

    DRIVER SUPPORT Setting a warning distance for City When City Safety applies the brakes, a text mes- 3 - Auto-brake Safety sage will appear in the instrument panel to notify The automatic braking function is activated at the the driver that the function is/was activated. last moment.

  • Page 335: Detecting Obstacles With City Safety

    DRIVER SUPPORT Detecting obstacles with City Safety Late warning distance setting should there- NOTE fore only be used in exceptional cases, such as City Safety can detect vehicles, cyclists, large The warning with direction indicators for Rear when a more dynamic driving style is preferred. animals and pedestrians.
  • Page 336 DRIVER SUPPORT and lower body in combination with normal Pedestrians WARNING human movements. City Safety is supplementary driver support, If large portions of the cyclist's body or the bicy- but it cannot detect all pedestrians in all sit- cle itself are not visible to the function's camera, uations and, for example, cannot see: it will not be able to detect a cyclist.

  • Page 337: City Safety In Crossing Traffic

    DRIVER SUPPORT City Safety in crossing traffic Large animals WARNING City Safety can assist the driver when turning in City Safety is supplementary driver support, the path of an oncoming vehicle in an intersec- but it cannot detect all large animals in all sit- tion.

  • Page 338: Traffic

    DRIVER SUPPORT Limitations of City Safety in WARNING NOTE crossing traffic • The "City Safety in crossing traffic" func- The function uses the vehicle's camera unit, In certain situations, it may be difficult for City tion is supplementary driver support which has some general limitations –...

  • Page 339: City Safety And Delayed Evasive Maneuvers

    DRIVER SUPPORT City Safety and delayed evasive However, if City Safety determines that an eva- NOTE maneuvers sive maneuver would not be possible due to traf- The function uses the vehicle's radar unit, fic in the adjacent lane(s), the function can assist City Safety can assist the driver by automatically which has some general limitations –...

  • Page 340: City Safety Limitations

    Maintenance and replacement of City Safety or not looking straight ahead. components may only be performed by a Heat workshop – an authorized Volvo workshop is If the temperature in the passenger compartment recommended. is high due to e.g. bright sunlight, the visual warn- ing signal in the windshield may be temporarily disabled.
  • Page 341 DRIVER SUPPORT • Other limitations Warnings and brake interventions for In the center display's Top view, tap: pedestrians and cyclists are disengaged • Settings My Car IntelliSafe at vehicle speeds over 80 km/h WARNING (50 mph). Related information • Warnings and brake interventions can be •...

  • Page 342: City Safety Messages

    When City Safety is braking or has activated the automatic braking function, one or more symbols may illuminate in the instrument panel and a text message may be displayed. Automatic intervention The system is not functioning as intended. Contact a workshop ‒ an authorized Volvo workshop is recommended. City Safety Reduced functionality Service...

  • Page 343: Rear Collision Warning

    DRIVER SUPPORT Rear Collision Warning Rear Collision Warning limitations Related information • Rear Collision Warning (p. 341) The Rear Collision Warning (RCW) function can In some situations, it may be difficult for RCW to help the driver avoid rear-end collisions from warn the driver of a collision risk.

  • Page 344: Blis

    DRIVER SUPPORT BLIS* The BLIS function is designed to help provide assistance in heavy traffic with several lanes moving in the same direction by helping the driver to detect the presence of vehicles in the "blind spot" area behind and to the side of the vehicle.

  • Page 345: Activating/Deactivating Blis

    DRIVER SUPPORT • Activating/deactivating BLIS given, the indicator light will become brighter and Recommended maintenance for BLIS begin flashing. (p. 345) The BLIS function can be activated/deacti- • BLIS messages (p. 346) vated. NOTE The light illuminates on the side of the vehicle where the system has detected the vehicle.

  • Page 346: Blis Limitations

    DRIVER SUPPORT BLIS limitations Related information WARNING • BLIS* (p. 342) BLIS functionality may be reduced in certain • BLIS does not work in sharp curves. situations. • BLIS does not work when the vehicle is being reversed. Related information •...

  • Page 347: Recommended Maintenance For Blis

    For optimal performance, it is important to repainting of the bumper may only be per- keep the areas in front of the sensors clean. formed by a workshop – an authorized Volvo • Do not attach any objects, tape or decals to workshop is recommended.

  • Page 348: Blis Messages

    Some examples of symbols and messages are shown in the table below. Message Meaning The system is not functioning as intended. Contact a workshop ‒ an authorized Volvo workshop is recommended. Blind spot sensor Service required Blind spot system off BLIS and CTA have been deactivated because a trailer has been connected to the vehicle's electrical system.

  • Page 349: Cross Traffic Alert

    DRIVER SUPPORT Cross Traffic Alert* If CTA detects that something is approaching WARNING your vehicle from the side: is a supplementary driver support system • The Cross Traffic Alert function is supple- • an audible signal will sound from either the to BLIS that is intended to help the driver mentary driver support intended to facili-...

  • Page 350: Activating/Deactivating Cross Traffic Alert

    DRIVER SUPPORT Activating/deactivating Cross Traffic Cross Traffic Alert limitations Alert functionality may be reduced in certain situations. The driver can choose to deactivate the CTA function as follows: CTA does not function optimally in all situations Press the Cross Traffic Alert and has certain limitations.

  • Page 351: Recommended Maintenance For

    For additional infor- keep the areas in front of the sensors clean. formed by a workshop – an authorized Volvo mation, see the section "Recommended • Do not attach any objects, tape or decals to workshop is recommended.
  • Page 352 Some examples of symbols and messages are shown in the table below. Message Meaning The system is not functioning as intended. Contact a workshop ‒ an authorized Volvo workshop is recommended. Blind spot sensor Service required Blind spot system off BLIS and CTA have been deactivated because a trailer has been connected to the vehicle's electrical system.

  • Page 353: Road Sign Information

    DRIVER SUPPORT • Road Sign Information* Road Sign Information with speed camera WARNING information (p. 355) The Road Sign Information (RSI ) function noti- • The Road Sign Information function is • Road Sign Information limitations (p. 355) fies the driver of speed-related road signs the supplementary driver support intended to vehicle is passing.

  • Page 354: Activating/Deactivating Road Sign

    DRIVER SUPPORT Activating/deactivating Road Sign Road Sign Information and sign NOTE Information displays • If the Automatic Speed Limiter function is The Road Sign Information function can be Road Sign Information (RSI ) displays road activated, road sign information is shown switched On or Off.

  • Page 355: Road Sign Information And Sensus Navigation

    DRIVER SUPPORT Road Sign Information and Sensus Road Sign Information with Speed Signs for "School" and "Children Navigation Warning and Settings playing" If the warning sign "School" If the vehicle is equipped with Sensus Navigation, Speed Limit Warning sub-function for or "Children playing"...

  • Page 356: Activating/Deactivating Speed Warn

    DRIVER SUPPORT Activating/deactivating Speed Settings 2. Select/deselect Road Sign Audio Warning Warning in Road Sign Information to activate/deactivate the audible alert. Adjusting the Speed Warning limit To activate the Speed Limit Warning sub-func- Road Sign Audio Warning The driver can adjust the settings to be alerted at When is activated, tion:...
  • Page 357 DRIVER SUPPORT Road Sign Information with speed Road Sign Information limitations For more information on Speed Warnings in con- camera information junction with speed cameras, see "Road Sign Road Sign Information (RSI ) functionality may Information with Speed Warning and settings" be reduced in certain situations.

  • Page 358: Driver Alert Control

    DRIVER SUPPORT • Driver Alert Control signs partially or fully covered by frost, snow and/or dirt The Driver Alert Control (DAC) function is • digital road maps that are outdated, incor- designed to help capture the driver become aware of erratic behavior, e.g. if the driver is dis- rect or do not contain speed information tracted or showing signs of fatigue.

  • Page 359: Activating/Deactivating Driver Alert Control

    DRIVER SUPPORT Activating/deactivating Driver Alert The warnings will be repeated after a short time if WARNING Control driving behavior does not improve. An alarm from Driver Alert Control should be The Driver Alert Control (DAC) function can be taken very seriously since a sleepy driver is WARNING activated/deactivated.

  • Page 360: Lane Keeping Aid

    DRIVER SUPPORT Selecting guidance to a rest area if Driver Alert Control limitations Lane Keeping Aid the Driver Alert Control warning has Driver Alert Control (DAC) functionality may be Lane Keeping Aid (LKA ) is designed to been given reduced in certain situations. actively steer the vehicle on freeways, highways Rest Stop Guidance function can be...
  • Page 361 DRIVER SUPPORT Depending on the settings used, Lane Keeping WARNING Aid functions in different ways: • The Lane Keeping Aid function is supple- • Assist With activated: When the vehicle mentary driver support intended to help approaches a lane marker line, LKA will improve driving safety –...

  • Page 362: Steering Assistance With Lane Keep Ing Aid

    DRIVER SUPPORT • Steering assistance with Lane Lane Keeping Aid does not intervene Lane Keeping Aid symbols in the instrument Keeping Aid panel (p. 365) The LKA steering assistance function only functions if the driver's hands are on the steering wheel, which the system continuously monitors.

  • Page 363: Activating/Deactivating Lane Keeping Aid

    DRIVER SUPPORT Activating/deactivating Lane Selecting type of assistance for Lane Keeping Aid limitations Keeping Aid Lane Keeping Aid In certain demanding driving conditions, Lane The driver can determine what types of assis- Keeping Aid may not be able to properly assist The Lane Keeping Aid (LKA ) function can be switched On or Off.
  • Page 364 DRIVER SUPPORT Related information • Lane Keeping Aid (p. 358) • Speed-dependent steering wheel resistance (p. 266)

  • Page 365: Lane Keeping Aid Symbols And Mes

    Some examples of symbols and messages are shown in the table below. Symbol Message Meaning The system is not functioning as intended. Contact a workshop ‒ an authorized Volvo work- Driver support system shop is recommended. Reduced functionality Service required Windscreen sensor The camera's ability to detect the lane in front of the vehicle is reduced.
  • Page 366 A text message can be erased by briefly pressing button in the center of the right-side steering wheel keypad. If the message persists: Contact a workshop ‒ an authorized Volvo workshop is recommended. Related information • Lane Keeping Aid (p. 358)

  • Page 367: Lane Keeping Aid Symbols In The Instrument Panel

    DRIVER SUPPORT Lane Keeping Aid symbols in the Related information Unavailable instrument panel • Lane Keeping Aid (p. 358) Lane Keeping Aid (LKA ) uses symbols in the instrument panel for various situations. Some examples of symbols and descriptions of the situations in which they might appear are provided below.

  • Page 368: Steering Assistance At Risk Of Collision

    DRIVER SUPPORT Steering assistance at risk of Activating/deactivating steering Related information collision • assistance during collision risks Activating/deactivating steering assistance during collision risks (p. 366) Collision avoidance assistance The driver can choose to have this function On function • or Off. Symbols and messages for steering assis- is intended to help the driver reduce the risk of To switch off the function:...

  • Page 369: Run-Off Mitigation With Steering Assistance

    DRIVER SUPPORT Run-Off Mitigation with steering Run-Off Mitigation with steering WARNING assistance assistance levels • The "Steering assistance at risk of run- This sub-function is intended to help reduce the This function has two activation levels for inter- off" subfunction is supplementary driver risk of the vehicle inadvertently running off the vention: support intended to help improve driving...

  • Page 370: Activating/Deactivating Run-Off Miti

    DRIVER SUPPORT Activating/deactivating Run-Off Limitations of Run-Off Mitigation Steering assistance with braking Mitigation with steering assistance with steering assistance The driver can choose to have this function On In certain demanding driving conditions, the or Off. function may not be able to properly assist the To switch off the function: driver.

  • Page 371: Steering Assistance During Collision Risks From Oncoming Traffic

    DRIVER SUPPORT Steering assistance during collision However, the function will not provide steering NOTE risks from oncoming traffic assistance if the turn signal is used. The function The function uses the vehicle's radar unit, will also not be activated if it detects that the This sub-function can help assist a distracted which has some general limitations –...

  • Page 372: Assistance During Collision Risks With

    DRIVER SUPPORT Activating/deactivating Steering Limitations of steering assistance Related information • assistance during collision risks during collision risks from Steering assistance at risk of collision with oncoming vehicles oncoming traffic (p. 366) The driver can choose to have this function On The function may have limited functionality in or Off.

  • Page 373: Risks From Behind

    DRIVER SUPPORT Steering assistance during collision cle approaching, the function can provide assis- NOTE risks from behind* tance. The function uses the vehicle's camera unit, If you become distracted and do not notice your The function is active at speeds between which has some general limitations –...

  • Page 374: Activating/Deactivating Steering Assistance During Collision Risks From

    DRIVER SUPPORT Activating/deactivating Steering Limitations of steering assistance Related information • assistance during collision risks during collision risks from behind Steering assistance at risk of collision from behind* (p. 366) The function may have limited functionality in The driver can choose to have this function On certain situations and not intervene, e.g.: •...
  • Page 375 DRIVER SUPPORT NOTE The function uses the vehicle's camera unit, which has some general limitations – see the section "Camera unit limitations". NOTE The function uses the vehicle's radar unit, which has some general limitations – see the section "Radar unit limitations". In addition to the camera and radar sensor, the function also uses the vehicle's rearward-facing radar, which has certain general limitations the...

  • Page 376: Symbols And Messages For Steering

    A text message can be erased by briefly pressing button in the center of the right-side steering wheel keypad. If the message persists: Contact a workshop ‒ an authorized Volvo workshop is recommended. Related information • Steering assistance at risk of collision...
  • Page 377 DRIVER SUPPORT Park Assist* moving but will cease after the vehicle has been WARNING stationary for approx. 2 seconds. Audible signals The Park Assist function can help the driver • The Parking Assist function is supple- for obstacles behind the vehicle will remain active when maneuvering in tight spaces by indicating mentary driver support intended to facili- even when the vehicle is stationary.

  • Page 378: Park Assist Front, Rear And Sides

    Park Assist has different parameters depending When reversing with e.g. a trailer or bike car- on which part of the vehicle is approaching an rier on the trailer hitch – without Volvo original obstacle. trailer cables – the Parking Assist system may...

  • Page 379: Activating/Deactivating Park Assist

    DRIVER SUPPORT Activating/deactivating Park Assist Park Assist limitations CAUTION The Park Assist Pilot function can be activated/ Park Assist may not be able to detect all condi- When installing auxiliary lights: Make sure deactivated. tions in all situations and functionality may there- these do not obscure the sensors –...

  • Page 380: Recommended Maintenance For

    DRIVER SUPPORT Recommended maintenance for CAUTION NOTE Park Assist Objects such as chains, thin and glossy poles When a trailer hitch is configured with the For Park Assist to function optimally, its sensors or low obstacles may end up in the "signal vehicle electrical system, the trailer hitch pro- must be cleaned regularly with water and car shadow"...
  • Page 381 One or more of the sensors are blocked. Check and clean/remove the obstacle as soon as pos- sible. Sensors blocked, cleaning nee- The system is not functioning as intended. Contact a workshop ‒ an authorized Volvo workshop Park Assist System is recommended.

  • Page 382: Park Assist Camera

    DRIVER SUPPORT Park Assist Camera* Towbar* - activate/deactivate trajectory lines Related information • for towbar* Park Assist Camera views (p. 381) The Park Assist Camera can help provide the • driver when maneuvering in tight spaces by alert- Park Assist Camera trajectory lines (p. 382) CTA* - activate/deactivate Cross Traffic Alert ing the driver to obstacles using the camera •...

  • Page 383: Park Assist Camera Views

    DRIVER SUPPORT Park Assist Camera views Objects on the center display may appear to be The active cameras will be indi- leaning slightly. This is normal. PAC can display a 360° panoramic view as well cated by a camera symbol on Front camera as separate views for each of the other cameras: the vehicle symbol in the center...

  • Page 384: Park Assist Camera Trajectory Lines

    DRIVER SUPPORT Park Assist Camera trajectory lines help simplify parallel parking, backing into tight Side cameras spaces or attaching a trailer. The Park Assist Camera uses trajectory lines and fields on the screen to indicate the vehicle's The lines on the screen are projected as if they position in relation to its immediate surround- were painted lines on the ground behind the ings.
  • Page 385 DRIVER SUPPORT Trajectory lines in 360° view* Trajectory lines for a towbar* CAUTION • Bear in mind that when the rearward camera view is selected, the screen only shows the area behind the vehicle – pay attention to the sides and front of the vehicle when steering while reversing.

  • Page 386: Sensor Field From Park Assist For Park Assist Camera

    DRIVER SUPPORT Sensor field from Park Assist for 1. Tap Towbar (1). The front and rear fields change colors (from yel- Park Assist Camera low to orange to red) as the vehicle moves closer > The trajectory line for the towbar's antici- to an obstacle.

  • Page 387: Starting The Park Assist Camera

    DRIVER SUPPORT Starting the Park Assist Camera Park Assist Camera limitations Other camera views switch off at 15 km/h (9 mph) and are not reactivated. The Park Assist Camera starts automatically The Park Assist Camera may not be able to when reverse gear is engaged or can be started detect all conditions in all situations and func- Related information...
  • Page 388 DRIVER SUPPORT Blind sectors Defective camera means that the brightness and quality of the image may vary slightly. Poor lighting conditions If a camera sector is dark and may result in reduced image quality. contains this symbol, this indi- cates that the camera is not Related information functioning properly.

  • Page 389: Recommended Maintenance Of The

    DRIVER SUPPORT Recommended maintenance of the Park Assist Camera Each of the Park Assist Cameras, located above the license plate, the grille and in both door mir- rors, require a certain degree of maintenance. Clean the camera lenses regularly using luke- warm water and car washing detergent.
  • Page 390 One or more of the sensors are blocked. Check and clean/remove the obstacle as soon as possible. Sensors blocked, cleaning needed The system is not functioning as intended. Contact a workshop ‒ an authorized Volvo workshop is Park Assist System recommended.

  • Page 391: Types Of Parking With Park Assist Pilot

    DRIVER SUPPORT Types of parking with Park Assist Park Assist Pilot* NOTE Pilot Park Assist Pilot (PAP ) helps the driver pull The PAP function measures the space and into and out of parking spaces. Park Assist Pilot (PAP ) can be used for the steers the vehicle –...

  • Page 392: Parking With Park Assist Pilot

    DRIVER SUPPORT Parking with Park Assist Pilot Parallel parking Perpendicular parking Park Assist Pilot (PAP ) helps the driver park using three different steps. The function can also help the driver pull out of a parking space. NOTE The PAP function measures the space and steers the vehicle –...
  • Page 393 DRIVER SUPPORT To do so: NOTE 1. The vehicle's speed may not exceed The distance between the vehicle and parking 30 km/h (20 mph) when parallel parking or spots should be 0.5-1.5 meters (1.6-5.0 ft) 20 km/h (12 mph) when perpendicular park- when PAP is looking for parking.
  • Page 394 DRIVER SUPPORT 2. Back up slowly and carefully without touch- Backing into a parking space Positioning the vehicle in the parking space ing the steering wheel and do not exceed a speed of 7 km/h (4 mph). 3. Be prepared to stop the vehicle when instructed to do so by a graphic and mes- sage in the center display.

  • Page 395: Leaving A Parking Space With Park

    DRIVER SUPPORT Leaving a parking space with Park 2. Be prepared to stop the vehicle when may need to turn the steering wheel back to the Assist Pilot instructed to do so by a graphic and mes- maximum position in order to pull out of the park- sage in the center display.
  • Page 396 DRIVER SUPPORT Park Assist Pilot* limitations The parking sequence is cancelled WARNING A parking sequence will be cancelled if: Park Assist Pilot PAP may not be able to • The PAP function is supplementary driver • detect all conditions in all situations and func- the driver moves the steering wheel support intended to facilitate driving and tionality may therefore be limited.
  • Page 397 PAP space, PAP may be unable to detect objects system to be updated. Consult a workshop – located far into the space. an authorized Volvo workshop is recom- • PAP may not suggest parking spaces on mended.

  • Page 398: Recommended Maintenance For

    DRIVER SUPPORT Recommended maintenance for Park Assist Pilot For Park Assist Pilot (PAP ) to function opti- mally, its sensors must be cleaned regularly with water and car washing detergent. Location of the Park Assist sensors NOTE Dirt, ice and snow covering the sensors could cause false warnings, reduced function, or no function.
  • Page 399 One or more of the sensors are blocked. Check and clean/remove the obstacle as soon as possible. Sensors blocked, cleaning needed The system is not functioning as intended. Contact a workshop ‒ an authorized Volvo workshop is recommended. Park Assist System...
  • Page 401 STARTING AND DRIVING...

  • Page 402: Starting The Vehicle

    2. Press and hold down the brake pedal as far • Volvo's floor mats are specially manufac- as possible. tured for your vehicle. They must be prop- 3. Turn the start knob clockwise and release.
  • Page 403 STARTING AND DRIVING WARNING NOTE Never remove the remote control key from With a cold start, idling speed may be consid- the vehicle while driving or the vehicle is erably higher than normal for certain engine being towed. types. This is done to get the emissions sys- tem up to normal operating temperature as quickly as possible, which minimizes exhaust WARNING...

  • Page 404: Switching Off The Vehicle

    STARTING AND DRIVING • Switching off the vehicle Related information Selecting ignition mode (p. 404) • Switching off the vehicle (p. 402) The vehicle can be switched off using the start • Ignition modes (p. 403) knob in the tunnel console. •...

  • Page 405: Ignition Modes

    STARTING AND DRIVING Ignition modes Mode Functions Mode Functions The vehicle's ignition can be put in various • • The odometer, clock and tem- The headlights illuminate. modes (levels) to make different functions availa- perature gauge are illuminated • Warning/indicator lights illumi- ble.

  • Page 406: Selecting Ignition Mode

    STARTING AND DRIVING • Selecting ignition mode Brake functions Ignition mode I - Turn the start knob clock- wise and release it. The control will automati- The vehicle's ignition can be put in various The vehicle's brakes are used to reduce speed cally return to the original position.

  • Page 407: Brakes

    STARTING AND DRIVING Brakes the brake pedal when ABS is operating, which is Symbols in the instrument panel normal. The brake pedal is used to apply the vehicle's Symbol Meaning regular brakes, which are part of the brake sys- After the vehicle is started, a brief test of the Check the brake fluid level.

  • Page 408: Brake Assist System

    Volvo essary. • workshop and have the brake system Brakes (p. 405) inspected by a trained and qualified Volvo • When the brake pedal is released, all braking Braking on salted roads (p. 407) service technician.

  • Page 409: Parking Brake

    To keep the vehicle as safe and reliable as possi- This could increase stopping distance. Maintain ble, follow the Volvo service schedule specified in an extra large safety distance to the vehicle the Warranty and Maintenance Records Informa- ahead.

  • Page 410: Activating And Deactivating The Park Ing Brake

    STARTING AND DRIVING Activating and deactivating the Related information Symbol in the instrument panel • parking brake Activating and deactivating the parking brake Symbol Meaning (p. 408) Use the parking brake to help keep the vehicle The symbol will be illuminated •...

  • Page 411: Settings For Automatically Activating The Parking Brake

    STARTING AND DRIVING Settings for automatically activating Emergency braking Deactivating automatically the parking brake In an emergency, the parking brake can be acti- 1. Fasten your seat belt. vated when the vehicle is moving by pulling and Choose whether the parking brake should be 2.

  • Page 412: Parking On A Hill

    Due to the design of the electric parking brake, the rear brake pads must be replaced by a work- Heavy load uphill shop. An authorized Volvo workshop is recom- Heavy loads, such as a trailer, could cause the mended. vehicle to roll backward when the parking brake is released automatically on steep uphill gradi- ents.

  • Page 413: Auto-Hold Brakes

    • Volvo's service program (p. 566) to keep the vehicle stationary. When the vehicle stops, the brakes are activated automatically. The function can use either the...

  • Page 414: Hill Start Assist

    STARTING AND DRIVING • Activating and deactivating Auto- Hill Start Assist The function will remain off until it is reactiva- hold at a standstill ted. The function for assisting when starting the vehi- • When Auto-hold is switched off, Hill Start The Auto-hold brake function at a standstill is cle on inclines, Hill Start Assist (HSA), helps Assist (HSA) will remain active to help pre-...

  • Page 415: Braking Assist After A Collision

    STARTING AND DRIVING Braking assist after a collision Transmission Related information • Rear Collision Warning (p. 341) In a collision in which the activation level is The transmission is part of the vehicle's driveline • reached for the pyrotechnic seat belt tensioners (power transmission) between the engine and BLIS* (p.

  • Page 416: Automatic Transmissions

    STARTING AND DRIVING Gear selector positions for Select P when the vehicle is parked or when star- Symbol Meaning automatic transmissions ting the engine. The vehicle must be stationary Information and messages related when Park is selected. In vehicles with an automatic transmission, the to the transmission.

  • Page 417: Shift

    STARTING AND DRIVING Using the steering wheel paddles* Neutral - N to shift No gear is selected and the engine can be started. Apply the parking brake if the vehicle is The steering wheel paddles are a supplement to stationary with the gear selector in N. the gear selector and make it possible to shift manually without removing your hands from the To move the gear selector from Neutral to...
  • Page 418 STARTING AND DRIVING In shift mode M, the paddles are automatically Automatic deactivation activated. In gear position D, the steering wheel paddles are deactivated after a short period of time if they are not used. The number of the current gear will no longer be displayed in the instrument panel.

  • Page 419: Shiftlock

    STARTING AND DRIVING Shiftlock Deactivating the automatic shiftlock From Park - P To move the gear selector from the P position, The automatic transmission's shiftlock function The automatic shiftlock can still be disengaged the brake pedal must be depressed and the igni- helps prevent inadvertently moving the gear even when there is no electrical current to the tion in mode II.

  • Page 420: The Kickdown Function

    STARTING AND DRIVING The kickdown function Gear indicator* Related information • Shiftlock (p. 417) The gear indicator in the instrument panel shows Kickdown is used when maximum acceleration • Gear selector positions for automatic trans- the gear currently being used for manual shifting is needed, e.g.

  • Page 421: Drive Modes

    STARTING AND DRIVING All Wheel Drive (AWD)* Drive modes* All-wheel drive, All Wheel Drive (AWD), also Drive modes affect the vehicle's driving charac- called four-wheel drive, means that power is dis- teristics in different ways to enhance and sim- tributed to all four wheels, which improves trac- plify the driving experience in certain types of sit- tion.
  • Page 422 STARTING AND DRIVING 3. Under Presets , select one of the following • Comfort drive modes as a basis: Adapt the vehicle for more fuel-efficient and Dynamic eco-friendly driving with Eco mode. In this mode, the Start/Stop function is activated The following settings can be modified: and certain climate settings are reduced.

  • Page 423: Changing Drive Mode

    STARTING AND DRIVING ECO drive mode Changing drive mode* If a drive mode is grayed out in the pop-up menu, it cannot be selected. The drive mode is changed using the control in The Eco drive mode optimizes the vehicle's driv- the tunnel console.
  • Page 424 STARTING AND DRIVING • • This function is most effective in driving situa- On a level road, the vehicle's actual speed The steering wheel paddles* are being used tions where the vehicle can roll freely for a long may differ from the set speed when cruise for manual shifting.

  • Page 425: Activating And Deactivating Eco

    STARTING AND DRIVING Activating and deactivating ECO NOTE drive mode using the function When the ECO function is activated, settings button for certain climate system and electricity con- Vehicles equipped with drive mode controls in suming functions are reduced. Some of these the tunnel console have a function button for settings can be reset manually, but full func- Eco drive mode in the center display's Function...

  • Page 426: Driving With The Start/Stop Function

    STARTING AND DRIVING Start/Stop function Driving with the Start/Stop function Auto-start The following conditions must be met for the Start/Stop is a function that temporarily switches Start/Stop is a function that temporarily turns off engine to auto-start. off the engine when the vehicle has stopped, the engine when the vehicle is stationary and e.g.

  • Page 427: Temporarily Deactivating The Start

    STARTING AND DRIVING Temporarily deactivating the Start/ Symbols in the instrument panel Symbol Meaning Stop function 12" instrument panel* White symbol: the function is avail- • In certain situations, it may be advisable to tem- READY will be displayed in the tachometer able.
  • Page 428 STARTING AND DRIVING • • Conditions for the Start/Stop the road gradient is very steep. High levels of condensation on the inside of function the windows. • the hood is open. • the climate system settings and the actual Certain conditions must be met for Start/Stop to •...
  • Page 429 STARTING AND DRIVING Related information • Start/Stop function (p. 424) • Driving with the Start/Stop function (p. 424) • Temporarily deactivating the Start/Stop func- tion (p. 425)

  • Page 430: Leveling Control* And Suspension

    STARTING AND DRIVING Leveling control* and suspension Shock absorbers (Four-C) Transporting The shock absorbers are adapted to the selected When transporting the vehicle on a ferry, train or Self-leveling and suspension functions are con- drive mode and vehicle speed. The shock absorb- truck, only secure (lash) the vehicle around the trolled automatically.
  • Page 431 A fault has occurred. If the message appears while driving, contact a workshop Slow down Vehicle too high Suspension Level control of the car's rear axle to target height is in progress. Auto adjusting vehicle level An authorized Volvo workshop is recommended. Related information • Leveling control settings* (p. 430) •...

  • Page 432: Economical Driving

    Incorrect wheel alignment. the vehicle's kinetic energy to be used to roll greater distances. Some of the above items and others are checked as part of Volvo's standard maintenance sched- • Use gear D as often as possible and avoid ule.

  • Page 433: Preparing For A Long Trip

    STARTING AND DRIVING • Preparing for a long trip Related information Tire sealing system (p. 540) • Drive-E ‒ purer driving pleasure (p. 27) It is important to have the vehicle's systems and • equipment checked carefully before driving long ECO drive mode (p.

  • Page 434: Winter Driving

    Winter driving Driving through standing water Slippery driving conditions For optimal traction and roadholding, Volvo rec- It is important to check the vehicle before driving Driving the vehicle through a deep pool of stand- ommends using snow tires on all wheels when-...

  • Page 435: Opening/Closing The Fuel Filler Door

    Only locking and unlocking using the remote key, Passive Entry or Volvo On Call will affect the status of the fuel filler door.

  • Page 436: Fuel

    If this occurs, please return Volvo recommends not using external fuel be covered under the New Vehicle Limited your vehicle to a trained and qualified Volvo injector cleaning systems, e.g. do not add Warranty. service technician for service.

  • Page 437: Octane Rating

    STARTING AND DRIVING Octane rating Volvo permits the use of the following "oxygen- ated" fuels. However, the specified octane ratings Volvo demands premium fuel (91 octane must still be met. higher) for all T5, T6 and T8 engines. See both supplied decal examples.
  • Page 438 These may include: partment is ventilated, and immediately return the vehicle to a trained and qualified Volvo • standing upwind away from the filler nozzle service technician for correction.

  • Page 439: Emission Controls

    STARTING AND DRIVING Emission controls Overheating of engine and or location or removing components, and/or transmission repeated use of leaded fuel. Three-way catalytic converter In demanding driving conditions, such as driving • Keep your engine properly tuned. Certain NOTE in mountainous areas or hot weather, there is a engine malfunctions, particularly involving the risk of the engine or transmission overheating, Unleaded fuel is required for vehicles with...

  • Page 440: Battery Drain

    STARTING AND DRIVING Battery drain the vehicle safely and letting the engine idle Related information • for a few minutes to let the transmission Refilling coolant (p. 580) The electrical functions in the vehicle drain the cool. • Driving with a trailer (p. 440) battery to varying degrees.

  • Page 441: Jump Starting Using Another Battery

    STARTING AND DRIVING Jump starting using another battery 4. Clamp the red jumper cable onto the auxiliary 11. Start the engine of the vehicle with the dead battery's positive (+) terminal (1). battery. If the start battery is discharged, current from another battery can be used to start the vehicle.

  • Page 442: Driving With A Trailer

    STARTING AND DRIVING • Driving with a trailer Follow applicable regulations regarding per- WARNING mitted speed and weight. There are a number of things to consider when • Batteries generate hydrogen gas, which • Drive slowly when towing a trailer up a long towing a trailer, such as the towbar, the trailer is flammable and explosive.
  • Page 443 NOTE to the vehicle lighting system. Consult 2. Apply the parking brake. The specified maximum trailer weights are your nearest authorized Volvo retailer for 3. Put the gear selector in P. those permitted by Volvo. National vehicle correct installation. regulations may set additional restrictions on 4.

  • Page 444: Trailer Stability Assist

    STARTING AND DRIVING Trailer Stability Assist* ments. If swaying is detected, the brakes are When Trailer Stability Assist is applied individually on the front wheels, which has activated, the ESC symbol is Trailer Stability Assist (TSA ) is a function a stabilizing effect on the vehicle and trailer.

  • Page 445: Checking Trailer Lights

    STARTING AND DRIVING Checking trailer lights fog lights when driving with a trailer to help Disabling the automatic check ensure safe operation. The automatic light check can be disabled in the When connecting a trailer, make sure that all of center display.

  • Page 446: Towing Using A Towline

    STARTING AND DRIVING Towing using a towline 1. Turn on the hazard warning flashers. CAUTION This section refers to one vehicle being towed 2. Attach the towline to the towing eyelet. Attempting to tow with the engine running behind another using a towline. could result in damage to the three-way cata- 3.

  • Page 447: Attaching And Removing The Towing Eyelet

    STARTING AND DRIVING Attaching and removing the towing eyelet Use the towing eyelet when towing. Screw the towing eyelet securely into place in the threaded outlet behind the cover on the right-hand side of the front and rear bumpers. NOTE If the vehicle is equipped with a towbar, there is no rear attachment for the towing eye.

  • Page 448: Recovery

    STARTING AND DRIVING Recovery 4. Screw in the towing eyelet until it reaches its attempting to pull it up using the towing eyelet stop. Fasten the eyelet securing by, for exam- may result in damage. This section refers to transporting the vehicle ple, inserting a lug wrench* through it and with a tow truck or similar vehicle.

  • Page 449: Homelink

    STARTING AND DRIVING ® ® HomeLink HomeLink is delivered integrated in the rearview CAUTION ® mirror. The HomeLink panel consists of three ®13 HomeLink is a programmable remote control, The towing eyelet is only intended for towing programmable buttons and an indicator light in integrated in the vehicle electrical system, that on roads, and must not be used to pull vehi- the mirror.

  • Page 450: Programming Homelink

    STARTING AND DRIVING ® ® Programming HomeLink 1. Point the remote control at the HomeLink button to be programmed and hold it about Follow these instructions to program 2-8 cm (1-3 inches) from the button. Do not ® HomeLink , reset all programming, or program ®...

  • Page 451: Using Homelink

    STARTING AND DRIVING Using HomeLink www.HomeLink.com, www.youtube.com/ WARNING HomeLinkGentex or call 1-800-355-3515. ® Once HomeLink is programmed, it can be • ® If you use HomeLink to open a garage used instead of the separate remote controls. Programming individual buttons door or gate, be sure no one is near the Press and hold the programming button.

  • Page 452: Type Approval For Homelink

    STARTING AND DRIVING ® • Compass Type approval for HomeLink 869.70MHz-870.00MHz <25mW E.R.P. Certificate holder address: Gentex Corporation, An integrated compass in the upper right corner FCC (USA) and IC (Canada) 600 North Centennial Street, Zeeland MI 49464, of the rearview mirror shows the direction the This device complies with FCC rules part 15 and vehicle is traveling.

  • Page 453: Activating And Deactivating The Compass

    STARTING AND DRIVING Activating and deactivating the Calibrating the compass compass The globe is divided into 15 magnetic zones. An integrated compass in the upper right corner The compass should be calibrated if the vehicle of the rearview mirror shows the direction the is driven from one zone to another.
  • Page 454 STARTING AND DRIVING 8. Repeat the above procedure as needed. Related information • Compass (p. 450) • Activating and deactivating the compass (p. 451)
  • Page 455 AUDIO, MEDIA AND INTERNET...

  • Page 456: Sound Settings

    AUDIO, MEDIA AND INTERNET Audio, media and Internet Sound settings Related information • Media player (p. 475) The audio and media system consists of a media The audio system is precalibrated for optimal • player and a radio. A cellular phone can also be Radio (p.

  • Page 457: Apps

    AUDIO, MEDIA AND INTERNET Apps Sound experience* distracting noise and the audio system sends out a counteracting sound to help reduce the unwan- The App view contains applications (apps) that ted noise. provide access to certain vehicle services. Recreate the acoustics from the Gothenburg Concert Hall.

  • Page 458: Download Apps

    AUDIO, MEDIA AND INTERNET Download apps Swipe the center display screen from right to be downloaded when the car is connected to the Internet. left to access the App view from the Home view. New apps can be downloaded when the vehicle This view displays downloaded apps (third-party is connected to the Internet.

  • Page 459: Updating Apps

    AUDIO, MEDIA AND INTERNET Updating apps 3. Tap on the row for an app in order to expand Update certain apps in the list and get more information about the Download Center 1. Open the app in App Apps can be updated when the vehicle is con- app.

  • Page 460: Deleting Apps

    AUDIO, MEDIA AND INTERNET • Deleting apps Radio RBDS (p. 462) • HD Radio™ (p. 462) When the vehicle is connected to the Internet, it The radio can receive broadcasting from AM is possible to uninstall apps. and FM wavebands with HD Radio™ •...

  • Page 461: Starting The Radio

    AUDIO, MEDIA AND INTERNET • Starting the radio Changing waveband and radio Changing waveband and radio station station (p. 459) The radio is started from the center display's • Storing radio favorites (p. 461) App view. Instructions for changing wavebands, waveband 1.

  • Page 462: Searching For A Radio Station

    AUDIO, MEDIA AND INTERNET Searching for a radio station Genres - only plays channels broadcasting the Searching for a station manually selected genre or program type, e.g. pop, classi- The radio automatically compiles a list of the cal, etc. radio stations that are sending out the strongest signals in the vehicle's current location.

  • Page 463: Storing Radio Favorites

    AUDIO, MEDIA AND INTERNET • Storing radio favorites Radio settings Voice control for radio and media (p. 150) • Radio settings (p. 461) It is possible to add a radio a radio station in the There are a number of different radio functions Radio favorites app and in the list of favorites that can be activated and deactivated.

  • Page 464: Rbds

    AUDIO, MEDIA AND INTERNET RBDS HD Radio™ ® SiriusXM Satellite radio* HD Radio is a brand name registered by the DTS, Pull down Top view and select Settings RBDS radio RBDS (Radio Broadcast Data System) enables Inc. . They are the developer of a broadcasting Media SiriusXM to show a list of available...

  • Page 465: Activating And Deactivating The Hd

    AUDIO, MEDIA AND INTERNET • The IBOC system is referred to as a "hybrid" Ball game mode Instead of transmitting one analog signal, since it is both analog and digital. During hybrid stations send out a bundled signal - both This feature means that a main FM station (HD1) operation, receivers still continue to receive the analog and digital.

  • Page 466: Radio

    AUDIO, MEDIA AND INTERNET • Activating and deactivating the HD HD Radio™ sub-channels HD Radio™ limitations (p. 465) Radio™ • Opening contextual setting in the center dis- In many cases, a main HD Radio station (FM play (p. 135) HD Radio is deactivated when the car leaves the wavebands only) will also have sub-channels factory.

  • Page 467: Hd Radio™ Limitations

    AUDIO, MEDIA AND INTERNET HD Radio™ limitations Selecting sub-channels NOTE To listen to a station's sub-channel(s), tap the There may be a noticeable difference in Limitations station on the screen or press the forward/back sound quality when a change from analogue •...

  • Page 468: Siriusxm Satellite Radio

    AUDIO, MEDIA AND INTERNET ® ® SiriusXM Satellite radio* 2. Open the settings menu for SiriusXM Satel- lite radio. ® The SiriusXM Satellite system broadcasts from of a number of high elevation satellites in geo- 3. Tap Unsubscribed Services synchronous orbit. ®...

  • Page 469: Using Siriusxm ® Satellite Radio

    AUDIO, MEDIA AND INTERNET ® Using SiriusXM Satellite radio* EPG (Electronic Program Guide) Search Tap the magnifying glass to display a screen On the center display's Home view, tap ® SiriusXM Satellite radio offers several features where you can enter text using the center dis- information about e.g., when a program is being for finding and listening to music, news, sporting play's keyboard or by writing in the free-text field...

  • Page 470: Settings For Siriusxm ® Satellite Radio

    AUDIO, MEDIA AND INTERNET • ® ® iTunes tagging Settings for SiriusXM Satellite Settings for SiriusXM Satellite radio* SiriusXM radio* From the center display's Top view, tap (p. 468) Settings . Tap the iTunes Tagging menu. Tap • Connecting a device via the USB port There are numerous settings that can be made iTunes Tagging box to activate/deactivate...
  • Page 471 AUDIO, MEDIA AND INTERNET previously selected as a favorite will still be dis- Traffic Jump iTunes Tagging played in the list of favorites, even it has been iTunes Tap to display a list of cities from which you can Tap to display a menu with the options: added to the skip list.

  • Page 472: Siriusxm Travel Link

    AUDIO, MEDIA AND INTERNET ® SiriusXM Travel Link 3. Press SiriusXM Travel Link NOTE Subscription Status SiriusXM Travel Link is a feature offered by Close If the button is used to return to the > To subscribe, call the phone number listed ®...

  • Page 473: Siriusxm Travel Link ® * - Weather

    AUDIO, MEDIA AND INTERNET • ® • ® * - Weather SiriusXM Travel Link Map view * - Sports (p. 474) SiriusXM Travel Link • • Today ® * - Weather (p. 471) SiriusXM Travel Link This SiriusXM Travel Link service provides weather-related information near the vehicle, at a •...

  • Page 474: Siriusxm Travel Link ® * - Notifications

    AUDIO, MEDIA AND INTERNET ® Areas SiriusXM Travel Link 5 days Areas Notifications Tap to see weather information for the coming 5 to display a list of areas/locations in days. states from the SiriusXM Travel Link database. This SiriusXM Travel Link service provides notifi- Back Local Close...

  • Page 475: Siriusxm Travel Link ® * - Fuel

    AUDIO, MEDIA AND INTERNET ® * - Fuel SiriusXM Travel Link Search Information about a notification If any notifications have been displayed on the Tap the magnifying glass icon. If the function is This SiriusXM Travel Link service provides infor- screen, tap one for more detailed information (i.e., supported in the current context, a keyboard will mation and guidance to service stations near the...
  • Page 476 AUDIO, MEDIA AND INTERNET ® * - Sports 2. Tap a brand to display a list of service sta- SiriusXM Travel Link the Sensus Navigation* supplement for additional tions affiliated with that brand (BP, Exxon, information about using the navigation system. This SiriusXM Travel Link service provides infor- etc.).

  • Page 477: Media Player

    AUDIO, MEDIA AND INTERNET Media player 4. Tap one of the divisions to display: Related information • Playing media (p. 476) • The media player can play audio from the CD In progress : play-by-play information • player* and from external audio sources con- Controlling and changing media (p.

  • Page 478: Playing Media

    AUDIO, MEDIA AND INTERNET Playing media Bluetooth-connected device 1. Insert a CD. 1. Activate Bluetooth in the media source. The media player is controlled from the center display. Several other functions can also be con- 2. Open the app from App view. 2.

  • Page 479: Controlling And Changing Media

    AUDIO, MEDIA AND INTERNET Controlling and changing media Related information Changing track/song - tap the desired track in • Handling the App menu in the instrument the center display, or press below Media playback can be controlled using voice panel (p. 105) the center display or on the right-side steering commands, the steering wheel keypad or the wheel keypad.

  • Page 480: Media Searches

    AUDIO, MEDIA AND INTERNET Media searches Similar - tap the button to use Related information • Gracenote to search for similar Media player (p. 475) Searches can be performed to locate a specific music on the USB device and • artist, composer, song title, album, video, audio Internet-connected vehicle* (p.

  • Page 481: Gracenote

    AUDIO, MEDIA AND INTERNET ® CD player* Gracenote Related information • Playing media (p. 476) The media player can play CDs with compatible Gracenote identifies artists, albums, tracks and • License agreement for audio and media audio files. any associated images that can be displayed (p.

  • Page 482: Video

    AUDIO, MEDIA AND INTERNET ® Video Playing video Playing DivX ® The media player can play videos from USB- app in App view is used to play videos. The DivX Certified device must be registered to 1. Connecting media source (USB device). connected devices.

  • Page 483: Video Settings

    AUDIO, MEDIA AND INTERNET ® ® Video settings Streaming media via Bluetooth Connecting a device via Bluetooth ® Some video playback settings can be adjusted, The vehicle's media player is equipped with Connect a Bluetooth device to the vehicle to e.g.

  • Page 484: Playing Media Via The Usb Port

    AUDIO, MEDIA AND INTERNET • Playing media via the USB port Connecting a device via the USB Technical specifications for USB devices port (p. 505) External audio sources, such as an iPod® or • ® ® ® MP3 player, can be connected to the audio sys- * (p.

  • Page 485: Apple Carplay

    Use Wi-Fi or the vehicle's integrated modem. ® ® * (p. 484) Settings for Apple CarPlay lost. Please note that Volvo is not responsible for • Voice control (p. 147) the content of CarPlay. 1. Connect an iPhone to the USB port. If there •...

  • Page 486: Settings For Apple ® Carplay

    AUDIO, MEDIA AND INTERNET ® ® 5. Tap the desired app. Settings for Apple CarPlay 2. Proceed to Communication Apple CarPlay. > The app will start up. Settings for an Apple device connected through CarPlay 3. Uncheck the box for the Apple device that Starting CarPlay should no longer start CarPlay automatically CarPlay can be started as follows after an iPhone...

  • Page 487: Tips For Using Apple ® Carplay

    AUDIO, MEDIA AND INTERNET ® ® Related information Tips for using Apple CarPlay NOTE • ® ® * (p. 483) Apple CarPlay Here are some useful tips for when you use Availability and functionality can vary depend- • ® ® ®...

  • Page 488: Android Auto

    Volvo Cars is not responsible for auto/. For third-party apps, see Google Play. Android Auto or its features or applications. Please note that Volvo is not responsible for the When you use Android Auto, your car content of Android Auto.

  • Page 489: Settings For Android Auto

    AUDIO, MEDIA AND INTERNET Settings for Android Auto* Related information From a previously connected Android device • 1. Connect the device to the USB port. Android Auto* (p. 486) Settings for phones initially connected with • > If the auto start setting is selected - Android Auto.

  • Page 490: Tips For Using Android Auto

    AUDIO, MEDIA AND INTERNET Phone Tips for using Android Auto* Overview Here are some useful tips for when you use A phone equipped with Bluetooth can be wire- Android Auto. lessly connected to the vehicle's integrated • Ensure that your apps are updated. hands-free system.

  • Page 491: Connecting A Phone To The Car Via Bluetooth For The First Time

    AUDIO, MEDIA AND INTERNET • Connecting a phone to the car via Connecting a phone to the car via Bluetooth 2. To connect the vehicle to the Internet via the Bluetooth for the first time automatically (p. 491) phone's Bluetooth function, activate Internet sharing (tethering/personal hotspot) via •...

  • Page 492: Compatible Phones

    AUDIO, MEDIA AND INTERNET • Option 2 - searching for the vehicle Switch between phones connected via Blue- NOTE tooth (p. 492) from the phone • The message function must be activated • 1. Open the phone tile. Removing a Bluetooth-connected phone in certain phones.

  • Page 493: Connecting A Phone To The Car Via Bluetooth Automatically

    AUDIO, MEDIA AND INTERNET • Connecting a phone to the car via Connecting a phone to the car via Connecting the car to the Internet via a Bluetooth automatically Bluetooth manually mobile device (Bluetooth) (p. 499) • Ignition modes (p. 403) A phone can be automatically connected to the A phone can be manually connected to the vehi- vehicle via Bluetooth.

  • Page 494: Disconnecting A Bluetooth-Con Nected Phone

    AUDIO, MEDIA AND INTERNET • Disconnecting a Bluetooth- Switch between phones connected Settings for Bluetooth devices (p. 497) connected phone via Bluetooth • Connecting the car to the Internet via a mobile device (Bluetooth) (p. 499) Disconnect a Bluetooth-connected phone from It is possible to switch between Bluetooth-con- the vehicle by deactivating Bluetooth in the nected phones.

  • Page 495: Removing A Bluetooth-Connected Phone

    AUDIO, MEDIA AND INTERNET Removing a Bluetooth-connected Handling phone calls Calls can also be made from the list of recent phone calls using the app menu, which can be opened Handling phone calls in the vehicle for a using the button on the right-side steering Phones in the list of registered Bluetooth devi- Bluetooth-connected cellular phone.

  • Page 496: Handling Text Messages

    AUDIO, MEDIA AND INTERNET Handling text messages Incoming calls while another call is in Reading text messages in the center display progress Tap the icon to have the message read A Bluetooth-connected cellular phone's text aloud. 1. Tap Answer Reject messages can be handled in the vehicle.

  • Page 497: Text Message Settings

    AUDIO, MEDIA AND INTERNET Text message settings Managing the phone book Dictating replies in the instrument panel After the test message has been read aloud, it is Settings for handling text messages received Contacts in a Bluetooth-connected cellular possible to answer briefly with dictation if the through a connected phone can be personal- phone can be managed in the vehicle.

  • Page 498: Phone Settings

    AUDIO, MEDIA AND INTERNET • Phone settings Connecting a phone to the car via Bluetooth Sorting for the first time (p. 489) The phone book is sorted in alphabetical order When the phone is connected to the car, the fol- and special characters and numbers are sorted •...

  • Page 499: Settings For Bluetooth Devices

    AUDIO, MEDIA AND INTERNET Settings for Bluetooth devices Internet-connected vehicle* Canada Settings for Bluetooth-connected devices. When the vehicle is connected to the Internet, it This device complies with Industry Canada 1. Tap Settings in the Top view. is possible to use web radio and music services license-exempt RSS standard(s).
  • Page 500 The connection status is shown by a symbol in Wi-Fi technology and security (p. 503) Wi-Fi or the vehicle's modem. the center display's status bar. • Volvo ID (p. 26) • Terms of use and data sharing (p. 504) NOTE When using Android Auto, it is possible to connect the vehicle to the Internet using Wi-Fi, Bluetooth or the vehicle's modem.

  • Page 501: Connecting The Car To The Internet

    AUDIO, MEDIA AND INTERNET Connecting the car to the Internet Connecting the car to the Internet Related information via a mobile device (Bluetooth) • via a mobile device (Wi-Fi) Internet-connected vehicle* (p. 497) • Establish an Internet connection using Bluetooth Establish an Internet connection via Wi-Fi tether- Connect the car to the Internet via car and tethering from a phone and get access to...

  • Page 502: Connect The Car To The Internet Via

    The confirm the connection change. phone's tethering function will then need to be For vehicles equipped with Volvo On Call, it is 6. Enter the SIM card's PIN code. reactivated the next time the phone's hotspot is possible to establish an Internet connection via >...

  • Page 503: Vehicle Modem Settings

    AUDIO, MEDIA AND INTERNET • Vehicle modem settings Sharing Internet from the vehicle via Send request code - used to e.g. download Wi-Fi hotspot (tethering) or check the balance remaining on a prepaid Your vehicle is equipped with a modem that can phone card.

  • Page 504: No Or Poor Internet Connection

    AUDIO, MEDIA AND INTERNET No or poor Internet connection Connected devices to see a list of cur- 2. Tap Communication Vehicle Wi-Fi rently connected devices. Hotspot. Factors affecting the Internet connection. 3. Tap Network name to assign a name to the Related information The amount of data transmitted depends on the •...

  • Page 505: Deleting Wi-Fi Networks

    AUDIO, MEDIA AND INTERNET Deleting Wi-Fi networks Wi-Fi technology and security Restarting the phone If you experience any Internet connection prob- Networks that are not needed can be deleted. Networks must meet certain criteria in order for lems, it may help to restart your phone. the vehicle to connect.
  • Page 506 Terms and conditions Data sharing be set via the Settings menu in the center dis- Audio files open. play. The aim is to inform the user about Volvo's terms Settings 1. Tap in the Top view in the center For- File extension Codec of use and data sharing policy.
  • Page 507 AUDIO, MEDIA AND INTERNET Technical specifications for USB File extension .divx, .avi Format File extension devices Max. file size 4 GB .avi For the contents of USB devices to be read, the following specifications must be met. AVI (DivX) .avi, divx Audio codec MP3, AC3 Any folder structures will not be shown in the...

  • Page 508: Hard Disk Storage Space

    AUDIO, MEDIA AND INTERNET Hard disk storage space It is possible to view how much space is remain- ing on the vehicle's hard disk. Storage information for the vehicle's hard disk can be shown, including total capacity, available capacity and how much space is used for instal- led apps.

  • Page 509: License Agreement For Audio And Media

    Theater Home Theater video files up to 576p tions specified in the agreement. The following (including .avi, .divx). Download free software at texts are Volvo's agreements with manufactur- www.divx.com to create, play and stream digital ers/developers. video.
  • Page 510 AUDIO, MEDIA AND INTERNET Portions of the content are copyright © of these restrictions. If your license terminates, you additional data types or categories that Grace- Gracenote or its providers. agree to cease any and all use of the Gracenote note may provide in the future and is free to dis- Data, the Gracenote Software, and Gracenote continue its services at any time.
  • Page 511 AUDIO, MEDIA AND INTERNET source code must retain the above copyright This software is based in part on the work of the SILICON GRAPHICS, INC. BE LIABLE FOR ANY notice, this list of conditions and the following Independent JPEG Group. CLAIM, DAMAGES OR OTHER LIABILITY, disclaimer.
  • Page 512 AUDIO, MEDIA AND INTERNET The website provides the Source Code "As Is" PARTICULAR PURPOSE ARE DISCLAIMED. IN the above copyright notice(s) and this permission and without warranty of any kind. NO EVENT SHALL NTT BE LIABLE FOR ANY notice appear with all copies of the Data Files or DIRECT, INDIRECT, INCIDENTAL, SPECIAL, Software, (b) both the above copyright notice(s) By downloading Source Code, you expressly...
  • Page 513 AUDIO, MEDIA AND INTERNET dealings in these Data Files or Software without prior written authorization of the copyright holder. FCC CAUTION Declaration of Conformity Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equip- ment.
  • Page 514 AUDIO, MEDIA AND INTERNET Country/ Area Brazil: Este equipamento opera em caráter secundário isto e, náo tem direito a protecão contra interferéncia prejudicial, mesmo tipo, e não pode causar interferéncia a sistemas operando em caráter primário. Para consultas, visite: www.anatel.gov.br Manufacturer: Mitsubishi Electric Corporation Sanda Works 2-3-33, Miwa, Sanda-city.
  • Page 515 AUDIO, MEDIA AND INTERNET Country/ Area Kazakh- stan Model name: NR-0V Manufacturer: Mitsubishi Electric Corporation Export country: Japan...
  • Page 516 AUDIO, MEDIA AND INTERNET Country/ Area China: ■ 使用频率 2.4 - 2.4835 GHz ■ 等效全向辐射 率(EIRP) 天线增益 10dBi 时 ≤100 mW 或≤20 dBm ① ■ 最大 率谱密度 天线增益 10dBi 时 ≤20 dBm / MHz(EIRP) ① ■ 载频容限 20 ppm ■ 帯外发射 率(在 2.4-2.4835GHz 頻段以外) ≤-80 dBm / Hz (EIRP) ■...
  • Page 517 AUDIO, MEDIA AND INTERNET Country/ Area B 급 기기 (가정용 방송통신기자재) Korea: 이 기기는 가정용(B 급) 전자파적합기기로서 주로 가정에서 사용하는 것을 적으로 하며, 든 지역에서 사용할 수 있습니다. 해당 무선설비는 전파혼신 가능성이 있으므로 인명안전과 관련된 서비스는 할 수 없습니다. Malaysia This device has been certified under the Communications &...
  • Page 518 AUDIO, MEDIA AND INTERNET Country/ Area Mexico: 低功率電波輻射性電機管理辦法 Taiwan: 第十二條 經型式認證合格之低功率射頻電機，非經許可，公司 商號或使用者均不得擅自 變更頻率 加大功率或變更原設計之特性及功能 第十四條 低功率射頻電機之使用不得影響飛航安全及干擾合法通信；經發現有干擾現象時，應 立停用，改善至無干擾時方得繼續使用 前項合法通信，指依電信法規定作業之無線 電通信 低功率射頻電機須忍受合法通信或工業 科學及醫療用電波輻射性電機設備 之干擾 Related information • Audio, media and Internet (p. 454) • Internet-connected vehicle* (p. 497) • Media player (p. 475) •...

  • Page 519: Wheels And Tires

    WHEELS AND TIRES...

  • Page 520: Tires

    The tires significantly influence the vehicle's driv- pavement performance with consideration for On delivery, the car is equipped with Volvo origi- ing characteristics. The type, dimensions, tire hydroplaning resistance. They may be more nal tires that have the VOL...
  • Page 521 If you have any questions regarding tread depth, Volvo recommends consulting an authorized • Correct front wheel alignment is very impor- Volvo workshop. If significant differences in wear tant. (> 1 mm difference in tread depth) between the • Unbalanced wheels impair tire economy and tires have already occurred, the least worn tires driving comfort.

  • Page 522: Tire Direction Of Rotation

    NOTE Tires with tread designed to roll in only one • The wheel and tire sizes for your Volvo Use tires of the same type, dimensions and direction are marked with an arrow on the side- are specified to meet stringent stability make (manufacturer) on each axle.

  • Page 523: Tread Wear Indicator

    Replace the tire as soon as possi- • Extra load: A class of P-metric or Metric inflation pressure, established by Volvo, ble. Tires with low tread offer very poor traction in tires designed to carry a heavier maximum which is based on the type of tires that are rain or snow.

  • Page 524: Tire Sidewall Designations

    WHEELS AND TIRES Tire sidewall designations perature is normally reached after the vehicle NOTE has been parked for at least 3 hours. The following information can be found on a Please be aware that the following tire desig- tire's sidewall. Related information nation is an example only and that this par- •...
  • Page 525 WARNING rain, AS = All Season by the tire manufacturer. • The wheel and tire sizes for your Volvo 8. U.S. DOT Tire Identification Number are specified to meet stringent stability Speed Symbol (TIN): This begins with the letters "DOT" and and handling requirements.

  • Page 526: Uniform Tire Quality Grading

    WHEELS AND TIRES Uniform Tire Quality Grading Related information WARNING • Tires (p. 518) ALL PASSENGER VEHICLE TIRES MUST The traction grade assigned to this tire is CONFORM TO FEDERAL SAFETY REQUIRE- • Tire sidewall designations (p. 522) based on braking (straight-ahead) traction MENTS IN ADDITION TO THESE GRADES.

  • Page 527: Checking Tire Pressure

    , at least once a month and before long trips. After driving for approximately 1.6 km (1 mile), Volvo strongly recommends buying a reliable air the tires are considered to be warm. If you need pressure gauge, as the automatic gauges provi- to drive longer than that to inflate the tires, check ded at service stations may be inaccurate.

  • Page 528: Adjusting Tire Pressure

    WHEELS AND TIRES Adjusting tire pressure 3. Screw the valve cap back on. NOTE Tire pressure decreases over time, which is nor- If you have overfilled the tire, release air by NOTE mal. The tire pressure must therefore be pushing on the metal stem in the center of adjusted to maintain the recommended tire pres- •...

  • Page 529: Recommended Tire Pressure

    WHEELS AND TIRES Recommended tire pressure Tire pressure monitoring system* ted to the inflation pressure recommended by the vehicle manufacturer on the vehicle placard or The tire pressure placard on the driver's side B The tire pressure monitoring system, Tyre tire inflation pressure label.
  • Page 530 B pillar Calibrating the tire pressure monitoring sys- one minute and then remain continuously illumi- for Volvo-recommended tire pressures. tem* (p. 529) nated. This sequence will continue upon subse- •...

  • Page 531: Calibrating The Tire Pressure Monitoring System

    (over 160 km/h (100 mph)), tire The car must be stationary when calibration is pressure should be adjusted to the Volvo-recom- If the car's ignition is switched off before started. mended tire pressure values. The system should calibration is complete, the tires in the then be recalibrated.

  • Page 532: Viewing Tire Pressure Status In The Center Display

    WHEELS AND TIRES Viewing tire pressure status in the NOTE center display* Always remember to calibrate the Tire Pres- With the system for tire pressure monitoring, sure Monitoring System when the wheels Tyre Pressure Monitoring System (TPMS), tire have been changed or the tire inflation pres- pressure status can be viewed in the center dis- sure has been corrected according to the tire play.

  • Page 533: Action When Warned Of Low Tire Pressure

    • recalibrated. The system cannot predict sudden tire damage. An authorized Volvo workshop is recommended. * Option/accessory.

  • Page 534: When Changing Wheels

    If you change to tires of another dimension, con- • Inflate tires with the compressor included in tact an authorized Volvo workshop to update the the tire sealing system (p. 545) vehicle's software. A software update may be necessary when changing to tires of larger/ smaller dimensions or when changing to or from snow tires.

  • Page 535: Jack

    If the vehicle Only use rims that have been tested and needs to be lifted more frequently or for a approved by Volvo and are included in Volvo's prolonged period, using a garage jack or original product range.

  • Page 536: Removing A Wheel

    WHEELS AND TIRES Removing a wheel Related information WARNING • Removing a wheel (p. 534) Instructions for removing a wheel when chang- • Apply the parking brake and put the gear • Installing a wheel (p. 536) ing wheels. Wheel changes must always be car- selector in the Park (P) position.
  • Page 537 WHEELS AND TIRES 1. Turn on the vehicle's hazard warning flashers 5. Using the lug wrench*, screw the towing eye 8. When hoisting the vehicle, it is important that if a wheel change must be performed in an into place as far as possible according to the the jack* or garage lift arms are positioned area with traffic.

  • Page 538: Installing A Wheel

    WHEELS AND TIRES Installing a wheel 10. Crank it up until it is properly aligned and it is WARNING in contact with the vehicle's jack attachment Instructions for installing a wheel during a wheel • Apply the parking brake and put the gear point.

  • Page 539: Spare Wheel

    Related information If the spare wheel is damaged, a new one can be • Leveling control settings* (p. 430) purchased from a Volvo retailer. • When changing wheels (p. 532) • Hoisting the vehicle (p. 573) WARNING •...

  • Page 540: Accessing The Spare Wheel

    WHEELS AND TIRES Accessing the spare wheel WARNING Follow these instructions regarding handling the • The vehicle must never be driven with spare wheel. more than one "Temporary spare" tire 1. Lift the rear edge of the cargo compartment mounted. floor.

  • Page 541: Snow Tires

    Volvo work- • Tread wear indicator (p. 521) Contact a Volvo dealer for advice on the best shop. Use of the wrong snow chains could choice of rims and tires. cause serious damage to the vehicle and result in an accident.

  • Page 542: Tire Sealing System

    NOT be used. odically. • NOTE Only put snow chains on the front wheels Consult a Volvo retailer for more information (also applies to all-wheel drive vehicles). about snow chains. The sealing compound effectively seals tires • If accessory, aftermarket or "custom"...

  • Page 543: Using The Tire Sealing System

    Electrical cable NOTE The sealing compound bottle must be replaced Hose after use. Volvo recommends contacting an Do not break the seal of the bottle before authorized Volvo workshop for replacement. use. The seal is broken automatically when Air release valve the bottle is screwed into place.
  • Page 544 Do not remove the bottle while the tire cannot be unscrewed. The bottle can only be Precautions: sealing system is being used. removed by a workshop. Volvo recommends • • Keep out of reach of children. Do not remove the hose while the tire an authorized Volvo workshop.
  • Page 545 If the bottle is not removed in the correct to a workshop for inspection/replacement of WARNING order, sealant could spill out. the tire. Volvo recommends an authorized Never leave children unattended in the vehicle workshop. while the engine is running.
  • Page 546 WARNING far as possible. The compressor must be switched off. Check inflation pressure regularly. Volvo recommends driving to the nearest author- ized Volvo workshop to have the tire replaced/ repaired. Inform the workshop that the tire con- tains sealing compound.

  • Page 547: Inflate Tires With The Compressor Included In The Tire Sealing System

    WHEELS AND TIRES Inflate tires with the compressor Related information CAUTION included in the tire sealing system • Recommended tire pressure (p. 527) Risk of overheating. The compressor should • The vehicle's original tires can be inflated using Using the tire sealing system (p. 541) not be running for longer than 10 minutes at the compressor in the tire sealing system.

  • Page 548: Determining The Vehicle's Permitted Weight

    GVW the vehicle's tire information placard: and passengers from XXX kg or XXX lbs. rating. Use only tires with the correct load carrying capacity. Consult your Volvo Curb weight 4. The resulting figure equals the available retailer for information.
  • Page 549 LOADING, STORAGE AND PASSENGER COM- PARTMENT...

  • Page 550: Passenger Compartment Interior

    LOADING, STORAGE AND PASSENGER COMPARTMENT Passenger compartment interior Rear seat Related information • Electrical outlets (p. 550) Overview of the passenger compartment interior • and storage spaces. Using the glove compartment (p. 553) • Sun visors (p. 554) Front seats •...

  • Page 551: Tunnel Console

    LOADING, STORAGE AND PASSENGER COMPARTMENT Tunnel console WARNING The tunnel console is located between the front Store loose objects, such as cell phone, cam- seats. era, remote control for extra equipment, etc., in the glove compartment or another compart- ment. Otherwise, these could injure people in the vehicle in the event of hard braking or a collision.

  • Page 552: Electrical Outlets

    12 V electrical outlet* in the trunk/cargo compartment. If a problem occurs with an electrical socket, contact a workshop - an authorized Volvo work- shop is recommended. 12 V outlets 12 V outlet in the tunnel console, rear seat.
  • Page 553 LOADING, STORAGE AND PASSENGER COMPARTMENT Status indicator light Cause Action Steady green light The socket is providing electrical current to a connected device. None. Flashing orange light The socket's voltage converter is too hot (e.g. if the device draws too much cur- Unplug the device, let the voltage converter cool rent or if the temperature in the passenger compartment is very high).

  • Page 554: Using The Electrical Outlets

    Do not attempt to alter or repair the high-volt- lets can be activated even when the vehicle is not in use or left unattended. age outlet on your own. Volvo recommends electrical system is off or if preconditioning is contacting an authorized Volvo workshop.

  • Page 555: Using The Glove Compartment

    LOADING, STORAGE AND PASSENGER COMPARTMENT Using the glove compartment WARNING The glove compartment is located on the pas- • Only use accessories that are not dam- senger side. The glove compartment can be aged or malfunctioning. The accessories used to store the Owner's Manual, maps, etc. must be designed for 120 V and 60 Hz, There is also room for a pen and a card holder.

  • Page 556: Sun Visors

    LOADING, STORAGE AND PASSENGER COMPARTMENT Sun visors In the ceiling in front of the driver and front pas- senger, there are sun visors that can be lowered and angled to the side as necessary. The illustration is generic – the design may vary. The illustration is generic –...

  • Page 557: Cargo Compartment

    LOADING, STORAGE AND PASSENGER COMPARTMENT Cargo compartment Loading recommendations WARNING The vehicle has a flexible cargo compartment There are a number of things to consider when In a head-on collision at a speed of 50 km/h that makes it possible to carry and secure large carrying loads in or on the vehicle.

  • Page 558: Roof Loads And Load Carriers

    If the rear seat backrests are folded Volvo load carriers are specially designed to help over and spilling their contents in the cargo down, make sure that no objects loaded into the prevent damage to your vehicle and help ensure compartment.

  • Page 559: Load Anchoring Eyelets

    Installing and removing the cargo net* • Loading recommendations (p. 555) (p. 562) • Weights (p. 631) • Installing and removing the cargo compart- ment cover* (p. 558) Additional elastic straps can be ordered from a Volvo retailer. * Option/accessory.

  • Page 560: Compartment Cover

    LOADING, STORAGE AND PASSENGER COMPARTMENT Rear seat ski hatch Installing and removing the cargo compartment cover* The hatch in the rear seat backrest can be opened to transport long, narrow objects such The cover can be rolled out to conceal objects as skis.
  • Page 561 LOADING, STORAGE AND PASSENGER COMPARTMENT Operating the cargo compartment 2. Carefully lift the cover up and out. Loading mode cover* From the fully opened position: > The other end will release automatically and the cover can then be lifted out of the The cover can be used in two positions: fully cargo compartment.

  • Page 562: Installing And Removing The Steel Cargo Grid

    LOADING, STORAGE AND PASSENGER COMPARTMENT Installing and removing the steel In vehicles equipped with the automatic cargo Retracting the cover cargo grid* compartment cover*, the cover will retract from 1. From the fully opened position: the fully open position to the partially retracted The steel cargo grid prevents loads or pets in Lift the cover's handle and pull it rearward to position every time the tailgate is opened, and will...
  • Page 563 3. Position the grid's attachment points in the with steel consoles. Volvo recommends that the ceiling consoles. ceiling consoles are only replaced by an author- Related information ized Volvo workshop or retailer.

  • Page 564: Installing And Removing The Cargo Net

    LOADING, STORAGE AND PASSENGER COMPARTMENT Installing and removing the cargo 4. Insert one of the net's upper attachments WARNING net* into the corresponding rear ceiling bracket Objects in the cargo compartment must and press it as far forward into the bracket The cargo net helps prevent objects in the cargo always be securely anchored, even with a cor- as possible.
  • Page 565 LOADING, STORAGE AND PASSENGER COMPARTMENT Removing the cargo net Front mounting 1. Remove the cargo net from the ceiling brackets by pressing the hook attachments rearward. Let the net retract into the cas- sette. 1. Fold down the rear seat backrests. 2.
  • Page 567 MAINTENANCE AND SERVICE...

  • Page 568: Volvo's Service Program

    • Parts and Accessories Limited Warranty OBD II is part of your vehicle's computerized nician. To keep your Volvo in top condition, spec- • Corrosion Protection Limited Warranty engine management system. It stores diagnostic...
  • Page 569 OBD II to • inspection? Wipe driver information displays with a soft reach readiness. Your Volvo retailer can pro- cloth. Your vehicle can fail OBD II emission inspection vide you with more information on planning a for any of the following reasons: •...

  • Page 570: Data Transfer Between Vehicle And

    The vehicle may not be driven when it is con- • Scheduling service and repairs (p. 570) Volvo workshops have a designated Wi-Fi net- nected to the workshop's networks and sys- work for secure data transfer between your vehi- tems.

  • Page 571: Handling System Updates Via Down

    MAINTENANCE AND SERVICE Download Center Handling system updates via NOTE Download Center With the vehicle connected to the Internet Data downloading can affect other services System updates are available for infotainment updates for a number of the vehicle's systems such as transfer data, e.g. web radio. If the and Internet-related functions and systems in the can be downloaded from the center display.

  • Page 572: Scheduling Service And Repairs

    To use the service but the function can be deactivated. • • Status - engine oil level check Create a Volvo ID and register the Volvo ID 1. Tap Settings in the center display's Top to the vehicle. • TPMS - tire inflation pressure check view.

  • Page 573: Sending Vehicle Information To The Workshop

    (p. 117) 4. Check that your Volvo ID is correct. The appointment request contains information • Volvo ID (p. 26) about your vehicle that helps the workshop plan 5. Make sure your preferred Workshop is cor- • Internet-connected vehicle* (p. 497) for your visit.
  • Page 574 MAINTENANCE AND SERVICE Sending vehicle information to the Vehicle information can be accessed by any retailer if they are provided with your vehicle iden- workshop tification number (VIN Vehicle-related information can be sent at any time from the vehicle, e.g. if you schedule a visit Vehicle information contents to a workshop and would like to assist your The most recently saved vehicle-related informa-...

  • Page 575: Hoisting The Vehicle

    Volvo recommends only using the jack ensure the jack/vehicle hoist is correctly intended for your specific vehicle model. If a engaged in the designated attachment points jack other than that recommended by Volvo is under the vehicle. used, follow the instructions included with the equipment.
  • Page 576 MAINTENANCE AND SERVICE The triangles in the plastic covering indicate where the jack attachment points/lifting points (red areas) are located. Related information • Removing a wheel (p. 534) • Jack* (p. 533) • Leveling control settings* (p. 430) * Option/accessory.

  • Page 577: Opening And Closing The Hood

    If the warning symbol is illuminated or an audible warning signal sounds even though the hood is securely closed, consult a work- shop - an authorized Volvo workshop is rec- ommended. Hood not completely closed. The illustration is generic -...

  • Page 578: Climate Control System Service

    The air conditioning system contains a fluores- Volvo recommends contacting an authorized cent tracer substance. Ultraviolet light is used to Volvo workshop for assistance replacing the search for leaks in the system. windshield. The correct type of replacement windshield must be used in order for the head-up Volvo recommends contacting an authorized display to function properly.

  • Page 579: Engine Compartment Overview

    6 minutes after the engine is turned off. Always entrust engine washing to a workshop – an authorized Volvo workshop is recom- mended. If the engine is hot, there is a risk of fire. WARNING The ignition system works with extremely high and dangerous voltages.

  • Page 580: Checking And Filling Engine Oil

    Volvo recommends entrusting oil changes to an authorized Volvo workshop. Volvo uses different systems to warn if the oil level is too low/high or the oil pressure is low. On engine variants with an oil pressure sensor, a...
  • Page 581 Engine oil level with the message Service required , visit a workshop – an authorized Volvo workshop is recommended. The oil level may be too high. 1. Open the Car status app from App view in the center display.

  • Page 582: Refilling Coolant

    MAINTENANCE AND SERVICE Refilling coolant NOTE Coolant helps keep the combustion engine at If the conditions for measuring oil level are the right operating temperature. The heat trans- not properly fulfilled (time after engine shut- ferred from the engine to the coolant can be down, vehicle inclination, ambient tempera- used to warm the passenger compartment.

  • Page 583: Replacing Bulbs

    NOTE quality. If you are unsure of the quality of For information on lights not mentioned in the water, use a Volvo-recommended this article, contact a Volvo dealer or a certi- premixed coolant. fied Volvo service technician. • Make sure the coolant mixture is 50% water and 50% coolant.

  • Page 584: Replace Bulbs

    NOTE Bulbs for active curve lighting* contain traces of mercury and should therefore always be submitted to a certified Volvo service techni- cian. LED (Ligth Emitting Diode) An authorized Volvo workshop is recommended. * Option/accessory.

  • Page 585: Location Of Exterior Lights

    • Replacing bulbs (p. 581) Front fog light/cornering illumination* • Bulb specifications (p. 588) (LED • Lighting panel and controls (p. 154) LED (Light Emmitting Diod) Contact a workshop for replacement ‒ an authorized Volvo workshop is recommended. * Option/accessory.

  • Page 586: Replacing The Low Beam Headlight Bulbs

    MAINTENANCE AND SERVICE Replacing the low beam headlight Replacing the high beam headlight 3. Remove the bulb by pressing it slightly bulbs bulbs upward and then pulling it out. The low beam bulbs in the halogen headlights The high beam bulbs in the halogen headlights 4.

  • Page 587: Replacing Daytime Running Lights

    MAINTENANCE AND SERVICE Replacing daytime running lights/ 3. Carefully pry the plastic sleeve by the con- front parking light bulbs nector's locking lug to release it. The daytime running light/parking light bulbs in 4. Remove the connector from the bulb. the halogen headlights can be changed without 5.
  • Page 588 MAINTENANCE AND SERVICE Replacing front turn signal bulbs Related information Related information • • Location of exterior lights (p. 583) Location of exterior lights (p. 583) The turn signal bulbs in the halogen headlights • • Removing the plastic cover to replace bulbs can be changed without the help of a workshop.

  • Page 589: Replacing Backup Lights

    MAINTENANCE AND SERVICE Replacing backup lights Replacing the rear fog light bulb The light bulb for the backup light is located The rear fog light bulb is located behind a panel behind the panel in the tailgate. on the inside of the tailgate on the driver's side. To replace the rear fog light bulb: Left-side bulb housing.

  • Page 590: Bulb Specifications

    MAINTENANCE AND SERVICE Bulb specifications The following specifications apply to the bulbs in the halogen headlights, backup lights and rear fog light. If you are experiencing problems with any other lights, contact a workshop Function Type Low beams High beams Left-side bulb housing.

  • Page 591: Start Battery

    California to cause securely tightened. cancer and reproductive harm. Wash hands after handling. An authorized Volvo workshop is recommended. An authorized Volvo workshop is recommended.
  • Page 592 MAINTENANCE AND SERVICE Location CAUTION NOTE Only a modern battery charger with controlled If the starter battery becomes discharged too charge voltage should be used to charge the many times, it will shorten its service life. starter battery and support battery. The rapid The service life of the starter battery is affec- charging function should not be used as this ted by several factors, such as driving condi-...
  • Page 593 315×175×190 mm (12.4×6.9×7.5 inches) 353×175×190 mm (13.9×6.9×7.5 inches) Capacity (Ah) According to EN standard. Cold Cranking Amperes. Related information Volvo recommends that batteries are replaced by • an authorized Volvo workshop. Battery symbols (p. 593) • Support battery (p. 592) CAUTION •...

  • Page 594: Support Battery

    If you have any questions or concerns, consult a workshop ‒ an authorized Volvo workshop is recommended. The support battery is located in a box next to the spring strut in the engine compartment.

  • Page 595: Battery Symbols

    MAINTENANCE AND SERVICE Battery symbols NOTE 150×90×130 mm Dimensions, L×W×H (5.9×3.5×5.1 There are warning symbols and information on If the starter battery is discharged to the inches) the batteries. extent that the vehicle does not have normal electrical functions and the engine must then Capacity (Ah) be jump-started with an external battery or a According to EN standard.

  • Page 596: Fuses And Fuseboxes

    Recycle properly. blows repeatedly, there may be a problem with Engine compartment the component. Volvo recommends contacting an Under the glove compartment authorized Volvo workshop to have the compo- nent checked. Trunk/cargo compartment NOTE Related information A used start battery or backup battery con- •...

  • Page 597: Replacing Fuses

    This could cause significant damage to the electrical system and possibly lead to a fire. WARNING Contact an authorized Volvo workshop for assistance replacing fuses not listed in the Owner's Manual. If performed incorrectly, sig- nificant damage can be caused to the electri- cal system.

  • Page 598: Fuses In The Engine Compartment

    MAINTENANCE AND SERVICE Fuses in the engine compartment The fuses in the engine compartment help pro- tect electrical components such as engine and brake functions.
  • Page 599 (gasoline) Oil pump solenoid; A/C mag- – – netic coupling; heated oxygen Engine control module sensor, center (gasoline); heated Left-side headlight, some mod- oxygen sensor, rear (diesel) Starter motor els with LED An authorized Volvo workshop is recommended. * Option/accessory.
  • Page 600 MAINTENANCE AND SERVICE Function Function Function Right-side headlight, some mod- – – Left-side headlight els with LED Left-side headlight, some mod- Shunt Heated windshield*, right side – – els with LED Fed when ignition is on: engine Accelerator pedal sensor Shunt Heated windshield*, left side control module, transmission...

  • Page 601: Fuses Under The Glove Compartment

    MAINTENANCE AND SERVICE Fuses under the glove compartment Fuses under the glove compartment provide pro- tection for e.g. electrical outlets, displays and door modules.
  • Page 602 Media player Center display Humidity sensor Instrument panel Climate system blower module Door module in right-side rear door (front) Center console buttons Fuses in the trunk/cargo compart- USB HUB Sun sensor ment An authorized Volvo workshop is recommended. * Option/accessory.
  • Page 603 Function Function Control module for Internet-con- Door module in left-side front door nected vehicle; Control module for Active chassis control module* Volvo On Call Door module in left-side rear door – – Audio control module (amplifier) Sensus control module (certain models only) –...

  • Page 604: Fuses In The Cargo Compartment

    MAINTENANCE AND SERVICE Fuses in the cargo compartment The fuses in the cargo compartment help pro- tect electrical components such as the power seats*, airbags and seat belt tensioners. * Option/accessory.
  • Page 605 MAINTENANCE AND SERVICE The fuse box is located on the right-hand side. Fuse pliers are provided on the inside of the fuse There are also spaces for several extra fuses in box cover to assist in removing and inserting the distribution box in the engine compart- fuses.
  • Page 606 Control module for reduction of module* nitrous oxides (diesel) – – Heated rear seat (right side)* Power tailgate* – – – – Power front passenger seat* – – Ampere Towbar* control module – – An authorized Volvo workshop is recommended. * Option/accessory.
  • Page 607 MAINTENANCE AND SERVICE Related information • Fuses and fuseboxes (p. 594) • Replacing fuses (p. 595)

  • Page 608: Cleaning The Interior

    Cleaning leather upholstery (p. 609) Only use cleaning agents and car care products Marks, stains, finger smudges etc. on the center recommended by Volvo. Clean regularly and display may affect its performance and readabil- • Cleaning the leather steering wheel treat stains immediately for best results.

  • Page 609: Cleaning The Head-Up Display

    Never use strong stain removers. For difficult CAUTION cleaning conditions, a special cleaning agent can When cleaning the center display, apply only be purchased at a Volvo retailer. light pressure to the screen. Pressing too Related information hard could damage the screen.

  • Page 610: Cleaning Fabric Upholstery And Ceil

    Use a vacuum to Never scrape or rub a stain, as this could damage ble for purchase at Volvo retailers. Make sure the remove dust and dirt. Each inlay mat is secured the upholstery. Never use strong stain removers, belt is dry before it is retracted.

  • Page 611: Cleaning Leather Upholstery

    Volvo retailers. For best results, Volvo recommends cleaning and applying protective cream one to four times a Related information year (or more as needed). Volvo Leather Care Kit • Cleaning the interior (p. 606) 951 0251 and Volvo Leather Softener 943 •...

  • Page 612: Cleaning The Leather Steering Wheel

    Cleaning fabric upholstery and ceiling liner leather steering wheel with a plastic protector. (p. 608) 4. Dry the stain using a soft towel and let the Volvo Leather Care Kit 951 0251 and Leather leather dry completely. • Cleaning the seat belt (p. 608) Softener 943 7429 are recommended for clean- •...

  • Page 613: Cleaning The Exterior

    A lightly dampened microfiber cloth is recom- Related information mended for cleaning interior details and surfaces. • Cleaning the exterior (p. 611) These cloths are available for purchase at Volvo retailers. • Polishing and waxing (p. 612) • Never scrape or rub a stain. Never use strong Hand washing (p.

  • Page 614: Polishing And Waxing

    Only use paintwork treatments recommended This could cause the detergent or wax to dry removed with a grinding paste designed for by Volvo. Other treatments, such as preserva- out and become abrasive. vehicle paint. tion, sealing, protection, luster sealing or simi- •...
  • Page 615 MAINTENANCE AND SERVICE • • Wash using a sponge, car washing detergent Cleaning the wiper blades (p. 615) NOTE and plenty of lukewarm water. • Cleaning exterior plastic, rubber and trim Exterior lighting such as headlights and tail- • Clean the wiper blades with lukewarm soap components (p.

  • Page 616: Automatic Car Washes

    2. To help prevent damage from the auto- • Cleaning rims (p. 617) areas of the vehicle. For best results, Volvo rec- matic car wash machinery, make sure ommends hand washing your vehicle or supple- •...

  • Page 617: High-Pressure Washing

    MAINTENANCE AND SERVICE • High-pressure washing Cleaning the wiper blades Cleaning rims (p. 617) • Corrosion protection (p. 617) The vehicle should be washed as soon as it The vehicle should be washed as soon as it becomes dirty. This makes the vehicle easier to becomes dirty.

  • Page 618: Cleaning Exterior Plastic, Rubber And

    Exterior plastic, rubber and trim components Related information A special cleaning agent available from Volvo Components that should be washed with a cleaning • Cleaning the exterior (p. 611) product with a pH value between 3.5 and 11.5.

  • Page 619: Corrosion Protection

    In the chassis, exposed components of the wheel Only use rim cleaning products recommended by suspension are made of corrosion-resistant cast Volvo. aluminum. Strong rim cleaning agents could damage the surface and stain the chromed aluminum rims.

  • Page 620: Paintwork

    MAINTENANCE AND SERVICE Paintwork Touching up minor paint damage If the damage has not reached all the way down to the metal, then touch-up paint can be applied The paintwork consists of multiple layers. It is an The paintwork is an important part of the vehi- immediately after the surface has been cleaned.

  • Page 621: Color Codes

    Touch-up pens and spray paints are available at Volvo retailers. NOTE If the stone chip has not gone down to the bare metal and an undamaged coat of paint remains, apply base coat and clear coat immediately after cleaning the surface.

  • Page 622: Changing Rear Window Wipers

    MAINTENANCE AND SERVICE Changing rear window wipers It is important to use the right color. Grasp the center of the wiper blade and lift it from the window to the stop position. The wiper blades help remove water from the Related information windshield and rear window.

  • Page 623: Replacing Windshield Wiper Blades

    MAINTENANCE AND SERVICE • Replacing windshield wiper blades Raise the wiper arms to the service position. Heated windshield washer nozzles* (p. 181) Service position is activated/deactivated via • Using the rain sensor's memory function The wiper blades help remove water from the the function view in the center display when (p.

  • Page 624: Windshield Wipers In The Service Position

    MAINTENANCE AND SERVICE Windshield wipers in the service Activating/deactivating service position NOTE position The service position can be activated/deactivated The wiper blades are different lengths. The when the vehicle is stationary and the windshield The windshield wiper blades must be in the serv- blade on the driver's side is longer than the wipers are switched off.

  • Page 625: Filling Washer Fluid

    MAINTENANCE AND SERVICE • Filling washer fluid The wiper blades will also move out of service Changing rear window wipers (p. 620) position if: • Using the windshield wipers (p. 180) Washer fluid is used to keep the headlights, • windshield and rear window clean.
  • Page 626 Using the rear window wiper/washer (p. 184) CAUTION • Windshield wipers in the service position Use Volvo's original washer fluid or an equiva- (p. 622) lent fluid with the recommended pH value • Replacing windshield wiper blades (p. 621) between 6 and 8, diluted as recommended, •...
  • Page 627 SPECIFICATIONS...

  • Page 628: Type Designations

    SPECIFICATIONS Type designations The decals in the vehicle contain information such as chassis number, type designation, color code, etc. Location of decals The illustration is general and details may vary depending on market and model.
  • Page 629 Vehicle Emission Control Information. US Vehicle Identification Number (VIN). The Federal Motor Vehicle Safety Standards models. Your Volvo is designed to meet all appli- VIN plate is located on the top left surface of the (FMVSS) specifications (USA) and Ministry of cable emission standards, as evidenced by the dashboard.
  • Page 630 SPECIFICATIONS Related information • Air conditioning specifications (p. 636) Engine oil. This label contains the recom- mended engine oil specifications. Decal A/C. Refrigerant R134a. NOTE The decals shown in the Owner's Manual do not claim to be exact reproductions of those found in the vehicle.

  • Page 631: Dimensions

    SPECIFICATIONS Dimensions The vehicle's length, height, etc. are shown in the table. Dimensions inches Dimensions inches Dimensions inches Load height 27.7 Wheel track, rear Ground clearance 1629 64.1 Wheel track, front 1619 63.7 Wheelbase 2941 115.8 1628 64.1 1618 63.7 1618 63.7 Length...
  • Page 632 SPECIFICATIONS Dimensions inches Width incl. rearview 2019 79.5 mirrors Width incl. folded rear- 1895 74.6 view mirrors At curb weight + 2 people. Varies slightly depending on tire dimensions, chassis, etc.) Vehicles with 17/18-inch wheels. Vehicles with 19-inch wheels. Vehicles with 20-inch wheels. Vehicles with 21-inch wheels.

  • Page 633: Weights

    SPECIFICATIONS Weights The following table lists important weight data for your vehicle. Category Canada (lbs) (kg) AWD (All Wheel Drive) 5290 2400 Gross vehicle weight FWD (Front Wheel Drive) 5070 – Capacity weight AWD (All Wheel Drive) 2645 1200 Permissible axle weights, front FWD (Front Wheel Drive) 2555 –...

  • Page 634: Towing Capacity And Tongue Weight

    SPECIFICATIONS Towing capacity and tongue weight Towing capacity and tongue weight are shown in the tables below. Category Canada (lbs) (kg) Without brakes: 1650 With brakes (AWD): 2000 Max. trailer weights With brakes (AWD Towing Pack): 3500 1580 With brakes (FWD): 2000 –...

  • Page 635: Engine Specifications

    SPECIFICATIONS Engine specifications specifications for Special Edition vehicles may NOTE vary. Engine specifications (output, etc.) for each Not all engines are available on all markets. engine variant are shown in the table below. The Engine Output Output Torque Torque Number of cylinders Engine code (kW/rps) (hp/rpm)

  • Page 636: Engine Oil Specifications

    Volvo recommends: Viscosity chart Extreme driving conditions General Volvo's VCC RBS0-2AE/SAE 0W20 oil is recom- See the Service and warranty booklet for infor- mended for extreme conditions. mation about oil change intervals. Oil volume NOTE...

  • Page 637: Coolant Specifications

    Consult a Volvo retailer if you have any ques- service life. However, it may need to be changed force from e.g. pressure on the brake pedal via a tions.

  • Page 638: Fuel Tank Volume

    SPECIFICATIONS Fuel tank volume Air conditioning specifications WARNING The fuel tank's refillable volume is shown in the The climate system in the vehicle uses a freon- The air conditioning system contains the table below. free R134a refrigerant. For information regarding refrigerant R134a under pressure.

  • Page 639: Approved Tire Pressure

    The following tire pressures are recommended by Volvo for your vehicle. Refer to the tire infla- Tire dimensions Cold tire pressure for up to five persons...
  • Page 641 INDEX INDEX Airbag Apple CarPlay 483, 485 1, 2, 3 ... activation/deactivation Approach lighting driver's side Apps passenger side 53, 56 Assistance at risk of collision 366, 367, Air bag, see Airbag 368, 369, 370, 371, 372, 374 Air conditioning Audio and media Air conditioning, fluid Audio system...
  • Page 642 INDEX Brake fluid electrical outlet 550, 552 grade Lighting Backrest Brake functions Cargo compartment cover 558, 559 front seat, adjusting 188, 189, 192, Brake light cargo net 193, Brakes Car wash 611, 612, 614, 615, 616, 617 rear seat, folding anti-lock brakes, ABS Catalytic converter Battery...
  • Page 643 INDEX Child restraints 63, 65 Climate Connecting vehicle to Internet booster cushions auto-regulation No connection or poor connection convertible seats blower control 225, 226 via a mobile device (WiFi) infant seats perceived temperature via mobile device (Bluetooth) integrated booster cushion Sensors via vehicle's modem ISOFIX/LATCH anchors...
  • Page 644 INDEX CZIP (Clean Zone Interior Package) power folding resetting ECO climate Driveline transmission ECO mode activate with function button Drive mode Data changing Economical driving 421, 430 recording Driver Alert Control Electrical outlet transferring between vehicle and work- operation 357, 358 shop Driver Alert Control limitations Electrical system...
  • Page 645 INDEX Engine shutdown Front seat in engine compartment blower in the cargo compartment Engine specifications climate replacing Engine temperature heating 216, 217 high temperature Environment ventilation Error messages Front seat manual Adaptive Cruise Control Gasoline grade Front seats, power see Messages and symbols 303, 318 Gauge adjusting passenger seat from driver's...
  • Page 646 Head-up display Instrument illumination IAQS (Interior Air Quality System) activate and deactivate Instrument lighting IC (Inflatable Curtain) cleaning Instrument panel ID, Volvo replacing windshield App menu 104, 105 settings Identification number messages Heated washer nozzles Ignition mode 403, 404...
  • Page 647 INDEX iPod®, connecting Lamps emergency brake lights changing front fog lights ISOFIX/LATCH anchors location Hazard warning flashers specifications high beams 158, 159 Trailer home safe lighting in passenger compartment 165, 166 Lane Keeping Aid instrument illumination operation Jack instrument lighting Lane Keeping Aid (LKA) 358, 360, 361, Jump-start...
  • Page 648 INDEX Load index Media player 475, 476, 477 On-board diagnostics compatible file formats 504, 505 Loading On-board Diagnostic socket voice control general Option/accessory load anchoring eyelets Messages and symbols Outside temperature gauge long load Adaptive Cruise Control Overheating 437, 440 Collision warner with auto-brake Lock indication Owner's information...
  • Page 649 INDEX Park Assist Camera limitations Phone Privacy Policy changing to another Park Assist Pilot 389, 390, 393, 394, Private locking connect 396, 397 activation/deactivation connect automatically function 389, 390, 394, 396, 397 PROPOSITION 65 WARNING connect manually limitations delete operation 390, 393 disconnect Symbols and messages...
  • Page 650 INDEX Rear seat Refueling blower filling climate fuel filler door, fuel flap Safety folding backrest pregnancy Remote immobilizer head restraint Safety belt, see Seat belt Remote key heating battery replacement Safety defects, reporting temperature connecting to driver profile Safety mode Rear sensors 375, 376, 377, 378, 379 detachable key blade...
  • Page 651 INDEX Sensors Slippery road conditions Starting the engine air quality after a collision Software updates climate Start the vehicle Sound settings 454, 495 Sensus phone Steel cargo grid connection and entertainment playing media 476, 477 Steering assistance at risk of colli- Sensus Navigation text message sion...
  • Page 652 INDEX Sunroof Temperature tire sealing pinch protection adjusting 227, 228, 229 Tread depth perceived tread wear indicator Sun shade winter tires panoramic roof 176, 179 Temporary spare pinch protection spare tire Tire sealing system rear door Temporary tire sealing system Tire tread Sun visor execution, checking...
  • Page 653 Tread wear indicator radio and media settings Trip computer 89, 91 socket for connecting media VOL mark Trip odometer Volvo ID Trip odometer resetting create and register Trip statistics Troubleshooting Vehicle care 611, 612, 614, 615, 616, 617 Adaptive Cruise Control...
  • Page 654 INDEX Warning sound WHIPS (Whiplash Protection System) parking brake Wi-Fi warning symbols connecting vehicle to Internet delete network Warning symbols sharing Internet connection, tethering, safety hotspot Warranties technology and security Washer Window Headlights sun shade rear window 184, 185 Windows and glass washer fluid, filling Windshield Windshield...
  • Page 656 TP 25155 (English - USA & Canada), AT 1746, MY18, Copyright © 2000-2017 Volvo Car Corporation...

This manual is also suitable for:

V90 cross countryS90 2018Xc90 2017V90 cross country 2018

Table of Contents

Save PDF
