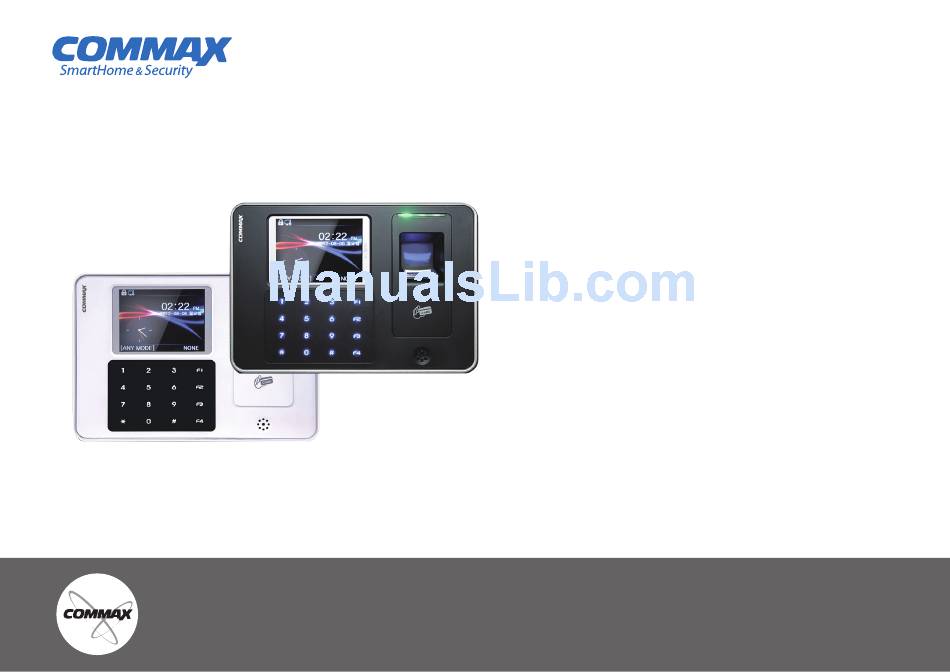

Installation Manual
T65
Thank you for purchasing COMMAX products.
Please carefully read this User' s Guide (in particular, precautions for safety) before using a product and
follow instructions to use a product exactly.
The company is not responsible for any safety accidents caused by abnormal operation of the product.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the T65 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Commax T65

Summary of Contents for Commax T65

  • Page 1 Installation Manual Thank you for purchasing COMMAX products. Please carefully read this User’ s Guide (in particular, precautions for safety) before using a product and follow instructions to use a product exactly. The company is not responsible for any safety accidents caused by abnormal operation of the product.
  • Page 2 Back of T65 CN505 CN503 CN506 CN700 CN501 CN810 VR501 VR502...
  • Page 3 T65 CONNECTIONS CN501) Relay 1, 2 - Connects with door lock and alarm devices CN503) Card Reader - Connects with external card reader CN505) Sensor Input - Connects with various sensors (door contact, alarm sensor etc) and exit button CN506) Wiegand output...
  • Page 4 It is possible to connect numerous T65 with computer. Maximum number of connection with RS-485 one serial port is 16 T65. Must give unique address to each T65 (Refer to user manual for the setup) If not, arouses communication collision and RS-485 cannot communicate. RS-485...
  • Page 5 RS-485 RS-485 Maximum number of connection with one serial port is 16units. If main computer controls above RS-485 RS-485 6units of T65, needs to prepare additional port. CAMS S supports up to 4 RS-485 converters. RS-485 RS-485 RS-485 Converter RS-485...
  • Page 6 DIAGRAM (LAN) TCP/IP Shows LAN composition connecting numerous T65 Must give unique IP address to each T65 (Refer to user manual for the setup)
  • Page 7 DIAGRAM (WAN) TCP/IP Shows the connection with 64units of T65. (Needs 64 IP address) TCP/IP...

  • Page 8: Cable Connection (Power)

    CABLE CONNECTION (POWER) CN700 CN505 CN503 CN506 CN700 CN501 (Red) (Black) CN810 VR501 VR502 Transformer DC 12V AC220V 60Hz CN700(DC-In) connects with DC12V and GND. Doesn’ t matter the direction of the GND and VCC.
  • Page 9 CABLE CONNECTION (EXTENSION PHONE) CN505 CN503 CN506 CN810 CN700 CN501 CN810 VR501 VR502 CN810(TEL-LINE) connects with extension phone and doesn’ t matter the direction. To communicate with extension phone, press # button and extension phone number Controls speaker volume using VR501 and Mic volume using VR502...
  • Page 10 CABLE CONNECTION (RS-485) CN505 CN503 CN506 CN700 CN501 Shows the connection CN700(DC-IN) and RS-232/485 Converter CN810 VR501 VR502 CN700 +12V MAX : 1200m (4000ft) from : PC TX=/A= TX+/A+ RS-485 RS-232 ex) RS232-485 CONVERTER...

  • Page 11: Cable Connection (Tcp/Ip)

    CN501 CN810 VR501 VR502 TCP/IP Shows TCP/IP connects with T65 using the HUB. No distance limits using TCP/IP and configure access control system with LAN or WAN (Refer to user manual or CAMS S software manual for the IP setup)

  • Page 12: Cable Connection (Wiegand Out)

    CABLE CONNECTION (WIEGAND OUT) CN505 CN503 CN506 CN700 CN501 CN810 VR501 VR502 RDE-A CN506 (ex: PCSC IQ-Serise) If connected to other main controller, it works as a card reader or fingerprint reader only not controller. CN506(Wiegand out) connects with card reader port of main controller and transmit the data via Wiegand...

  • Page 13: Cable Connection (Rf Card Reader)

    CABLE CONNECTION (RF CARD READER) CN503 Reader (ex : KP-10) Red:12V CN505 CN503 CN506 Black : GND Green : Date 0 White : Date 1 CN700 CN501 Blue : LED Control CN810 VR501 VR502 Connects the cable of the RF card reader to CN503. Connection would be variable for each reader.

  • Page 14: Cable Connection (Sensor)

    AutoDoor Sensor Door Contact Embedded Sliding Door EXIT BUTTON Invasion Sensor (or Fire Alram) CN505 CN503 CN506 CN700 CN501 CN810 VR501 VR502 Shows T65 connected with sliding door and relevant controls ; door contact, door sensor, exit button, infrared sensor.

  • Page 15: Cable Connection (Relay)

    Alram Transfomer Alert Device Shows physical access controls of T65 by connecting many devices which detect certain situation through the sensors explained in the above. Electric strike or alarm devices to be operated with T65 using the connection of CN501.
