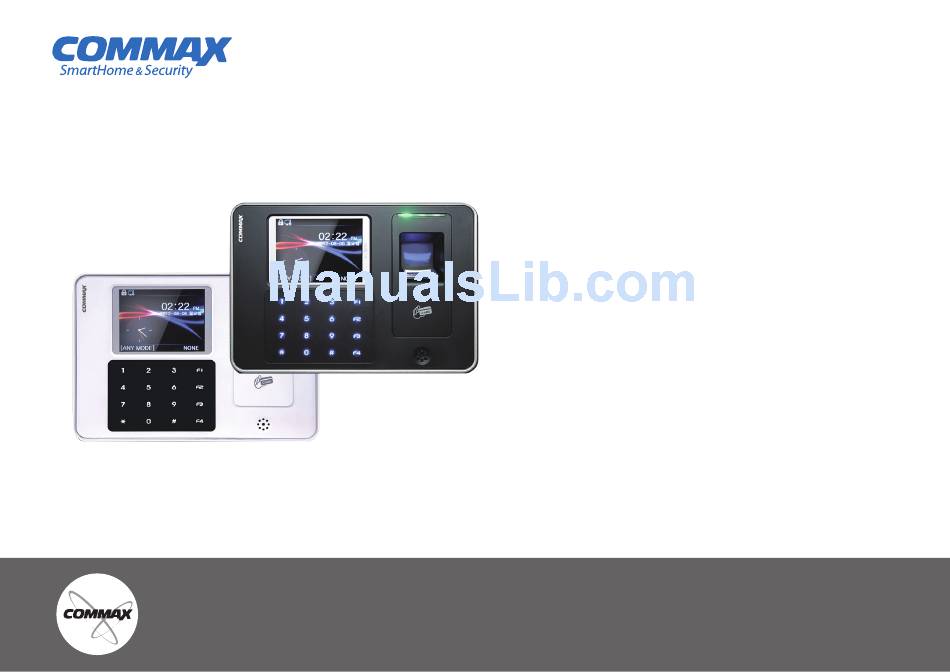

www.commax.com
USER MANUAL
T65
Thank you for purchasing COMMAX products.
Please carefully read this User' s Guide (in particular, precautions for safety) before using a product and
follow instructions to use a product exactly.
The company is not responsible for any safety accidents caused by abnormal operation of the product.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the T65 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Commax T65

Summary of Contents for Commax T65

  • Page 1 USER MANUAL Thank you for purchasing COMMAX products. Please carefully read this User’ s Guide (in particular, precautions for safety) before using a product and follow instructions to use a product exactly. The company is not responsible for any safety accidents caused by abnormal operation of the product.
  • Page 2 1.Getting Started 2.Understanding Device 3.Operating Menu...
  • Page 3 When cleaning, do not use liquid solvent or wet cloth. Wipe with soft cloth. Never disassemble or modify this device in any way. (Identery is not liable for problems caused by unauthorized modification or attempted repair) COMMAX Access Control Solutions...
  • Page 4 Before using this device, read and follow all instructions for safety. Do not install this device near by TV, monitor or magnetic interference. If the product fails to operate normally, contact the authorized dealer or service senter. COMMAX Access Control Solutions...
  • Page 5 Includid Items Cable COMMAX Access Control Solutions...

  • Page 6: Parts And Their Functions

    Light on for system status. Color TFT LCD Displays time, device Fingerprint sensor status, user list and UI Used to register or identity for operation. the user. Function Key Key button for operation. Speaker Connector For cable connection. COMMAX Access Control Solutions...
  • Page 7 Dimensions This system comes with the following comeponents. W:165mm W:149.8mm H:115mm H:92.8mm Front View Bracket Bracket 49mm Side View COMMAX Access Control Solutions...

  • Page 8: Fingerprint Registration

    Place the finger on the sensor as seen in below in the proper way. Place the entire area of your finger firmly to the sensor. You have to register fingerprint in proper way to enhance recognition rate. Recommended to use finger which has no damage. Recommended to register more than two fingerprint in case. Proper way Improper way. COMMAX Access Control Solutions...
  • Page 9 Vertfication Mode Verification mode can be setup in verification mode (Settings>Basic>Verification Mode) CARD ID(PIN) FD(Finger Print) T65 supports various type of access mode : Combination of Fingerprint, Card and ID(PIN) COMMAX Access Control Solutions...

  • Page 10: Functions Key

    1. Press Function Key (F1~F4) only or press numbers after Function Key . 2. Present the card to enter. FD Authentication Scheme F1~F4 + Fingerprint 1. Press Function Key (F1~F4) only or Press numbers after Function Key . 2. Place Finger Print to enter. COMMAX Access Control Solutions...
  • Page 11 T65 System Directory on Key USER 1.Enroll 2.Delete 3.Set Temp ID SETTING 1.Basic 2.Advanced 3.AC Setting 4.Communication 5.Schedule 6.Log Setting USB MEMORY 1.Download General Log 2.Download All General Log 3.Download Management Log 4.Download All Management Log 5.Download User Info 6.Upload User Info 7.Upgrade Firmware...
  • Page 12 T65 System Tree Structure SETTING 1.Basic 2.Advanced 3.AC Setting 4.Communication 5.Schedule 6.Log Setting Basic Advanced AC Settings 1.Time 1.Vertification Mode 1.Define Timezone 2.Date 2.ID Mask 2.User Timezone 3.Date Format 3.Use Tamer Alram 3.Lock Type 4.Language 4.Use Touch Sensor 4.Lock Door Release Time 5.Use Busytone detection...
  • Page 13 T65 System Tree Structure SETTING 1.Basic 2.Advanced 3.AC Setting 4.Communication 5.Schedule 6.Log Setting Communication Schedule Log Setting 1.Device ID 1.Set Tmode 1.Management Log Warning 2.Baudrate 2.Ring Settings 2.General Log Warning 3.TCP/IP Settings 3.Auto Door -DHCP -IP Antipass 4.Auto Funckey -Subnet Mask -Default Gateway 5.None-Relat Funckey...
  • Page 14 1.Getting Started 2.Understanding Device 3.Operating Menu...
  • Page 15 Displays DISPLAYS These displays are primary screens. Verification Mode Date and Time User Menu User Enroll Menu Settings Menu COMMAX Access Control Solutions...

  • Page 16: Menu Navigation Buttons

    Menu Navigation Buttons Move Forward Move Backward To previous menu Home Screen Select the Menu COMMAX Access Control Solutions...
  • Page 17 Access To The System Menu 1 Default condition and admin is not registered. > 1 2 3 4 > > Menu Screen 1.Press Button. 2.After “1 2 3 4”, Press Button 3.Succeed to access system menu 4.Move between menus using button COMMAX Access Control Solutions...
  • Page 18 1.Getting Started 2.Understanding Device 3.Operating Menu...
  • Page 19 2. Press Registered admin ID and 3. Verify fingerprint or CD of the above ID 4. Succeed to access system menu. 5. Move between menus using button. Press Button at the bottom left corner to return home Screen. COMMAX Access Control Solutions...
  • Page 20 5. Input password(USER ID) and set up the privilege; User or Admin. ( After User ID, press and set the privilege using the button ) 6. Register fingerprints and/or card ( Refer to p. 16, Menu Navigation Buttons ) COMMAX Access Control Solutions...
  • Page 21 5. Input password(USER ID) and set up the privilege ; User or Admin. ( After User ID, press and set the privilege using the button ) 6. Register fingerprints and/or card ( Refer to p. 16, Menu Navigation Buttons ) COMMAX Access Control Solutions...

  • Page 22: User Registration

    If doesn’ t need 2nd fingerprint or CARD, it is possible to skip this process. 1. Access to the system menu 10. Complete fingerprint registration press button an back to home screen) 5. Scan fingerprint 3tiems for one registration 12. Select Card 15. Complete registration COMMAX Access Control Solutions...
  • Page 23 If doesn’ t need 2nd fingerprint or CARD, it is possible to skip this process. 1. Access to the system menu 12. Complete fingerprint registration button an back to home screen) fingerprint and repeat the same process 10. Select 2nd fingerprint 11. Scan 2nd fingerprint three times COMMAX Access Control Solutions...
  • Page 24 4. Input password ( “User ID” ) to delete 5. Place fingerprint or Card to delete (If want to delete both fingerprint and card of the ID, select Delete All. 6. Press button after selection 7. “ Yes” and complete the delete     COMMAX Access Control Solutions...
  • Page 25 4. Select “ Set Temp ID ” 5. Input Temp ID ( upto 8 digits) and press 6. Input access admission times with this temp ID and press (Min. 1, Max. 9) 7. Compete setup temp ID. COMMAX Access Control Solutions...
  • Page 26 4.Lock Door Release Time 5.Use Busytone detection 5.Celibrate Senseor 5.Door Open Warning 6. Set Phone Numbers 6.Restore Factory Settings 6.Re-access Count 7.Clear General Log 7.Re-access Limit Time 8.Clear Management Log 8.Wiegand Format 9.Clear Enroll Date 9.Anti-Passback COMMAX Access Control Solutions...
  • Page 27 1.Management Log Warning 2.Baudrate 2.Ring Settings 2.General Log Warning 3.TCP/IP Settings 3.Auto Door -DHCP -IP Antipass 4.Auto Funckey -Subnet Mask -Default Gateway 5.None-Relat Funckey -Port -Mac Address 6.Day Light 4.Communication Password 7.Holiday 8.Funckey Alarm 9.Idle Settings COMMAX Access Control Solutions...
  • Page 28 Even visitors activate interphone, it returns standby mode and recommend to use.   6. Set Phone Numbers When interphone is connected, the receivers can remote control the door with pass word. Only registered phone numbers are able to control the door and available max. 100 phone numbers. COMMAX Access Control Solutions...
  • Page 29 7. Clear General Log Delete all general log data   8. Clear Management Log Delete all management log data   9. Clear Enroll Data Delete entire user data including fingerprint, card data and it is unrecoverable   COMMAX Access Control Solutions...

  • Page 30: Verification Mode

    – Card must be authorized before fingerprint authentication 14. ID & FP : Both ID and Fingerprint required for Access – must punch in ID before fingerprint authentication 15. ID & CD & FP : all three formats needed for access   COMMAX Access Control Solutions...
  • Page 31 9.Anti-Passback : No / Yes Anti-passback activates through external wiegand input. If there is two controllers for enter and exit, re-enter is allowed only it has exit event data (EX : Public Parking lot, Restricted Area, Membership center )   COMMAX Access Control Solutions...

  • Page 32: Communications Settings

    (All the above data is for reference only and an confirm the details in network environment of the PC to connect)   4. Communication Password If the communication password is not correct, it is impossible to communicate with the software COMMAX Access Control Solutions...
  • Page 33 F-Key how to setup the auto F-Key.   5. None-Relay Funckey Setup none-relay Funckey and buzzer alarm key. Refer to Software (Guardian) manual 7-4 controller Special function No act F-Key how to setup the No Act F-key.   COMMAX Access Control Solutions...
  • Page 34 Events of user entries from the reader are stored. (Ex. For time & attendance)   10. Idle Settings LCD power cut off : 0 ~ 60minutes IDLE mode : 0 ~ 60minutes COMMAX Access Control Solutions...

  • Page 35: Log Settings

    1. Management Log Warning ( 0 ~ 100) If the management logo exceeds the setting value, it alarms   2. General Log Warning If the management logo exceeds the setting value, it alarms         COMMAX Access Control Solutions...
  • Page 36 Download All General log Download all general events Download Management log Download new management events Download All Management log Download all management events Download User Info Download user data Upload User info Upload user data Upgrade Firmware Update Firmware COMMAX Access Control Solutions...
  • Page 37 3. ID Card : ID Card numbers which is enrolled in the device 4. General Log : General log ( access event ) numbers 5. Management Log : Management log ( system event ) numbers       COMMAX Access Control Solutions...

  • Page 38: Device Info

    3. Manufacturer : Displays the device manufacturer 4. Product Name : Displays the device Name 5. Product Type : Displays the device Type 6. Engine Version : Displays the engine version 7. Firmware Version: Displays the firmware version COMMAX Access Control Solutions...
  • Page 39 1.View General Log : Search and view the general access event 2.View Management Log : Search and view the system management event 3.View User info : Search and view the numbers of the fingerprint and card COMMAX Access Control Solutions...
  • Page 40 Test Voice announcement manually. Test Sensor : Test Finger sensor Test Keyboard : Test keyboard Test RTC : Test RTC Test Case Status : Test the status of the case Test Card Reader : Test the card reading COMMAX Access Control Solutions...
