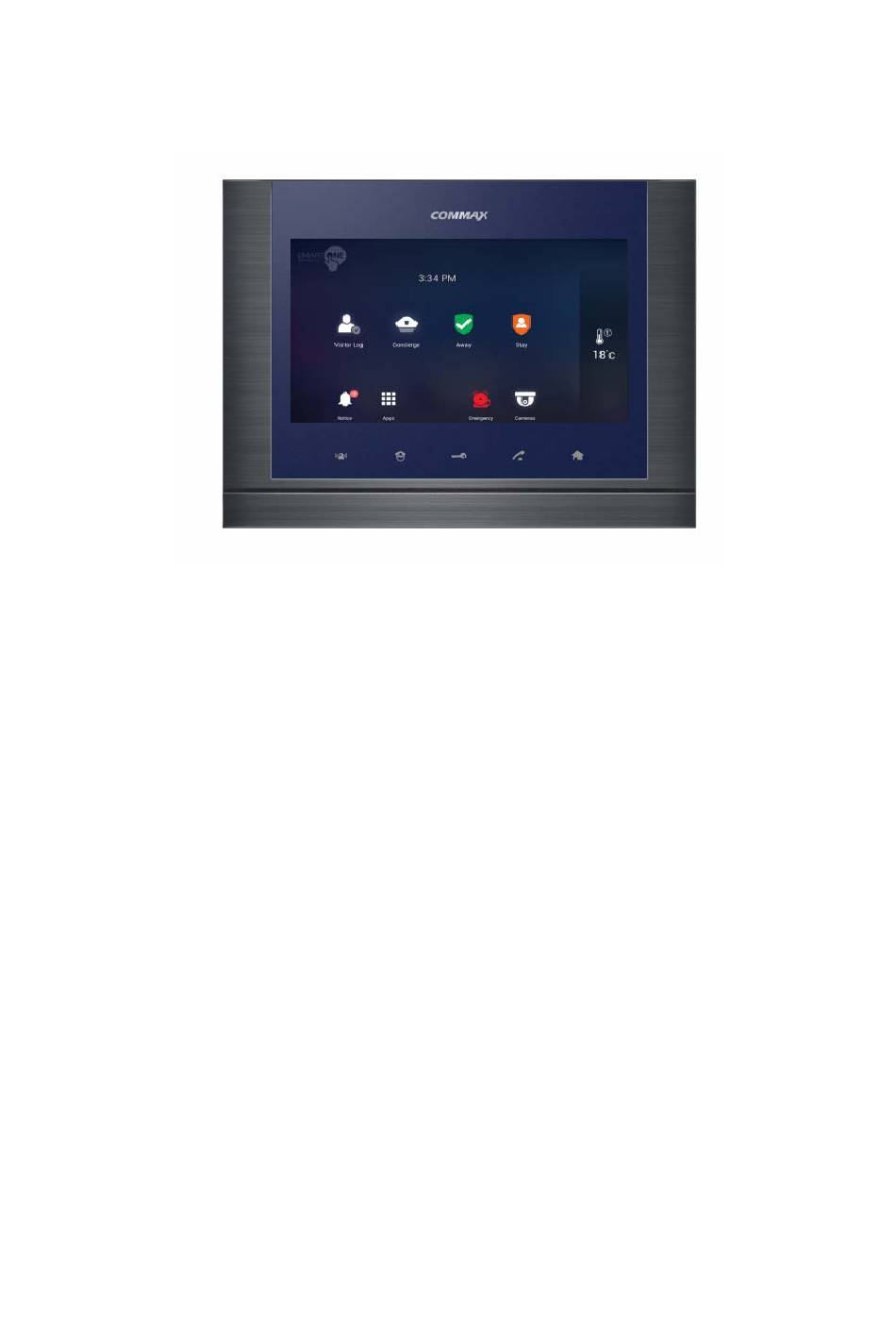

- Page 1 Home Network User Manual PMN: Wall PAD...
-
Page 2: Table Of Contents
Table of Contents Introduction ..............................3 Part name ............................. 3 Display composition ........................4 Screen Saver ............................5 1.1. Information provided from the screen saver ............5 Home Display ............................ 6 Notice ..............................7 Control ..............................8 4.1. FCU Control ......................... 8 Application ............................ -
Page 3: Introduction
Introduction Part name ① TFT LCD ⑩ PoE ② Speaker ⑪ PIR ③ Emergency button 1. Sensor_in, 2. GND, 3. VCC ④ Call guard station ⑫ EM ⑤ Door release button ⑬ RS-485 ⑥ Call button 1. TRX-, 2. TRX+, 3.GND ⑦... -
Page 4: Display Composition
Display composition Press the button Buttons at the Bottom Go to Home Back... -
Page 5: Screen Saver
1 Screen Saver We will provide information on the screen sequentially Press the screen saver to go to the home screen. 1.1. Information provided from the screen saver [Today's weather information] [Indoor humidity] [Indoor temperature] [Notice] ※ It is not provided when there is no information. ※... -
Page 6: Home Display

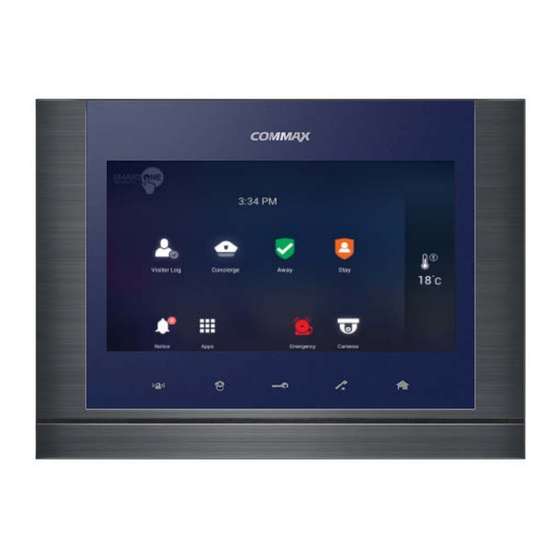

2 Home Display Check recorded images of visitors Visitor Log Calling the guard station Concierge Away mode Away Stay mode Stay Notice Notice The list of installed apps Apps Panic alert Emergency CCTV Camera Cameras... -
Page 7: Notice
3 Notice You can check the notices [Notices]... -
Page 8: Control
4 Control 4.1. FCU Control FCU Control Go to the [Indoor] tab. If cold/heating is in operation, the activated image is displayed, and if it do not work, the disabled image is displayed. You can turn on / off all cooling / heating machines by pressing the power button of "whole air conditioning / heating". - Page 9 FCU Away mode Go to the [Indoor] tab Press the ‘More’ button Press the "ON" button in the go-out mode to set the go-out mode. Both the cold / heater will be turned off. Pressing the "OFF" button in the go-out mode releases the go-out mode. The cold / heating machine will return to the status before going out.
-
Page 10: Application
5 Application... -
Page 11: Intercom
5.1. Intercom Calling the security guard station Guard ① ② ⑦ ④ ⑤ ③ ⑥ [The screen of calling connection and calling screen] ① Active Call and Call Waiting ④ Call Start ② Display of calling connection ⑤ Call refusal, Cancel ③... - Page 12 5.1.1. Common entrance Open the door for common entrance During the called of individual and common entrance please press (Door Open) the button. Recording visitor’s image from common entrance Press ‘Capture an image’ button while paging or calling. If successfully recorded, the visitor's photos which are confirmed visitors on the home screen will be displayed.
- Page 13 If you use the call transfer function during the guard station call, the guard station call is automatically terminated ※ Setting of security office -> Connect to COMMAX and control -> setting to number -> Security and management office can be settled.
-
Page 14: Security
5.2. Security Emergency in emergency situation Emergency operation Access control Access control 5.2.1. Emergency Emergency occurrence Emergency sensing An emergency occurs by the user or occurs automatically by the sensor Touch ‘Emergency’ button to send a notice of an emergency to Guard station. The emergency notice is processed in three steps such as ‘On’, ‘Off’, and ‘Reset’... - Page 15 [Password input]...
-
Page 16: Home History
5.3. Home History Viewing recorded images of visitors Visitor Log 5.3.1. Visitors Viewer Viewing recorded images of visitors from common entrance. [Viewing recorded images of visitors] Delete selected images Delete You can see where the picture was taken with the icon. -
Page 17: Etc
Deleting recorded images Touch ‘Delete’ button. Select images or all the images by checking ‘Select all’ box. Touch once more to uncheck the images or ‘Select all’ box. Touch ‘Delete’ button to delete selected images. 5.4. ETC Settings Settings User registration Sign Up 5.4.1. - Page 18 initialize If membership has been registered, pressing the "Reset" button deletes the registered member information.
-
Page 19: Away/Stay Mode
6 Away/Stay Mode [Away mode] [Sraty mode]... - Page 20 6.1.1. Away Away Mode The status display of going out setting When you go out, you can set up these functions security sensor, visitor recording, light off, close gas valve, indirect call etc. Away mode setting Press the icon, away mode will be started. The away mode will be executed automatically after the specified away delay time.
- Page 21 Press ‘confirm’ button to save. Restore Go Out mode Press “Go Out mode“ button When it appears on the password input screen, enter the password and click the 'confirm' button. If the passwords match, go out mode will be canceled.
- Page 22 ※ This function will be activated when the security devices have been installed. ※ You can set the using security sensors in ‘Setting>Connections COMMAX> Sensors’. Burglar sensor settings Check the security sensor to be set by pressing the 'Areas (②)' button.
-
Page 23: Appendix
7 Appendix 7.1. Using the Owner mobile app Login Enter the ID and password that you registered to in the Wallpad Press the "Login" button. Enter your nickname and Press the 'OK' button. In the home screen, you can select "Call Log", "Checking visitors", and "Setting". - Page 24 Issuing Access Keys Press the 'Apps' button on the Press the ‘Access Control’ button. home screen. Press the ‘Doors management’ button. ① ② ③ Press the "+" button and the “①”If there is more than one key that access key will be issued. has been issued, you can move it by checking the left / right page.
- Page 25 Guest Visit Key Issued Press ‘Visitor registration’ Press the ‘Request’ button. button. The issued authentication key will be notified by phone or SMS to the guest within 3 minutes. When the validity time has elapsed, the authentication key is reissued. Press ‘Visitor management’...
- Page 26 The visitor access notice message When an owner and guests visit, a push message is provided on the mobile. Notification push messages is displayed as nickname entered you signed up.
-
Page 27: Using The Guest Mobile App
7.2. Using the Guest mobile app Login Press the ‘Visitor Sign-in’ button. Enter ‘Visitor Name’, ‘ID’, ‘Password’, ‘Retype password’. Press the ‘Next’ button. Press the ‘Login’ button when the registration is completed. - Page 28 Enter the nickname to use and Press the ‘Confirm’ button.
- Page 29 Request a visit key Press the "+" button to request a visit key. Enter the authentication key received from the owner. When the owner confirms and releases the access key, the access key is displayed. “①”The expiration date of the access key is displayed.
-
Page 30: Etc
7.3. Etc Door Open Touch the keypad on the door lock (DDL). If the "Auto Setup" is set, the door automatically opens. If "Auto Access" has not been set, you can press the "Door open" button on the Mobile Appliance to enter or exit. - Page 31 PRODUCT MODLE CIP-700MW SPEC LINE UTP (CAT.5e) VOLTAGE INPUT : PoE DC 48V TELECOMUNNICATION AUDIO : VoIP, VIDEO : H.264 STANDARD UTP (CAT.5e) 70m LINE & DISTANCE (FROM THE PSE) TEMPERATURE 0℃ ∼ +40℃ SPECIFICATION Dual-Core ARM Cortex-A7 MEMORY 1G DDR3 RAM (512M *2) FLASH 4G eMMC Flash 7”...
- Page 32 INSTALLATION PACKAGE CONTENTS. WALL BRACKET MONITOR (CIP-700MW) MANUAL (T) 4 x 18mm (M) 3 x 6mm 3P(1EA)/2P(1EA) WALL BRACKET MONITOR FIXING CONNECTOR MOUNTING SCREW(4EA) SCREW(1EA)
- Page 33 FCC Compliance Statement This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.
- Page 34 This equipment should be installed and operated with minimum 20 cm between the radiator and your body. Cet équipement doit être installé et utilisé avec un minimum de 20 cm entre le radiateur et votre corps. Industry Canada Statement This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) This device may not cause interference.
